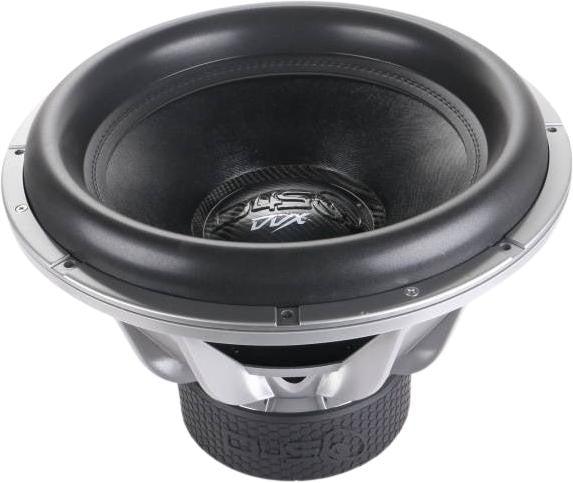

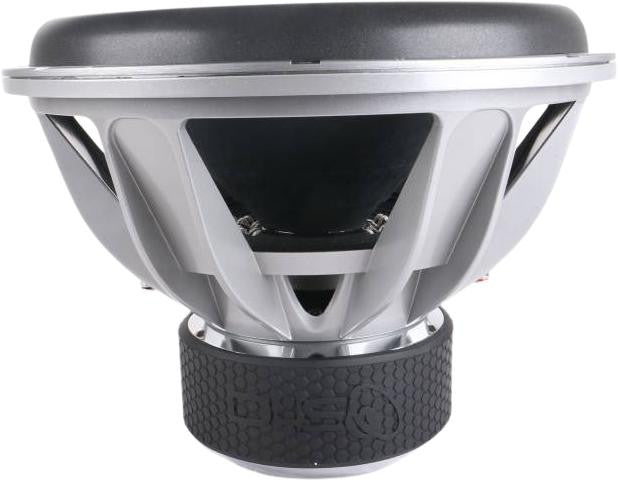

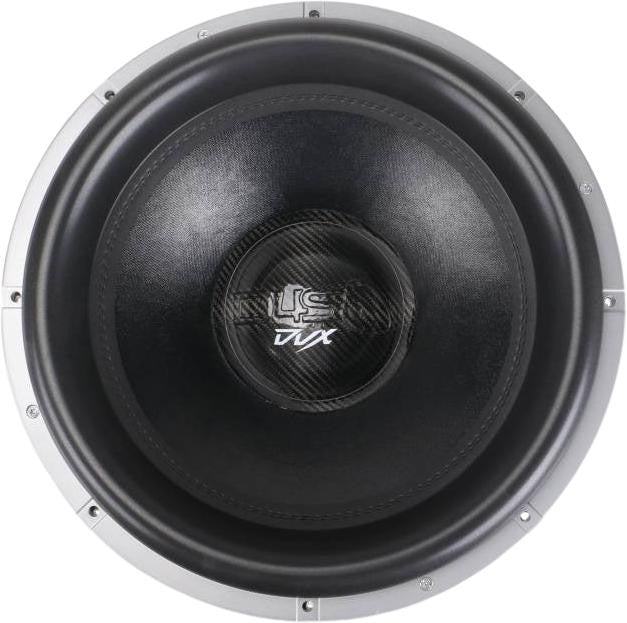

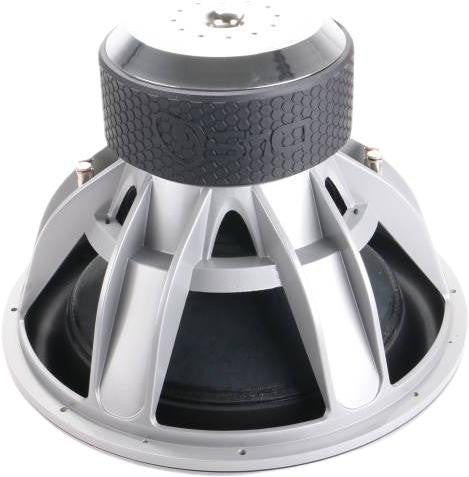

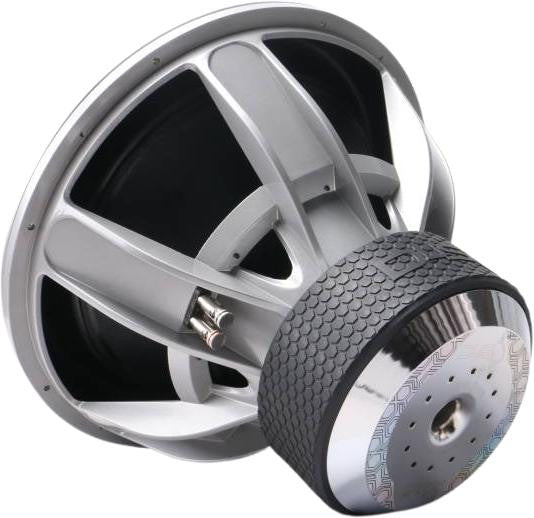

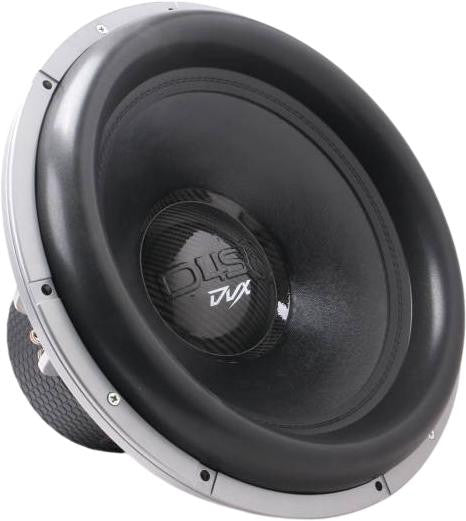

Down4Sound DVX 18" Subwoofer 1700W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The DOWN4SOUND DVX-18 D4 is engineered for listeners who demand authoritative, precise, and durable low-frequency performance. Built with a massive high-strength motor, extended mechanical throw, and a real premium carbon fiber dustcap, the DVX-18 delivers exceptional output and accuracy suitable for daily driving, demonstration builds, and high-power systems.
This model provides a true 1700W RMS power rating and a dual 4-ohm voice coil configuration for flexible amplifier matching and wiring options. Every component is designed for efficiency, cooling, and long-term reliability under significant sound pressure levels.
Key Features
- 1700W RMS power handling
- Dual 4-ohm voice coil design
- 3-inch high-temperature voice coil
- 33 mm one-way Xmax for extended linear travel
- Full carbon fiber dustcap for strength and rigidity
- Advanced venting throughout the motor structure for improved cooling
- 68-lb heavy-duty construction designed for extreme output applications
- 8.66-inch (220 mm) motor diameter
- Highly extended pole piece for increased linear throw
- Pole vent flared on both ends for superior airflow and low noise
Technical Specifications (T/S Parameters)
-
Revc (DC Resistance)
6.050 ohm -
Resonance Frequency (Fs)
28.036 Hz -
Qms
3.012 -
Qes
0.659 -
Qts
0.541 -
Mms (Moving Mass)
492.526 g -
Cms (Compliance)
56.483 μm/N -
Rms (Mechanical Resistance)
0.803 -
Vas
119.508 L - Sd: 113.411 cm²
-
BL Product
28.212 T·m -
Sensitivity (SPL)
87.9 dB -
Xmax
33 mm -
Displacement
0.23 cu ft
Engineering and Construction
- Extended pole piece for improved linear performance and mechanical control
- Dual-flared pole venting for low-noise airflow and efficient heat removal
- Rear gap ventilation for reduced voice coil temperatures during sustained playback
- 8.66-inch (220 mm) motor diameter for substantial magnetic strength
- Long-fiber spider system for reliable, consistent suspension behavior
- Carbon fiber dustcap for reduced moving mass and enhanced rigidity
Recommended Enclosure
Ported Enclosure
-
Volume
7 cubic feet (net) -
Tuning Frequency
28–32 Hz
This alignment provides deep low-frequency extension, high output, and low distortion suitable for daily music listening and large-cabin high-power builds.
Physical Dimensions
-
Cutout Diameter
17.00 in (431.8 mm) -
Mounting Depth
11.81 in (300 mm) -
Outside Diameter
18.49 in (469 mm) -
Motor Diameter
8.66 in (220 mm) -
Weight
68 lb
Why Choose the DVX-18 D4
- Extreme output capability with accurate, controlled low-frequency reproduction
- Durable construction optimized for long-term performance in demanding systems
- Flexible wiring thanks to the dual 4-ohm voice coils
- Real carbon fiber dustcap adds both structural strength and a premium appearance
- Designed for users who require deep, powerful bass without sacrificing clarity
Ideal Applications
- Large-cabin daily music systems
- High-power demo builds
- Trunk, wall, or 4th/6th-order enclosures
- SQL (Sound Quality Loud) and SPL-leaning setups
- Users seeking strong low-end response in the 25–45 Hz range
