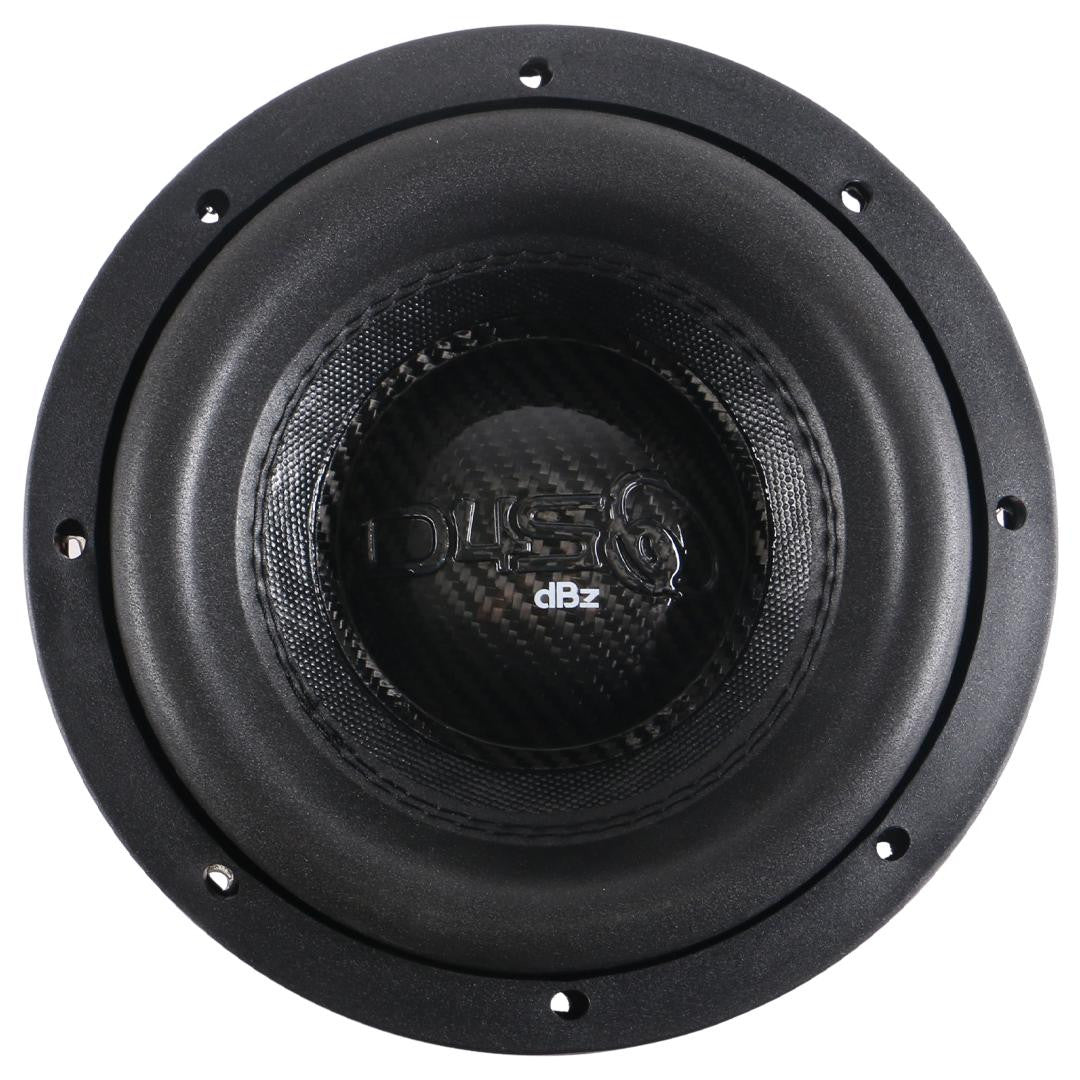

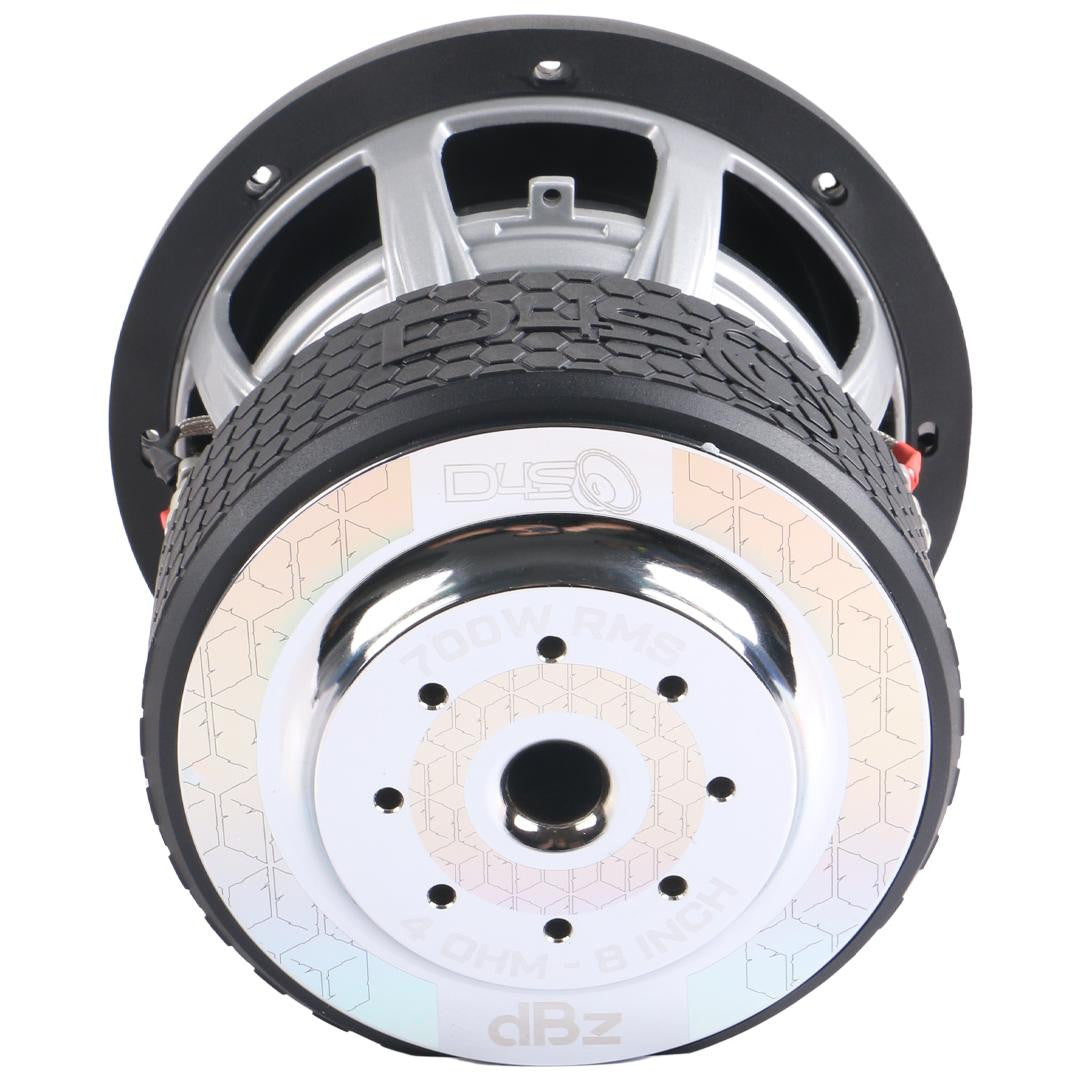

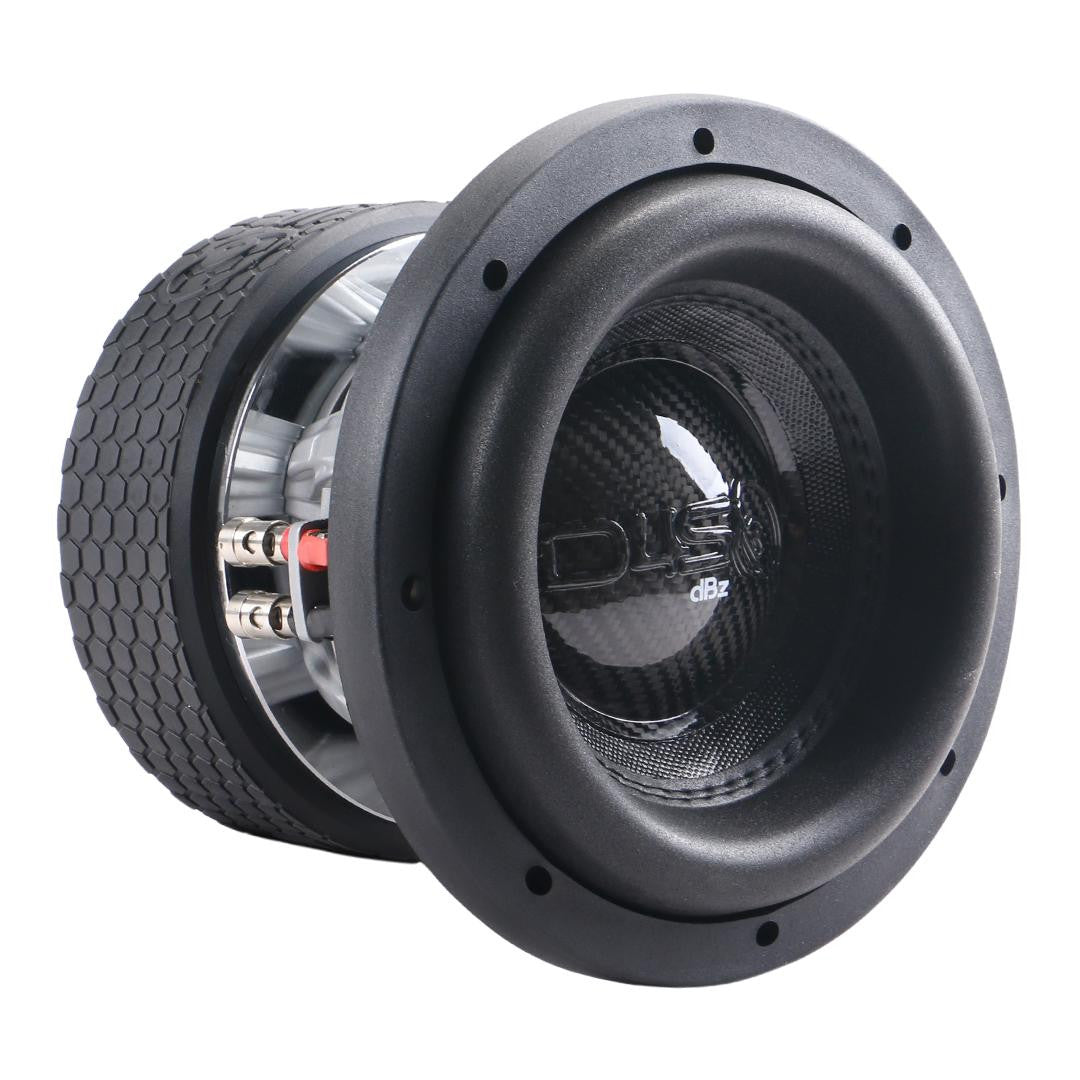

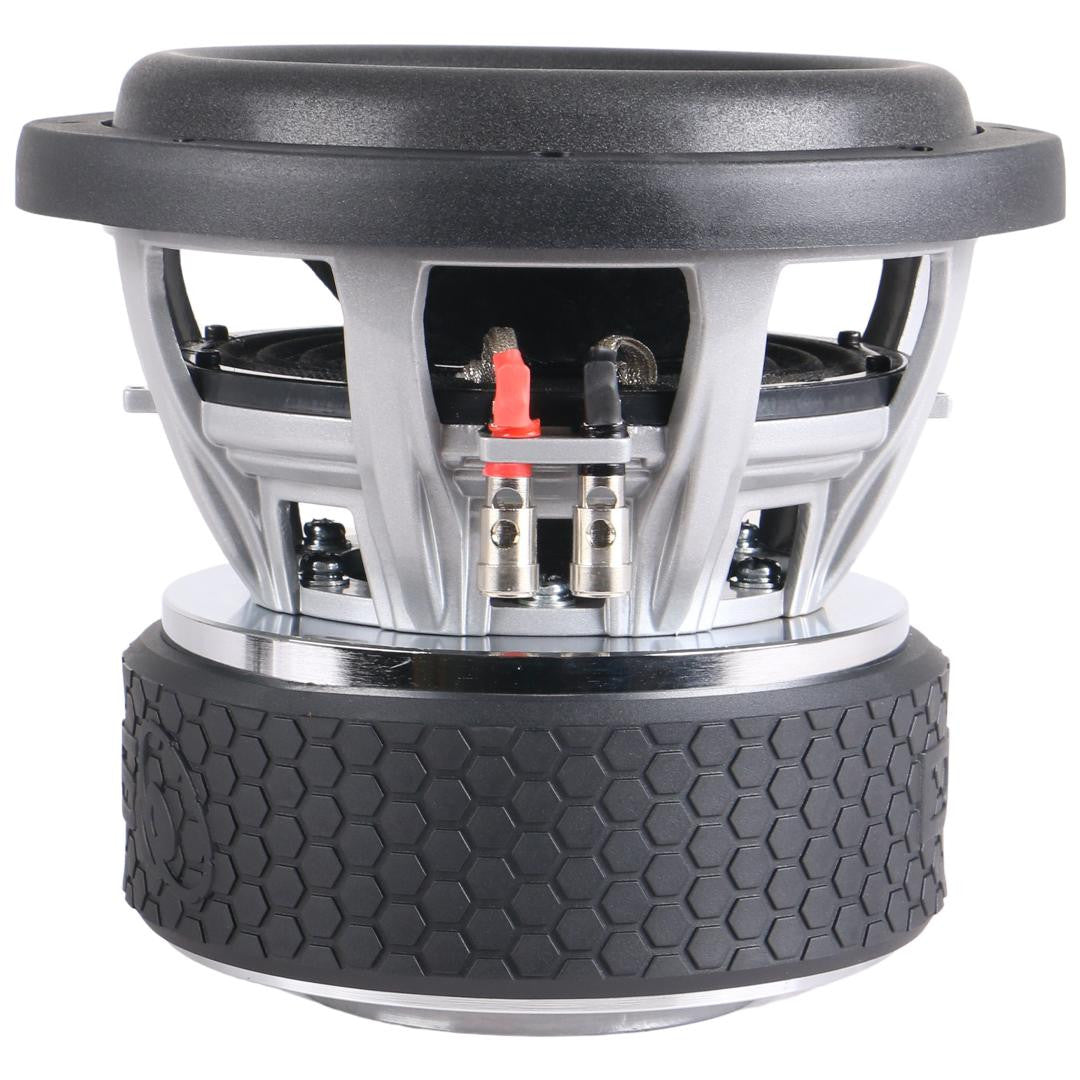

Down4Sound DBZ 8" Subwoofer 700W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The DOWN4SOUND DBz-8 D4 is the ultimate budget banger designed to deliver exceptional performance and value. With a true 700W RMS power rating, this subwoofer provides big, punchy bass without the big price tag. Featuring a dual 4-ohm voice coil configuration, the DBz-8 offers versatile wiring options and strong output in compact enclosures. The real carbon fiber dustcap adds a premium aesthetic while increasing structural rigidity and performance.
Every component is engineered for efficiency, durability, and long-term reliability, making the DBz-8 D4 an ideal upgrade for daily drivers, small-space installs, or budget-friendly high-output systems.
Key Features
- 700W RMS power handling
- Dual 4-ohm voice coil design
- 2.5-inch high-temperature voice coil
- 21 mm Xmax for impressive linear travel
- Real carbon fiber dustcap for strength, rigidity, and premium appearance
- Advanced venting throughout the motor structure for improved cooling
- Heavy-duty construction optimized for compact high-output performance
Technical Specifications (T/S Parameters)
-
Revc (DC Resistance)
6.400 ohm -
Resonance Frequency (Fs)
46.157 Hz -
Qms
1.895 -
Qes
0.618 -
Qts
0.466 -
Mms (Moving Mass)
202.138 g -
Cms (Compliance)
57.318 μm/N -
Rms (Mechanical Resistance)
0.757 -
Vas
3.290 L - Sd: 210.105 cm²
-
BL Product
24.797 T·m -
Sensitivity (SPL)
79.2 dB -
Xmax
21 mm -
Displacement
0.07 cu ft
Engineering and Construction
- Compact, efficient motor engineered for strong output
- Rear gap ventilation for improved coil cooling and reduced thermal compression
- Reinforced suspension system for stable high-excursion performance
- Real carbon fiber dustcap enhances rigidity and prevents deformation
- Precision-wound 2.5" coil supports high power levels without heat fatigue
- Built to provide maximum performance at an affordable cost
Recommended Enclosures
Sealed Enclosure
- 0.3 – 0.4 cu ft (net)
Ported Enclosure
- 0.75 – 1.0 cu ft (net)
-
Recommended Tuning
32 Hz -
Recommended Port Area
9 – 15 sq in total
Physical Dimensions
-
Cutout Diameter
7.32 in (186 mm) -
Mounting Depth
6.61 in (168 mm) -
Outside Diameter
8.71 in (221 mm) -
Motor Diameter
6.69 in (170 mm) -
Net Weight
23.6 lb (10.7 kg) -
Gross Weight
26.9 lb (12.2 kg)
Why You Should Buy the DBz-8 D4
- High-quality bass on a budget
- Compact 8" form factor with strong low-end output
- Dual 4-ohm coils allow flexible wiring options
- Carbon fiber dustcap adds strength and a premium aesthetic
- Perfect blend of affordability, power, and durability
Ideal Applications
- Daily-driven bass systems requiring big sound in tight spaces
- Builds tuned in the 28–35 Hz range, where the DBz-8 produces deep, rolling lows that come alive with real cabin gain
- Compact ported enclosures, under-seat installs, hatchbacks, and small SUV systems
- SQL-style daily setups emphasizing strong midbass punch with usable low-end authority
- Users wanting responsive, aggressive bass performance without needing a large enclosure
