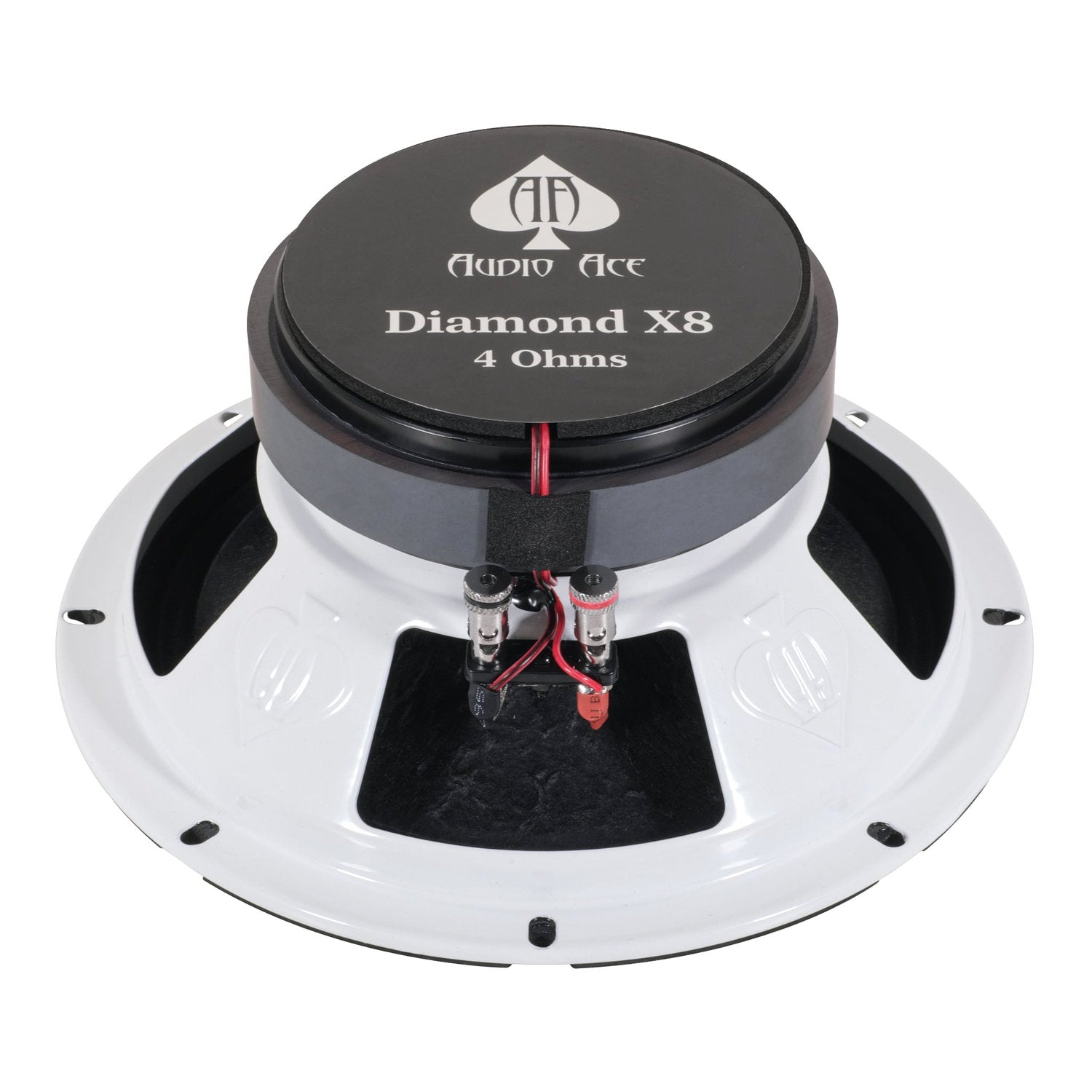

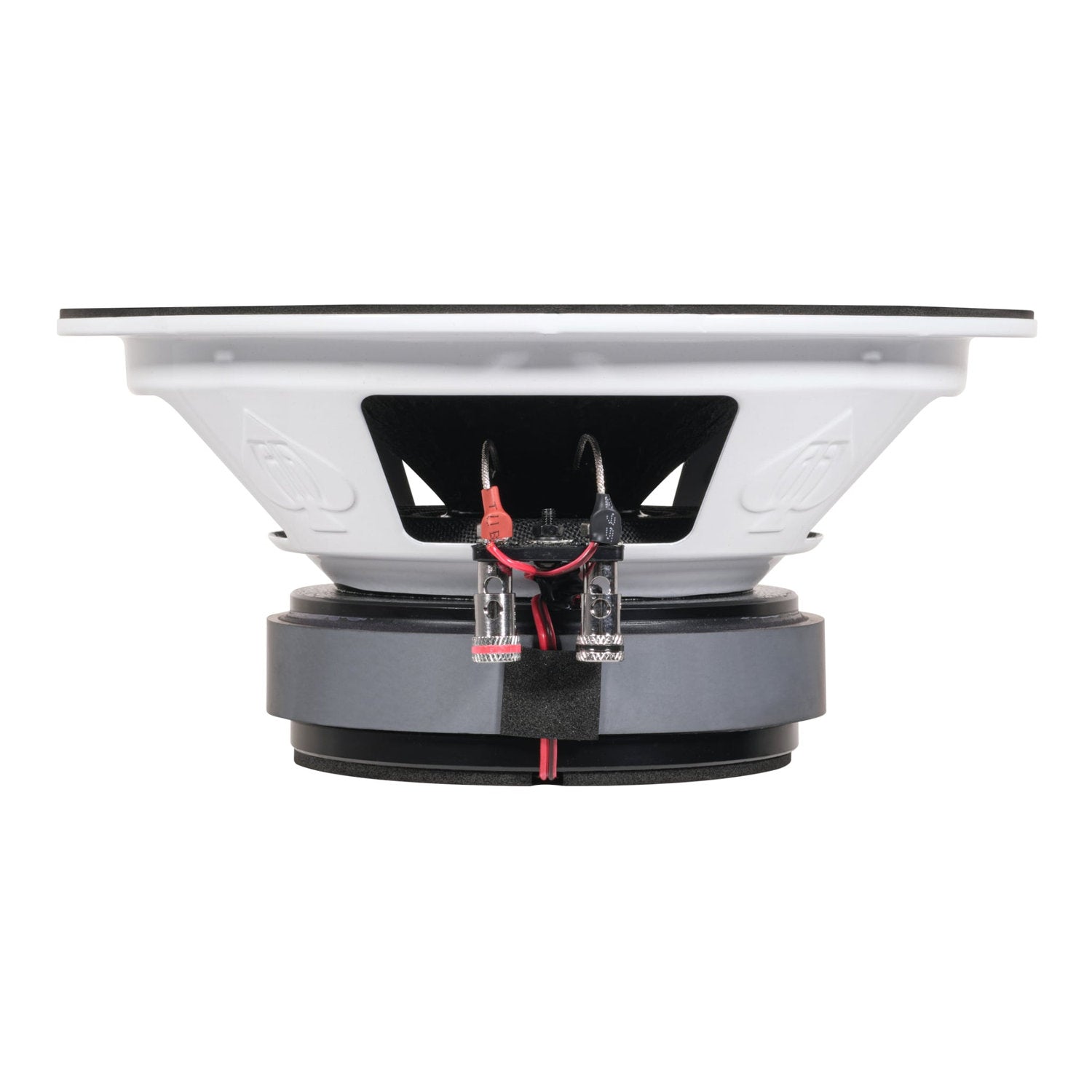

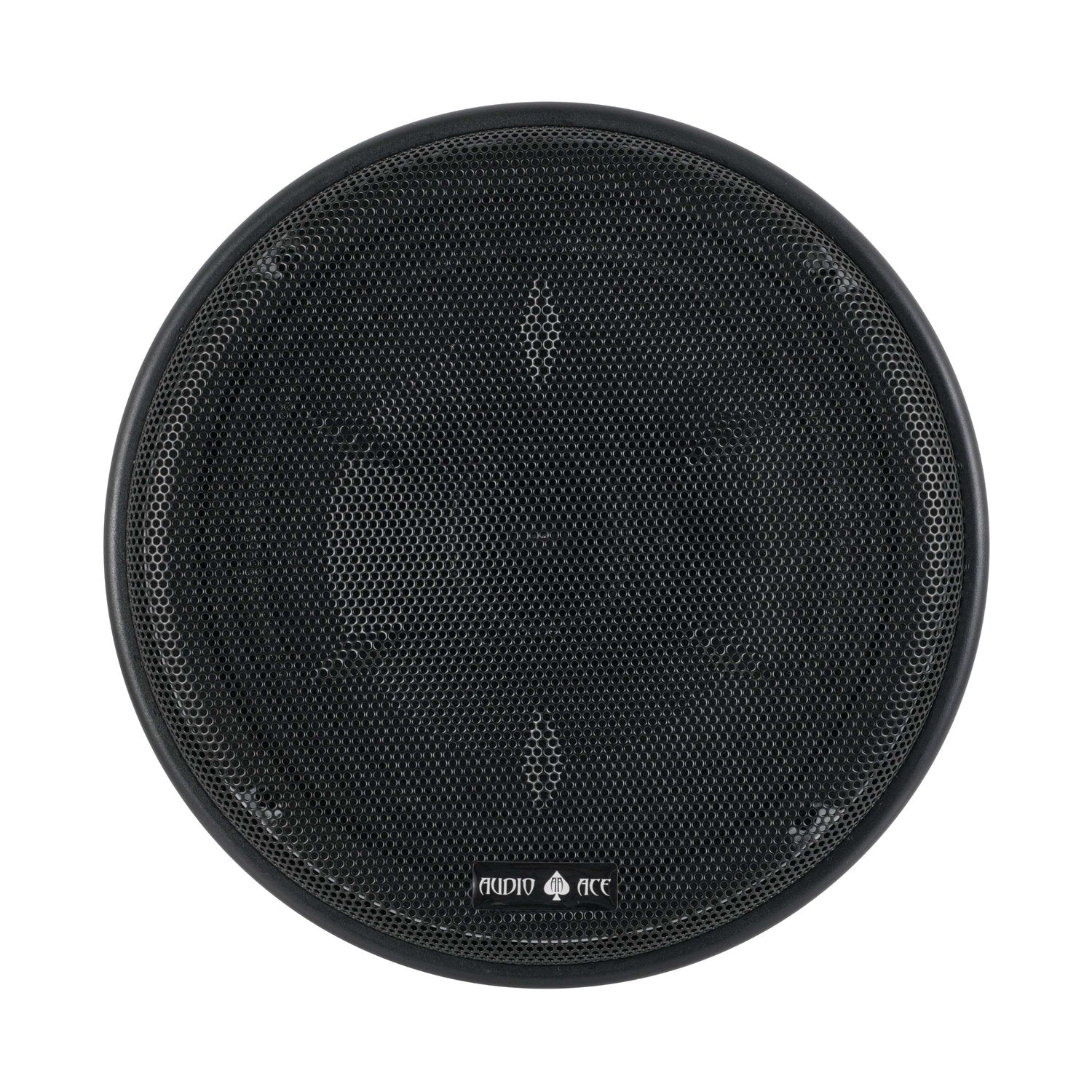

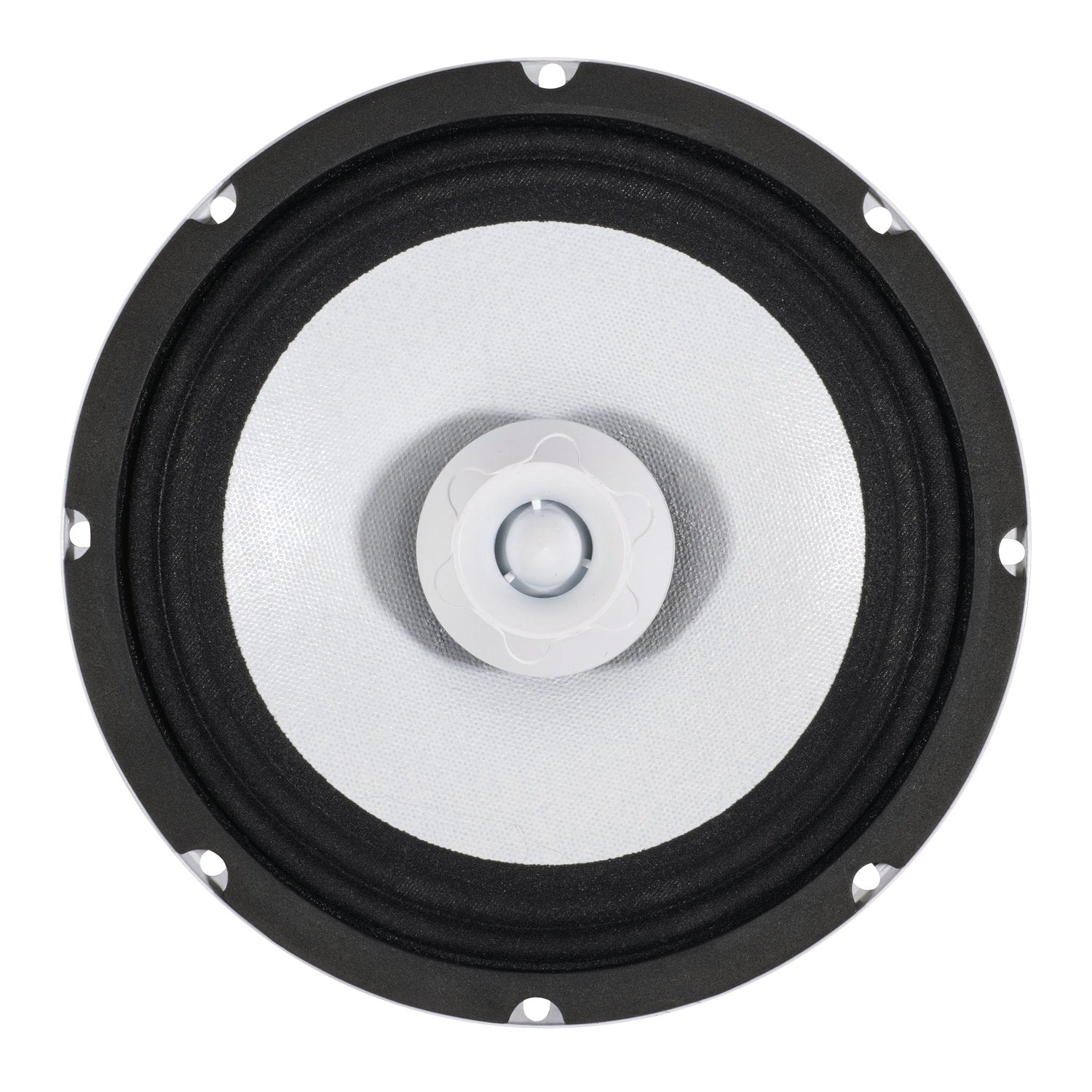

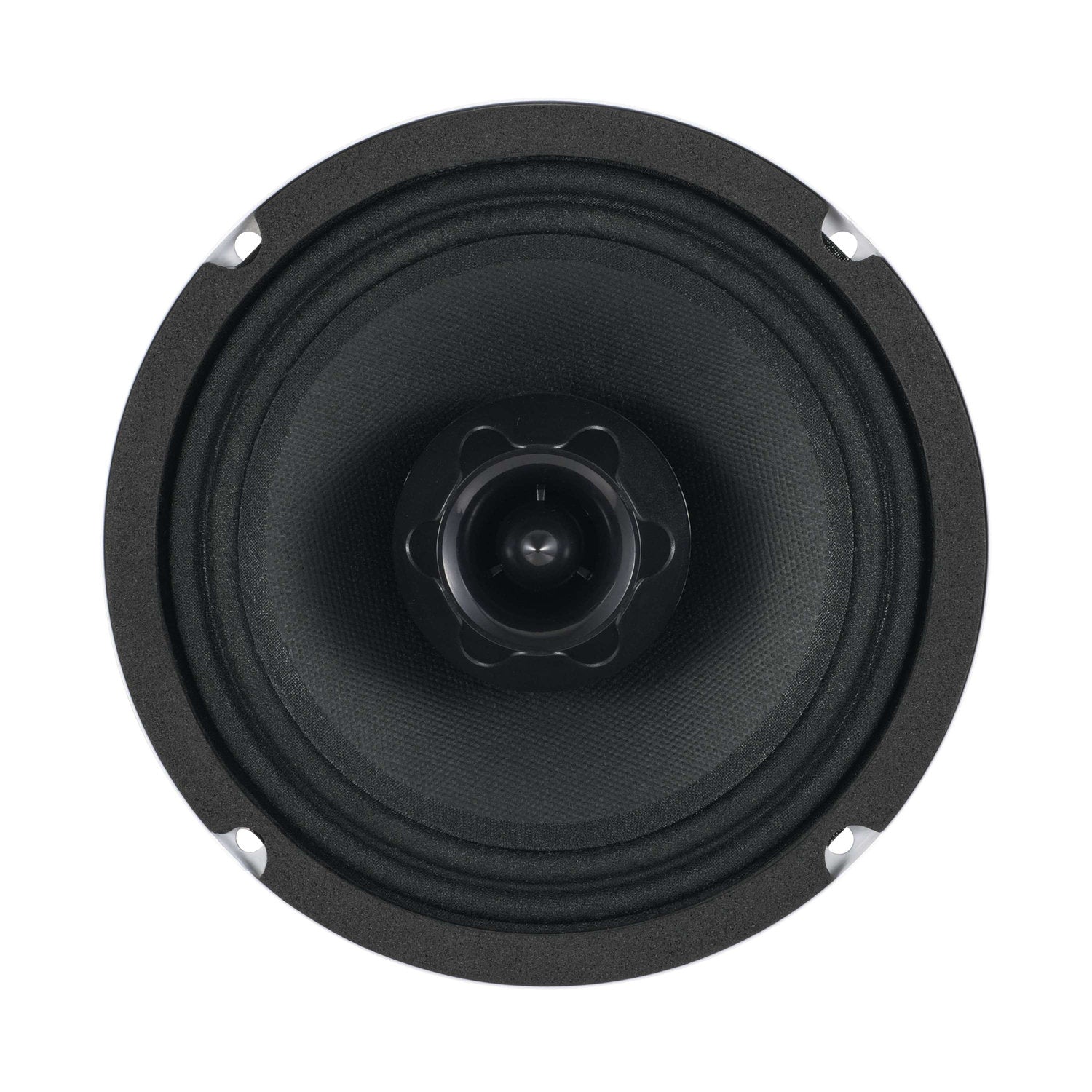

Audio Ace Diamond X8 180W RMS Pro Audio Coaxial Speakers (Pair)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20Pair%20%E2%80%94%20Audio%20Ace%20Diamond%20X8%20Pro%20Audio%20Coaxial%20Speakers%20(two%20matched%20speake...
){kind=link}
- RMS Power — 180W
- Voice Coil — 1.52"
- Impedance — 4 Ohm
- Sensitivity — 98 dB
- Motor — 34.3 oz
This Listing Includes: (1) Pair — Audio Ace Diamond X8 Pro Audio Coaxial Speakers (two matched speakers)
The Audio Ace Diamond X8 is a high-efficiency coaxial conservatively rated at 180W RMS, delivering PA-style output in a car audio system. Available in black or white. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- High-efficiency pro-audio coaxial
- 1.52" voice coil
- 98 dB sensitivity
- 34.3 oz motor

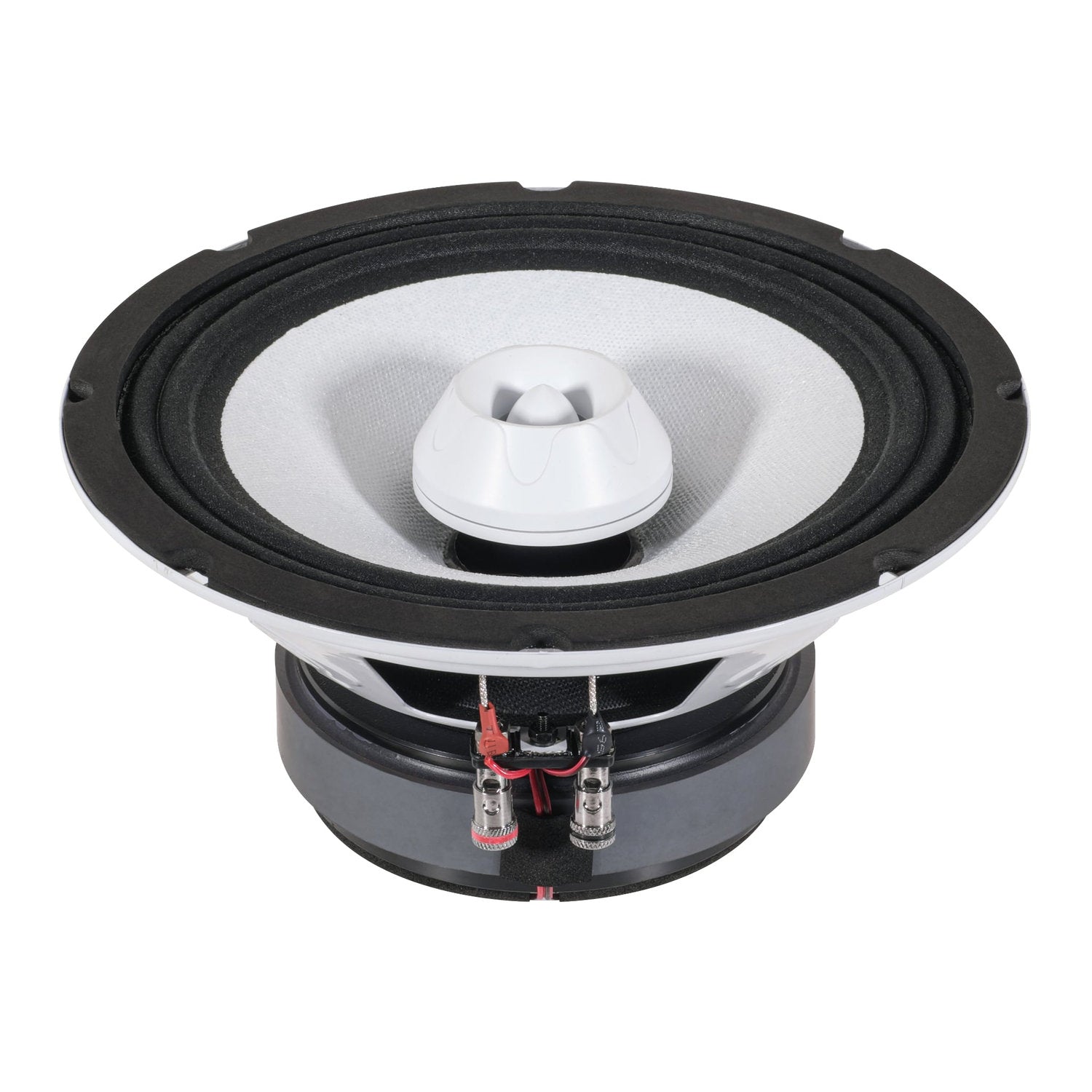

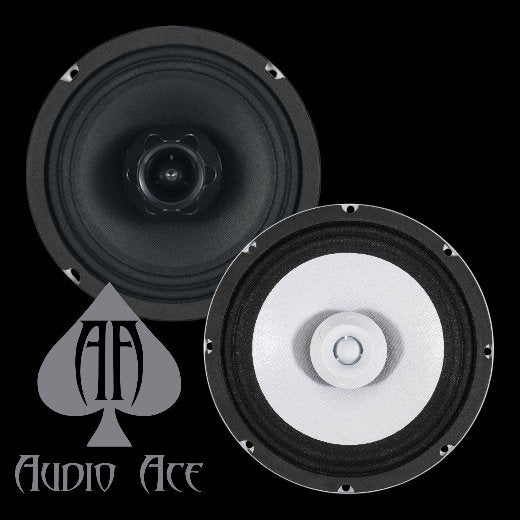

- Available in black or white — sold in pairs
Specifications
| RMS Power | 180W |
| Voice Coil | 1.52" |
| Impedance | 4 Ohm |
| Sensitivity | 98 dB |
| Motor | 34.3 oz |
| Mounting Depth | 3.625" |
| Overall Diameter | 8.25" |
| Frequency Range | 80 Hz – 20 kHz |
| Fs | 88 Hz |
| Qes | 0.373 |
| Qms | 5.848 |
| Qts | 0.351 |
| Sd | 213.82 cm² |
| SPL | 98 dB |
| BL | 8.323 |
| Xmax | 1.75 mm |
