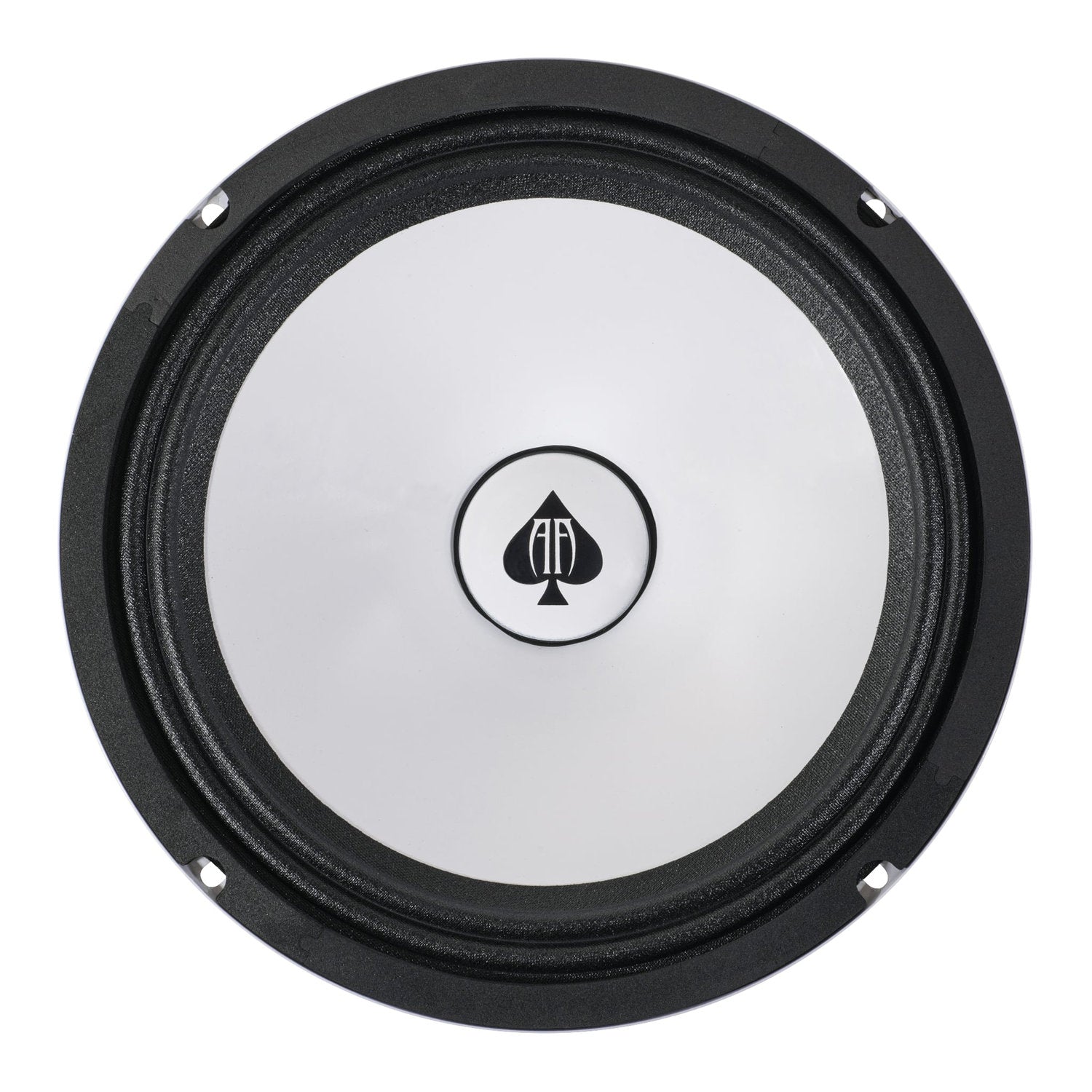

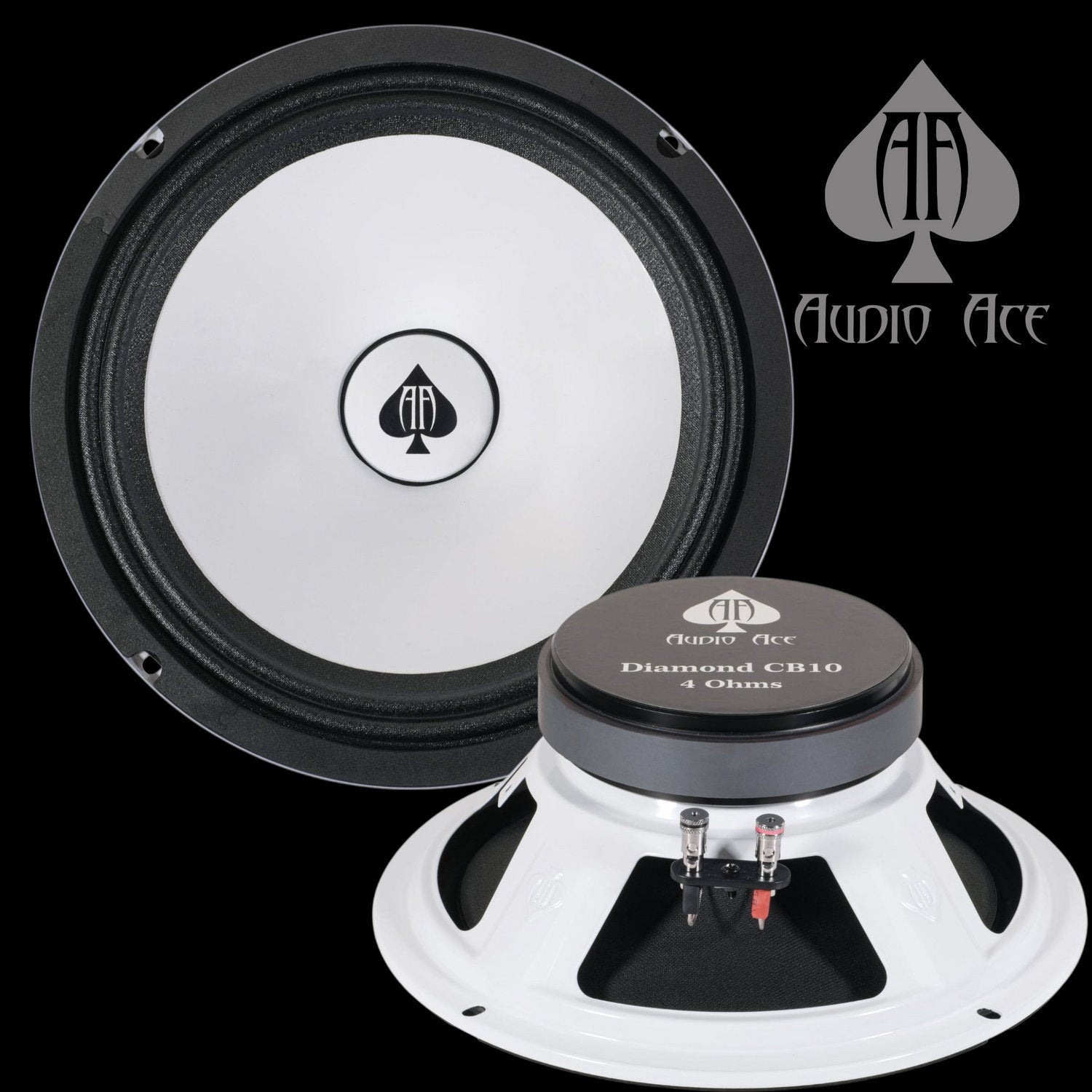

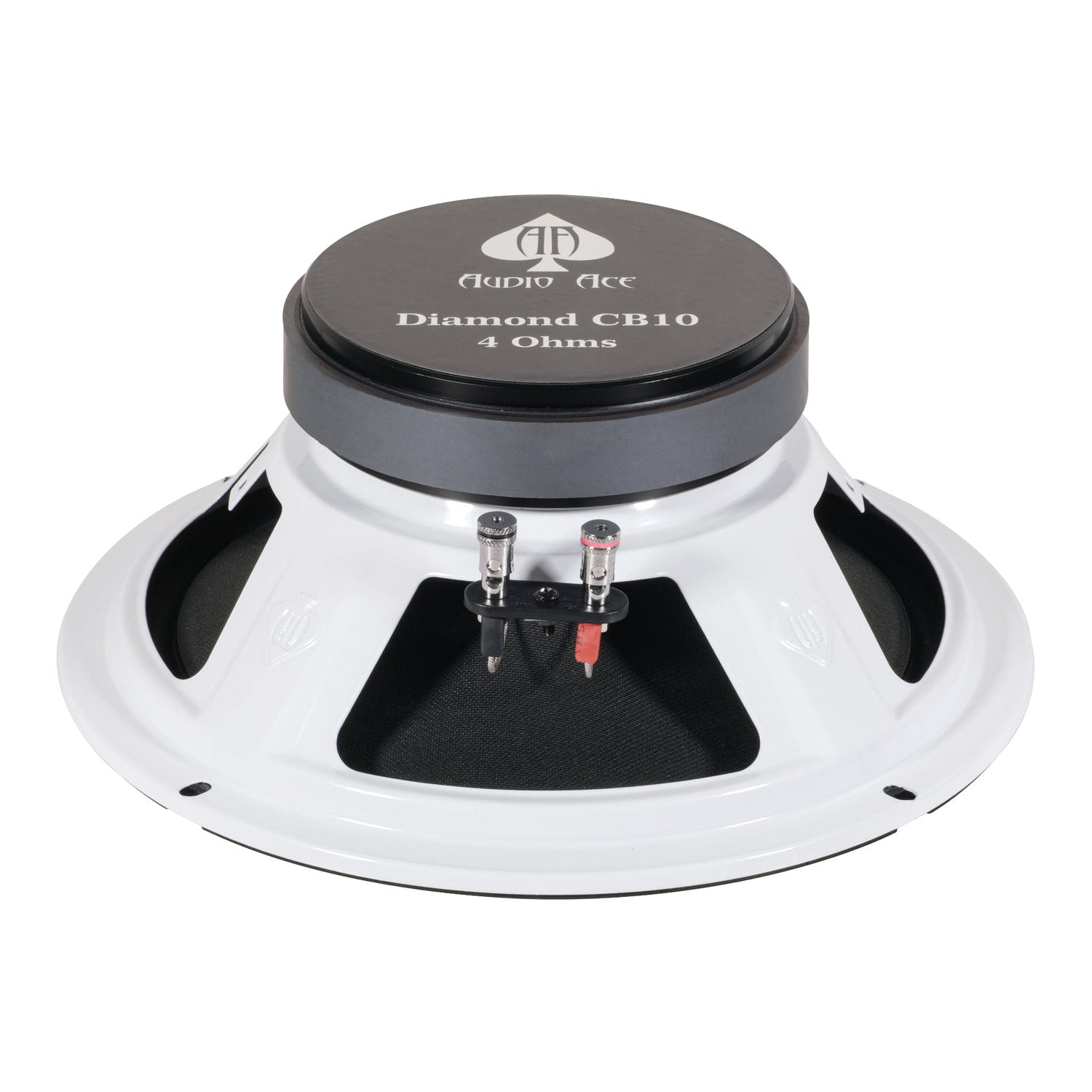

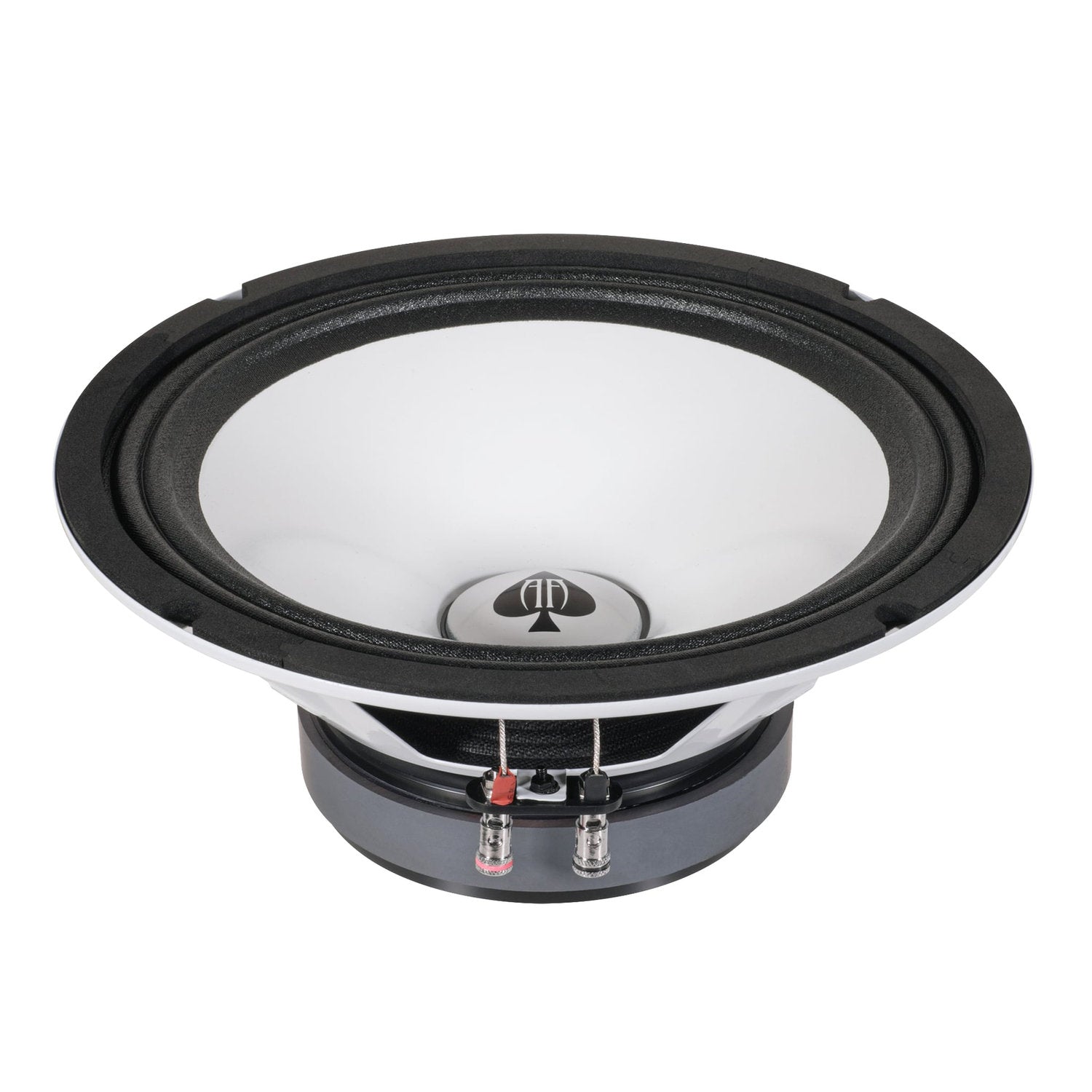

Audio Ace Diamond CB10 250W RMS Pro Audio Midrange Speakers (Pair)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20Pair%20%E2%80%94%20Audio%20Ace%20Diamond%20CB10%20Pro%20Audio%20Midrange%20Speakers%20(two%20matched%20speakers)The%20Audi...
){kind=link}
- Size — 10"
- RMS Power — 250W
- Voice Coil — 2"
- Impedance — 4 Ohm
- Motor — 40 oz
This Listing Includes: (1) Pair — Audio Ace Diamond CB10 Pro Audio Midrange Speakers (two matched speakers)
The Audio Ace Diamond CB10 is a 10-inch pro-audio midrange built to bring PA-style output and projection into a car audio system, handling more power and playing louder than most midranges in its class. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2" voice coil
- 40 oz motor
- 95 dB sensitivity
- Custom-tooled basket with Audio Ace logo
- Sold as a pair

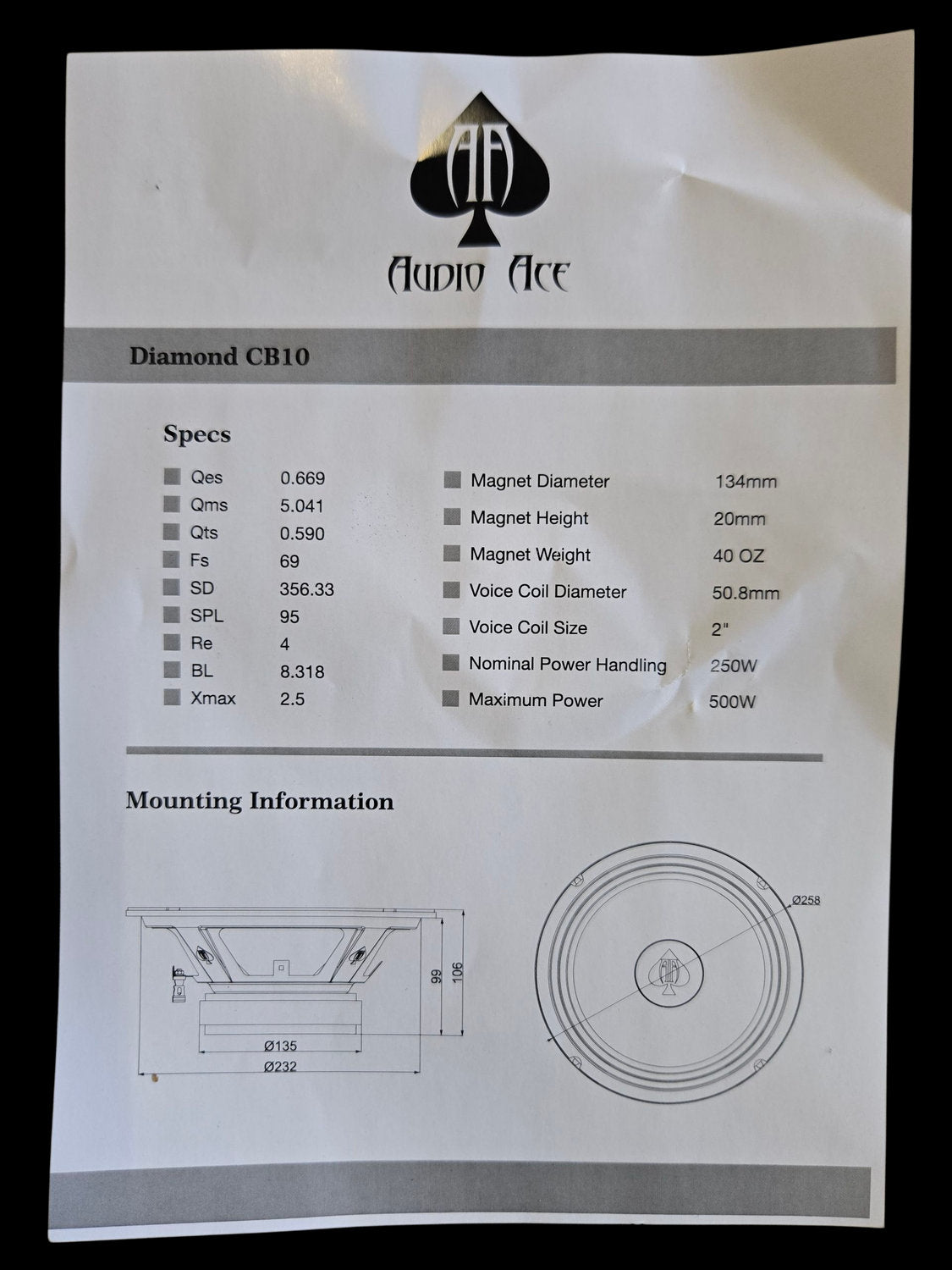

Specifications
| Size | 10" |
| RMS Power | 250W |
| Voice Coil | 2" |
| Impedance | 4 Ohm |
| Motor | 40 oz |
| Sensitivity | 95 dB |
| Mounting Depth | 3.89" |
| Frequency Range | 80 Hz – 12 kHz |
| Fs | 69 Hz |
| Qes | 0.669 |
| Qms | 5.041 |
| Qts | 0.590 |
| Sd | 356.33 cm² |
| BL | 8.318 |
| Xmax | 2.5 mm |
