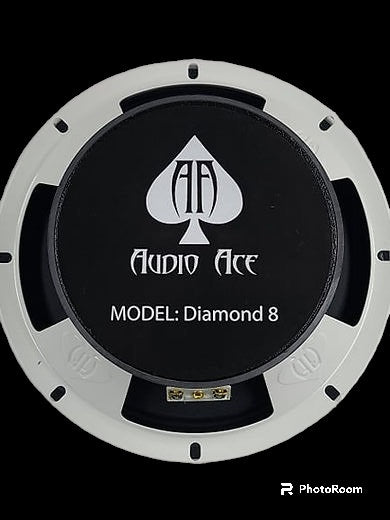

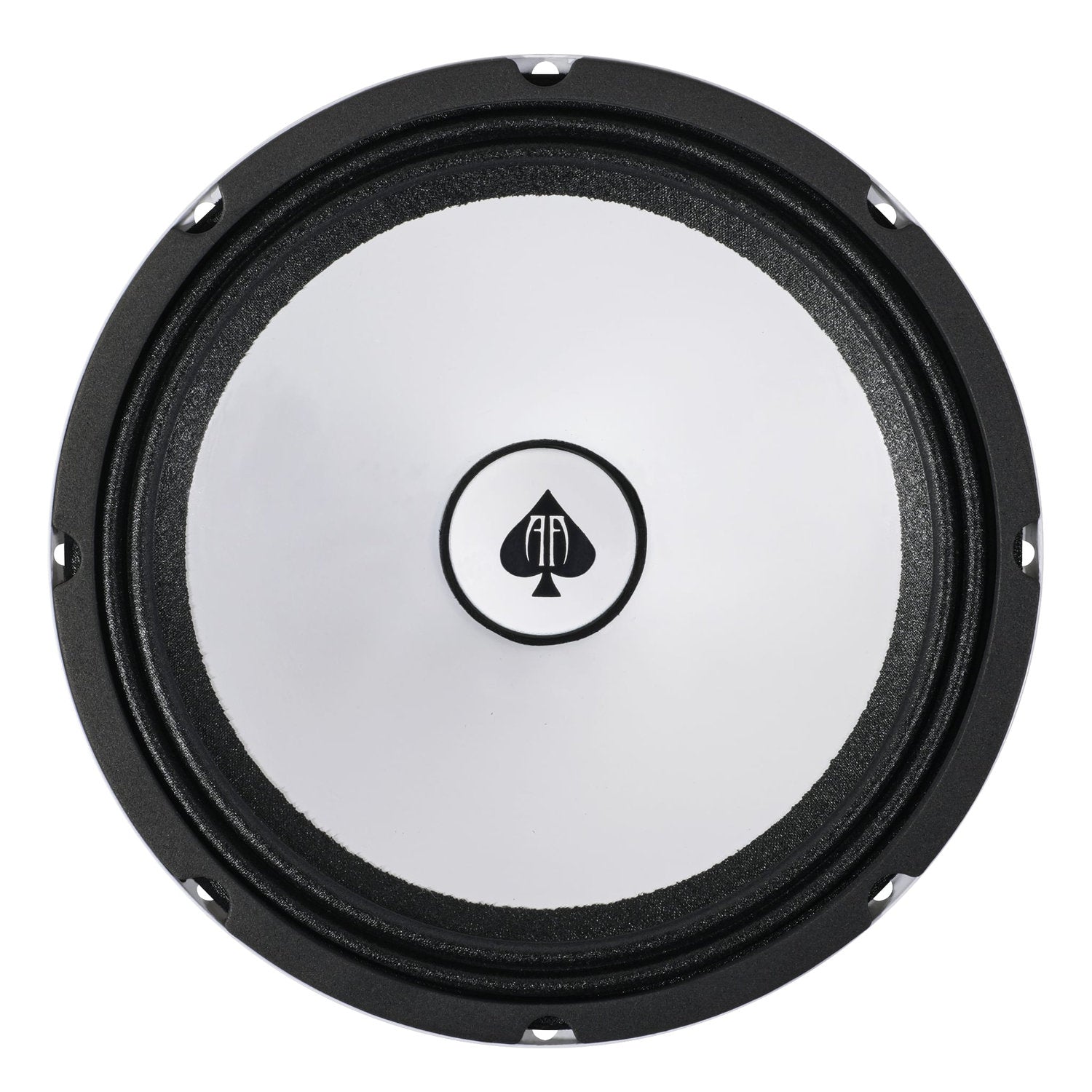

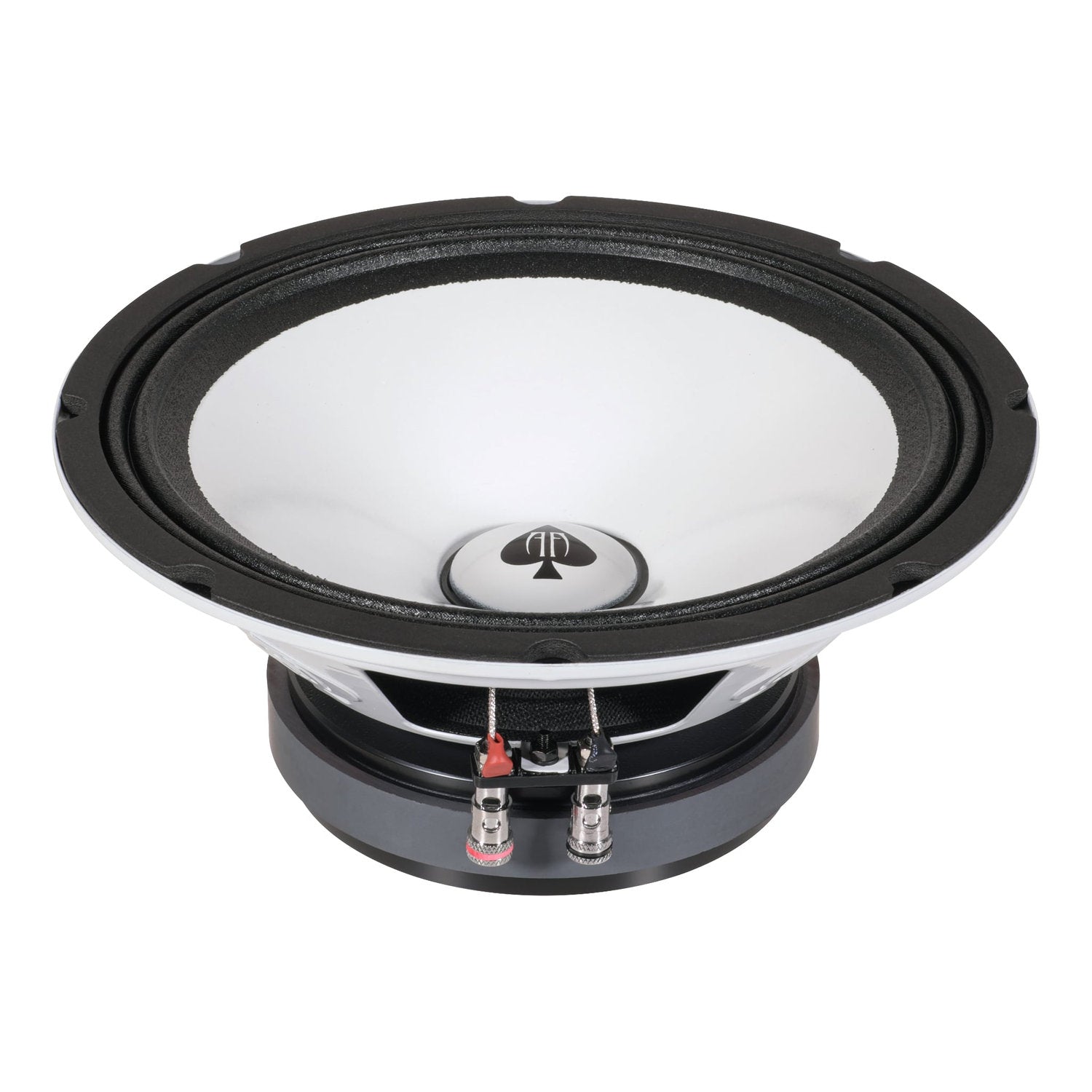

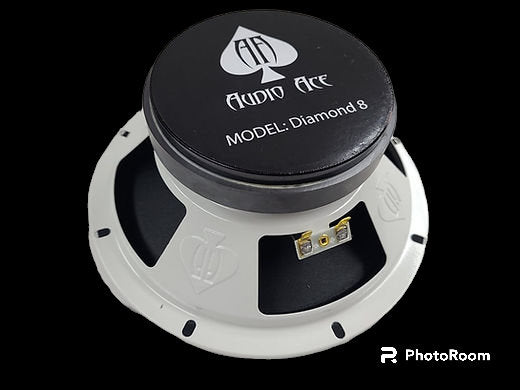

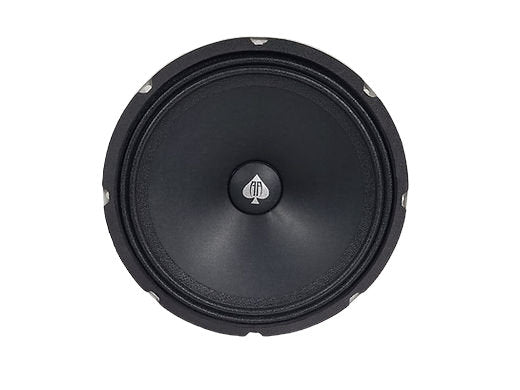

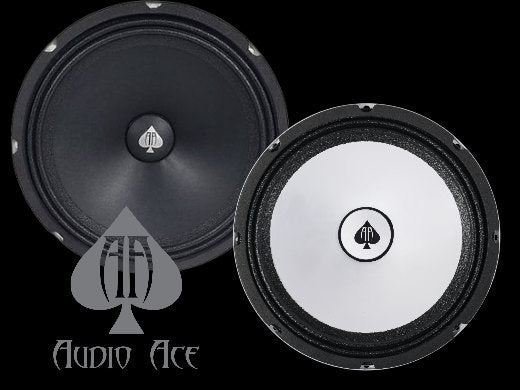

Audio Ace Diamond 8" 180W RMS Pro Audio Midrange Speakers (Pair)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20Pair%20%E2%80%94%20Audio%20Ace%20Diamond%208%22%20Pro%20Audio%20Midrange%20Speakers%20(two%20matched%20speakers)The%20Aud...
){kind=link}
- Size — 8"
- RMS Power — 180W
- Voice Coil — 1.52"
- Impedance — 4 Ohm
- Magnet — 26 oz
This Listing Includes: (1) Pair — Audio Ace Diamond 8" Pro Audio Midrange Speakers (two matched speakers)
The Audio Ace Diamond 8 is a pro-audio midrange driver designed to deliver PA-style output in a car audio environment, handling more power and playing louder than most midranges in its class. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 1.52" voice coil
- 26 oz magnet
- 94 dB sensitivity
- Custom-tooled basket with Audio Ace logo
- Sold as a pair

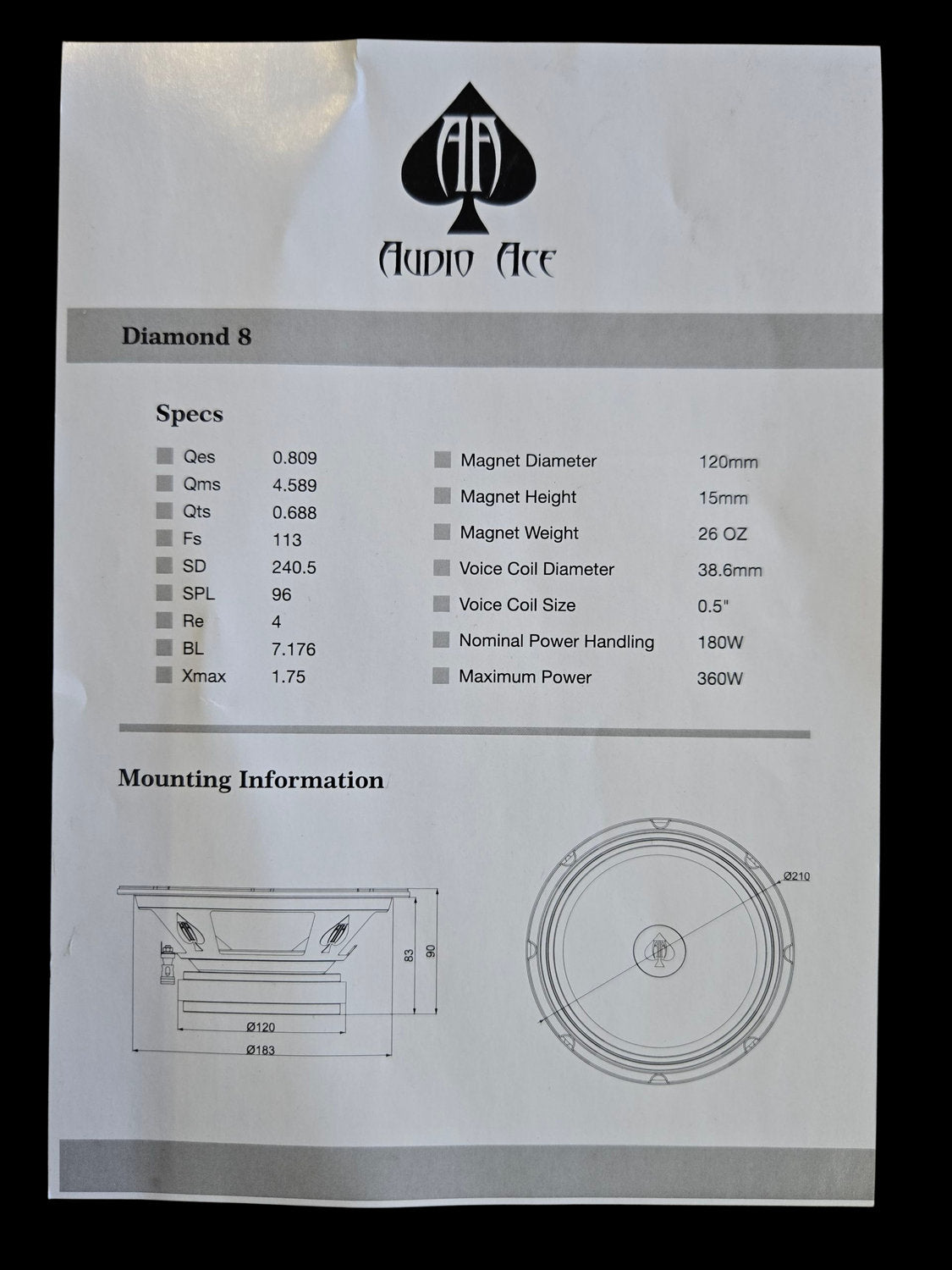

Specifications
| Size | 8" |
| RMS Power | 180W |
| Voice Coil | 1.52" |
| Impedance | 4 Ohm |
| Magnet | 26 oz |
| Sensitivity | 94 dB |
| Mounting Depth | 3.25" |
| Overall Diameter | 8.25" |
| Frequency Range | 80 Hz – 13 kHz |
| Fs | 113 Hz |
| Qes | 0.809 |
| Qms | 4.589 |
| Qts | 0.688 |
| Sd | 240.5 cm² |
| SPL | 96 dB |
| BL | 7.176 |
| Xmax | 1.75 mm |
