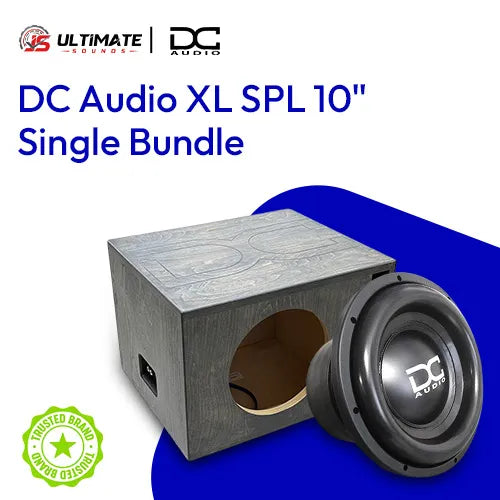

DC Audio XL SPL 10" Single Bundle
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20DC%20Audio%20XL%20SPL%20Subwoofer%202200W%20RMS%20+%20(1)%20DC%20Audio%20XL%20SPL%2010%22%20Single%20Ported%20Subwoofer%20EnclosurePriced%20at%2010%25%20off%20the%20combined%20retail%20price%20of%20the%20subwoofer%20and%20enclosure%20bought...
){kind=link}
Bundle Includes: (1) DC Audio XL SPL Subwoofer 2200W RMS + (1) DC Audio XL SPL 10" Single Ported Subwoofer Enclosure
Priced at 10% off the combined retail price of the subwoofer and enclosure bought separately. Select your impedance below.
DC Audio XL SPL Subwoofer 2200W RMS
- 2200W RMS / 4400W Peak — next generation of DC's most award-winning driver
- 8-layer flat-wound aluminum coil — added pole vent, redesigned top plate and T-yoke
- Larger magnets + aluminum shorting ring — triple 8" stiff progressive-roll spiders
- Upgraded cone and surround — rigid non-pressed paper for SPL abuse
- Available 10"–18", dual 0.5–4 ohm — a beast in the SPL lanes
This Listing Includes: (1) DC Audio XL SPL Subwoofer
The DC Audio XL SPL (M5) is the next generation of DC's most award-winning driver, rated 2,200 watts RMS. An added pole vent, redesigned top plate and T-yoke, larger magnets and an 8-layer flat-wound voice coil push it harder than ever, while triple 8" stiff progressive-roll spiders and an aluminum shorting ring keep it linear under SPL abuse. Available 10–18" with dual 0.5–4 ohm options, it's built for anyone who wants a driver that sounds great and gets loud — hand-built in the USA.
Features
- 8-layer flat-wound hi-temp aluminum voice coil
- Added pole vent, redesigned top plate and T-yoke
- Larger magnets with aluminum shorting ring
- Triple 8" OD stiff progressive-roll spiders
- Rigid non-pressed paper cone, cast aluminum frame
Specifications
| RMS Power | 2,200W |
| Peak Power | 4,400W |
| Voice Coil | 8-layer flat-wound aluminum |
| Spiders | Triple 8" stiff progressive roll |
| Cone | Non-pressed paper |
| Frame | Cast aluminum |
| Available Sizes | 10", 12", 15", 18" |
| Impedance | Dual 0.5, 0.7, 1, 1.4, 2 or 4 Ohm |
| Build | Hand-built USA (7–14 days) |
DC Audio XL SPL 10" Single Ported Subwoofer Enclosure
- Net Volume - 1.25 cu ft
- Tuning - 34.0 Hz
- Port Area - 18.0 sq in
- Sub Cutout - 9.35"
- Construction - 1" (24mm) plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the DC Audio XL SPL 10" subwoofer
This enclosure is custom built specifically for the DC Audio XL SPL 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- 1" (24mm) plywood construction
- 17 ply birch veneer construction
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 1.25 cu ft |
| Tuning | 34.0 Hz |
| Port Area | 18.0 sq in |
| Port Dimensions | 12.0" x 1.5" |
| Sub Cutout | 9.35" |
| Construction | 1" (24mm) plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 14.0" x 19.625" x 17.0" |
