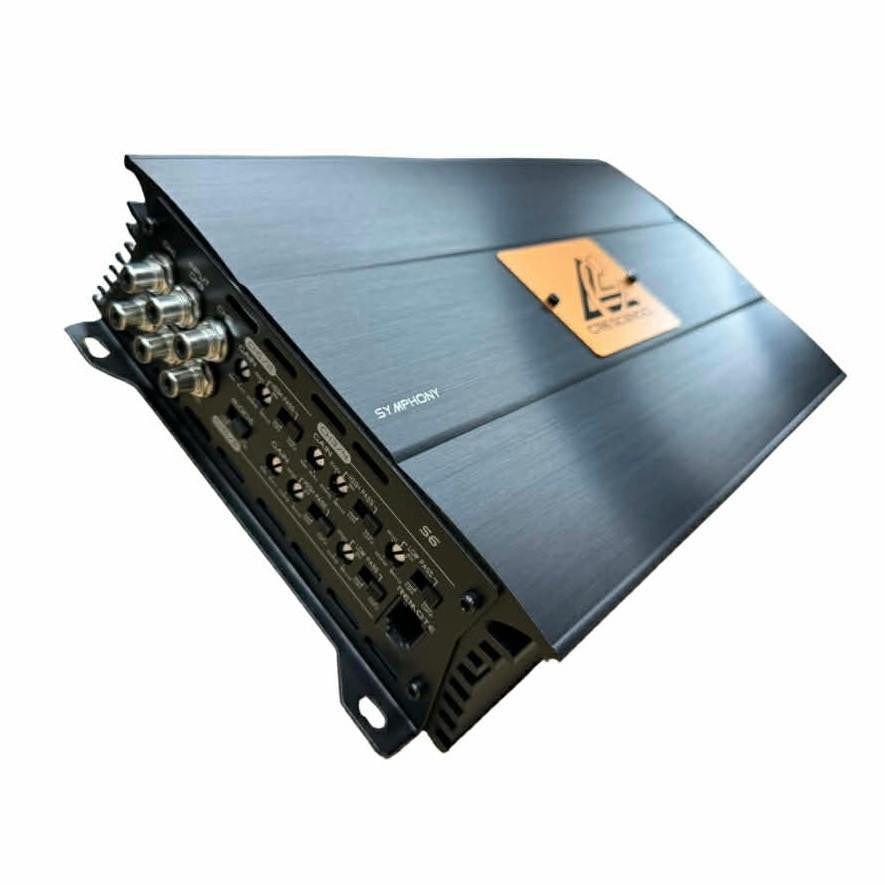

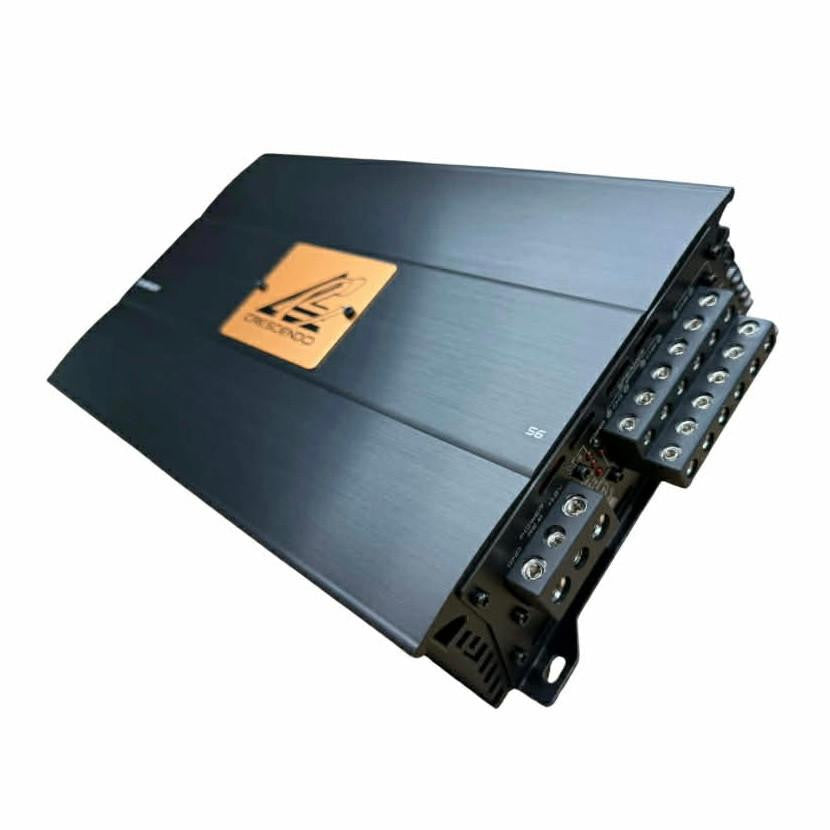

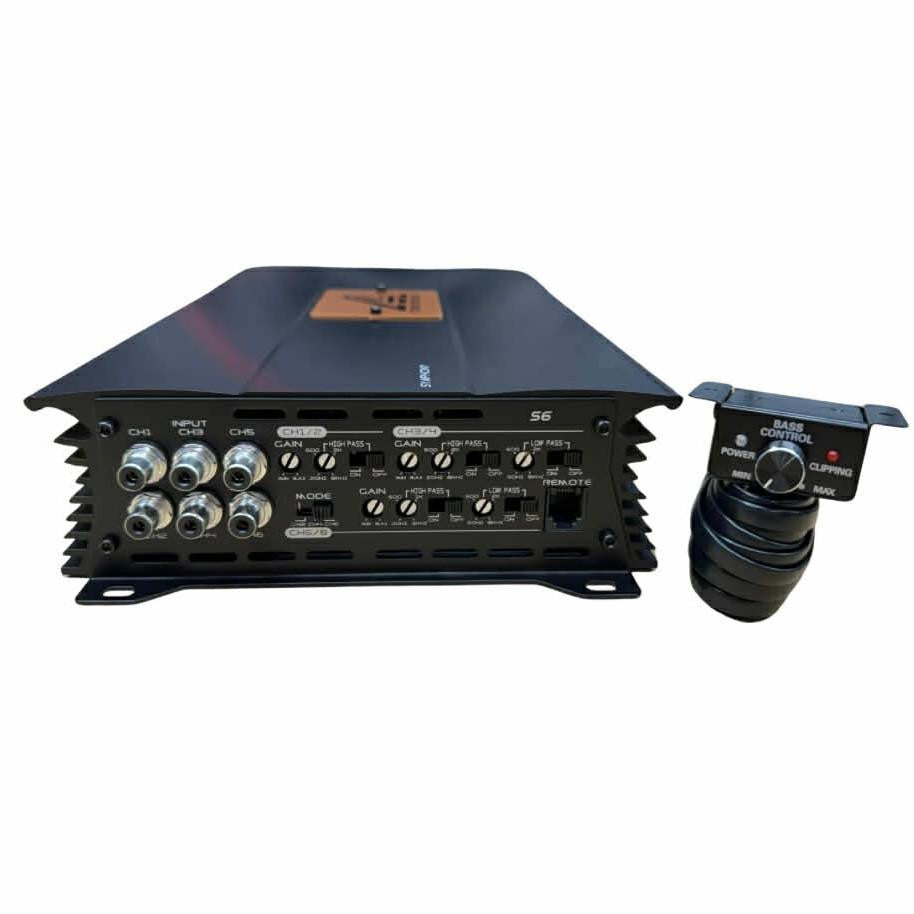

Crescendo Audio Symphony S6 6-Channel Amplifier 1200W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0ACROSSOVER%20%E2%80%94%20Built-in%2018dB/slope%20network%20with%20LPF/HPF%20and...
){kind=link}
- POWER — Over 1200W of clean total RMS output
- VERSATILITY — 6-channel design with a 2ch/4ch/6ch selector switch (no RCA splitters needed)
- CROSSOVER — Built-in 18dB/slope network with LPF/HPF and Bandpass, adjustable up to 8kHz
- EFFICIENCY — Efficient design only requires 4 gauge power and ground cables
- FLEXIBILITY — Fully defeatable high-pass and low-pass filters for DSP users
This Listing Includes: (1) Crescendo Audio Symphony S6 6-Channel Amplifier
The Symphony S6 is a highly versatile full-range Class D amplifier built to run all the speakers and subs in a typical daily-driver vehicle. It can power a high-fidelity 3-way front stage or drive a set of loudspeakers, all while offering three pairs of customizable signal outputs. Heavy copper traces in the Korean-built boards and Tiffany-style RCA input jacks keep the signal clean. A 120A to 150A fuse on the power input is suggested. Authorized Crescendo Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range Class D 6-channel design
- 2ch/4ch/6ch selector switch
- Built-in 18dB/slope crossover with LPF/HPF and Bandpass up to 8kHz
- Defeatable high-pass and low-pass filters
- Custom-tooled Symphony heatsink
- Heavy copper traces on Korean-built boards
- Tiffany-style RCA input jacks
Specifications
| Channels 1-4 @ 2 ohm | 170W each |
| Channels 1-4 @ 4 ohm | 100W each |
| Ch 1/2 or 3/4 bridged @ 4 ohm | 350W |
| Channels 5-6 @ 2 ohm | 350W each |
| Channels 5-6 @ 4 ohm | 200W each |
| Channels 5-6 bridged @ 4 ohm | 700W |
| Rated Voltage | 13.8V |
| Suggested Fuse | 120A-150A |
| Dimensions | 13.25"L x 7.6"W x 2.5"H |
