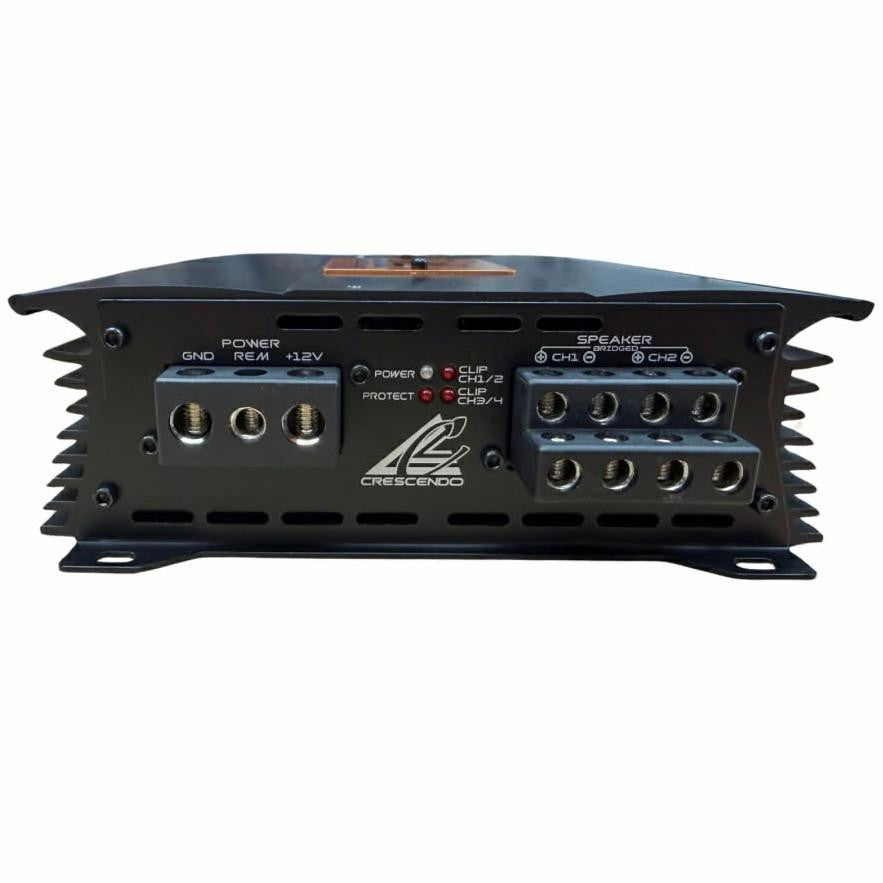

Crescendo Audio Symphony S4 4-Channel Amplifier 880W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0ACROSSOVER%20%E2%80%94%20Built-in%2018dB/slope%20network%20with%20LPF/HPF%20and%20Bandpass,%20adjustable%20up%20to%208kHz%0A%0AEFF...
){kind=link}
- POWER — 880W total clean RMS output
- VERSATILITY — 2ch/4ch selector switch (no RCA splitters needed)
- CROSSOVER — Built-in 18dB/slope network with LPF/HPF and Bandpass, adjustable up to 8kHz
- EFFICIENCY — Efficient design only requires 4 gauge power and ground cables
- COOLING — Custom-tooled Symphony heatsink for low-profile heat dissipation
This Listing Includes: (1) Crescendo Audio Symphony S4 4-Channel Amplifier
The Symphony S4 is a versatile full-range Class D amplifier built with high power density and a compact footprint. Heavy copper traces on the Korean-built boards and Tiffany-style RCA input jacks deliver a clean signal path. An 80A to 100A fuse on the power input is suggested. Authorized Crescendo Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range Class D 4-channel design
- 2ch/4ch selector switch
- Built-in 18dB/slope crossover with LPF/HPF and Bandpass up to 8kHz
- Custom-tooled Symphony heatsink
- Heavy copper traces on Korean-built boards
- Tiffany-style RCA input jacks
Specifications
| RMS Power @ 2 ohm | 220W x4 |
| RMS Power @ 4 ohm | 140W x4 |
| Bridged @ 4 ohm | 440W x2 |
| Rated Voltage | 13.8V |
| Recommended Power Wire | 4 gauge |
| Suggested Fuse | 80A-100A |
| Dimensions | 8.5"L x 7.6"W x 2.5"H |
