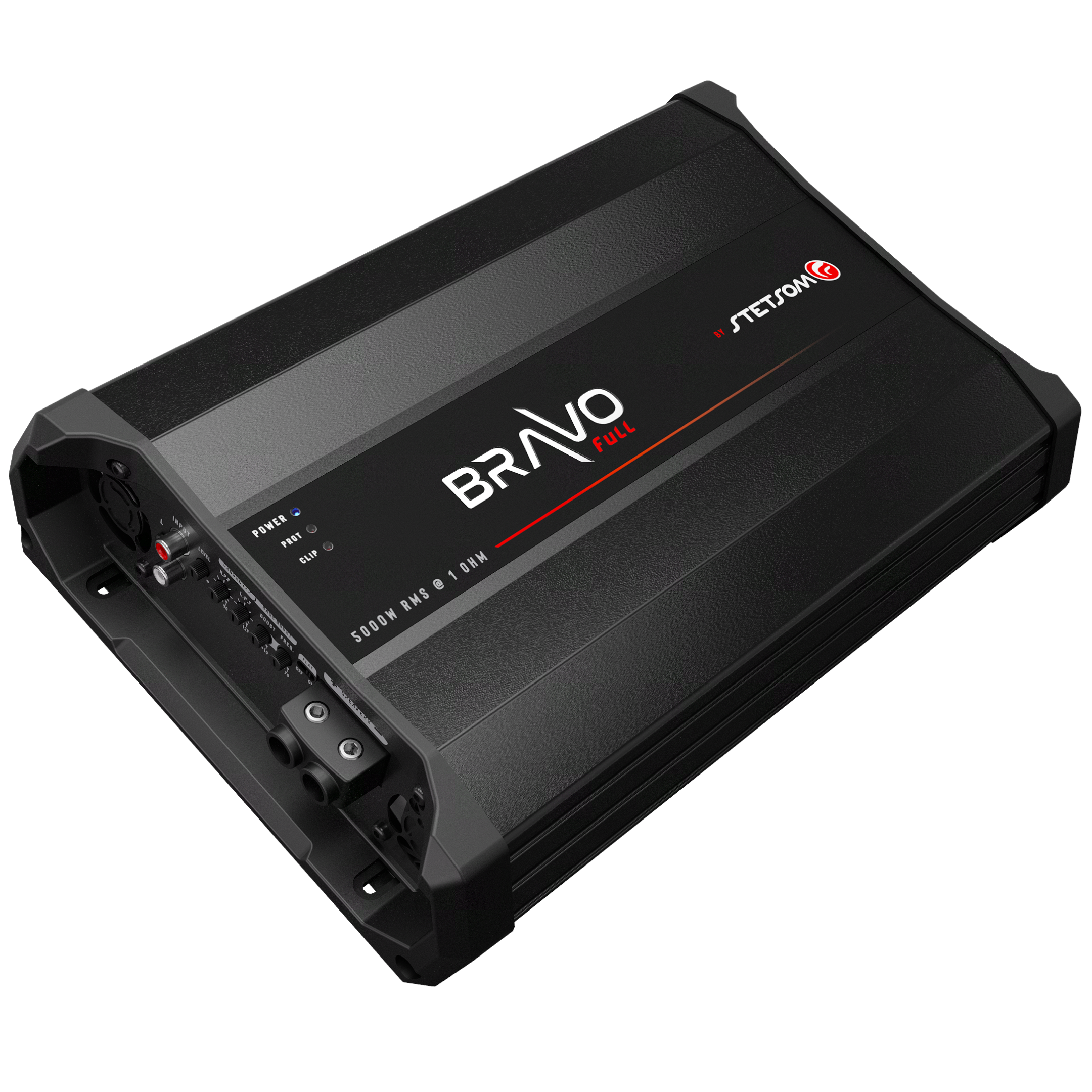

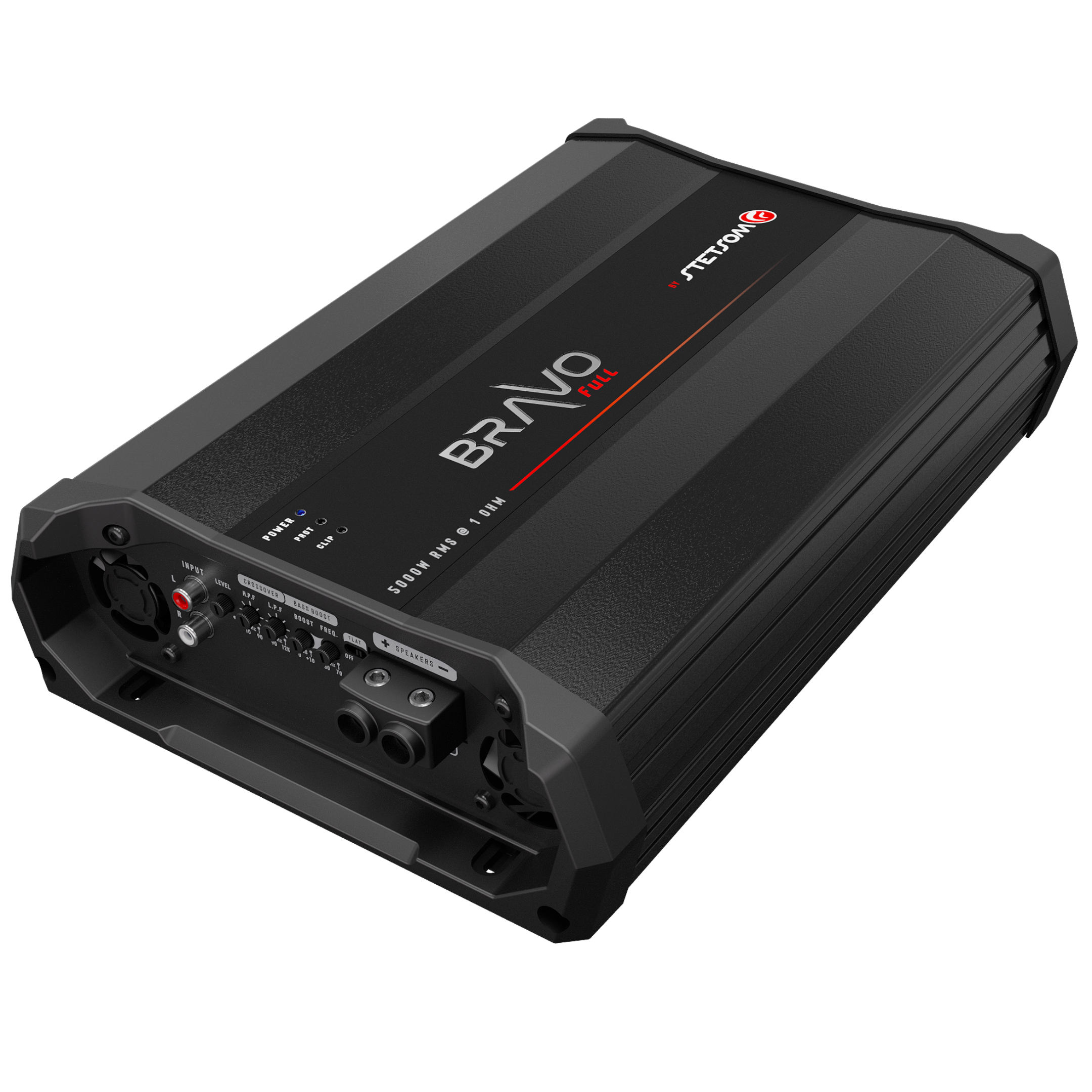

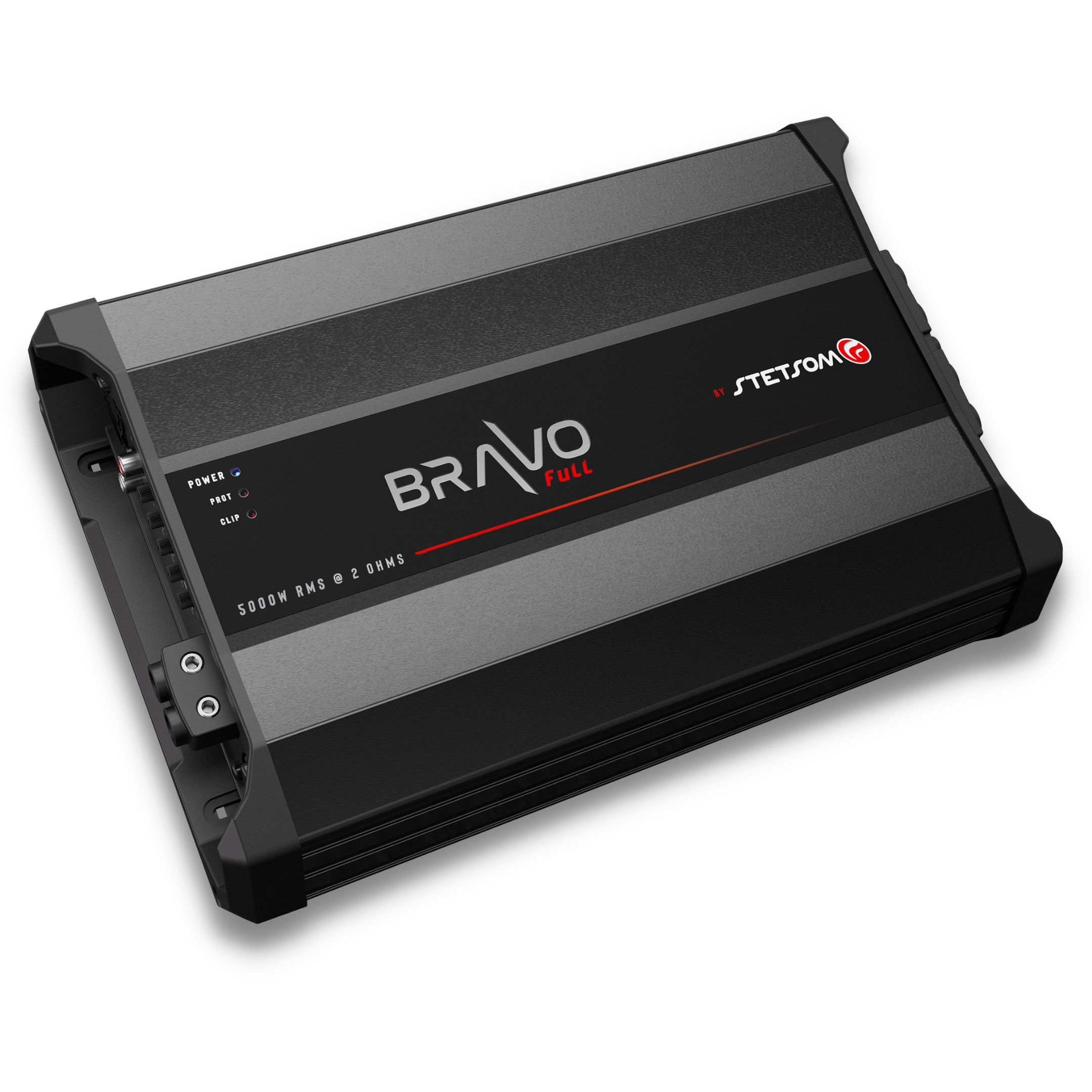

Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.

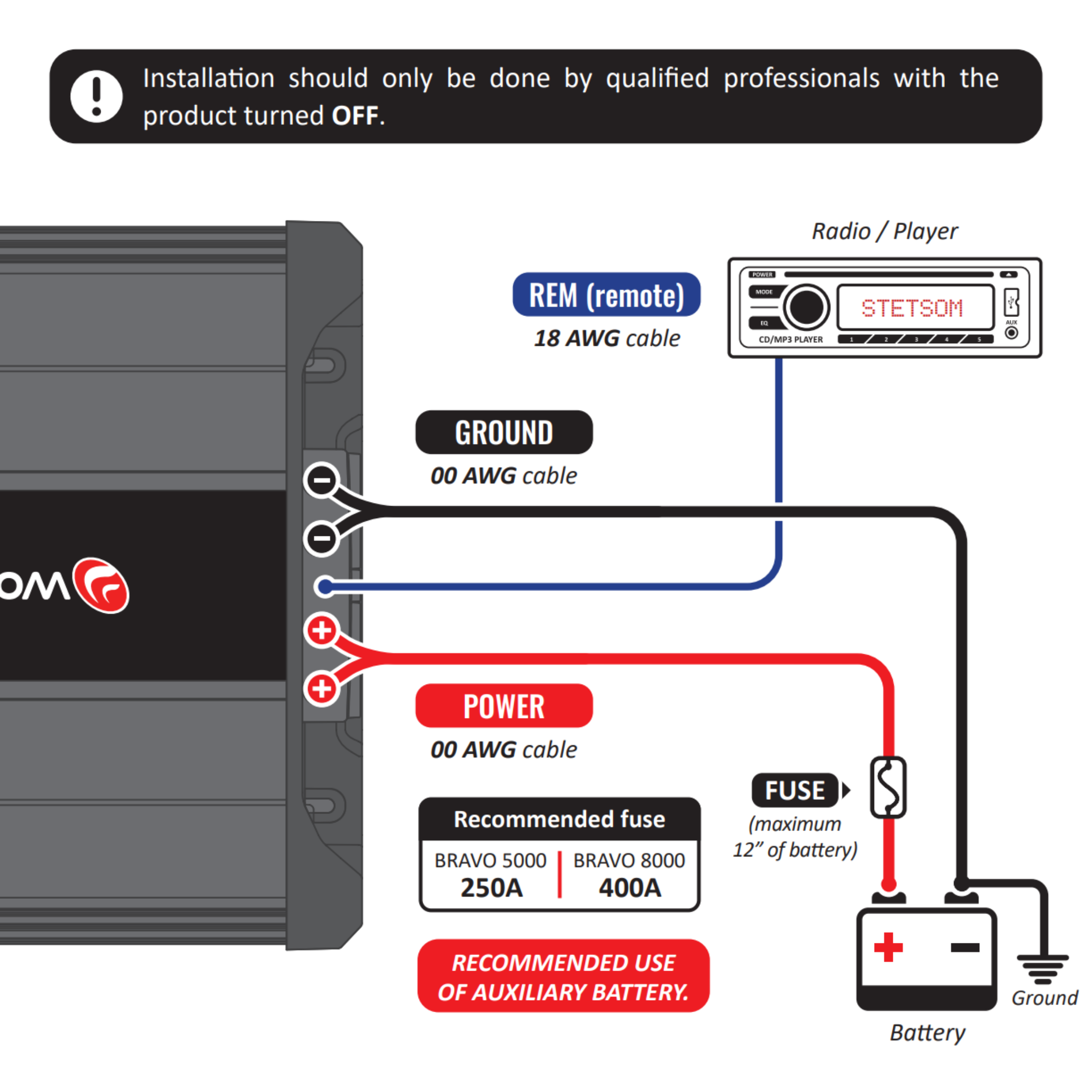

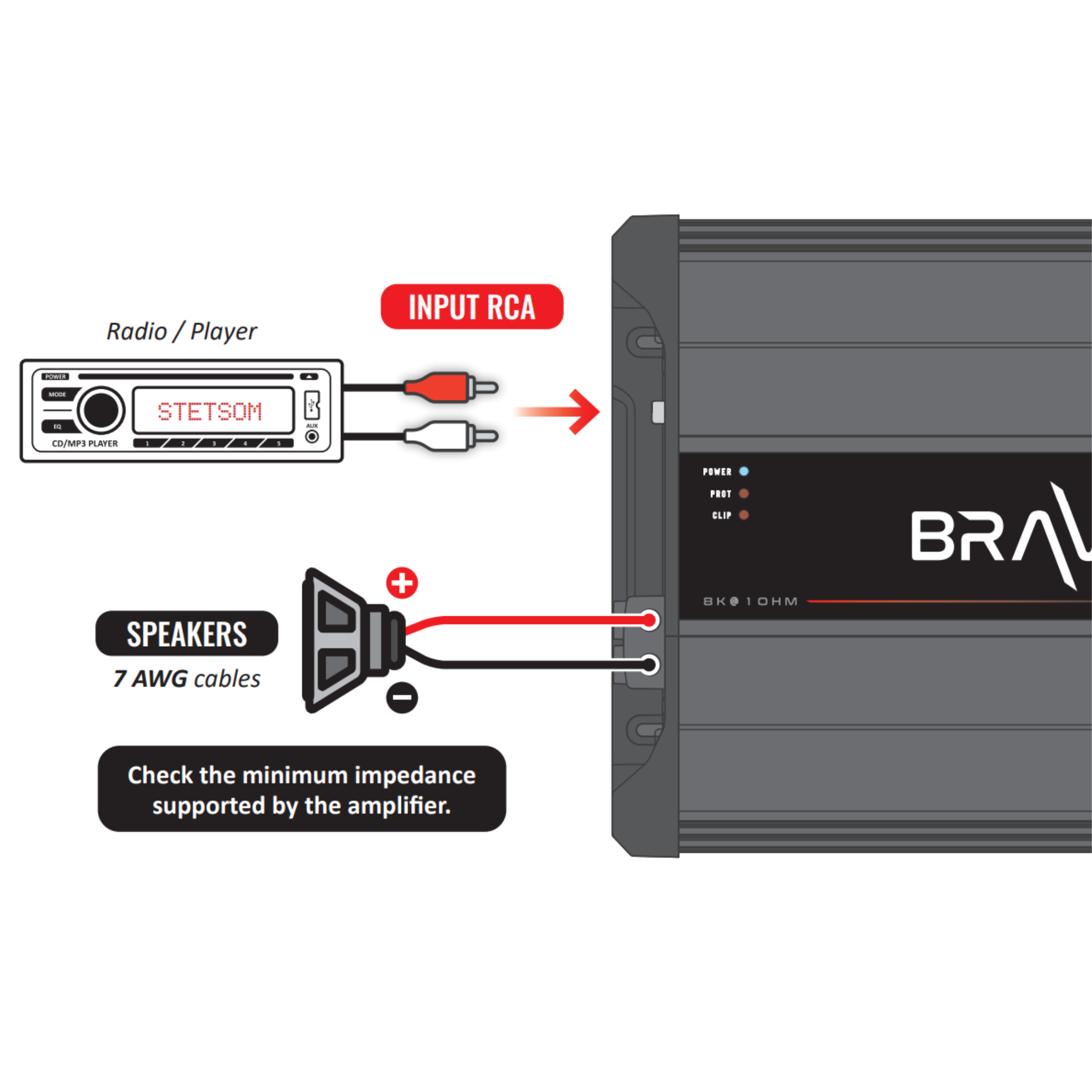

Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The BRAVO FULL 5K Digital Full brings Stetsom's Brazilian-engineered car audio performance to your build. Delivering 5000W RMS, it pairs efficient Class D power with reliable protection for clean, hard-hitting sound.

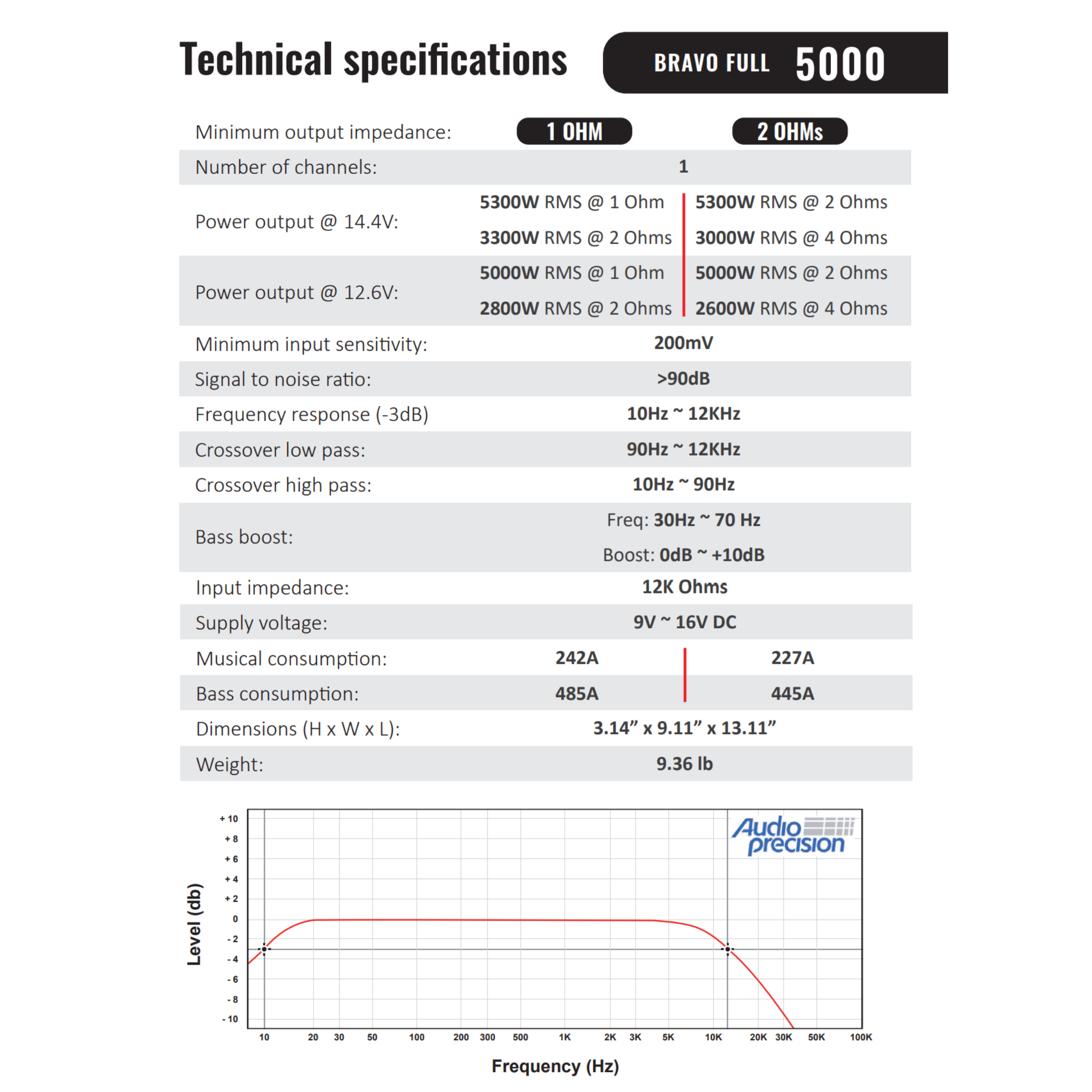

Specifications
| RMS Power | 5000W RMS |
| Amplifier Class | Class D |
| Channels | 1 (Mono) |
| Operation | Full-Range |
| Number of Channels | 1 |
| RMS Power at 1 Ohm @ 14.4V | 5300W |
| RMS Power at 2 Ohms @ 14.4V | 3300W |
| RMS Power at 1 Ohm @ 12.6V | 5000W |
| RMS Power at 2 Ohms @ 12.6V | 2800W |
| Minimum input sensitivity | 200mV |
| Signal to noise ratio | >90dB |
| Frequency response (-3dB) | 10Hz ~ 12KHz |
| Crossover low pass | 90Hz ~ 12KHz |
| Crossover high pass | 10Hz ~ 90Hz |
| Bass boost | Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB |
| Input impedance | 12K Ohms |
| Supply voltage | 9V ~ 16V DC |
| Musical/Bass consumption | 242A/485A |
| Dimensions (H x W x L) | 3.14" x 9.11" x 13.11" |
| Weight | 9.36 lb |
| RMS Power at 2 Ohm @ 14.4V | 5300W |
| RMS Power at 4 Ohms @ 14.4V | 3000W |
| RMS Power at 2 Ohm @ 12.6V | 5000W |
| RMS Power at 4 Ohms @ 12.6V | 2600W |
This listing includes: (1) BRAVO FULL 5K Digital Full.
Authentic Stetsom, shipped fast from JS Ultimate Sounds — your authorized dealer.
