Stetsom BRAVO FULL 3K Digital Full-Range Amplifier Mono 1 Channel Clas
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.

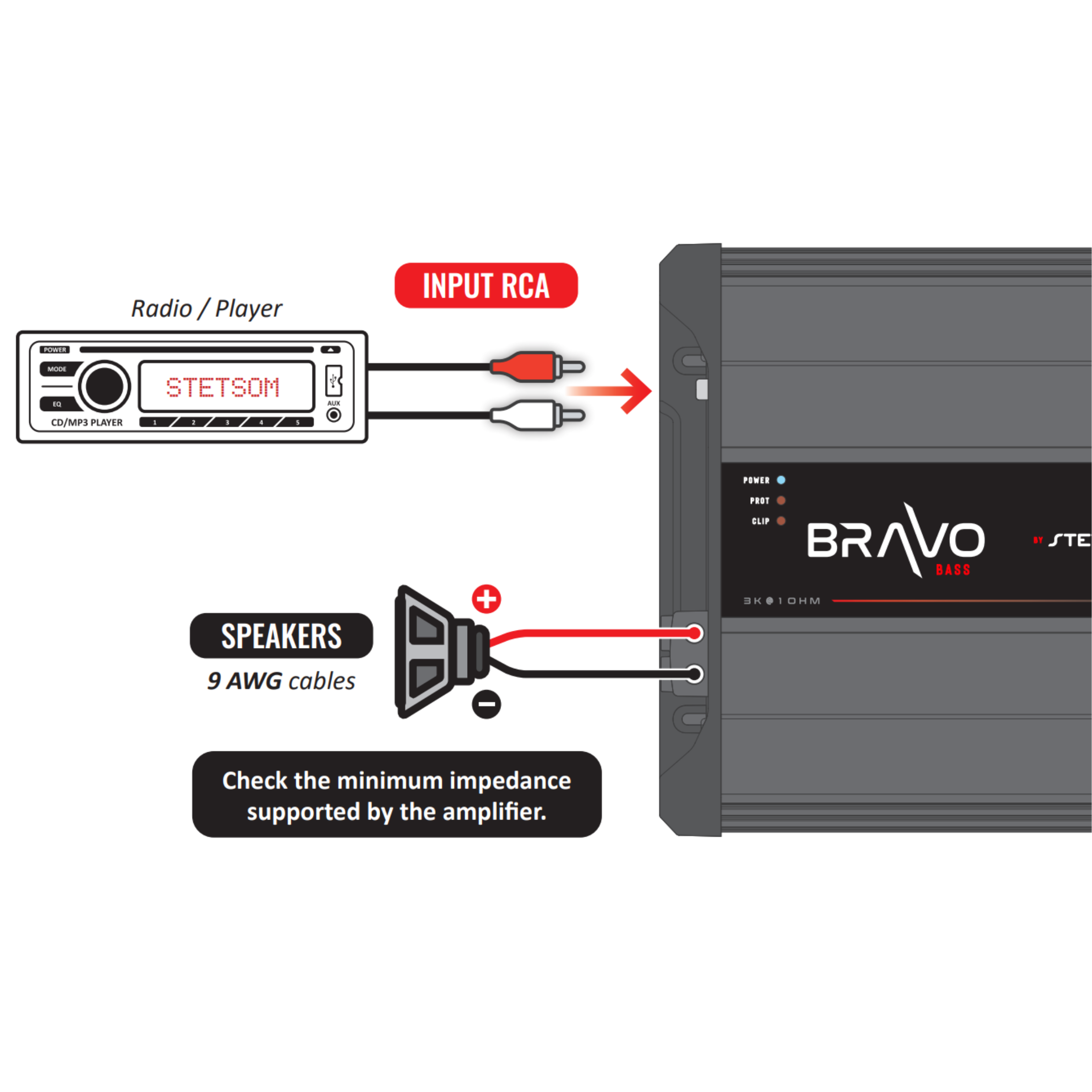

Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

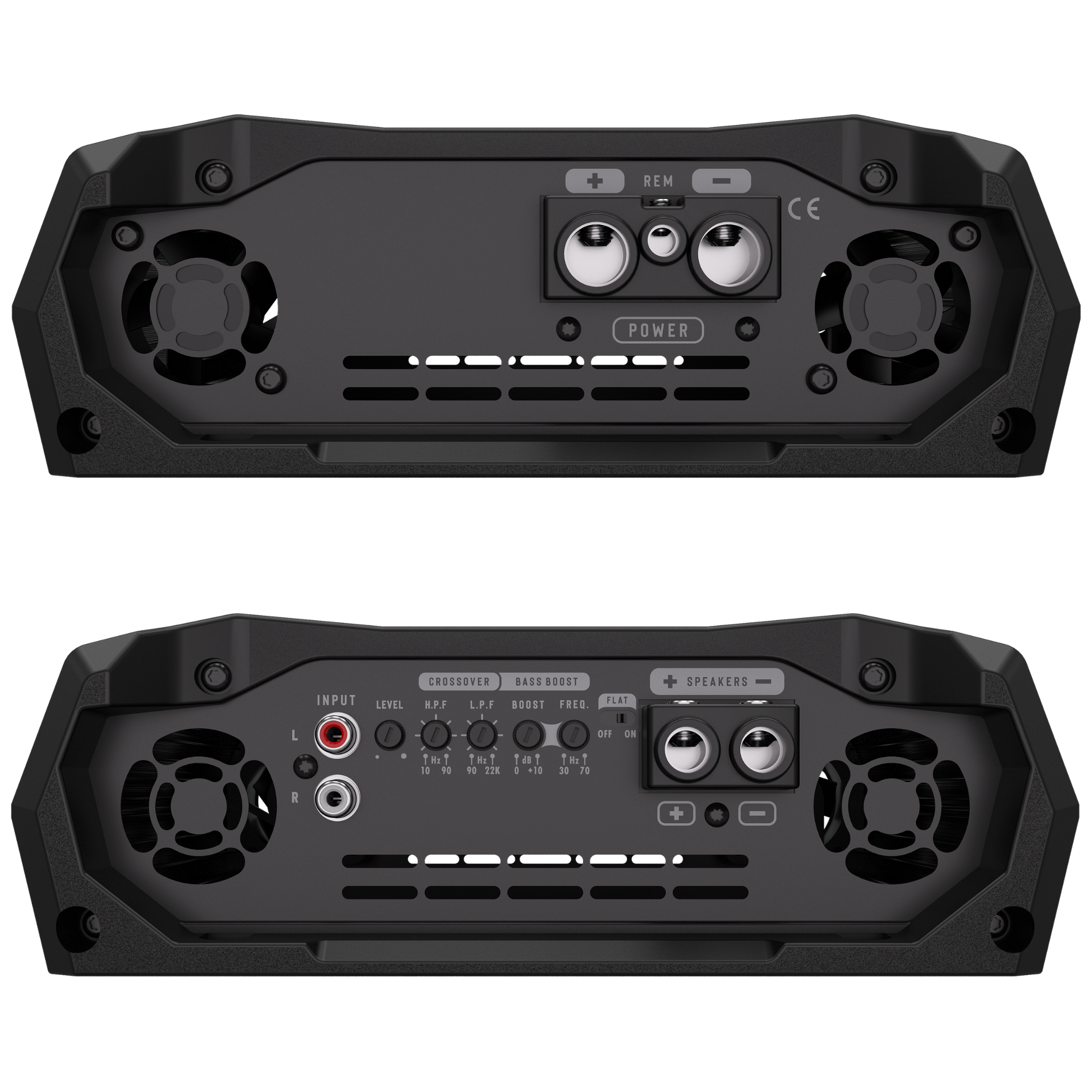

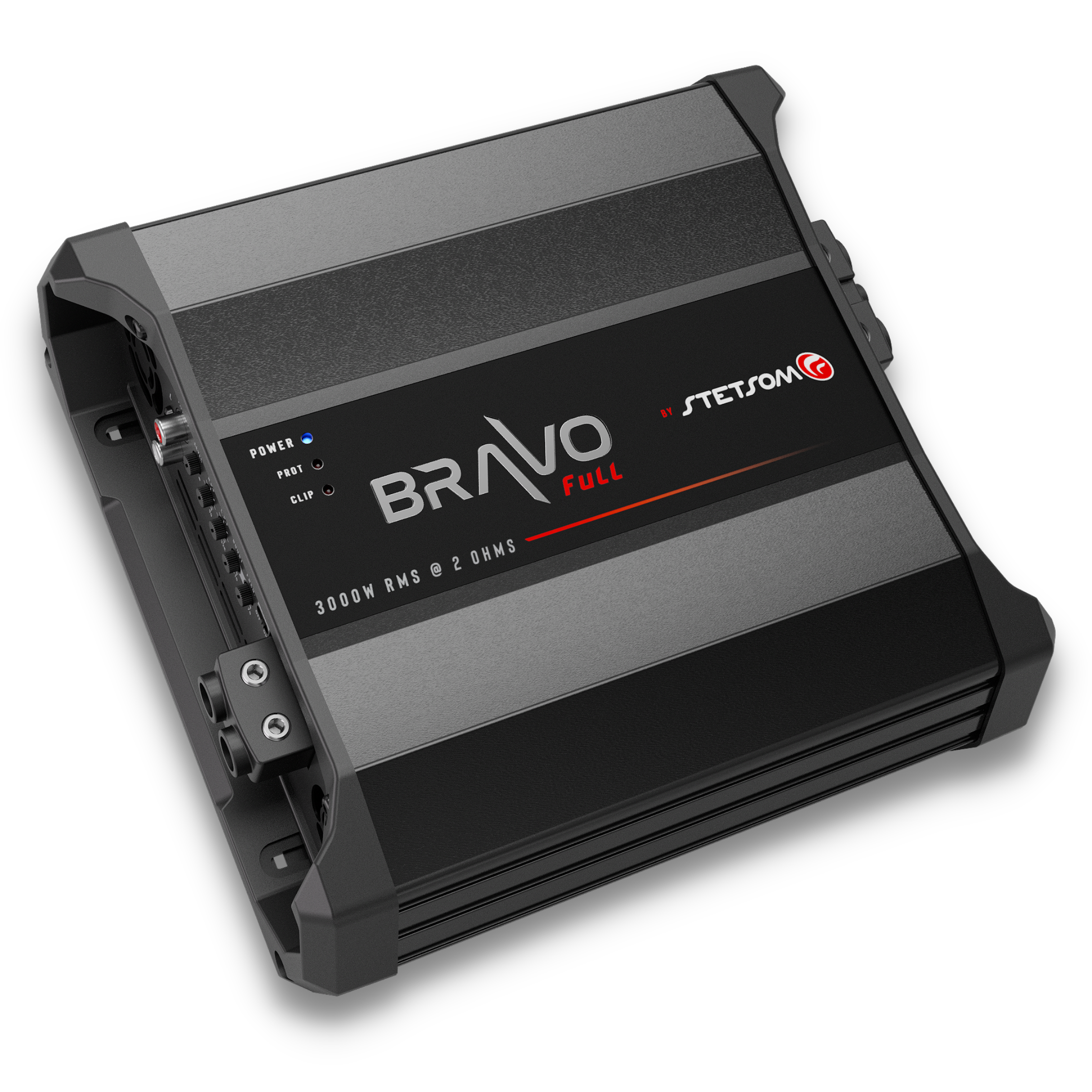

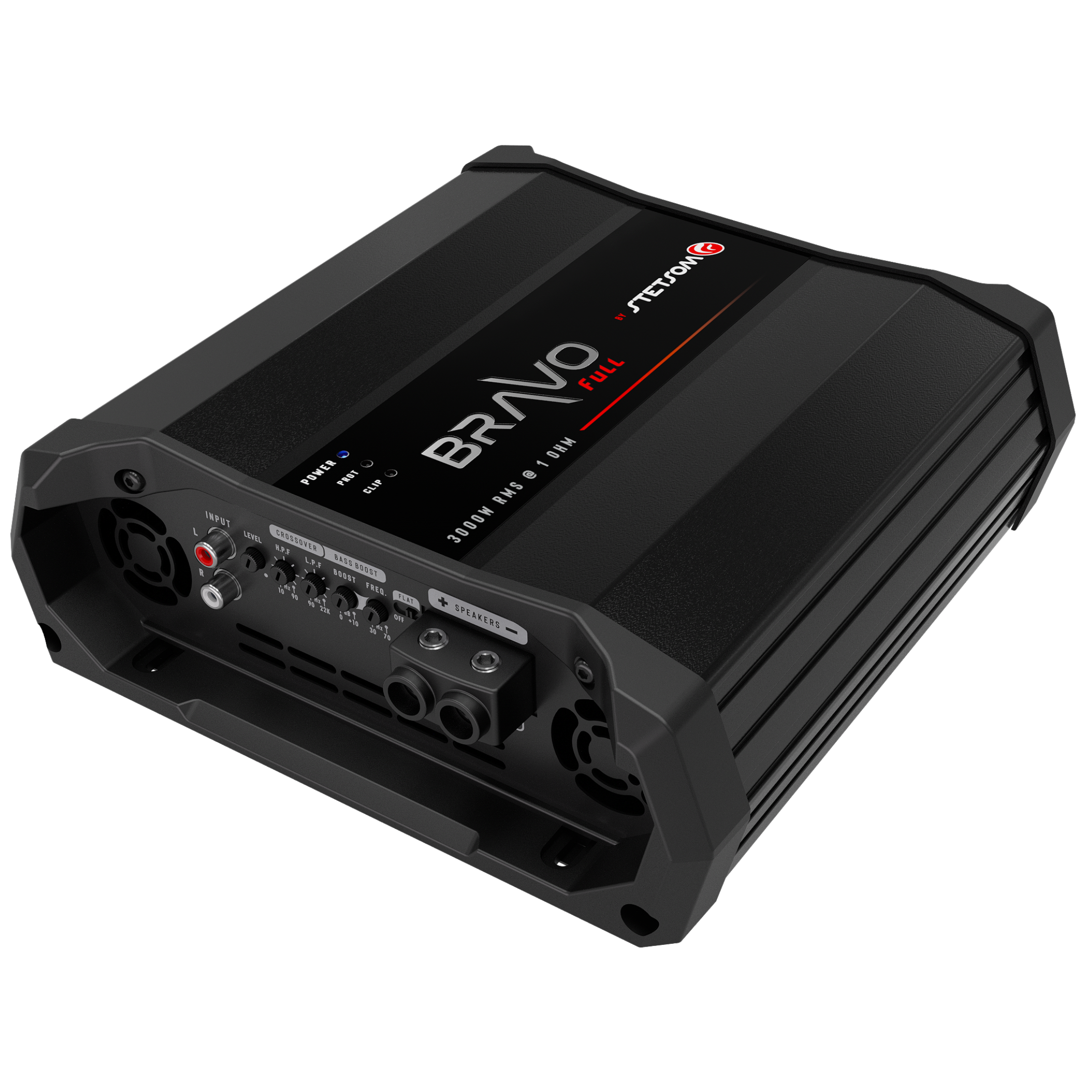

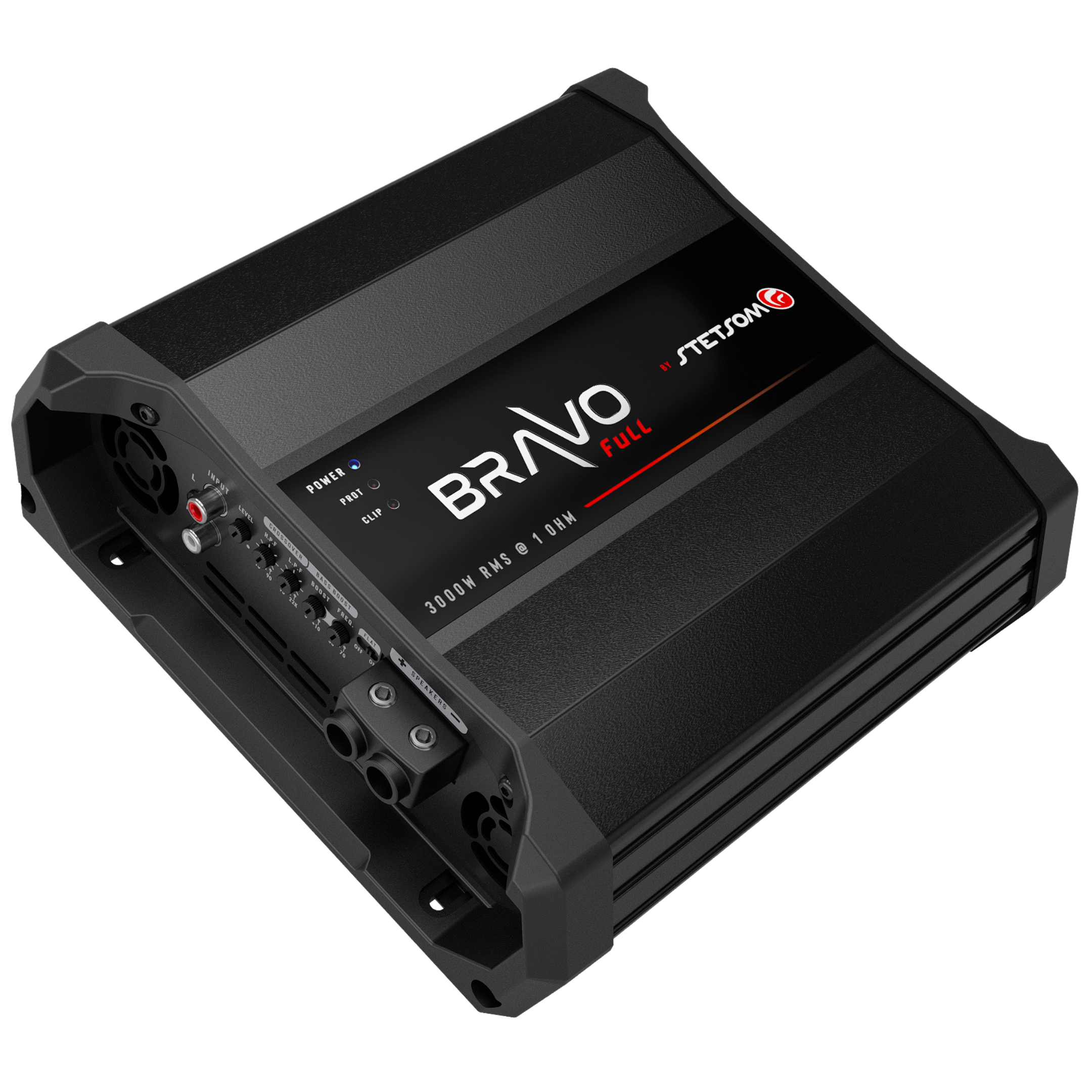

The BRAVO FULL 3K Digital Full brings Stetsom's Brazilian-engineered car audio performance to your build. Delivering 3000W RMS, it pairs efficient Class D power with reliable protection for clean, hard-hitting sound.

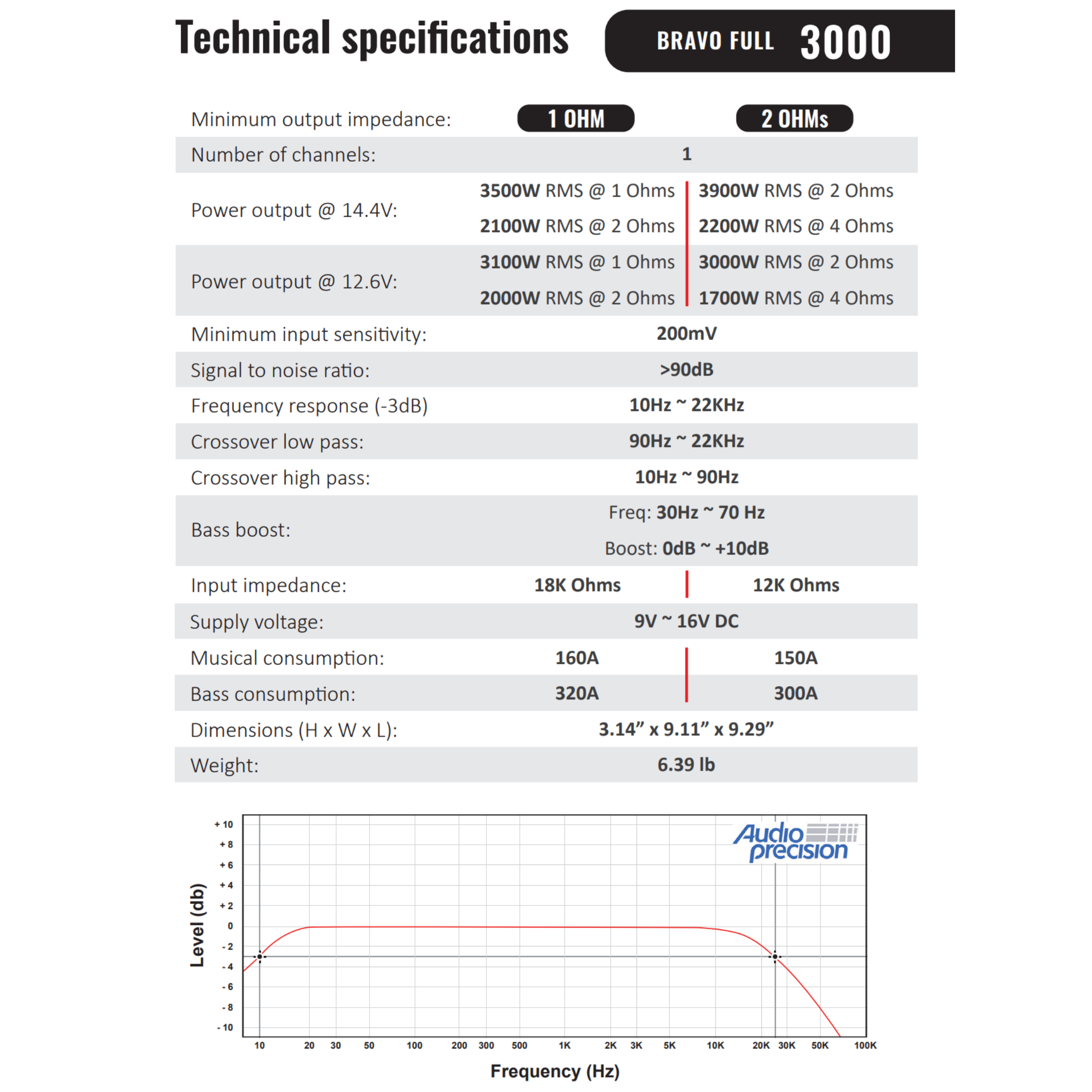

Specifications
| RMS Power | 3000W RMS |
| Amplifier Class | Class D |
| Channels | 1 (Mono) |
| Operation | Full-Range |
| Number of Channels | 1 |
| RMS Power at 1 Ohm @ 14.4V | 3500W |
| RMS Power at 2 Ohms @ 14.4V | 2100W |
| RMS Power at 1 Ohm @ 12.6V | 3100W |
| RMS Power at 2 Ohms @ 12.6V | 2000W |
| Minimum input sensitivity | 200mV |
| Signal to noise ratio | >90dB |
| Frequency response (-3dB) | 10Hz ~ 22KHz |
| Crossover low pass | 90Hz ~ 22KHz |
| Crossover high pass | 10Hz ~ 90Hz |
| Bass boost | Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB |
| Input impedance | 18K Ohms |
| Supply voltage | 9V ~ 16V DC |
| Musical/Bass consumption | 160A/320A |
| Dimensions (H x W x L) | 3.14" x 9.11" x 9.29" |
| Weight | 6.39 lb |
| RMS Power at 2 Ohm @ 14.4V | 3900W |
| RMS Power at 4 Ohms @ 14.4V | 2200W |
| RMS Power at 2 Ohm @ 12.6V | 3000W |
| RMS Power at 4 Ohms @ 12.6V | 1700W |
This listing includes: (1) BRAVO FULL 3K Digital Full.
