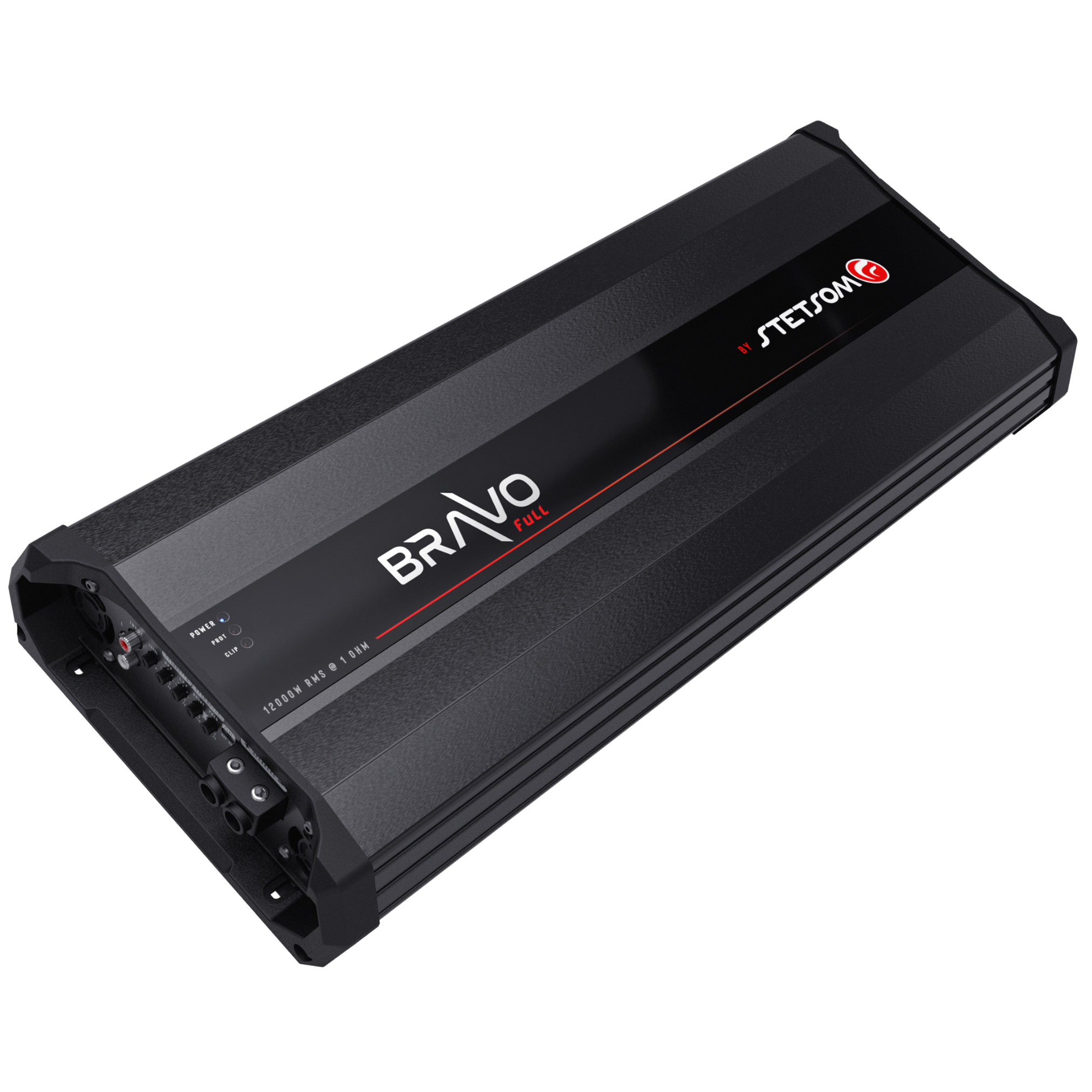

Stetsom BRAVO FULL 12K Digital Full-Range Amplifier Mono 1 Channel Class D 12000 Watts RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The BRAVO FULL 12K Digital Full brings Stetsom's Brazilian-engineered car audio performance to your build. Delivering 12000W RMS, it pairs efficient Class D power with reliable protection for clean, hard-hitting sound.
Overview
Stetsom BRAVO FULL 12K Digital Full-Range Amplifier Mono 1 Channel Class D 12000 Watts RMS
Specifications
| RMS Power | 12000W RMS |
| Amplifier Class | Class D |
| Channels | 1 (Mono) |
| Operation | Full-Range |
| Number of channels | 1 |
| Power Output at 14.4v | 12800W RMS at 1 Ohm |
| Power Output at 12.6v | 12000W RMS at 1 Ohm |
| Signal to noise ratio | >90dB |
| LPF | 90Hz ~ 7KHz |
| HPF | 5Hz ~ 90Hz |
| Supply Voltage | 9v ~ 16v DC |

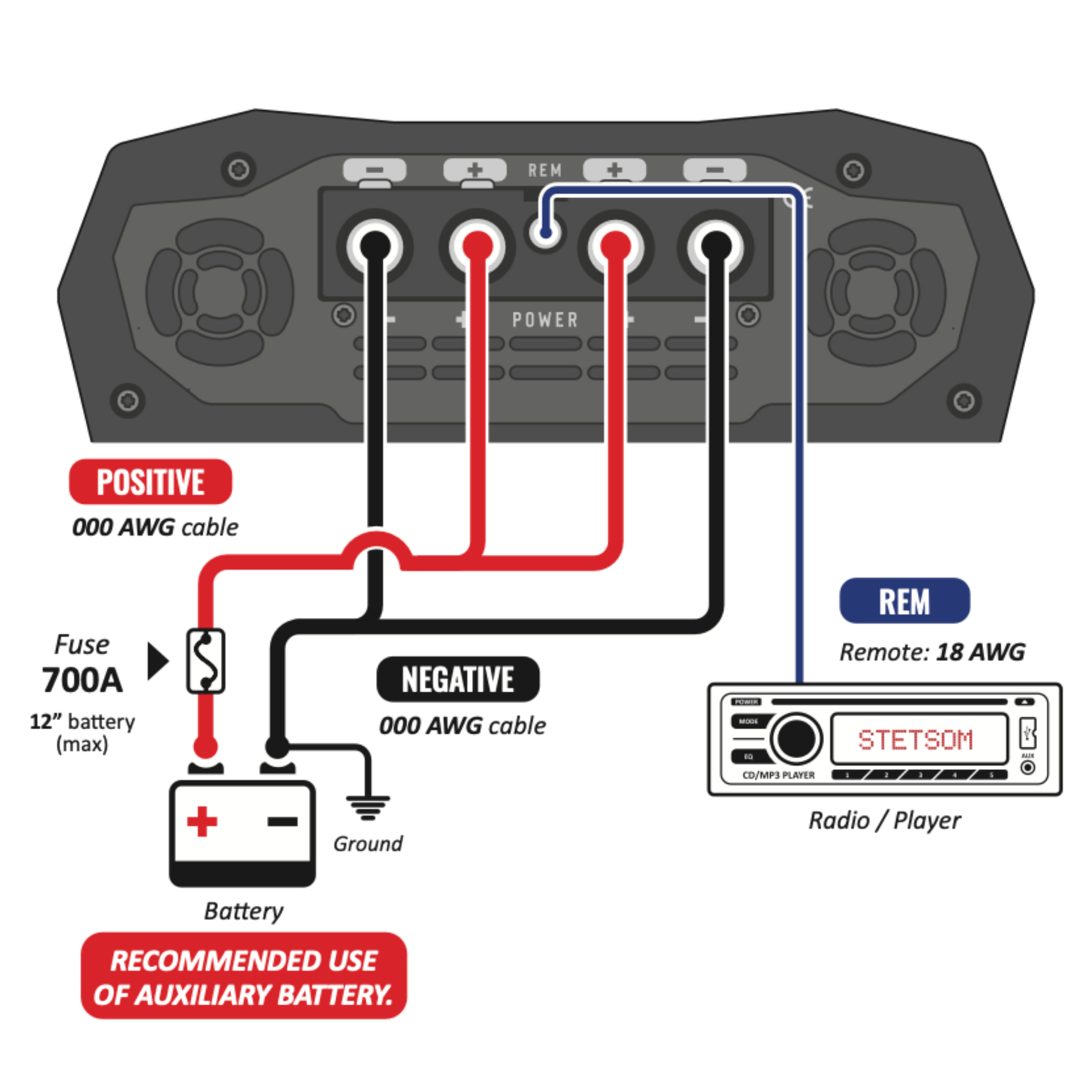

| Power connectors | 00 AWG ( up to 3 meters ) |
| Ground connectors | 000 AWG (greater than 3 meters) |
| Remote conector | 18 AWG |

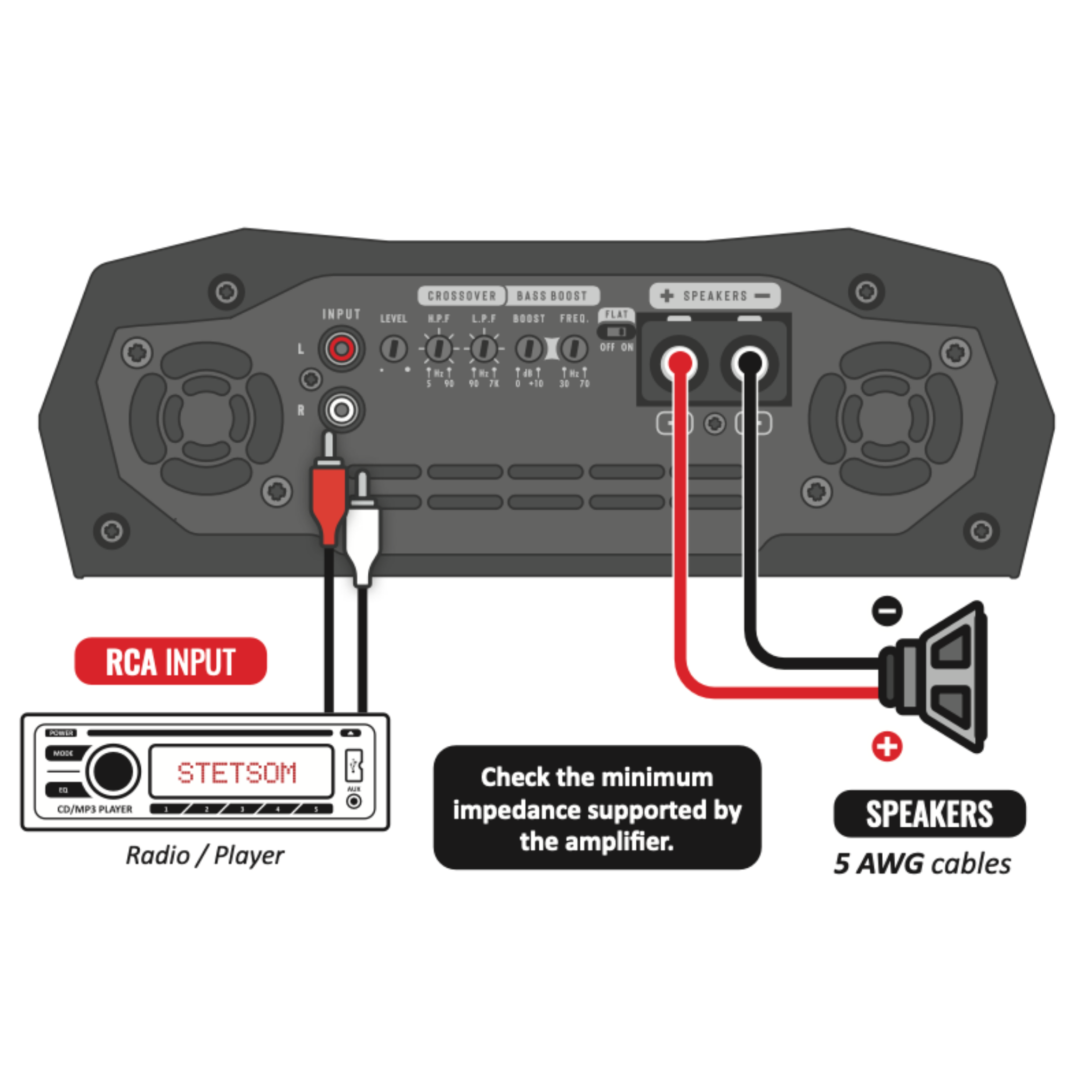

| Speakers | 5 AWG |
| Fuse | 700 A |

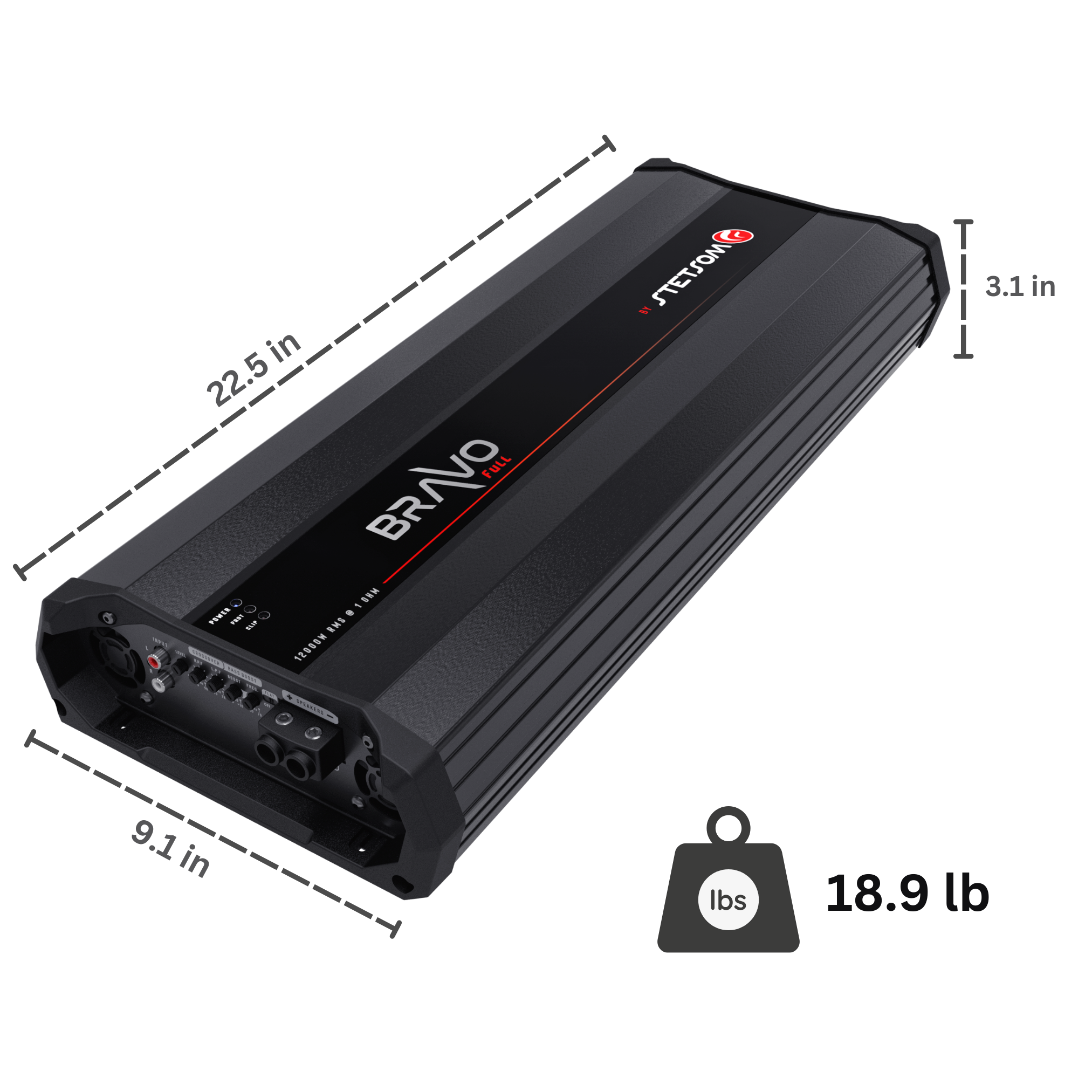

| Dimensions ( H x W x L ) | 3.1" x 22.5" x 9.1" |
| Weight | 18.9 lb |
This listing includes: (1) BRAVO FULL 12K Digital Full.
