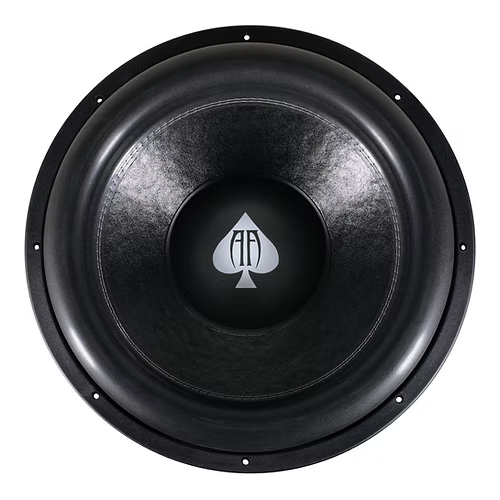

Audio Ace Rebellion 18" 4000W RMS Dual 1-Ohm Car Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20Audio%20Ace%20Rebellion%2018%22%20SubwooferThe%20Audio%20Ace%20Rebellion%2018%20D1%20is%20a%20SQ/SPL%20sub...
){kind=link}
- Size — 18"
- RMS Power — 4000W
- Voice Coil — 4" D1
- Impedance — Dual 1 Ohm
- Motor — 498 oz
This Listing Includes: (1) Audio Ace Rebellion 18" Subwoofer
The Audio Ace Rebellion 18 D1 is a SQ/SPL subwoofer rated at 4000W RMS with a 4" high-temp coil and a massive 498 oz motor — versatile across a wide range of music with extreme output on demand. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4" D1 high-temp voice coil
- 498 oz motor
- 25 mm one-way Xmax
- SQ/SPL hybrid design
- #WeDontStop

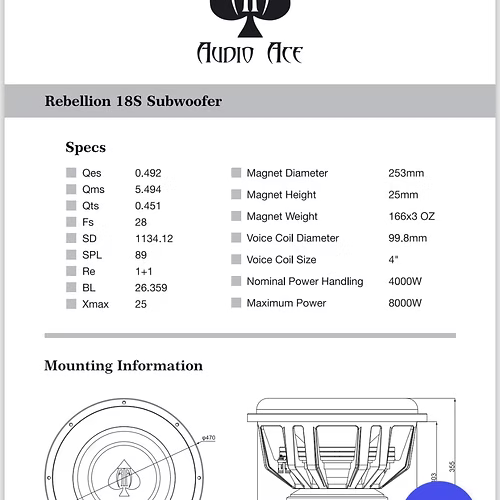

Specifications
| Size | 18" |
| RMS Power | 4000W |
| Voice Coil | 4" D1 |
| Impedance | Dual 1 Ohm |
| Motor | 498 oz |
| Fs | 31.7 Hz |
| Qes | 0.735 |
| Qms | 7.741 |
| Qts | 0.671 |
| Re | 2.33 Ω |
| Bl | 26.278 |
| Sd | 754.77 cm² |
| SPL | 89 dB |
| Mounting Depth | 11.93" |
| Cutout Diameter | 16.81" |
| Xmax | 25 mm one-way |
| Box | 6.5 – 8 cu ft |
