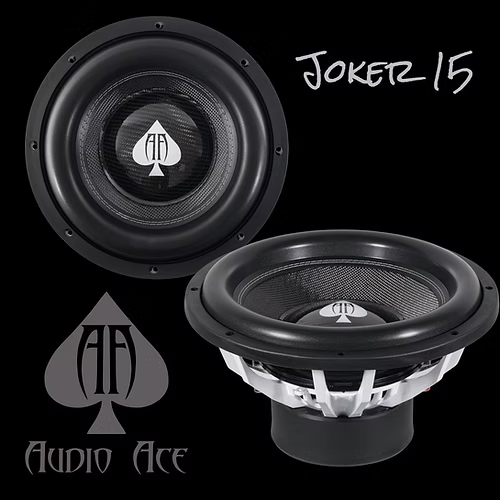

Audio Ace Joker 15" v4 1000W RMS Car Subwoofer
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20Audio%20Ace%20Joker%2015%22%20SubwooferThe%20Audio%20Ace%20Joker%2015%20is%20one%20of%20the%20b...
){kind=link}
- Size — 15"
- RMS Power — 1000W
- Voice Coil — 3" 4-layer epoxy
- Impedance — Dual 2 Ohm
- Motor — 168 oz
This Listing Includes: (1) Audio Ace Joker 15" Subwoofer
The Audio Ace Joker 15 is one of the brand's most popular subwoofers, conservatively rated at 1000W RMS and built to outperform its price point in sealed, ported, and bandpass enclosures. Authorized Audio Ace dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Wide-roll surround
- 3" 4-layer epoxy high-temp coil
- 168 oz FEA-optimized magnet motor
- Works in sealed, ported, 4th and 6th order enclosures
- Dyeable cone ready for customization
Specifications
| Size | 15" |
| RMS Power | 1000W |
| Voice Coil | 3" 4-layer epoxy |
| Impedance | Dual 2 Ohm |
| Motor | 168 oz |
| Fs | 26.8 Hz |
| Qes | 0.557 |
| Qms | 4.821 |
| Qts | 0.499 |
| Bl | 22.884 |
| Mounting Depth | 7.75" |
| Cutout Diameter | 13.819" |
| Sealed Box | 2.5 cu ft |
| Ported Box | 2.75 – 3.25 cu ft |
| Tuning | 34 – 38 Hz |
