American Bass Xmaxxx Monster 12" Car Subwoofer 3000 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 3000W RMS / 6000W Max — competition-grade output from a 12
- Dual 1Ω or dual 2Ω — XMAXXX-1211 and XMAXXX-1222 for your amp
- 3.5" hi-temp 4-layer voice coil — built to swallow serious power
- 20mm Xmax + 321 oz magnet — monster excursion and motor force
- Models XMAXXX-1211 / XMAXXX-1222 — a true SPL-ready 12

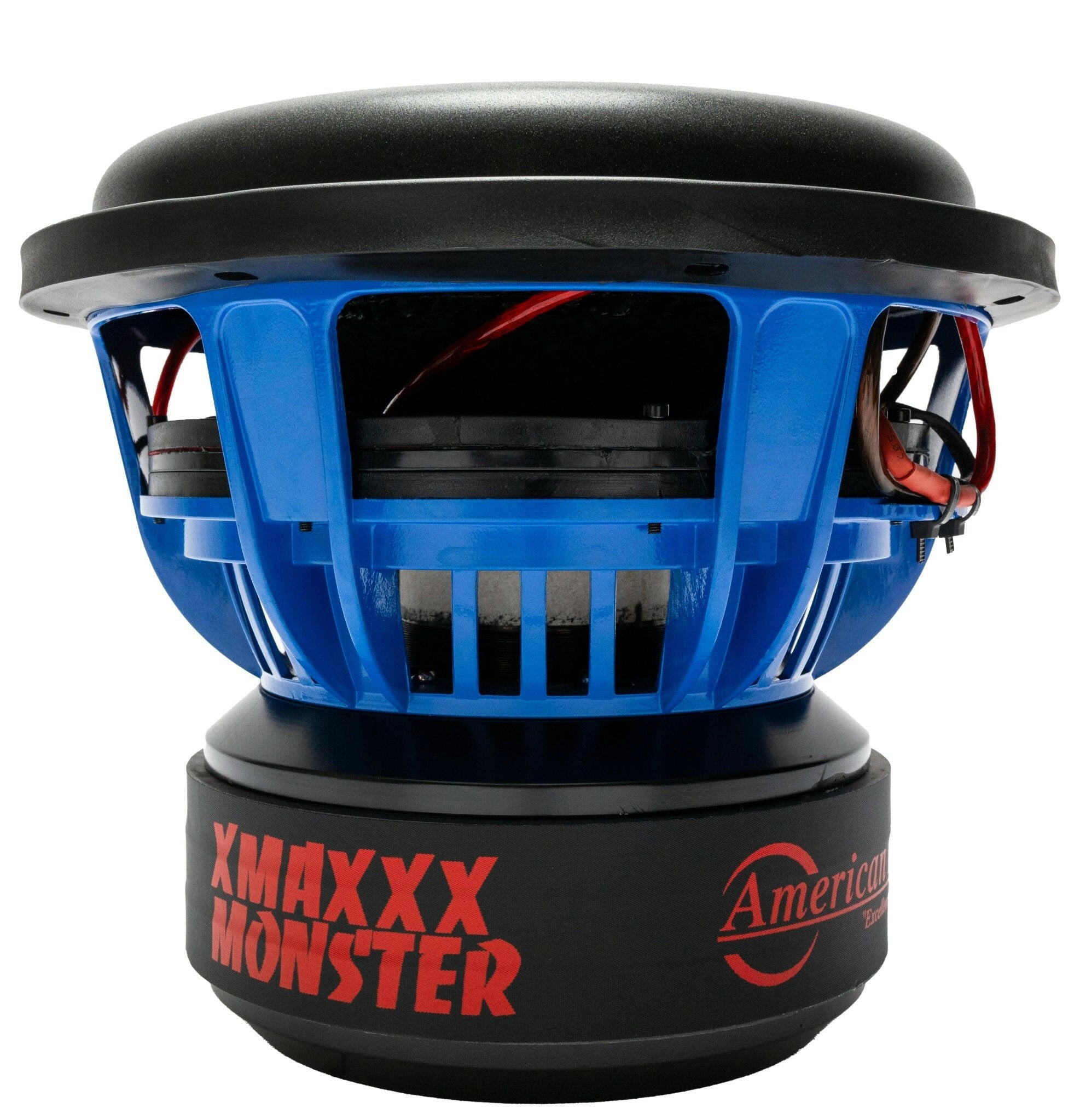

American Bass Xmaxxx Monster 12" Car Subwoofer — 3000W RMS Dual Voice Coil (XMAXXX-1211 / XMAXXX-1222)
This Listing Includes:
- (1) American Bass Xmaxxx Monster 12" Subwoofer
The American Bass Xmaxxx Monster 12" is built for people who chase numbers on the mic. With 3000 watts RMS, a 3.5-inch coil, and a full 20mm of Xmax, the XMAXXX-1211 and XMAXXX-1222 throw air like a much bigger sub. Build it into a tuned ported box and the Xmaxxx Monster earns its name. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Carbon-fiber reinforced non-pressed paper cone for extreme excursion
- Over-sized fat foam surround for long, controlled travel
- Hi-temp 4-layer voice coil wire for brutal power handling
- Blue powder-coated heavy-duty metal basket
- Matching blue surround stitching for a clean, aggressive look
Specifications
| RMS Power | 3000W |
| Max Power | 6000W |
| Impedance | Dual 1Ω (XMAXXX-1211) or Dual 2Ω (XMAXXX-1222) |
| Sensitivity | 84.7 dB (XMAXXX-1211) / 85.9 dB (XMAXXX-1222) |
| Voice Coil Diameter | 3.5" |
| Magnet Weight | 321 oz |
| Basket / Frame | Blue powder-coated heavy-duty metal |
| Cone Material | Carbon-fiber reinforced non-pressed paper |
| Surround | Over-sized fat foam |
| Mounting Depth | 9.17" |
| Cutout Diameter | 11.4" |
| Fs | 31.9 Hz (XMAXXX-1211) / 30.7 Hz (XMAXXX-1222) |
| Qts | 0.381 (XMAXXX-1211) / 0.364 (XMAXXX-1222) |
| Qes | 0.415 (XMAXXX-1211) / 0.39 (XMAXXX-1222) |
| Qms | 4.562 (XMAXXX-1211) / 5.344 (XMAXXX-1222) |
| Vas | 24.263 L (XMAXXX-1211) / 21.508 L (XMAXXX-1222) |
| Xmax | 20 mm |
| BL | 23.33 (XMAXXX-1211) / 26.05 (XMAXXX-1222) |
| Mms | 313.335 g (XMAXXX-1211) / 381.192 g (XMAXXX-1222) |
