American Bass XFL 15" Car Subwoofer 1000 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 1000W RMS / 2000W max — serious output for a single large-cone driver
- 15" cone — maximum displacement for the deepest, fullest low end
- Dual voice coil, 2Ω or 4Ω — wiring flexibility to match your amp
- 3" CCAW voice coil — handles sustained power without thermal compression
- XFL-1522 / XFL-1544 — Kevlar-reinforced cone on a cast aluminum basket

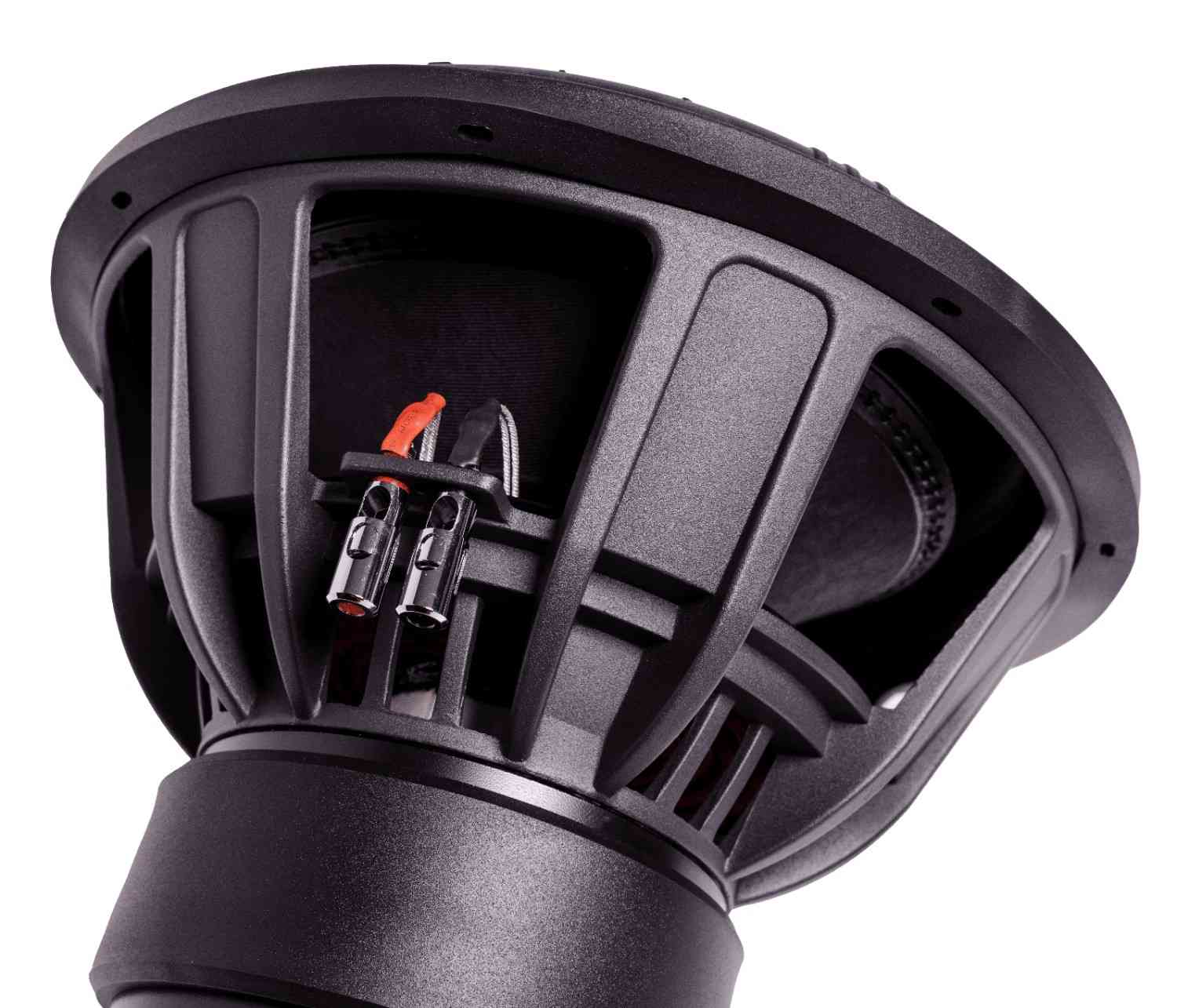

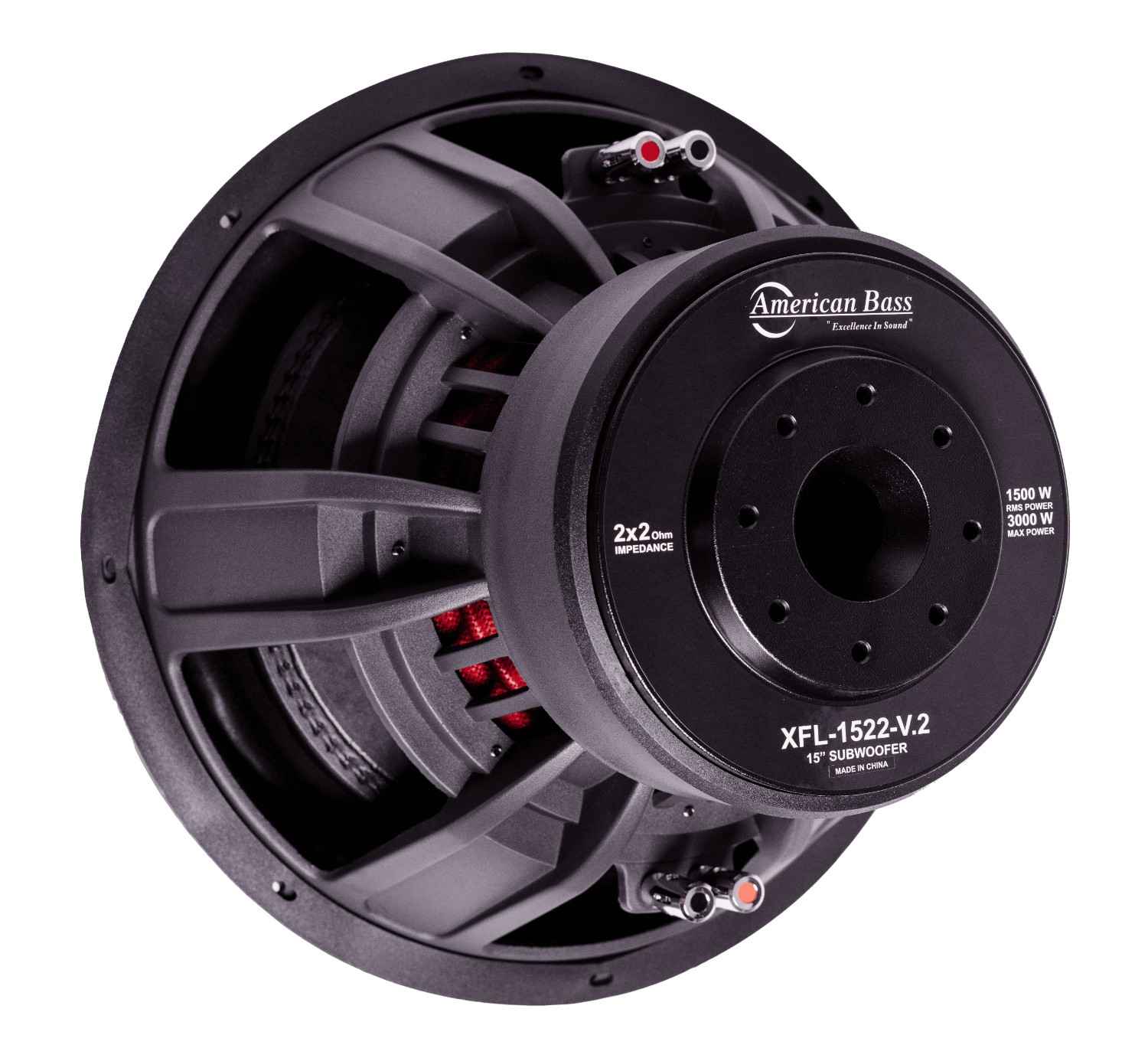

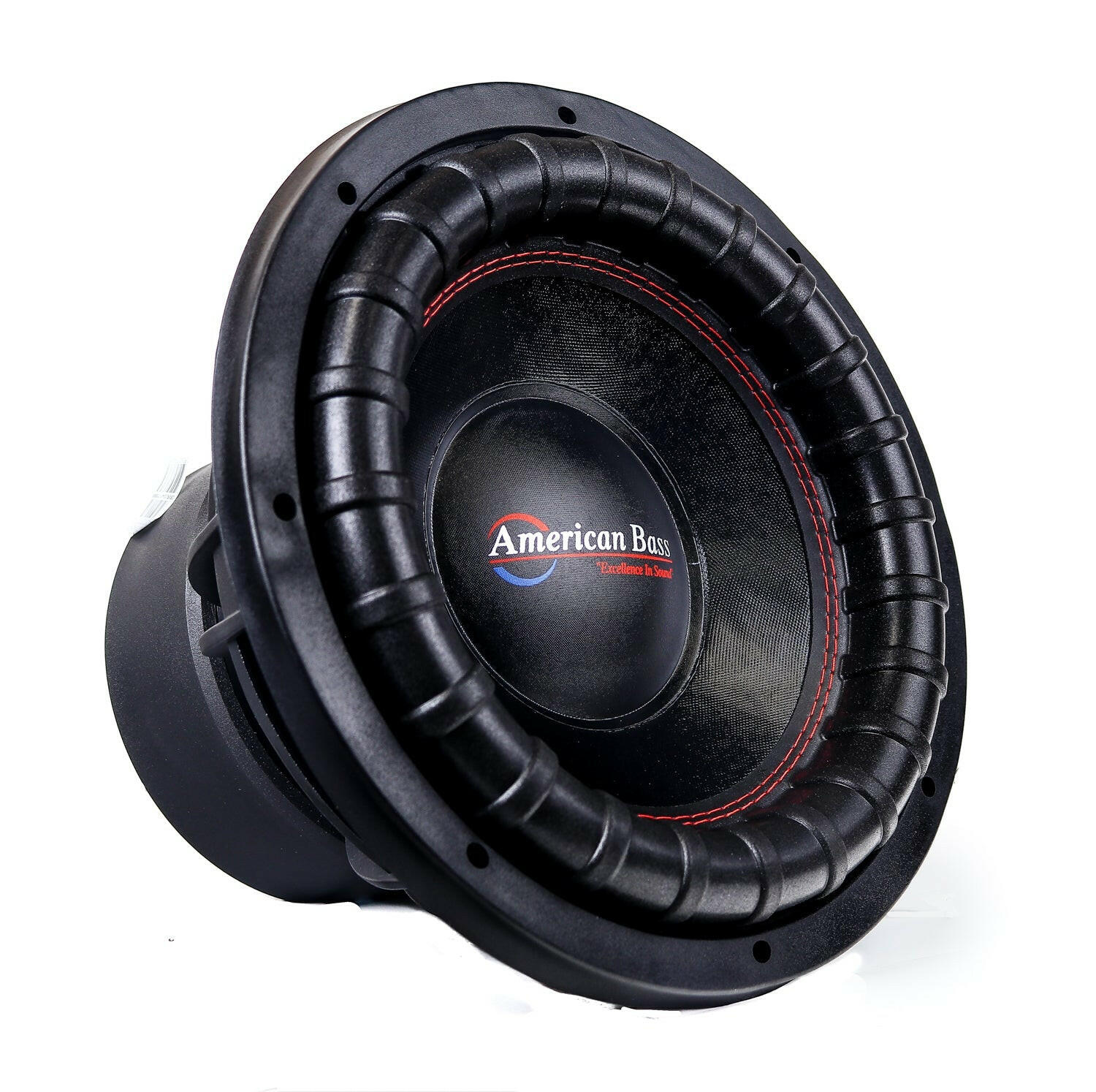

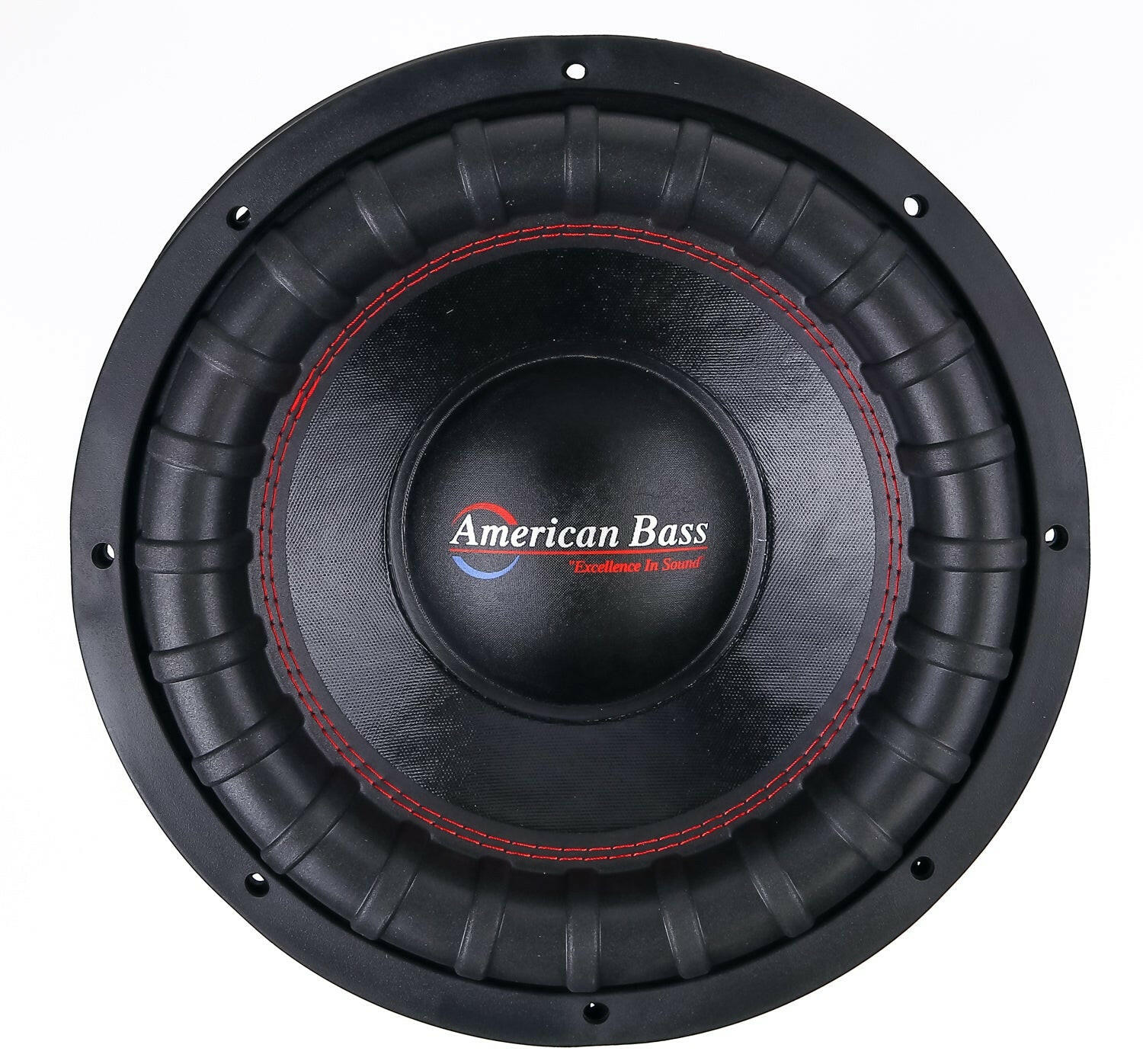

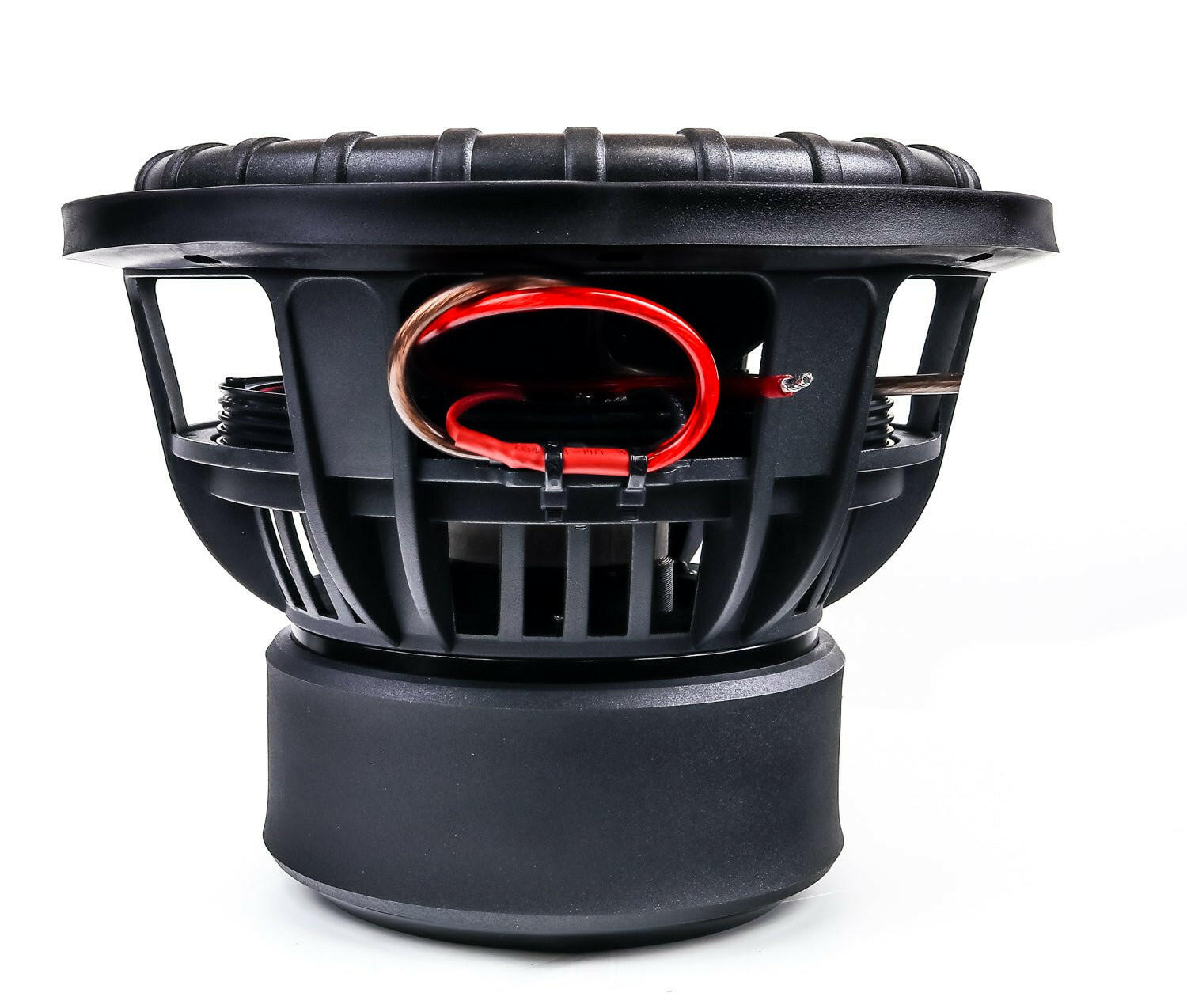

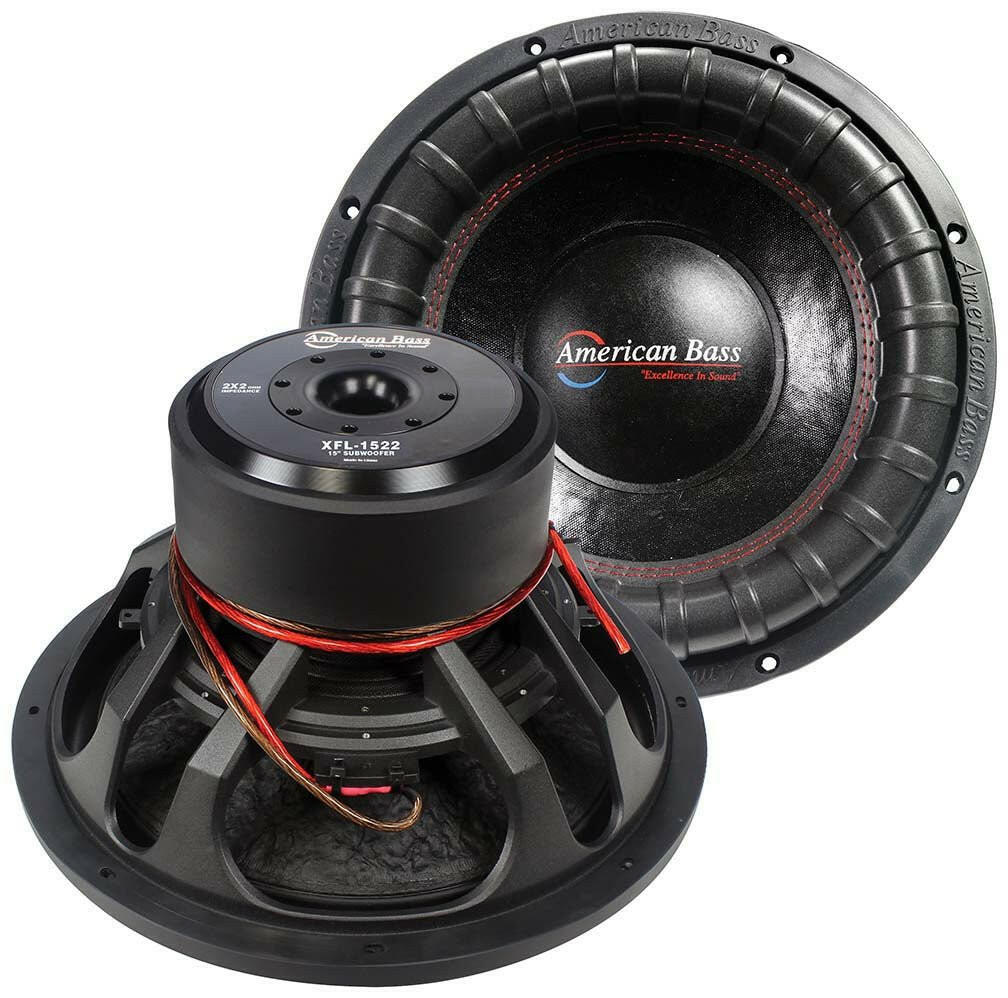

American Bass XFL 15" Car Subwoofer — 1000W RMS Dual Voice Coil (XFL-1522 / XFL-1544)
This Listing Includes:
- (1) American Bass XFL 15" Subwoofer
Step up to the American Bass XFL 15" when you want maximum cone area and the deepest, fullest low end the XFL platform can deliver. Rated at 1000W RMS and 2000W max, the XFL 15" rides on a cast aluminium basket with a 3" CCAW voice coil and a Kevlar-reinforced cone built to stay composed at volume. With dual 2Ω or 4Ω voice coils, you can wire the XFL 15" to match almost any monoblock. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Kevlar fiber reinforced non-pressed paper cone for rigid, controlled excursion
- 3" CCAW voice coil for high power handling and reduced thermal compression
- Foam surround tuned for long, linear travel (17mm Xmax)
- Cast aluminium basket for rigidity under high power
- 200 oz ferrite magnet motor for strong, consistent control
Specifications
| RMS Power | 1000W |
| Max Power | 2000W |
| Impedance | Dual 2Ω (XFL-1522) or Dual 4Ω (XFL-1544) |
| Sensitivity | 88.5 dB (2Ω) / 88.2 dB (4Ω) |
| Voice Coil | 3" CCAW |
| Magnet | 200 oz ferrite |
| Cone | Kevlar fiber reinforced non-pressed paper |
| Surround | Foam |
| Basket | Cast aluminium |
| Mounting Depth | 9.33" |
| Cutout Diameter | 14.1" |
| Xmax | 17.0 mm |
| Fs | 30.9 Hz (2Ω) / 33.0 Hz (4Ω) |
| Qts | 0.43 (2Ω) / 0.48 (4Ω) |
| Qes | 0.483 (2Ω) / 0.537 (4Ω) |
| Qms | 4.71 (2Ω) / 5.314 (4Ω) |
| Vas | 75.7 L (2Ω) / 59.1 L (4Ω) |
| BL | 23.5 (2Ω) / 29.5 (4Ω) |
