American Bass XFL 12" Single Bundle (Baltic Birch)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofer ships from JS Ultimate Sounds and usually arrives first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofer is not pre-installed. You mount it in the enclosure once both have arrived.
- The enclosure arrives finished in a gray stain, ready to install.
What is included
- (1) American Bass XFL 12" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
- (1) American Bass XFL 12" Single Ported Subwoofer Enclosure, Baltic Birch
Priced 10% below buying the subwoofer and enclosure separately.
Choose your impedance below.
American Bass XFL 12" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
- 1500W RMS / 3000W max — authoritative output in a standard 12" footprint
- Dual voice coil, 2Ω or 4Ω — flexible wiring for a wide range of amps
- 3" CCAW voice coil — holds composure under sustained power
- 8.34" mounting depth — fits cleanly in most standard enclosures
- XFL-1222 / XFL-1244 — Kevlar-reinforced cone on a cast aluminum basket

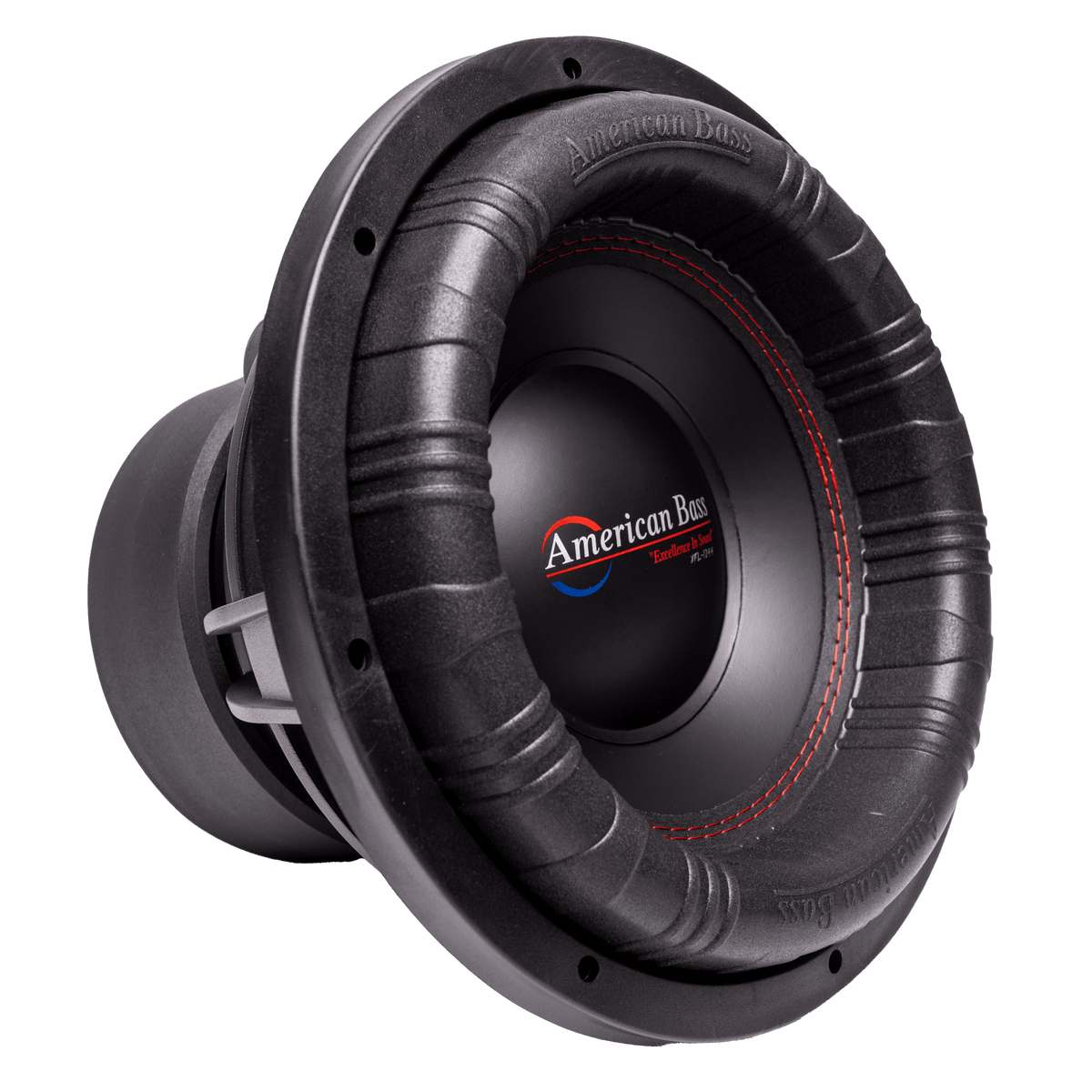

American Bass XFL 12" Car Subwoofer — 1500W RMS Dual Voice Coil (XFL-1222 / XFL-1244)
This Listing Includes:
- (1) American Bass XFL 12" Subwoofer
The American Bass XFL 12" is built for daily drivers and street builds that demand real output and real reliability. Rated at 1500W RMS and 3000W max, the XFL 12" pairs a 3" CCAW voice coil with a rigid cast aluminium basket and a Kevlar-reinforced cone that keeps excursion controlled under sustained power. Dual 2Ω or 4Ω voice coils give you the wiring flexibility to dial in your amp, and an 8.34" mounting depth drops it into most standard enclosures.
Features
- Kevlar fiber reinforced non-pressed paper cone for rigid, controlled excursion
- 3" CCAW voice coil for high power handling and reduced thermal compression
- Foam surround tuned for long, linear travel (17mm Xmax)
- Cast aluminium basket for rigidity under high power
- 200 oz ferrite magnet motor for strong, consistent control
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 2Ω (XFL-1222) or Dual 4Ω (XFL-1244) |
| Sensitivity | 86.2 dB (2Ω) / 86.5 dB (4Ω) |
| Voice Coil | 3" CCAW |
| Magnet | 200 oz ferrite |
| Cone | Kevlar fiber reinforced non-pressed paper |
| Surround | Foam |
| Basket | Cast aluminium |
| Mounting Depth | 8.34" |
| Cutout Diameter | 11.5" |
| Xmax | 17.0 mm |
| Fs | 35.34 Hz (2Ω) / 38.5 Hz (4Ω) |
| Qts | 0.44 (2Ω) / 0.45 (4Ω) |
| Qes | 0.491 (2Ω) / 0.493 (4Ω) |
| Qms | 4.936 (2Ω) / 5.153 (4Ω) |
| Vas | 30.21 L (2Ω) / 23.4 L (4Ω) |
| BL | 21.3 (2Ω) / 28.3 (4Ω) |

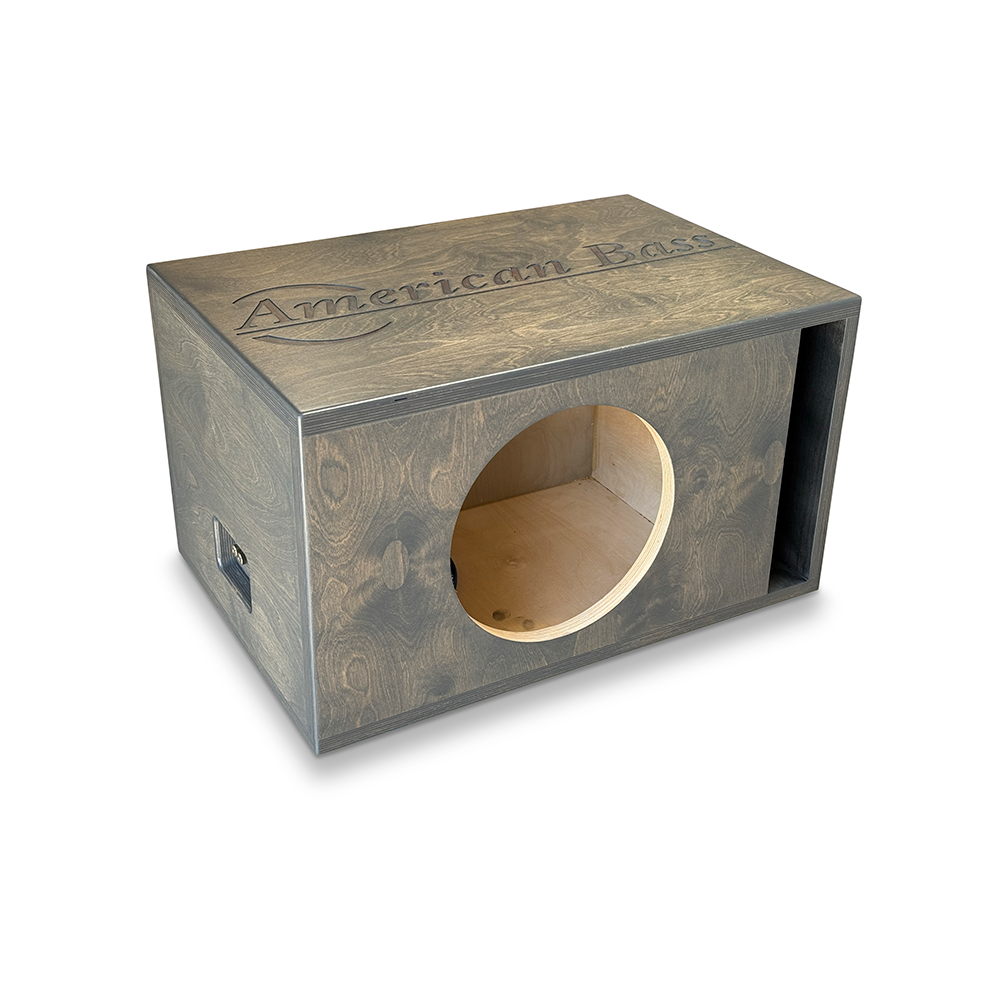

American Bass XFL 12" Single Ported Subwoofer Enclosure
- Net Volume - 2.0 cu ft
- Tuning - 33.0 Hz
- Port Area - 28.69 sq in
- Sub Cutout - 11.4"
- Construction - 3/4" (18mm) birch plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the American Bass XFL 12" subwoofer
This enclosure is custom built specifically for the American Bass XFL 12" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Custom built to order by Basshead Supply and shipped directly from them, about 2 to 3 weeks.
Features
- 3/4" (18mm) birch plywood construction
- 13 ply birch veneer construction (1" Baffle 17 ply)
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 2.0 cu ft |
| Tuning | 33.0 Hz |
| Port Area | 28.69 sq in |
| Port Dimensions | 13.5" x 2.125" |
| Sub Cutout | 11.4" |
| Construction | 3/4" (18mm) birch plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 15.0" x 24.25" x 17.0" |
