American Bass XFL 10" Single Bundle
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20American%20Bass%20XFL%2010%22%20Car%20Subwoofer%201500%20Watts%20RMS%20Dual%20Voice%20Coil%202%20Ohm%20or%204%20Ohm%20+%20(1)%20American%20Bass%20XFL%2010%22%20Single%20Ported%20Subwoofer%20Enclosure%20%E2%80%94%201.25%20cu%20ft%20@%2034.0HzPriced%20at%201...
){kind=link}

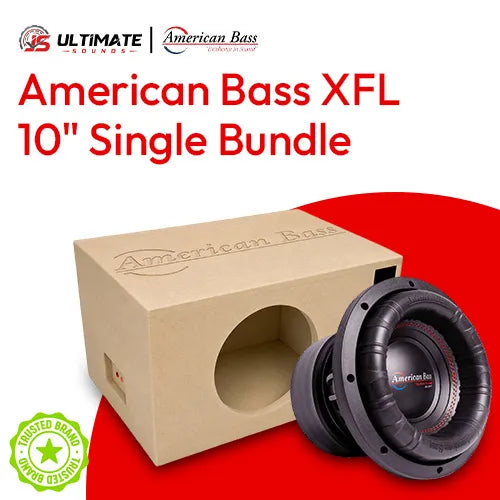

Bundle Includes: (1) American Bass XFL 10" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm + (1) American Bass XFL 10" Single Ported Subwoofer Enclosure — 1.25 cu ft @ 34.0Hz
Priced at 10% off the combined retail price of the subwoofer and enclosure bought separately. Select your impedance below.
American Bass XFL 10" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
- 1500W RMS / 3000W max — big power in a compact 10" driver
- Dual voice coil, 2Ω or 4Ω — flexible wiring for a wide range of amps
- 3" CCAW voice coil — high power handling with reduced thermal compression
- 7.36" mounting depth — fits tight 10" enclosures
- XFL-1022 / XFL-1044 — Kevlar-reinforced cone on a cast aluminum basket
American Bass XFL 10" Car Subwoofer — 1500W RMS Dual Voice Coil (XFL-1022 / XFL-1044)
This Listing Includes:
- (1) American Bass XFL 10" Subwoofer
The American Bass XFL 10" packs the full XFL platform into a compact 10" driver, so you get serious output where space is tight. Rated at 1500W RMS and 3000W max, the XFL 10" uses a 3" CCAW voice coil, a cast aluminium basket, and a Kevlar-reinforced cone to handle real power without losing control. Dual 2Ω or 4Ω voice coils make it easy to wire to your amp, and a 7.36" mounting depth fits snug 10" boxes.
Features
- Kevlar fiber reinforced non-pressed paper cone for rigid, controlled excursion
- 3" CCAW voice coil for high power handling and reduced thermal compression
- Foam surround tuned for long, linear travel (17mm Xmax)
- Cast aluminium basket for rigidity under high power
- 200 oz ferrite magnet motor for strong, consistent control
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 2Ω (XFL-1022) or Dual 4Ω (XFL-1044) |
| Sensitivity | 83.5 dB (2Ω) / 82.7 dB (4Ω) |
| Voice Coil | 3" CCAW |
| Magnet | 200 oz ferrite |
| Cone | Kevlar fiber reinforced non-pressed paper |
| Surround | Foam |
| Basket | Cast aluminium |
| Mounting Depth | 7.36" |
| Cutout Diameter | 9.37" |
| Xmax | 17.0 mm |
| Fs | 38.61 Hz (2Ω) / 38.59 Hz (4Ω) |
| Qts | 0.30 (2Ω) / 0.42 (4Ω) |
| Qes | 0.426 (2Ω) / 0.459 (4Ω) |
| Qms | 4.512 (2Ω) / 5.628 (4Ω) |
| Vas | 10.8 L (2Ω) / 9.74 L (4Ω) |
| BL | 22.3 (2Ω) / 27.8 (4Ω) |
American Bass XFL 10" Single Ported Subwoofer Enclosure — 1.25 cu ft @ 34.0Hz
The American Bass XFL 10" Single Ported Subwoofer Enclosure is a subwoofer-specific ported enclosure custom-built by Basshead Supply for the American Bass XFL 10" subwoofer. Precision-cut and tuned for maximum output with clean, controlled low end.
Specifications
| Net Volume | 1.25 cu ft |
| Tuning Frequency | 34.0 Hz |
| Port Area | 17.82 sq in |
| Port Dimensions | 11.5" x 1.55" |
| Subwoofer Cutout | 9.375" |
| Construction | Triple-Refined MDF |
| External Dimensions | 13.0"H x 22.9"W x 14.0"D |
| Finish | Bare / unfinished (ready to finish) |
Ships bare / unfinished, sanded and ready to finish your way. Includes a pre-wired metal binding-post terminal with 10-gauge OFC lead wire. Built to order — typical lead time 2–3 weeks.
