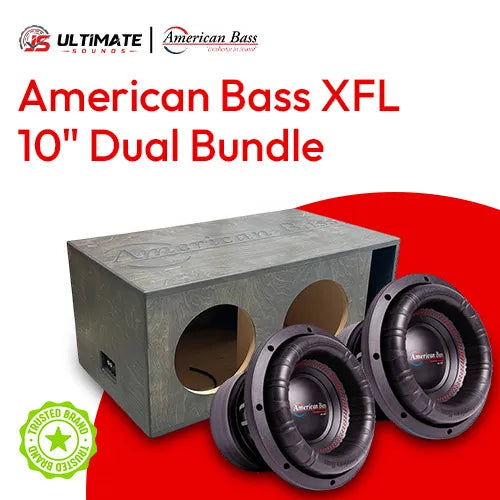

American Bass XFL 10" Dual Bundle
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
%20American%20Bass%20XFL%2010%22%20Car%20Subwoofer%201500%20Watts%20RMS%20Dual%20Voice%20Coil%202%20Ohm%20or%204%20Ohm%20+%20(1)%20American%20Bass%20XFL%2010%22%20Dual%20Ported%20Subwoofer%20EnclosurePriced%20at%2010%25%20off%20the%20combined%20reta...
){kind=link}
Bundle Includes: (2) American Bass XFL 10" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm + (1) American Bass XFL 10" Dual Ported Subwoofer Enclosure
Priced at 10% off the combined retail price of the subwoofers and enclosure bought separately. Select your impedance below.
American Bass XFL 10" Car Subwoofer 1500 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm
- 1500W RMS / 3000W max — big power in a compact 10" driver
- Dual voice coil, 2Ω or 4Ω — flexible wiring for a wide range of amps
- 3" CCAW voice coil — high power handling with reduced thermal compression
- 7.36" mounting depth — fits tight 10" enclosures
- XFL-1022 / XFL-1044 — Kevlar-reinforced cone on a cast aluminum basket
American Bass XFL 10" Car Subwoofer — 1500W RMS Dual Voice Coil (XFL-1022 / XFL-1044)
This Listing Includes:
- (1) American Bass XFL 10" Subwoofer
The American Bass XFL 10" packs the full XFL platform into a compact 10" driver, so you get serious output where space is tight. Rated at 1500W RMS and 3000W max, the XFL 10" uses a 3" CCAW voice coil, a cast aluminium basket, and a Kevlar-reinforced cone to handle real power without losing control. Dual 2Ω or 4Ω voice coils make it easy to wire to your amp, and a 7.36" mounting depth fits snug 10" boxes.
Features
- Kevlar fiber reinforced non-pressed paper cone for rigid, controlled excursion
- 3" CCAW voice coil for high power handling and reduced thermal compression
- Foam surround tuned for long, linear travel (17mm Xmax)
- Cast aluminium basket for rigidity under high power
- 200 oz ferrite magnet motor for strong, consistent control
Specifications
| RMS Power | 1500W |
| Max Power | 3000W |
| Impedance | Dual 2Ω (XFL-1022) or Dual 4Ω (XFL-1044) |
| Sensitivity | 83.5 dB (2Ω) / 82.7 dB (4Ω) |
| Voice Coil | 3" CCAW |
| Magnet | 200 oz ferrite |
| Cone | Kevlar fiber reinforced non-pressed paper |
| Surround | Foam |
| Basket | Cast aluminium |
| Mounting Depth | 7.36" |
| Cutout Diameter | 9.37" |
| Xmax | 17.0 mm |
| Fs | 38.61 Hz (2Ω) / 38.59 Hz (4Ω) |
| Qts | 0.30 (2Ω) / 0.42 (4Ω) |
| Qes | 0.426 (2Ω) / 0.459 (4Ω) |
| Qms | 4.512 (2Ω) / 5.628 (4Ω) |
| Vas | 10.8 L (2Ω) / 9.74 L (4Ω) |
| BL | 22.3 (2Ω) / 27.8 (4Ω) |
American Bass XFL 10" Dual Ported Subwoofer Enclosure
- Net Volume - 2.5 cu ft
- Tuning - 34.0 Hz
- Port Area - 35.94 sq in
- Sub Cutout - 9.375"
- Construction - 3/4" (18mm) birch plywood construction
This Listing Includes: (1) Basshead Supply ported enclosure for the American Bass XFL 10" subwoofer
This enclosure is custom built specifically for the American Bass XFL 10" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- 3/4" (18mm) birch plywood construction
- 13 ply birch veneer construction (1" Baffle 17 ply)
- Gray stained finish
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 2.5 cu ft |
| Tuning | 34.0 Hz |
| Port Area | 35.94 sq in |
| Port Dimensions | 11.5" x 3.125" |
| Sub Cutout | 9.375" |
| Construction | 3/4" (18mm) birch plywood construction |
| Finish | Gray stained finish |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 13.0" x 29.0" x 20.0" |
