American Bass VFL Pro Power 5K Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Class D monoblock — built for high-output VFL competition and daily SPL builds
- 400A fuse rating — ready for big current draw and large subwoofer loads
- Variable low-pass filter 35Hz–10,000Hz — dial in exactly the bandwidth your subs need
- Variable subsonic filter 10Hz–50Hz — protects your woofers from damaging low-frequency excursion
- 0–9dB bass boost @ 45Hz plus remote gain control — the VFL Pro Power 5K (VFLPROPOWER-5K) keeps tuning at your fingertips

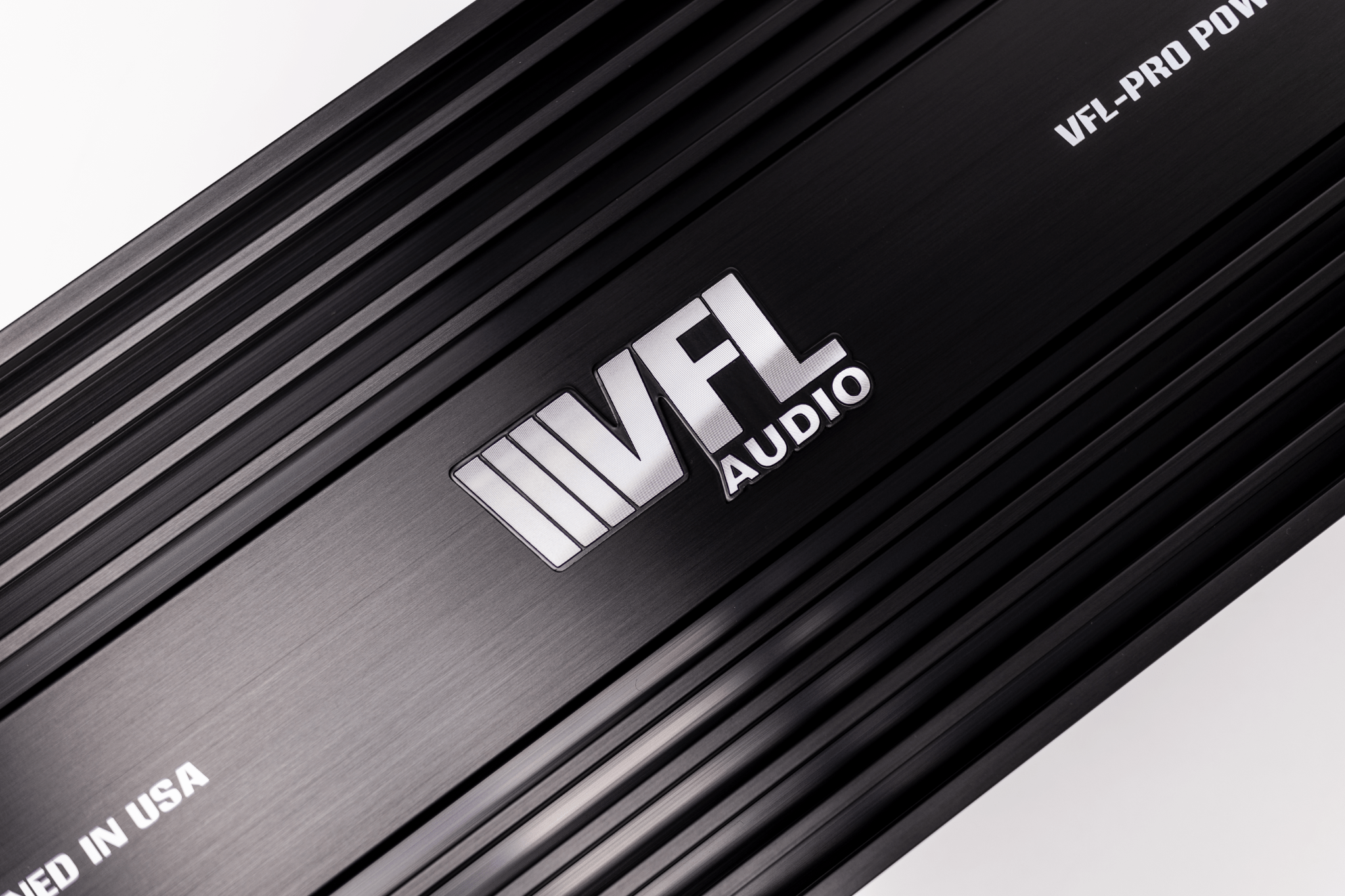

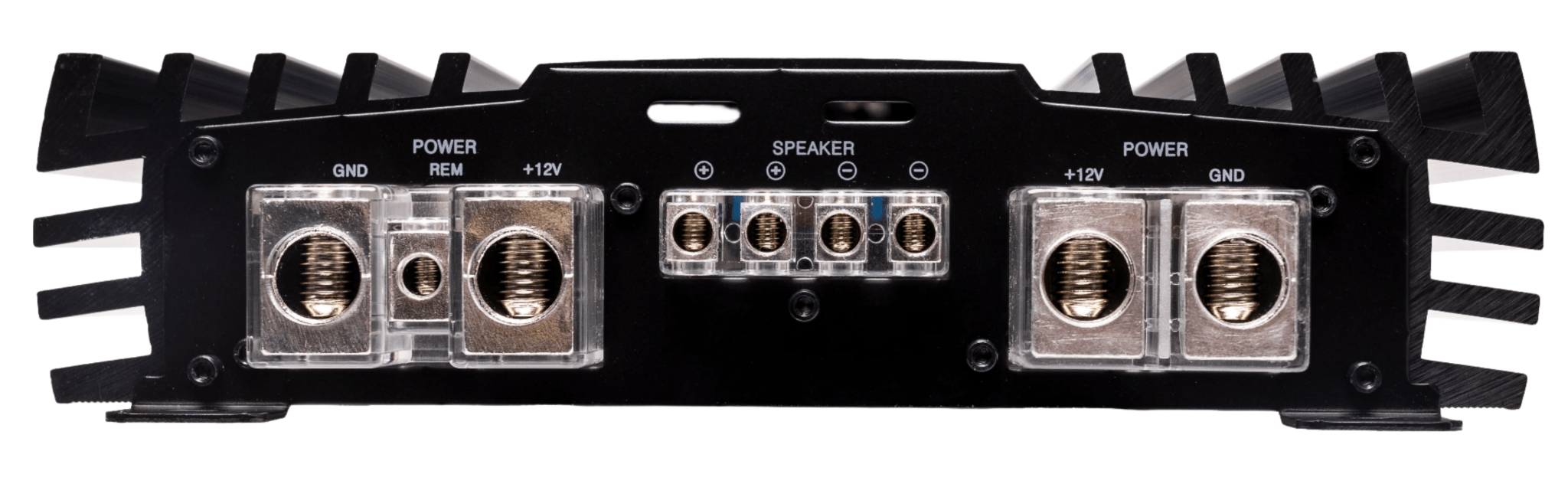

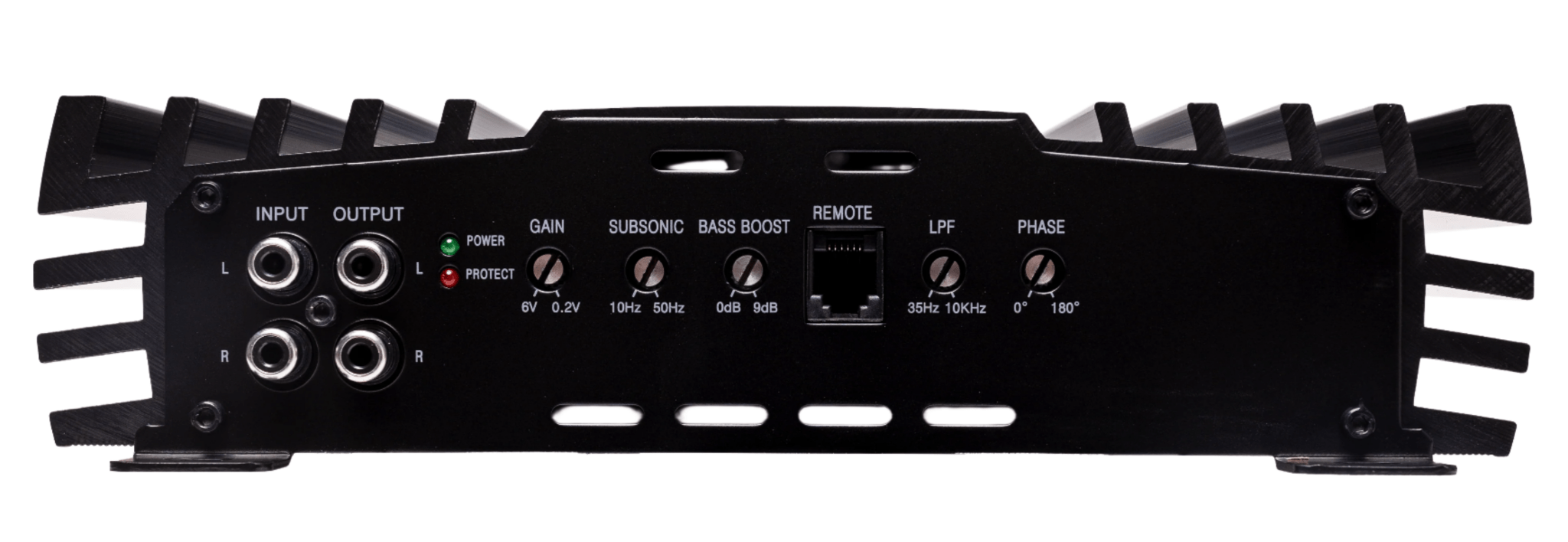

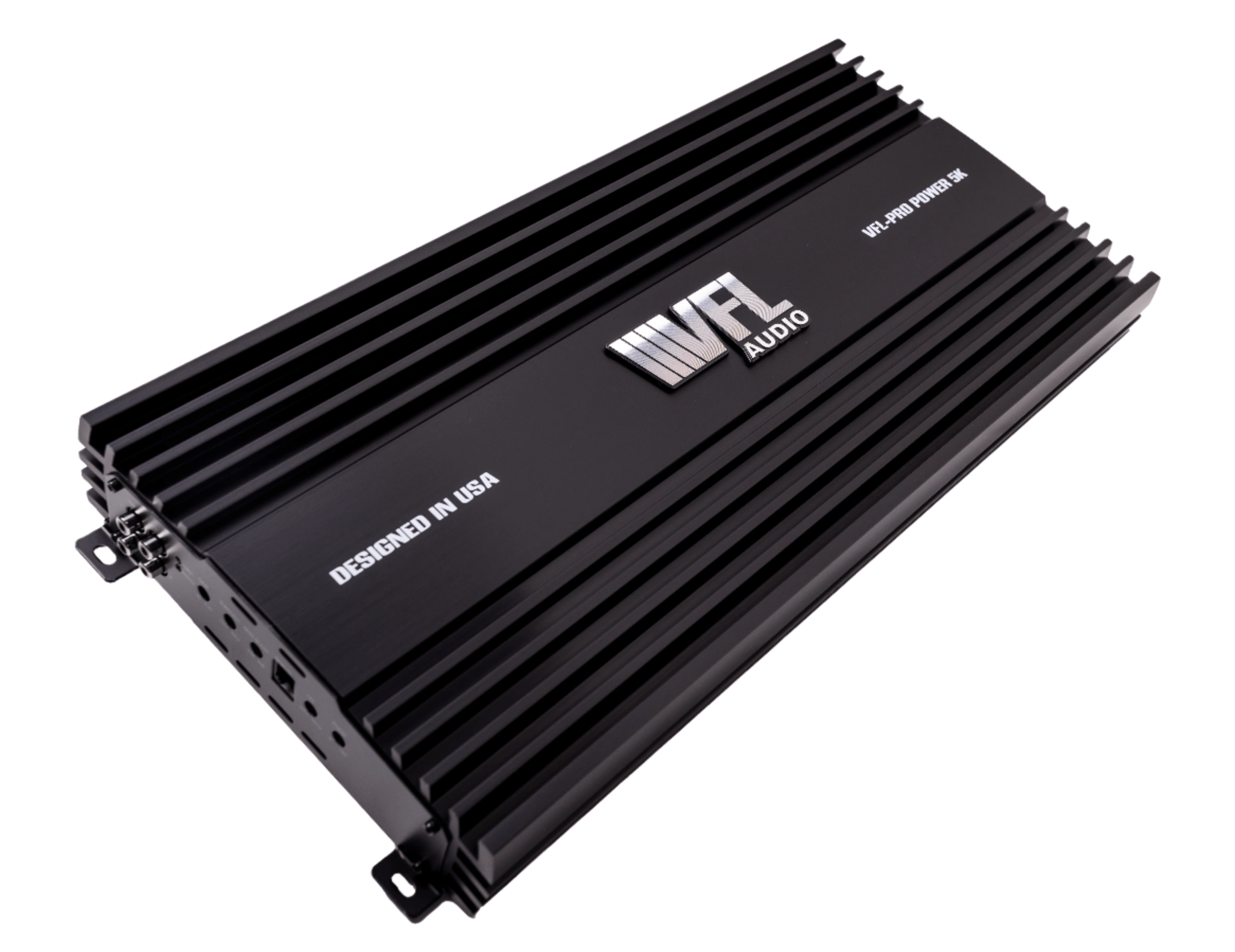

American Bass VFL Pro Power 5K Class D Monoblock Car Amplifier (VFLPROPOWER-5K)
This Listing Includes:
- (1) American Bass VFL Pro Power 5K Amplifier
- (1) Remote Gain Control
Step up to the VFL Pro Power 5K when you want serious, reliable output from a single chassis. This VFL Pro Power 5K runs a clean Class D design with a wide-sweep low-pass filter, adjustable subsonic protection, and 0–9dB of bass boost so you can shape your low end exactly how you like it. With the included remote gain control, you stay in command of your volume from the driver's seat. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Class D monoblock topology for efficient, high-current low-frequency power
- Variable low-pass filter sweeps 35Hz–10,000Hz for flexible bandwidth control
- Variable subsonic filter (10Hz–50Hz) guards against over-excursion
- 0–9dB bass boost centered at 45Hz for added punch
- Wide 0.2–6V input sensitivity matches virtually any head unit, plus a remote gain control
Specifications
| Configuration | Class D Monoblock |
| Input Sensitivity | 0.2–6V |
| Subsonic Filter | 10Hz–50Hz |
| Low-Pass Filter | 35Hz–10,000Hz |
| Bass Boost | 0–9dB @ 45Hz |
| Fuse Rating | 400A |
