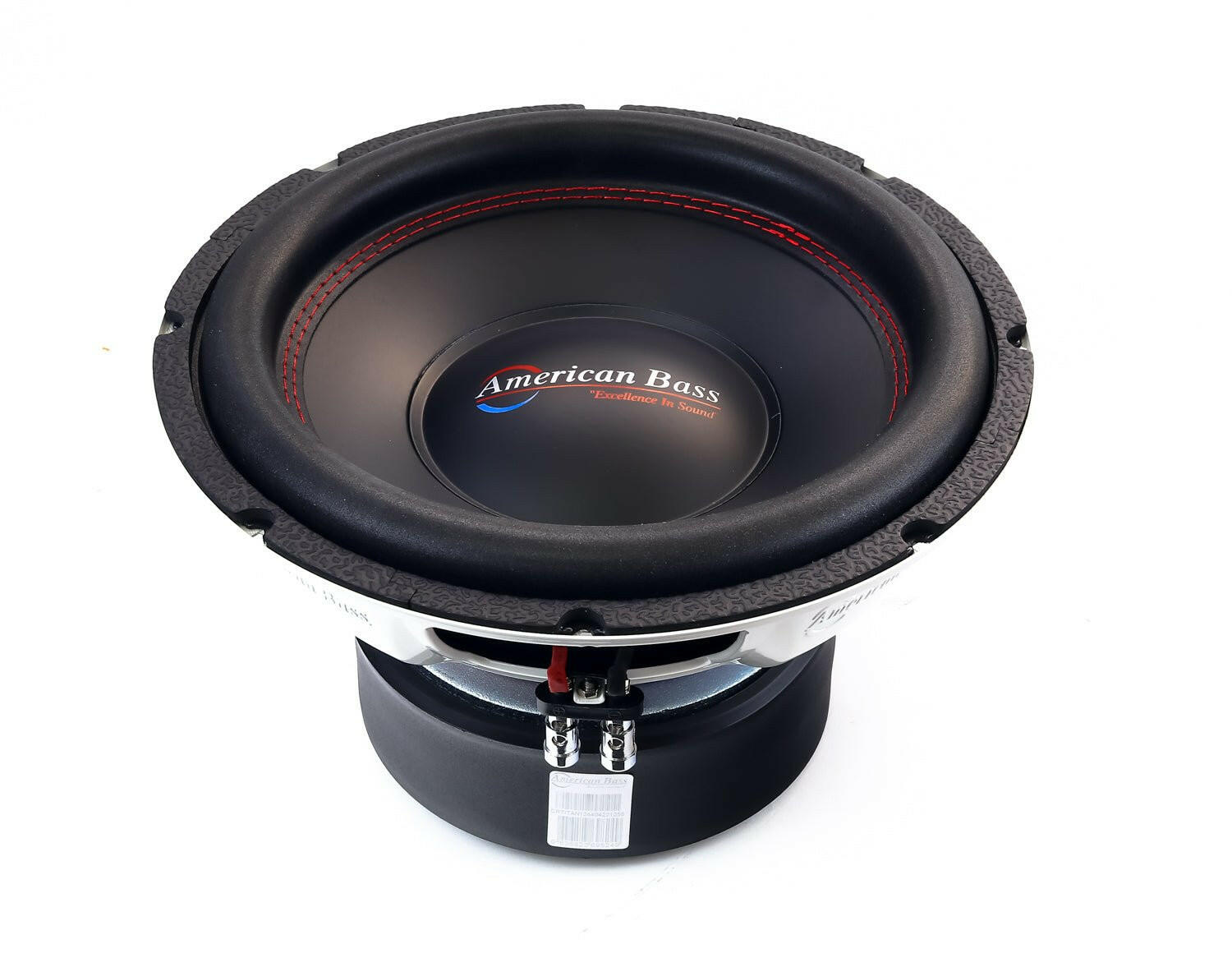

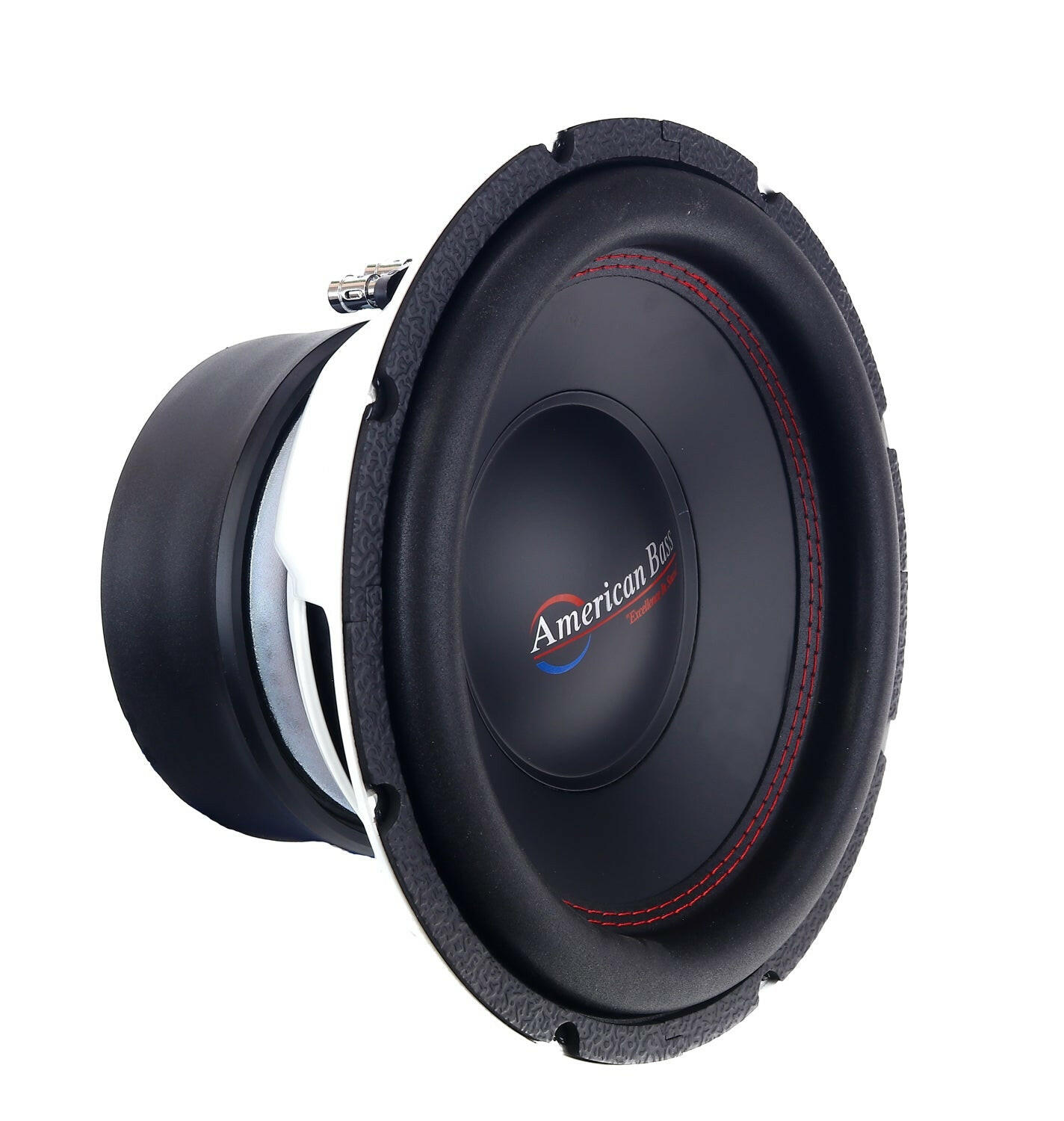

American Bass Titan 12" Car Subwoofer 800 Watts RMS Dual Voice Coil 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 800W RMS / 1600W max — hard-hitting bass on a budget
- Dual 4Ω voice coils — flexible wiring for your amp
- 3.0" 4-layer voice coil — Nomex-protected for heat resistance
- 120 oz magnet motor — big excursion with 17.5mm Xmax
- Model TITAN-1244 — Kevlar-reinforced cone, vented stamped basket
American Bass Titan 12" Car Subwoofer — 800W RMS Dual Voice Coil (TITAN-1244)
This Listing Includes:
- (1) American Bass Titan 12" Subwoofer
The American Bass Titan 12" hits hard without hitting your wallet. Built for the value-minded basshead, the Titan 12" runs a 3.0" 4-layer Nomex-protected voice coil and a 120 oz motor behind a Kevlar-reinforced cone, so it delivers thunderous low end that punches well above its price. Wire the dual 4Ω coils to match your setup and feel the Titan move air.
Features
- 3.0" high-temperature 4-layer voice coil with Nomex protection
- 120 oz magnet motor
- Kevlar-reinforced paper cone

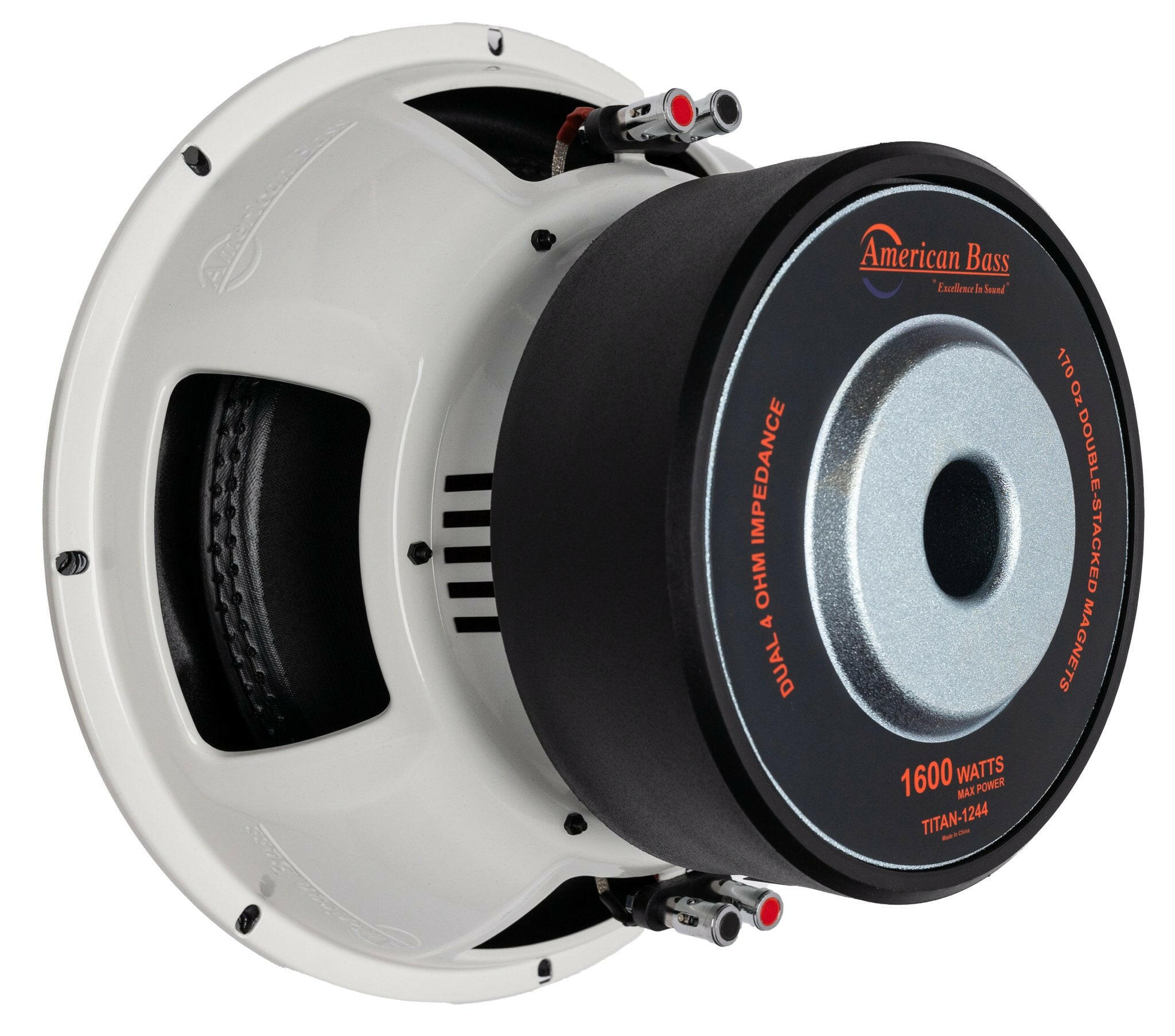

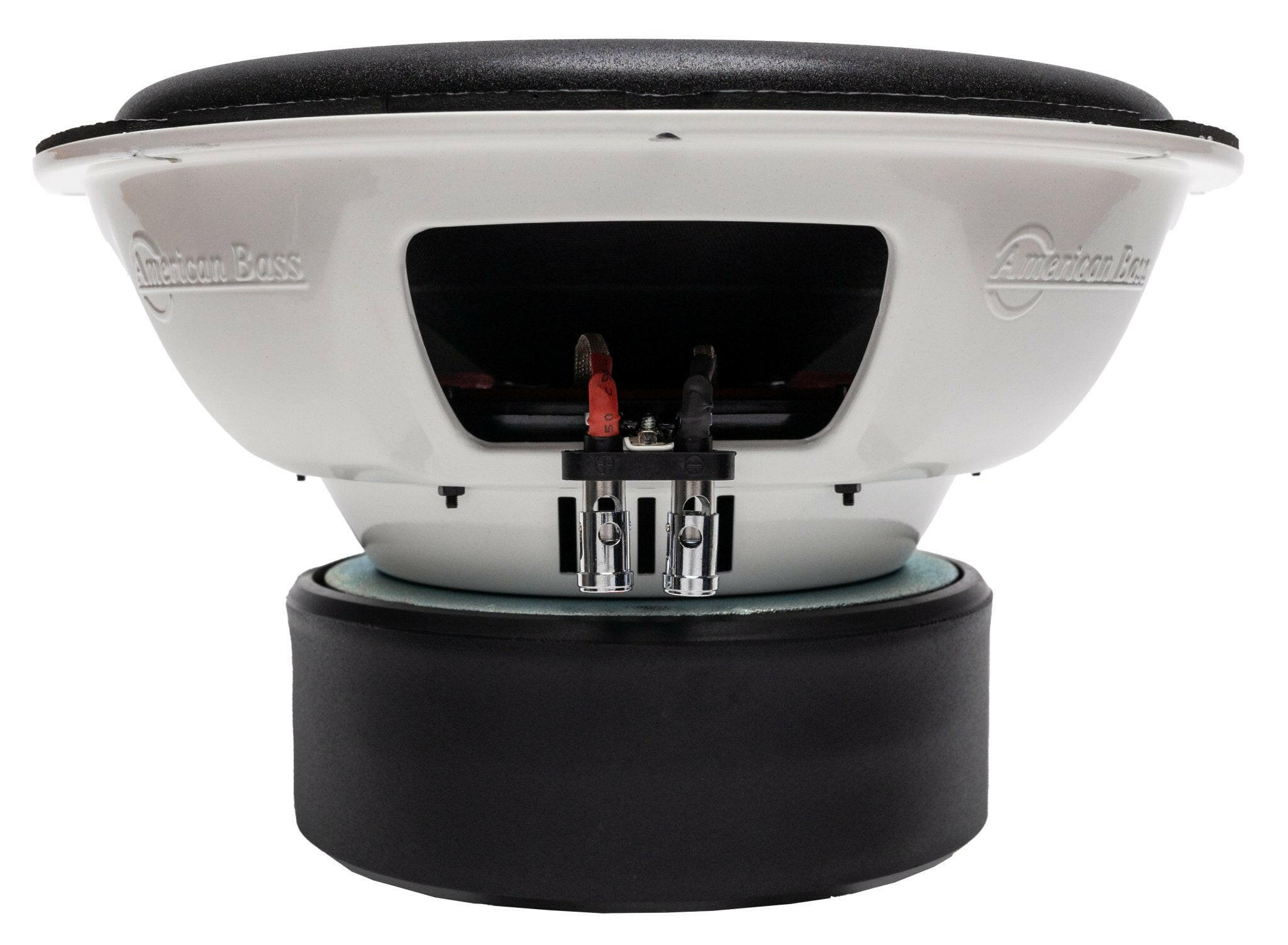

- Heavy-duty white powder-finish stamped basket with perimeter cooling vents
- 3-layer foam surround
- Dual 4Ω voice coils with 17.5mm Xmax
Specifications
| RMS Power | 800W |
| Max Power | 1600W |
| Impedance | Dual 4Ω |
| Sensitivity | 85.9 dB |
| Voice Coil | 3.0" 4-layer (Nomex) |
| Magnet | 120 oz |
| Basket | Stamped, white powder finish, vented |
| Cone | Kevlar-reinforced paper |
| Mounting Depth | 6.81" |
| Cutout Diameter | 11.34" |
| Fs | 33.19 Hz |
| Qts | 0.62 |
| Qes | 0.72 |
| Qms | 4.68 |
| Vas | 31.98 L |
| Xmax | 17.5 mm |
| BL | 21.78 |
| Mms | 258.0 g |
| Sd | 502.91 cm² |
| Re | 6.4Ω |
