American Bass XFL 12" Single Ported Subwoofer Enclosure — 2.0 cu ft @ 33.0Hz
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

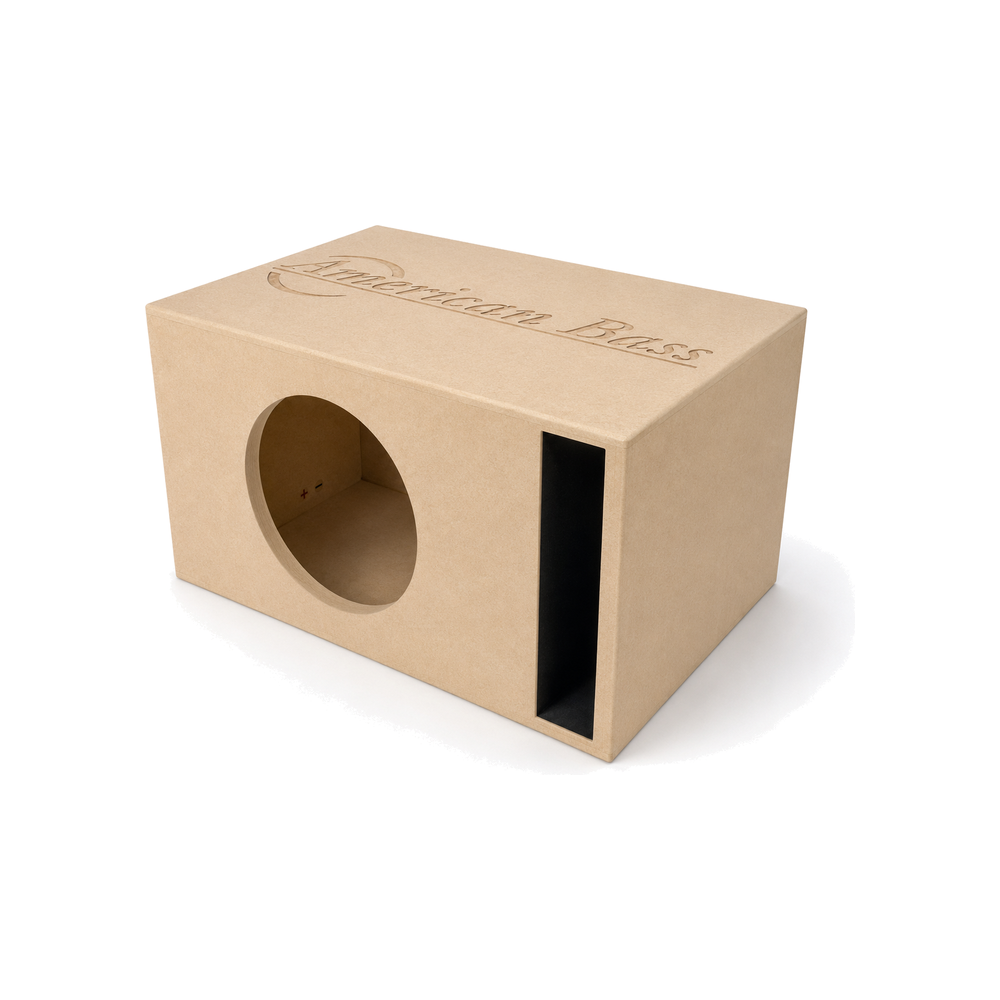

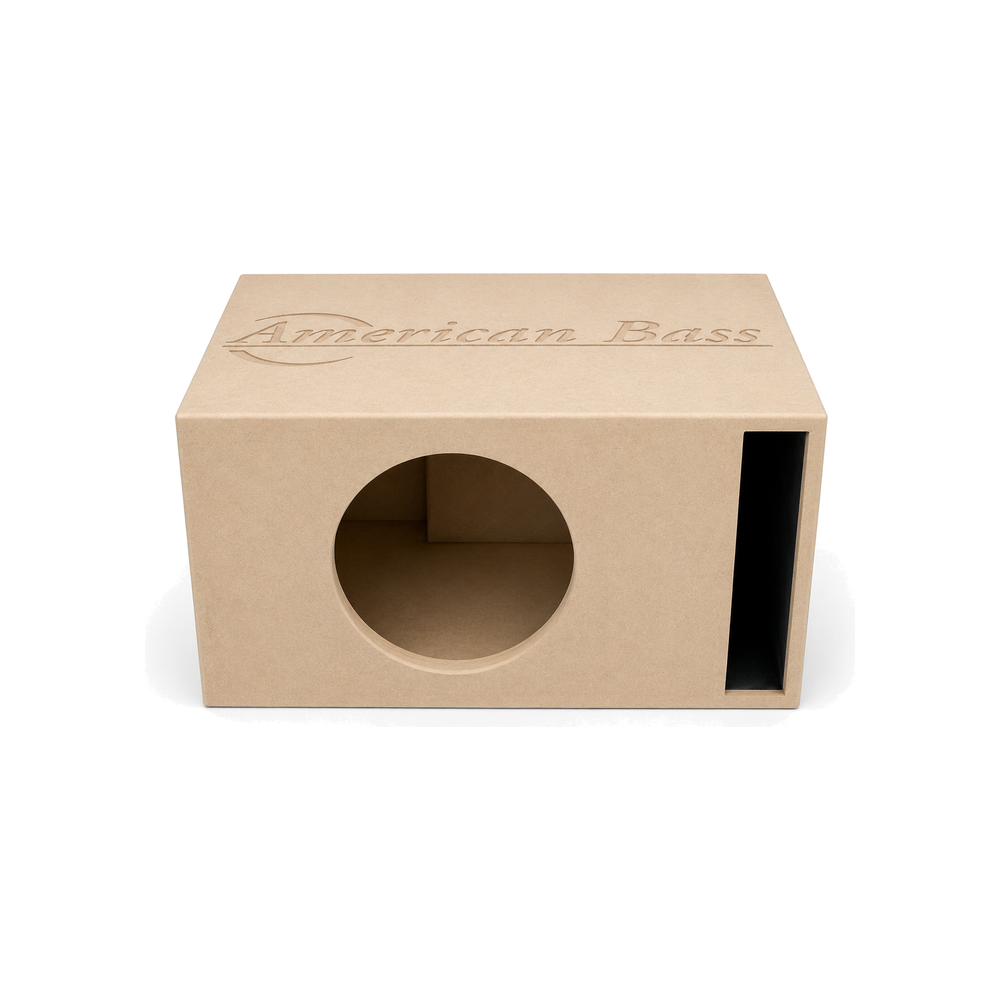

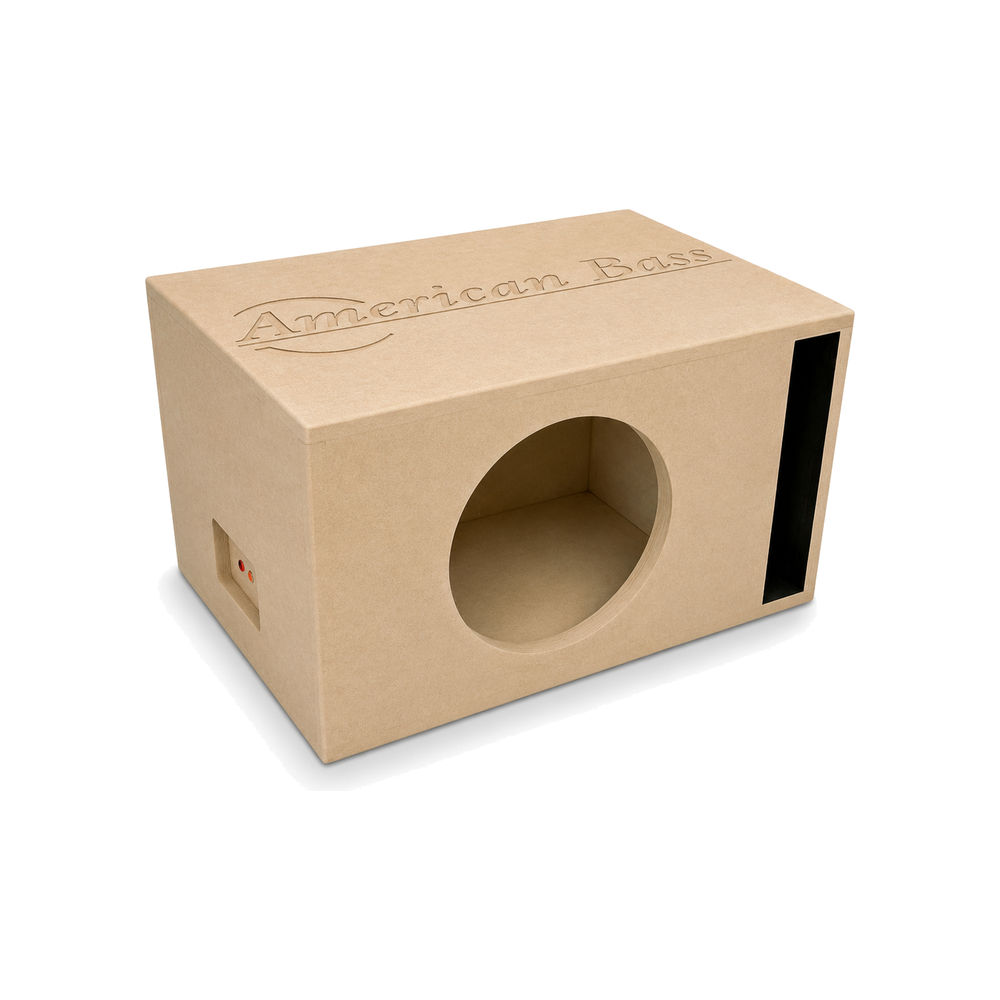

The American Bass XFL 12" Single Ported Subwoofer Enclosure is a subwoofer-specific ported enclosure custom-built by Basshead Supply for the American Bass XFL 12" subwoofer. Precision-cut and tuned for maximum output with clean, controlled low end.
Specifications
| Net Volume | 2.0 cu ft |
| Tuning Frequency | 33.0 Hz |
| Port Area | 28.69 sq in |
| Port Dimensions | 13.5" x 2.125" |
| Subwoofer Cutout | 11.4" |
| Construction | Triple-Refined MDF |
| External Dimensions | 15.0"H x 24.2"W x 17.0"D |
| Finish | Bare / unfinished (ready to finish) |

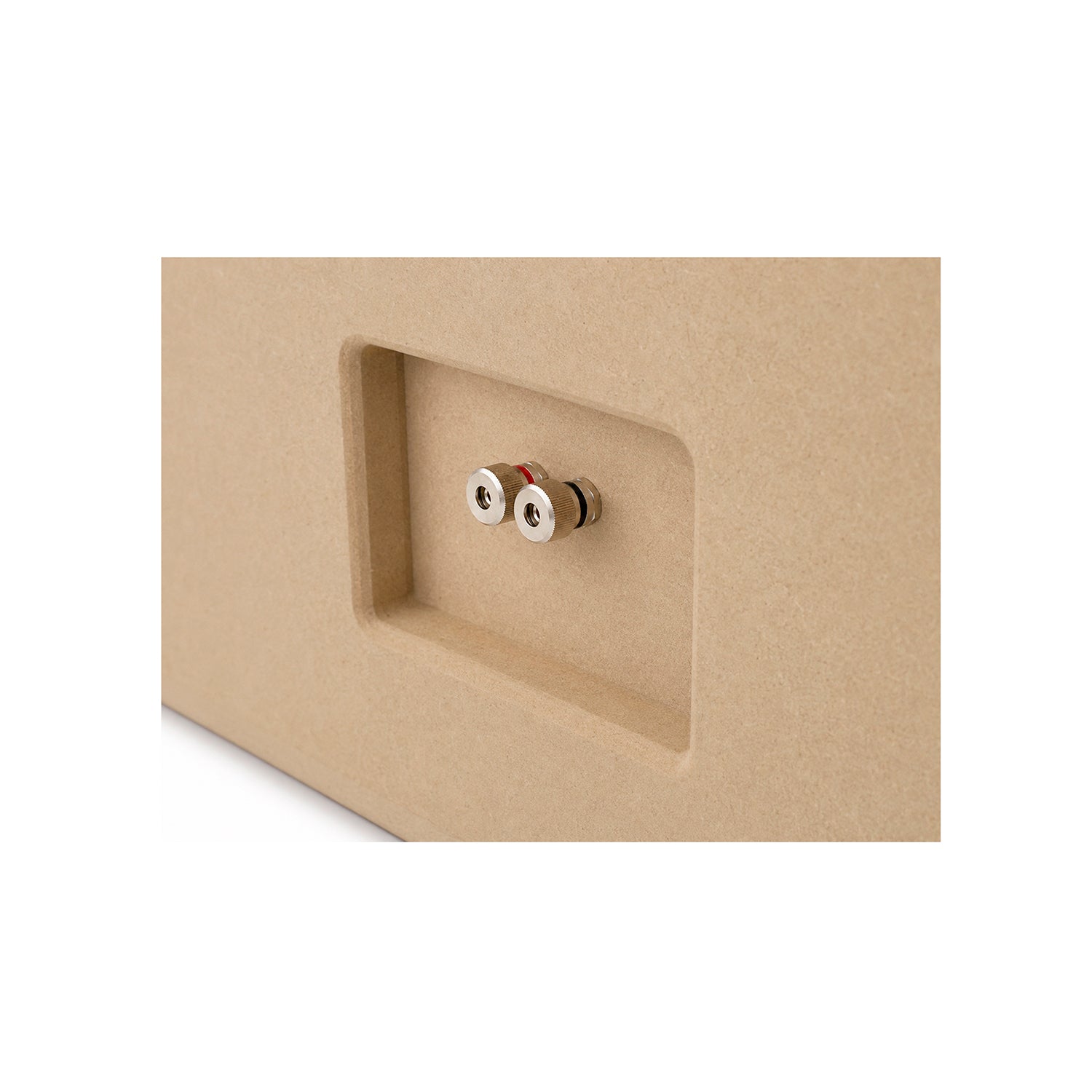

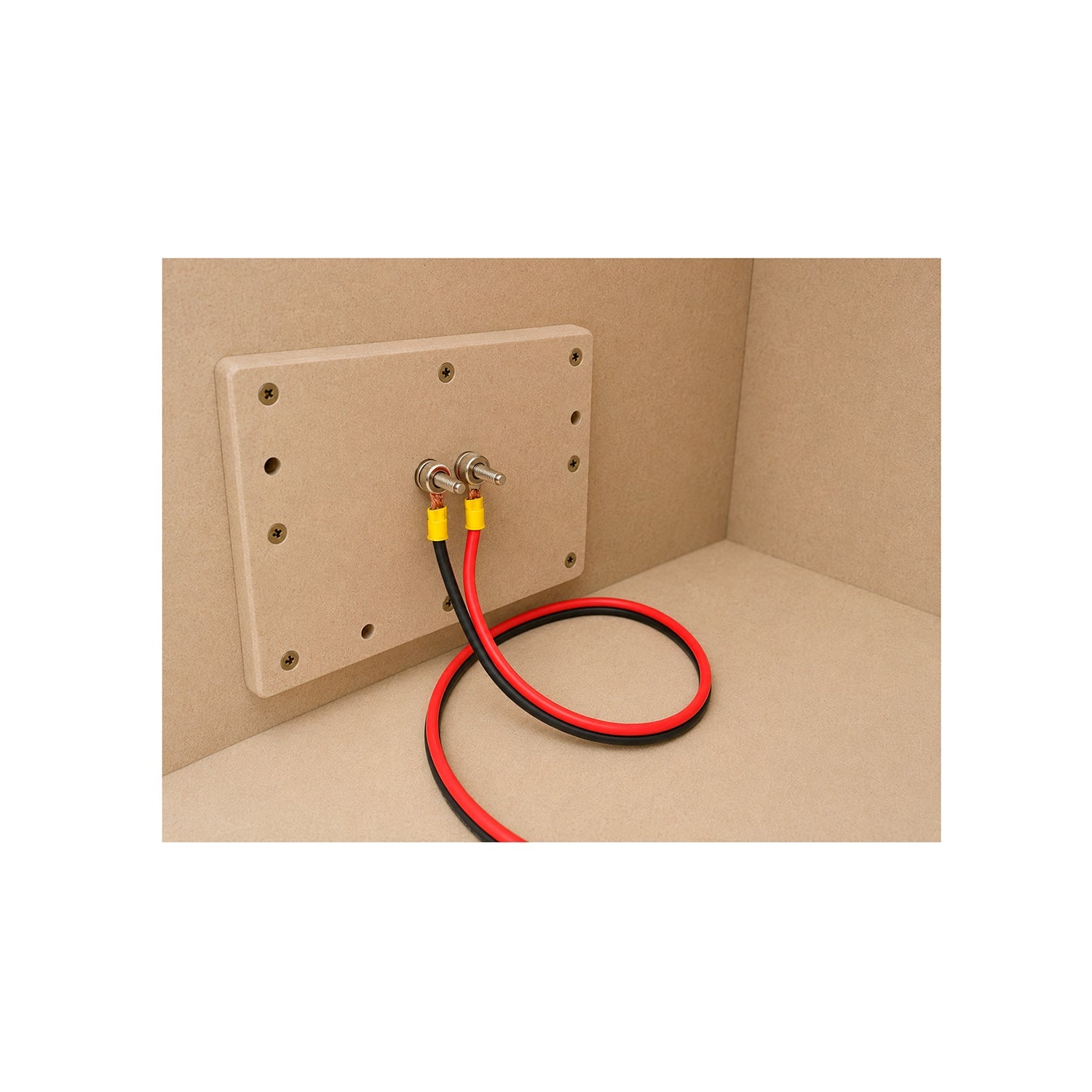

Ships bare / unfinished, sanded and ready to finish your way. Includes a pre-wired metal binding-post terminal with 10-gauge OFC lead wire. Built to order — typical lead time 2–3 weeks.
JS Ultimate Sounds is an authorized Basshead Supply dealer. Every enclosure is 100% genuine and built to spec. Questions about fitment or your build? Our car-audio experts are here to help — reach out any time.
