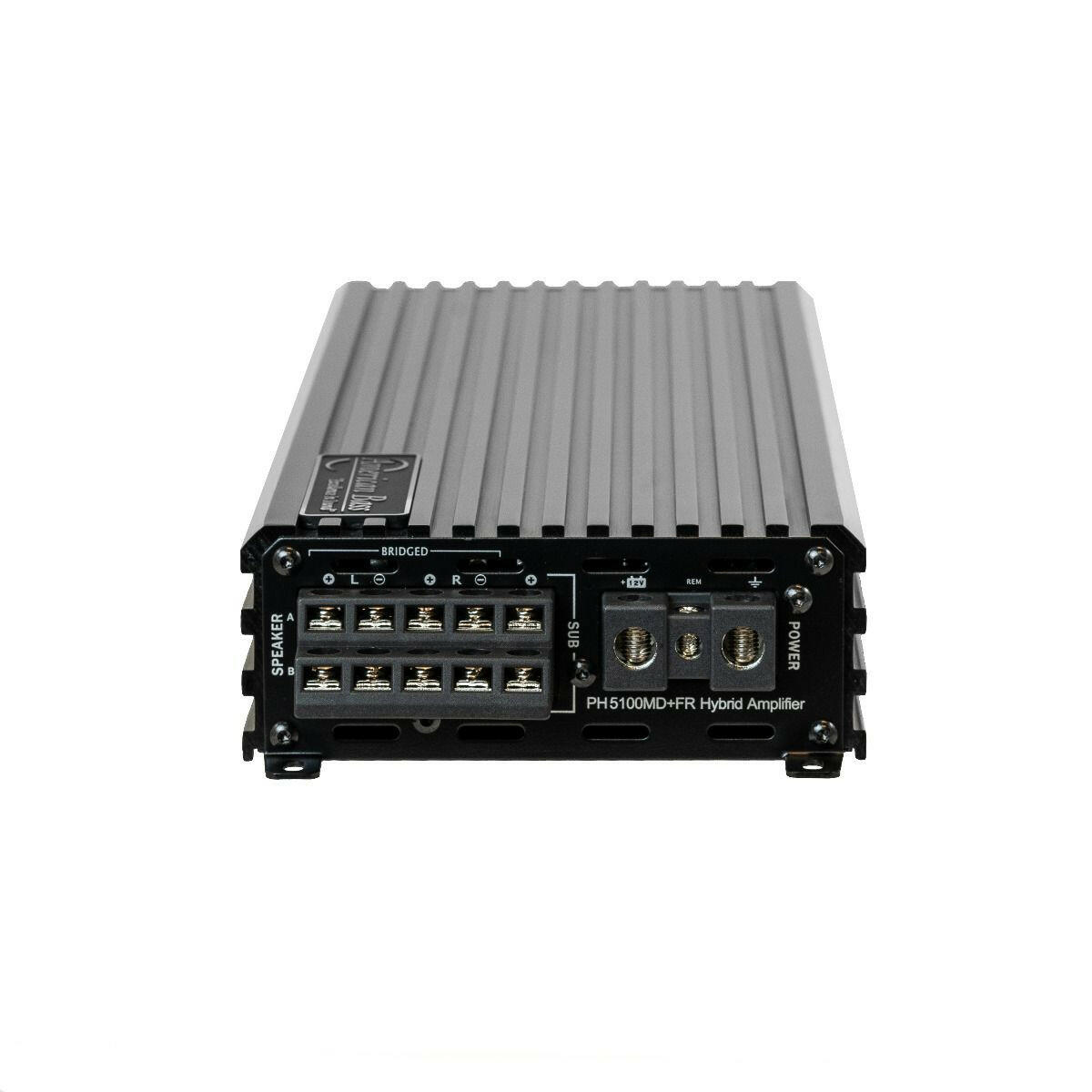

American Bass PH-5100MD FR Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- 5-channel full-range amplifier: 120W x 4 plus a dedicated 600W subwoofer channel
- Run your full-range speakers and a subwoofer from a single compact amp
- Phantom Series chassis designed to fit some of the tightest install spaces
- Variable low-pass and high-pass filters (50Hz–220Hz)
- 200A fuse rating with high efficiency on demanding loads
American Bass PH-5100 Full-Range 5-Channel Car Amplifier — 120W x 4 + 600W RMS (PH5100MD)
This Listing Includes:
- (1) American Bass PH-5100 FR 5-Channel Amplifier
The American Bass Phantom Series packs serious output into a chassis small enough for the most confined installs. The PH-5100 is a complete 5-channel solution that powers your door speakers and a subwoofer from one reliable, modestly priced amplifier — an easy way to build a full system without filling your trunk. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 5-channel full-range design for a complete speakers-plus-sub system
- Dedicated 600W subwoofer channel
- Variable low-pass filter, 50Hz–220Hz
- Variable high-pass filter, 50Hz–220Hz
- Compact Phantom chassis for flexible mounting
Specifications
| Number of Channels | 5 |
| RMS Power @ 4Ω | 120W x 4 + 600W |
| RMS Power @ 2Ω | 120W x 4 + 600W |
| Variable Low-Pass Filter | 50Hz – 220Hz |
| Variable High-Pass Filter | 50Hz – 220Hz |
| Fuse Rating | 200A |
| Dimensions (L x W x H) | 15.2" x 5.51" x 2.12" |
