American Bass Patriot Series Limited 250 Edition 12" Subwoofer — 400W RMS Dual 4 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
The Patriot Series Limited 250 Edition marks 1776–2026, 250 years of American freedom. American Bass is producing only 250 units, each individually hand-numbered.

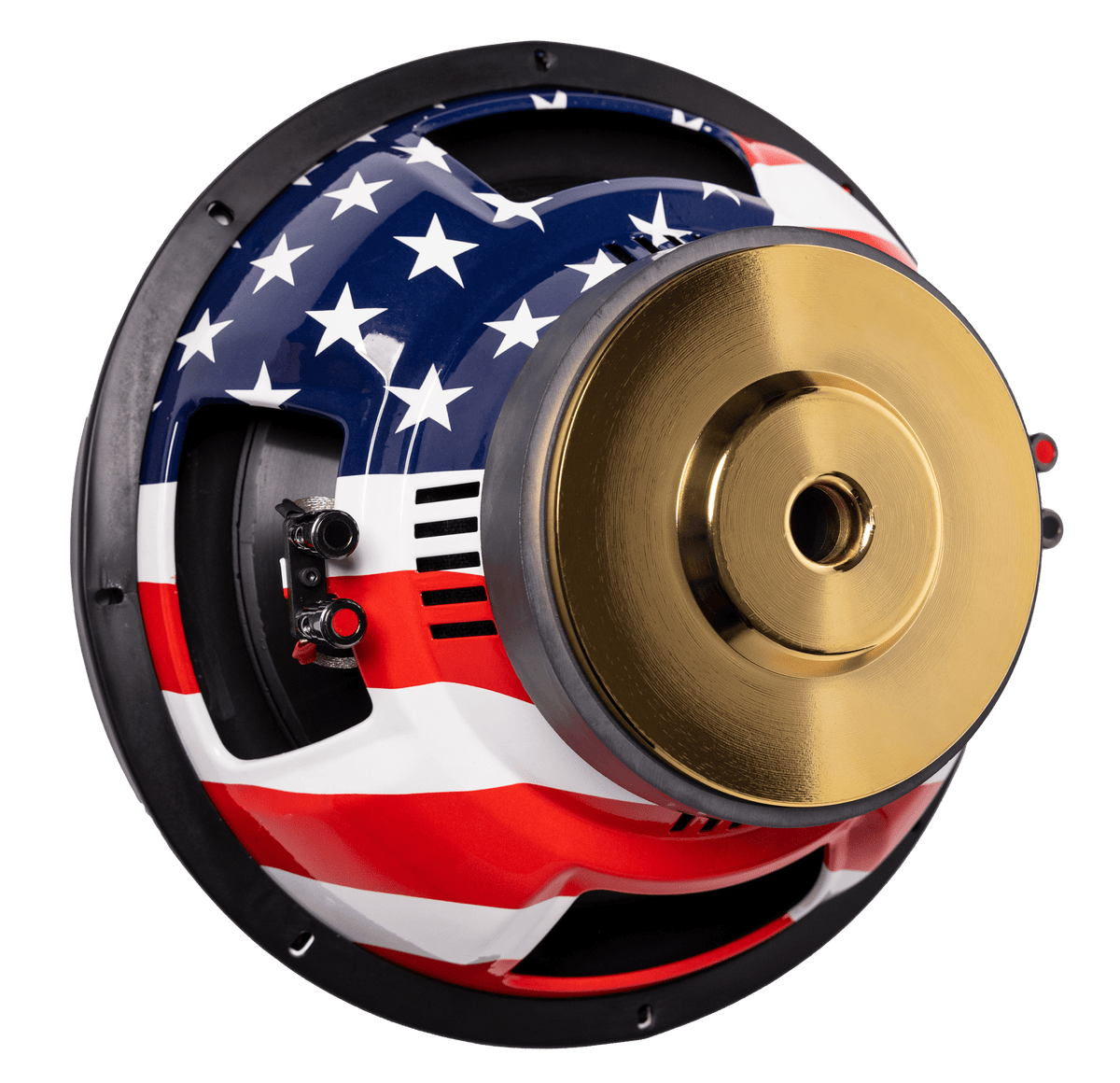

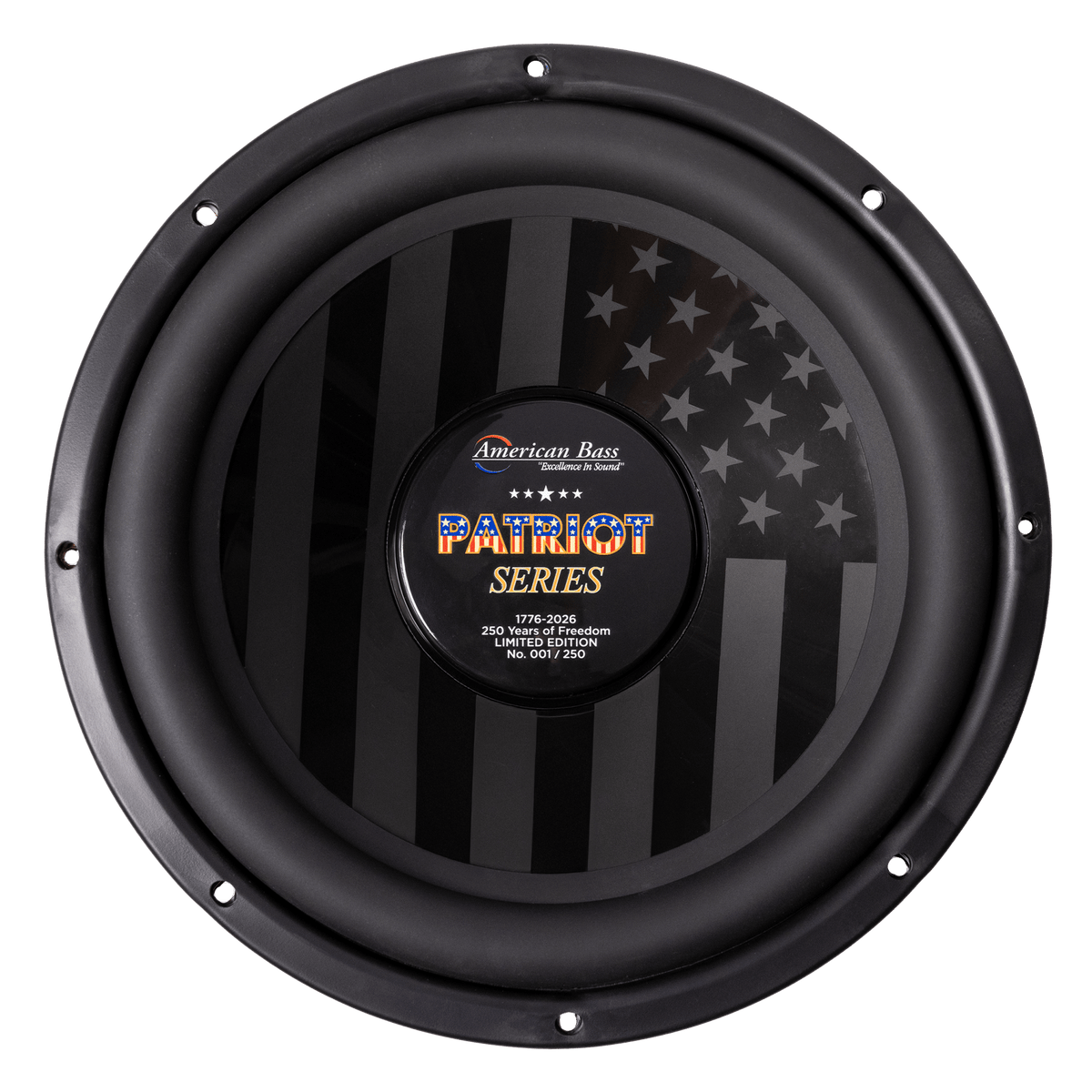

A stealth blackout American flag is etched into the cone face, a full-color high-gloss American flag wraps the cast alloy basket, and a machined gold pole plate finishes the build.

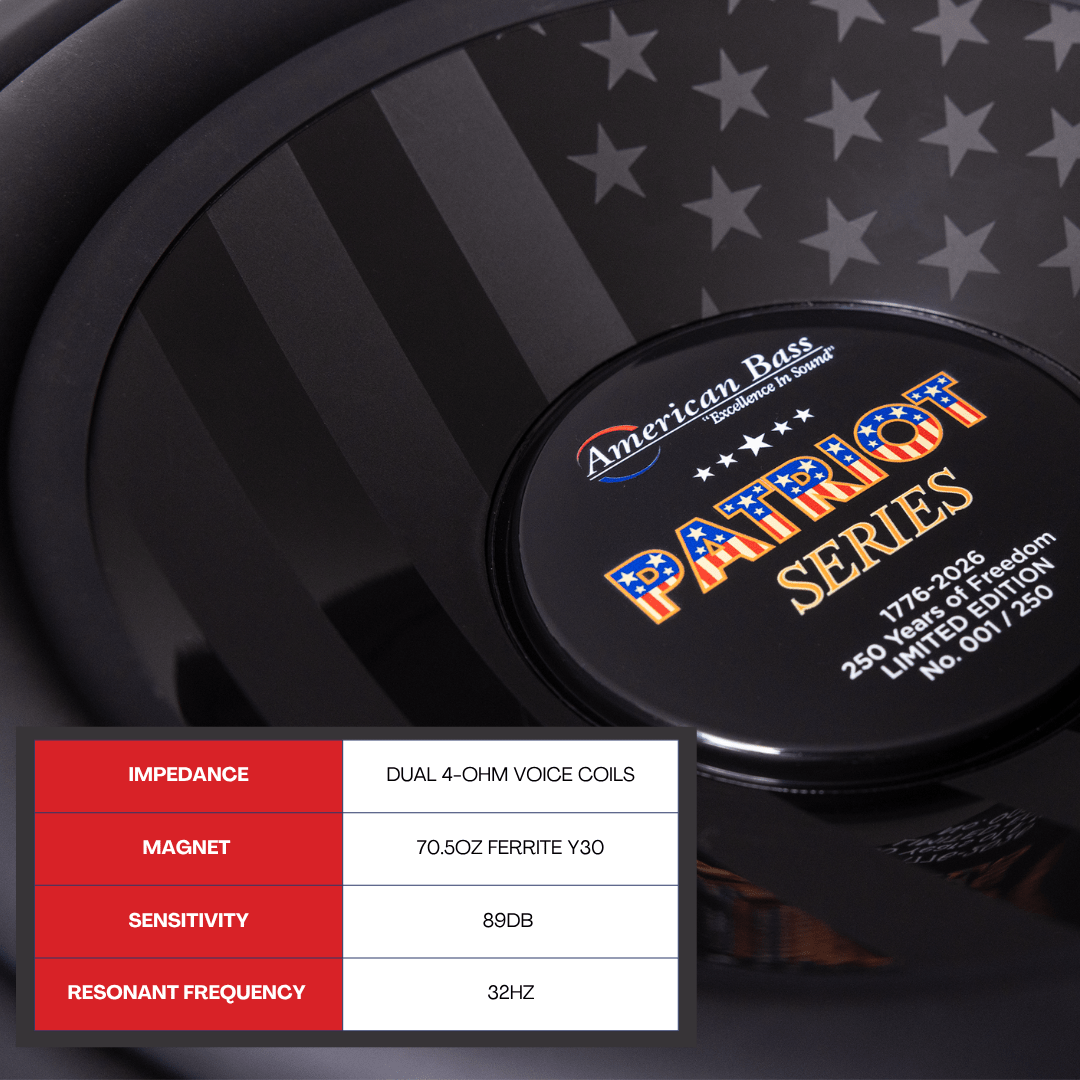

Specifications
| Size | 12" |
| Nominal Impedance | Dual 4 Ohm |
| DC Resistance | 1.8 + 1.8 Ohm |
| RMS Power | 400W |
| Max Power | 800W |
| Sensitivity | 89 dB @ 1W/1m |
| Fs | 34.6 Hz (measured) |
| Qts | 0.393 |
| Qes | 0.454 |
| Qms | 2.933 |
| Vas | 63.38 L |
| BL | 14.715 T·m |
| Mms | 125.6 g |
| Sd | 514.72 cm² |
| Magnet | Ferrite Y30, 70.5 oz |
| Voice Coil | 49.5 mm aluminum short voice coil |
| Cone / Surround | Injection-molded polypropylene / rubber |
| Production Run | Limited — 250 units worldwide |
