- 6500W RMS / 15000W Max — the ruler of the lineup for extreme 18" SPL
- Dual 1Ω or Dual 2Ω — choose your coil to suit your amp (KING-1811 / KING-1822)
- 4.5" flat-wire high-temp voice coil — enormous coil for huge power handling
- Triple-stacked 613 oz magnet — commanding motor force for earth-shaking output
- Carbon fiber cone, die-cast basket — 22.5mm Xmax built for durability and dynamics

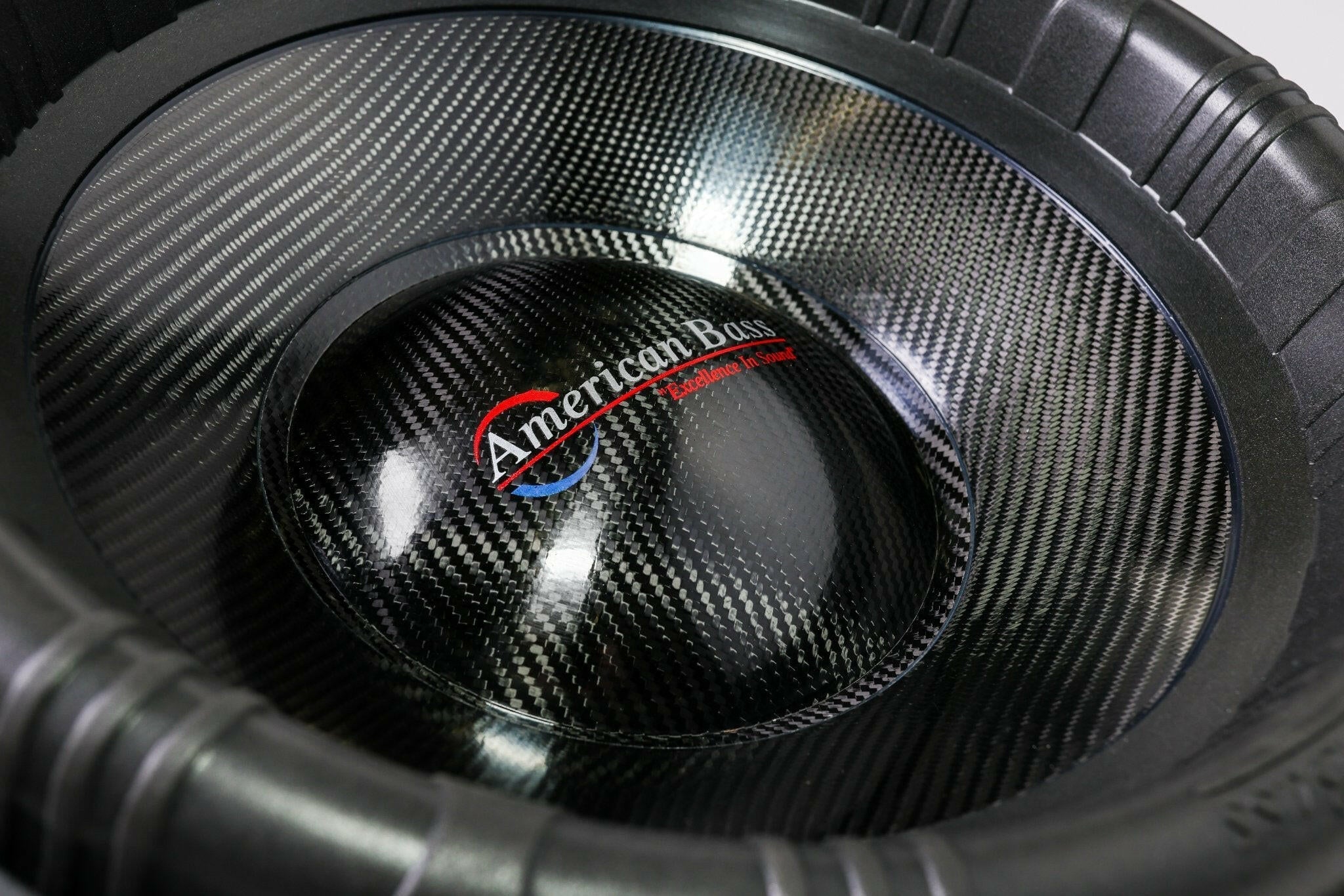

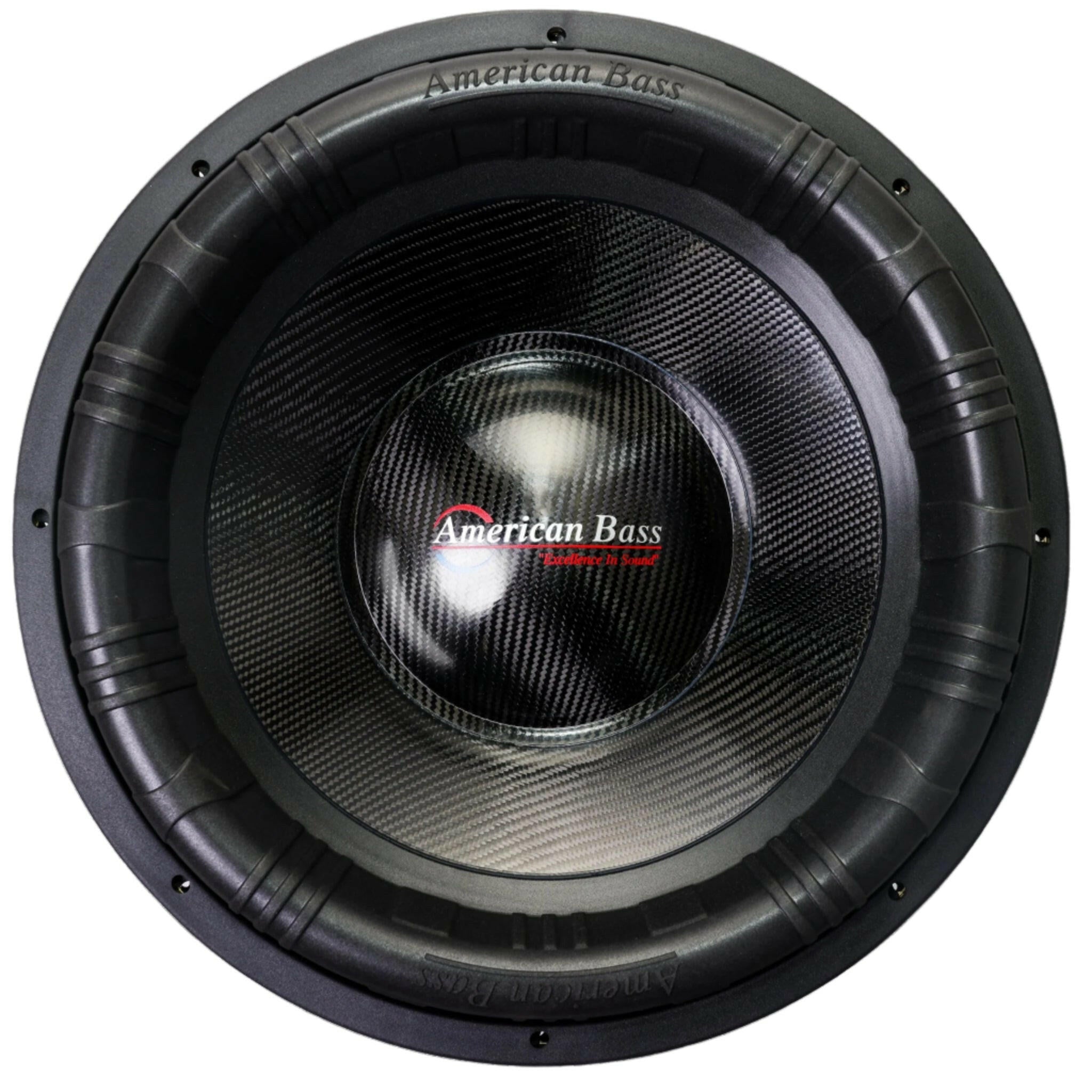

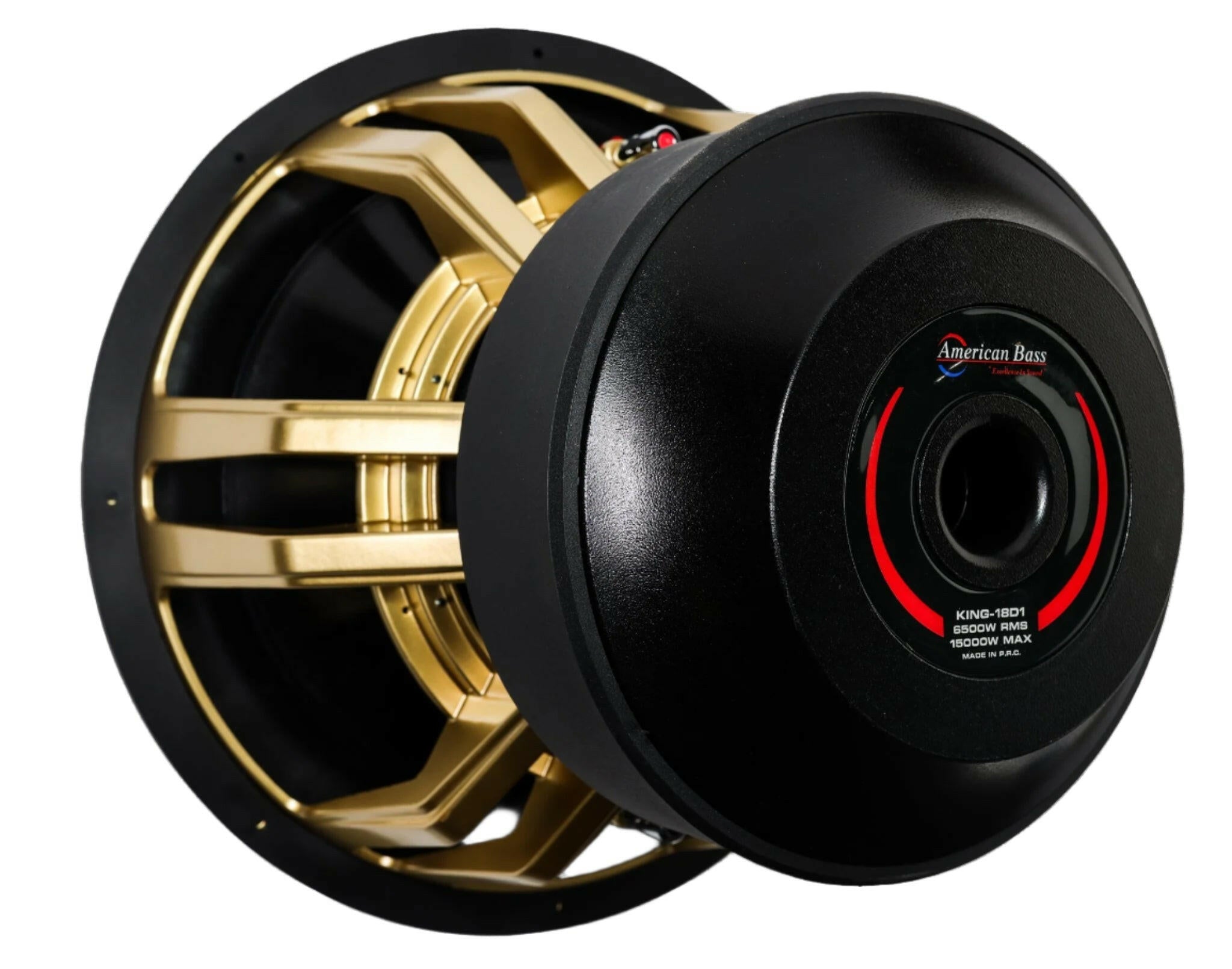

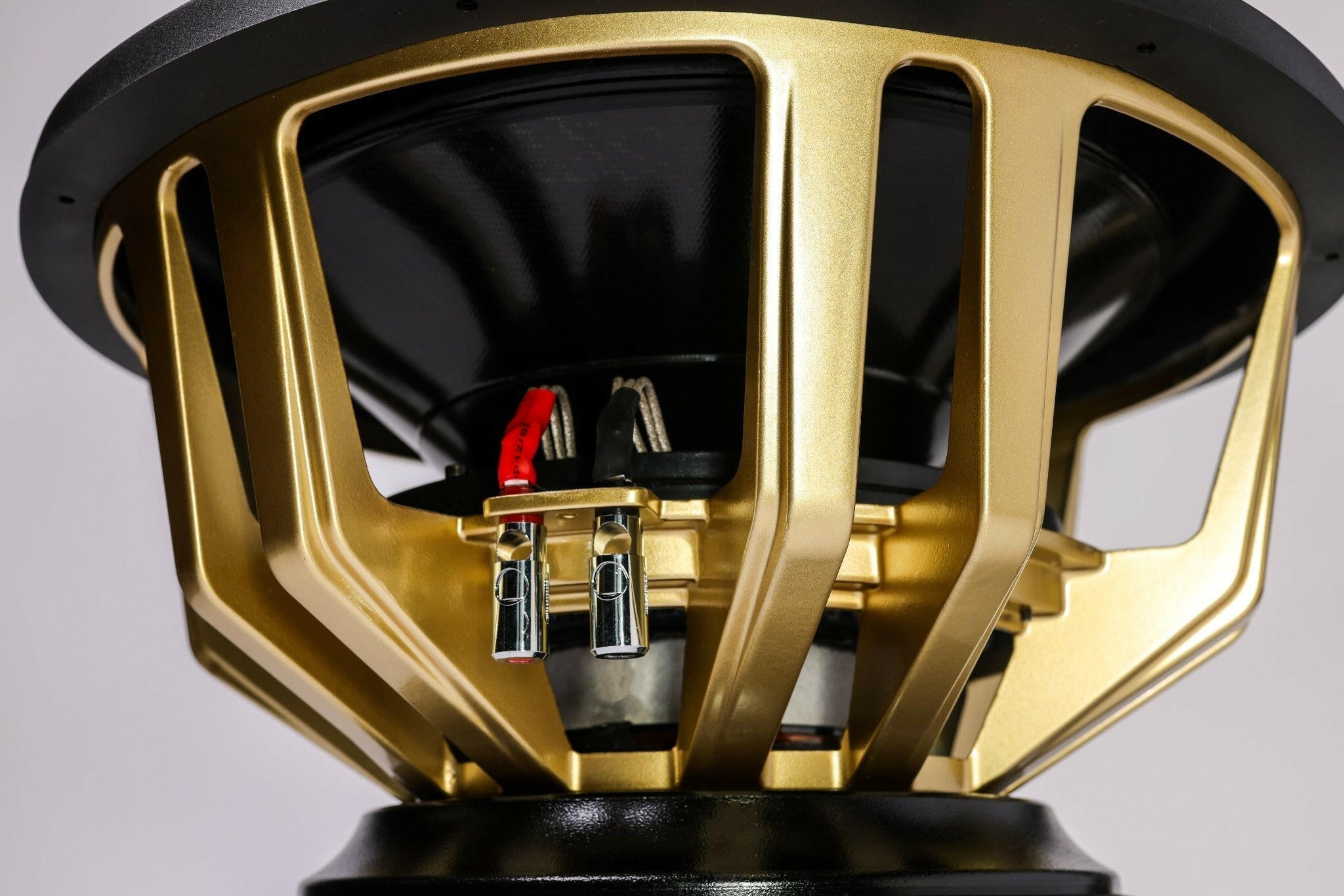

American Bass King 18" Car Subwoofer — 6500W RMS Dual Voice Coil (KING-1811 / KING-1822)
This Listing Includes:
- (1) American Bass King 18" Subwoofer
All hail the American Bass King 18" — the ruler of the bass world. This monster crowns a gold textured die-cast basket with a carbon fiber cone, a 4.5" high-temperature flat-wire voice coil, and triple-stacked 613 oz magnets for sound that truly commands attention. With a direct cooling system and 4GA copper push terminals, the King reigns supreme. Choose KING-1811 for dual 1-ohm or KING-1822 for dual 2-ohm. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4.5" high-temperature flat-wire voice coil
- Triple-stacked 613 oz magnet motor
- Gold textured die-cast basket
- Carbon fiber cone with carbon foam surround and carbon fiber dust cap
- Dual voice coil with direct cooling, double spider and 22.5mm Xmax
Specifications
| RMS Power | 6500W |
| Max Power | 15000W |
| Impedance | Dual 1Ω (1811) / Dual 2Ω (1822) |
| Sensitivity | 86.3 dB |
| Voice Coil | 4.5", 4-layer high-temp flat wire |
| Magnet | 613 oz, triple-stacked |
| Basket | Die-cast aluminum |
| Mounting Depth | 13.19" |
| Cutout Diameter | 16.85" |
| Xmax | 22.5mm |
| Fs | 43.07 Hz |
| Qts | 0.77 |
| Qes | 0.87 |
| Qms | 6.9 |
| Vas | 30.4 L |
| BL | 21.0 |
| Mms | 910 g |
| Sd | 1190 cm² |
| Re | 1.6Ω |
