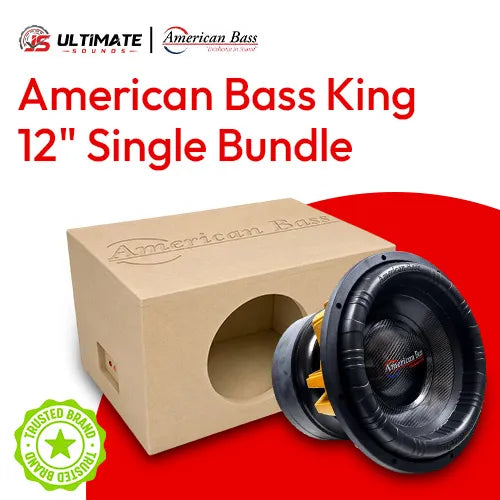

American Bass King 12" Single Bundle (MDF)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
How this package ships
- Two separate deliveries. Your subwoofer ships from JS Ultimate Sounds and usually arrives first.
- Separate tracking numbers. You will get one for each delivery, so a tracking link showing only part of your order is normal.
- The enclosure is built to order by Basshead Supply and ships direct from them in about 2 to 3 weeks.
- The subwoofer is not pre-installed. You mount it in the enclosure once both have arrived.
- The enclosure arrives bare and sanded, ready for you to finish however you like.
What is included
- (1) American Bass King 12" Car Subwoofer 6500 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
- (1) American Bass King 12" Single Ported Subwoofer Enclosure — 2.5 cu ft @ 32.0Hz, MDF
Priced 10% below buying the subwoofer and enclosure separately.
Choose your impedance below.
American Bass King 12" Car Subwoofer 6500 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
- 6500W RMS / 15,000W max — SPL-class power in a 12" frame
- Dual 1Ω (KING-1211) or Dual 2Ω (KING-1222) — pick your coil
- 4.5" high-temp voice coil — built for relentless competition power
- Triple-stacked 613 oz magnet — enormous motor force, 22.5mm Xmax
- Model KING-1211 / KING-1222 — carbon fiber cone, die-cast basket
American Bass King 12" Car Subwoofer — 6500W RMS Dual Voice Coil (KING-1211 / KING-1222)
This Listing Includes:
- (1) American Bass King 12" Competition Subwoofer
The American Bass King 12" brings flagship King Series muscle to a 12" footprint. This is no entry-level driver — the King 12" carries the same 4.5" high-temperature voice coil, triple-stacked 613 oz magnet, and carbon fiber cone as its bigger brother, ready to punish 6500 watts RMS. Choose the dual 1Ω KING-1211 or dual 2Ω KING-1222 and build the wall your amp deserves.
Features
- 4.5" 4-layer high-temperature resistant voice coil
- Triple-stacked 613 oz magnet motor
- Carbon fiber cone with carbon cone foam surround
- Gold textured die-cast basket
- Dual voice coil — 1Ω or 2Ω options
- Massive 22.5mm Xmax for extreme excursion
Specifications
| RMS Power | 6500W |
| Max Power | 15,000W |
| Impedance | Dual 1Ω (KING-1211) / Dual 2Ω (KING-1222) |
| Sensitivity | 82.3 dB (1Ω) / 80.7 dB (2Ω) |
| Voice Coil | 4.5" 4-layer high-temp |
| Magnet | 613 oz triple-stacked |
| Basket | Gold textured die-cast |
| Cone | Carbon fiber |
| Mounting Depth | 11.02" |
| Cutout Diameter | 11.34" |
| Xmax | 22.5 mm |
| Fs | 47.28 Hz (1Ω) / 49.28 Hz (2Ω) |
| Qts | 0.56 (1Ω) / 0.64 (2Ω) |
| Qes | 0.63 (1Ω) / 0.69 (2Ω) |
| Qms | 5.33 (1Ω) / 5.66 (2Ω) |
| Vas | 6.5 L (1Ω) / 6.3 L (2Ω) |
| BL | 21.0 (1Ω) / 27.0 (2Ω) |
| Mms | 606.0 g (1Ω) / 582.9 g (2Ω) |
| Sd | 498 cm² |
| Re | 1.6Ω (1Ω) / 4Ω (2Ω) |
American Bass King 12" Single Ported Subwoofer Enclosure — 2.5 cu ft @ 32.0Hz
The American Bass King 12" Single Ported Subwoofer Enclosure is a subwoofer-specific ported enclosure custom-built by Basshead Supply for the American Bass King 12" subwoofer. Precision-cut and tuned for maximum output with clean, controlled low end.
Specifications
| Net Volume | 2.5 cu ft |
| Tuning Frequency | 32.0 Hz |
| Port Area | 36.4 sq in |
| Port Dimensions | 14.0" x 2.6" |
| Subwoofer Cutout | 11.34" |
| Construction | Triple-Refined MDF |
| External Dimensions | 16.0"H x 26.5"W x 19.8"D |
| Finish | Bare / unfinished (ready to finish) |
Ships bare / unfinished, sanded and ready to finish your way. Includes a pre-wired metal binding-post terminal with 10-gauge OFC lead wire. Built to order — typical lead time 2–3 weeks.
