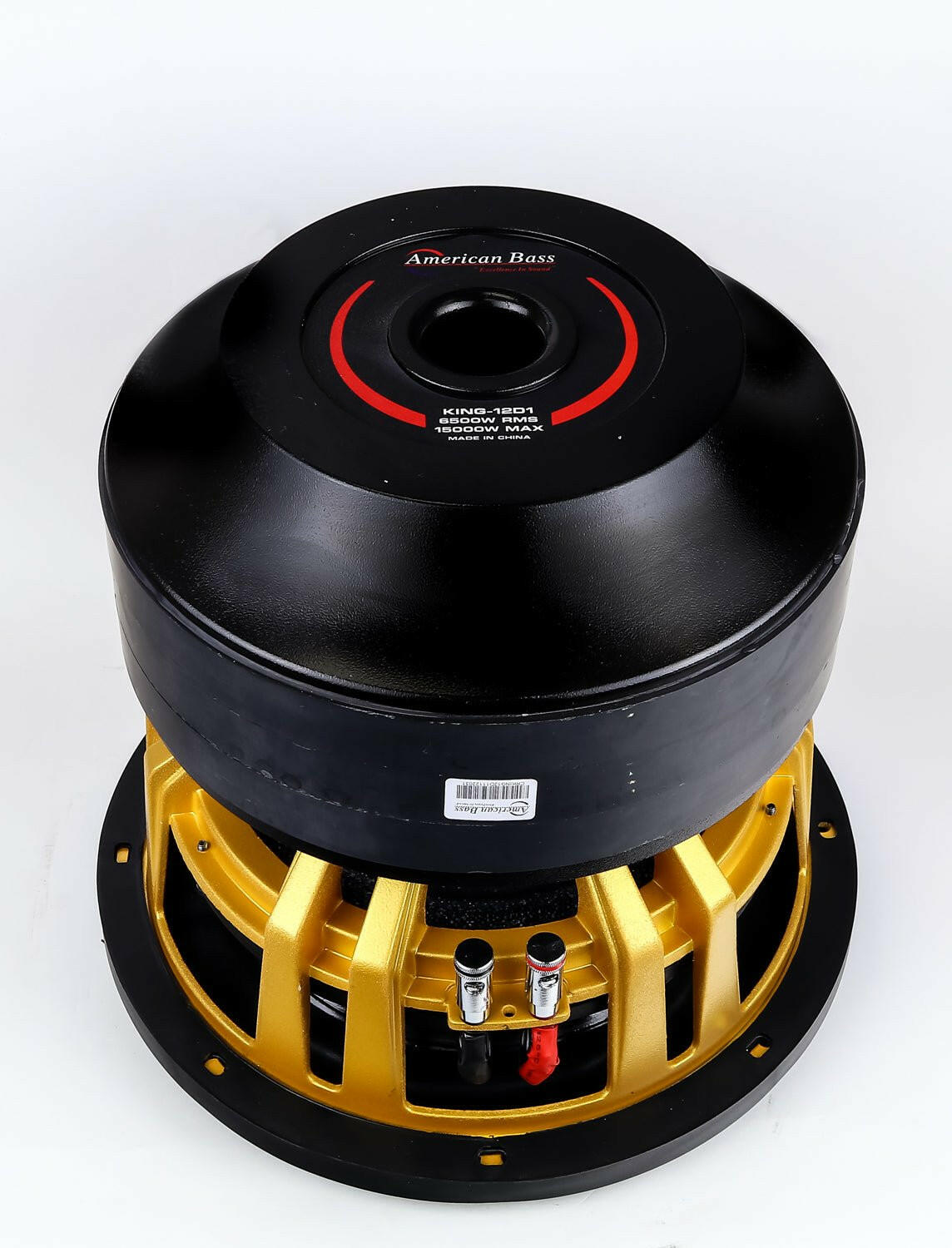

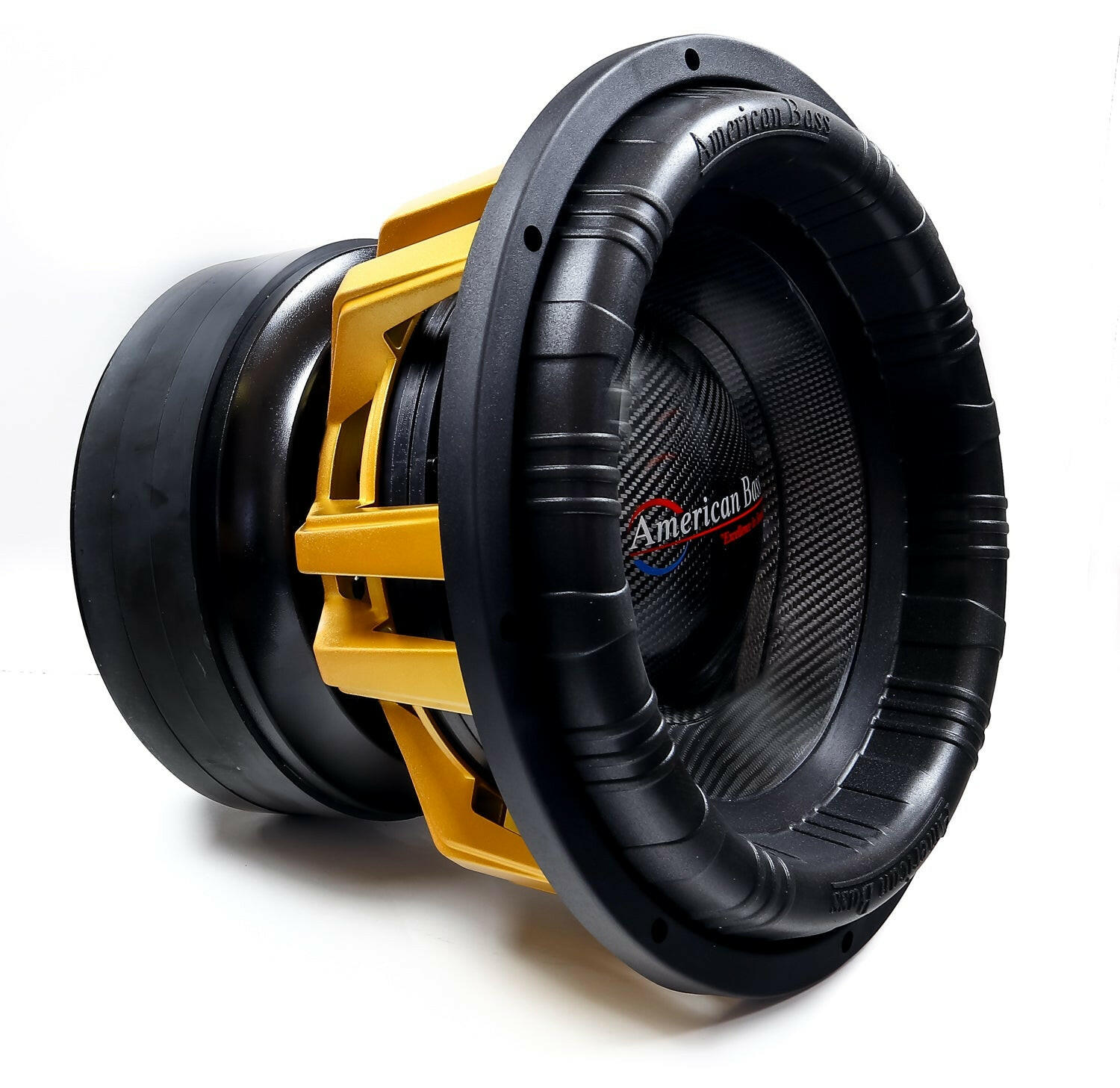

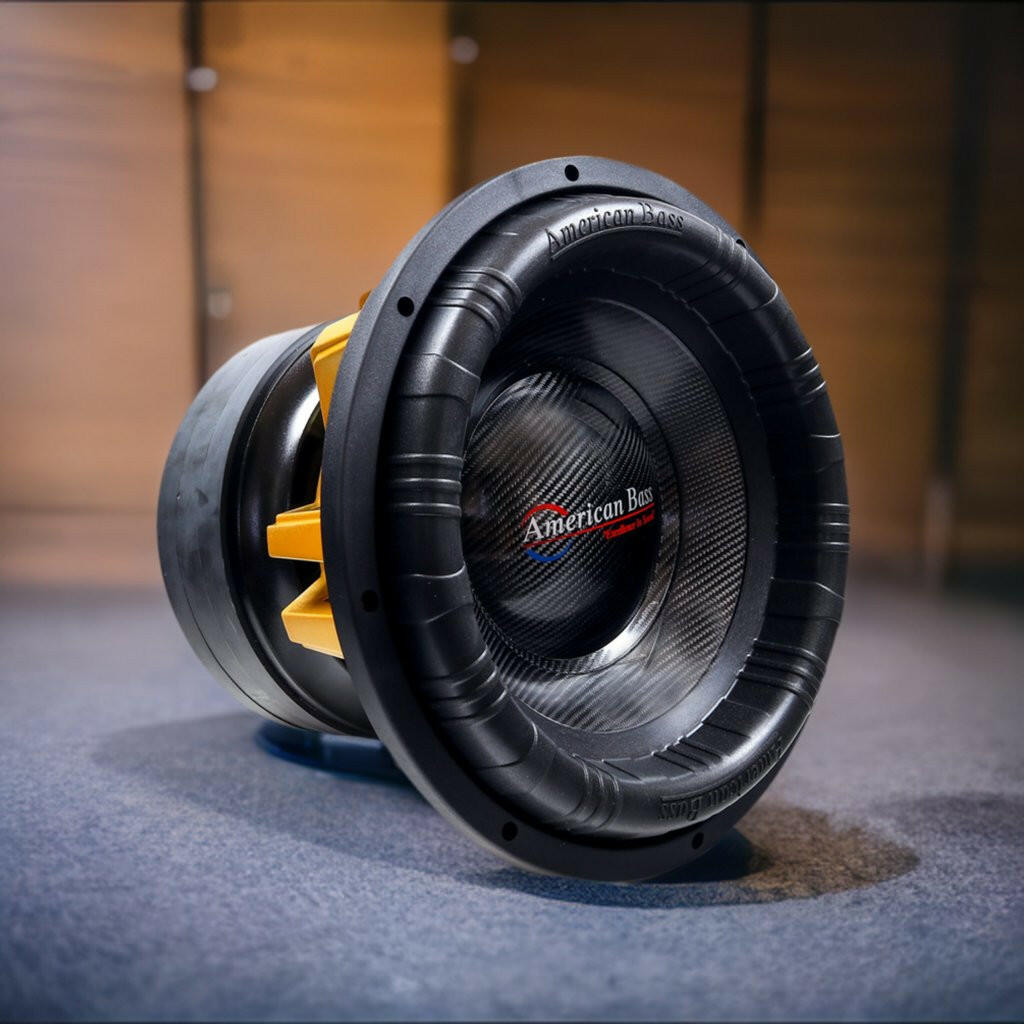

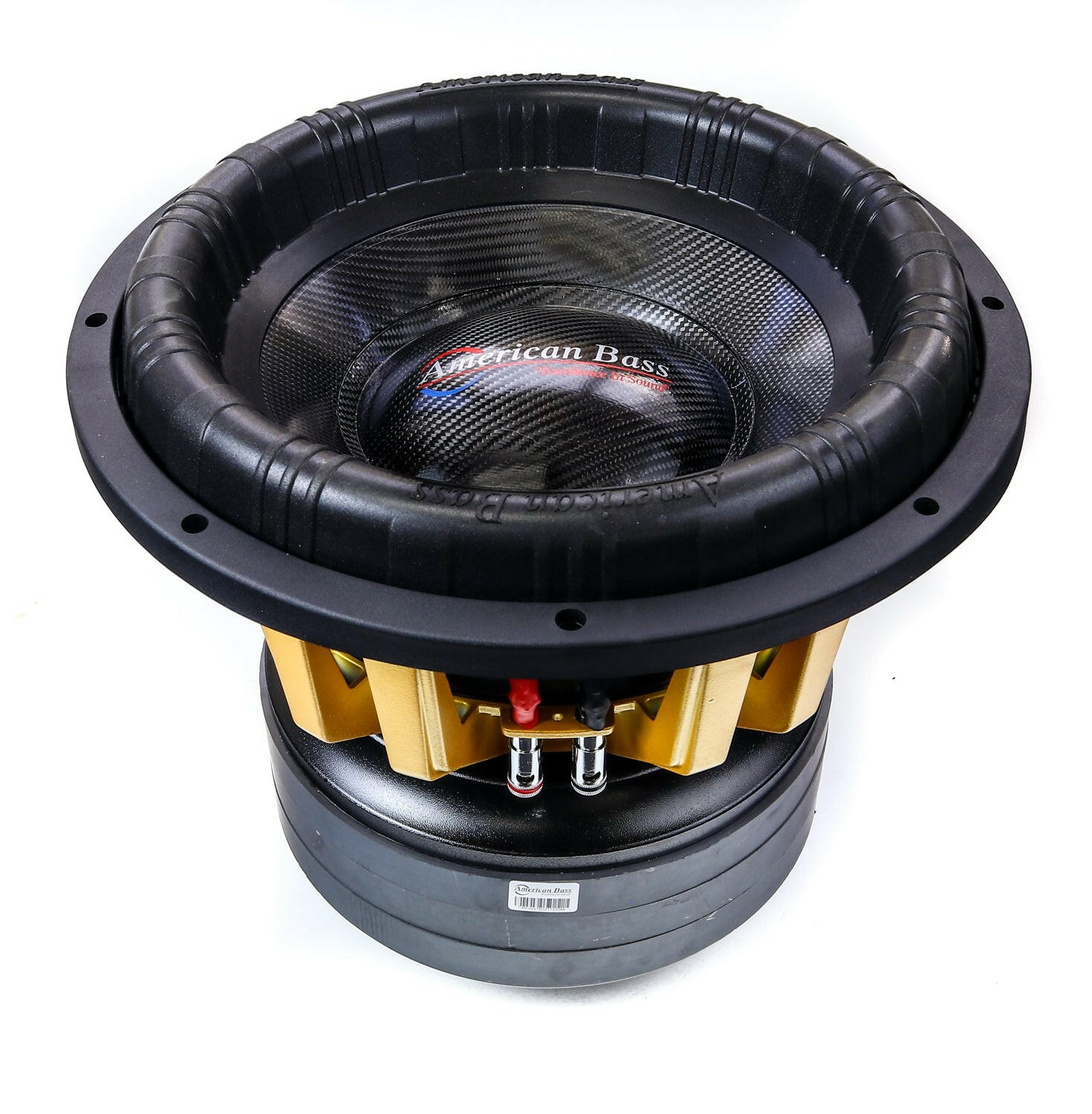

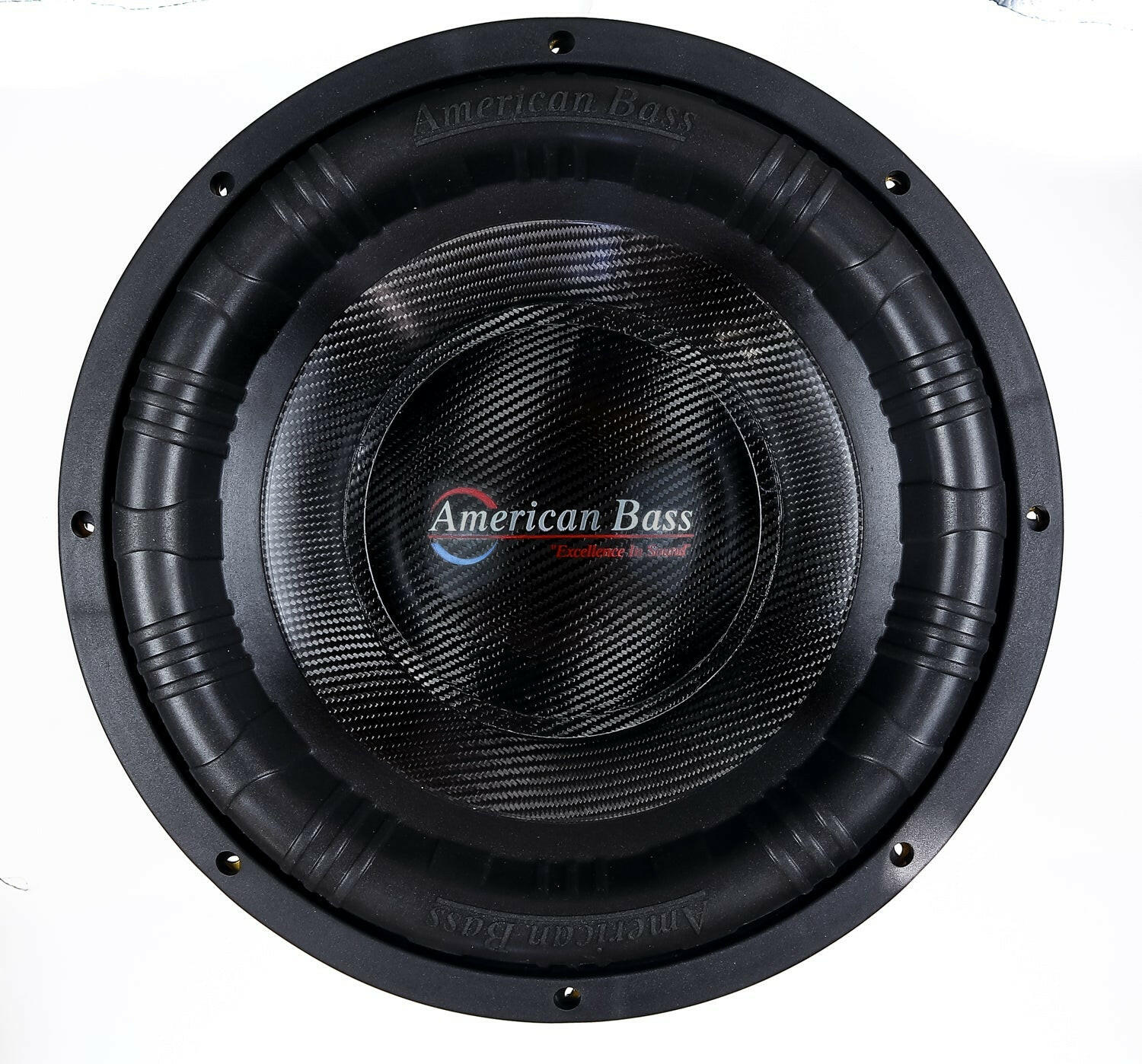

American Bass King 12" Car Subwoofer 6500 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20or%20Dual%202%CE%A9%20(KING-1222)%20%E2%80%94%20pick%20your%20coil%0A%0A4.5%22%20high-temp%20voice%20coil%20%E2%80%94%20built%20for%20relentless%20competition%20power%0A%0ATriple-s...
){kind=link}
- 6500W RMS / 15,000W max — SPL-class power in a 12" frame
- Dual 1Ω (KING-1211) or Dual 2Ω (KING-1222) — pick your coil
- 4.5" high-temp voice coil — built for relentless competition power
- Triple-stacked 613 oz magnet — enormous motor force, 22.5mm Xmax
- Model KING-1211 / KING-1222 — carbon fiber cone, die-cast basket
American Bass King 12" Car Subwoofer — 6500W RMS Dual Voice Coil (KING-1211 / KING-1222)
This Listing Includes:
- (1) American Bass King 12" Competition Subwoofer
The American Bass King 12" brings flagship King Series muscle to a 12" footprint. This is no entry-level driver — the King 12" carries the same 4.5" high-temperature voice coil, triple-stacked 613 oz magnet, and carbon fiber cone as its bigger brother, ready to punish 6500 watts RMS. Choose the dual 1Ω KING-1211 or dual 2Ω KING-1222 and build the wall your amp deserves. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4.5" 4-layer high-temperature resistant voice coil
- Triple-stacked 613 oz magnet motor
- Carbon fiber cone with carbon cone foam surround
- Gold textured die-cast basket
- Dual voice coil — 1Ω or 2Ω options
- Massive 22.5mm Xmax for extreme excursion
Specifications
| RMS Power | 6500W |
| Max Power | 15,000W |
| Impedance | Dual 1Ω (KING-1211) / Dual 2Ω (KING-1222) |
| Sensitivity | 82.3 dB (1Ω) / 80.7 dB (2Ω) |
| Voice Coil | 4.5" 4-layer high-temp |
| Magnet | 613 oz triple-stacked |
| Basket | Gold textured die-cast |
| Cone | Carbon fiber |
| Mounting Depth | 11.02" |
| Cutout Diameter | 11.34" |
| Xmax | 22.5 mm |
| Fs | 47.28 Hz (1Ω) / 49.28 Hz (2Ω) |
| Qts | 0.56 (1Ω) / 0.64 (2Ω) |
| Qes | 0.63 (1Ω) / 0.69 (2Ω) |
| Qms | 5.33 (1Ω) / 5.66 (2Ω) |
| Vas | 6.5 L (1Ω) / 6.3 L (2Ω) |
| BL | 21.0 (1Ω) / 27.0 (2Ω) |
| Mms | 606.0 g (1Ω) / 582.9 g (2Ω) |
| Sd | 498 cm² |
| Re | 1.6Ω (1Ω) / 4Ω (2Ω) |
