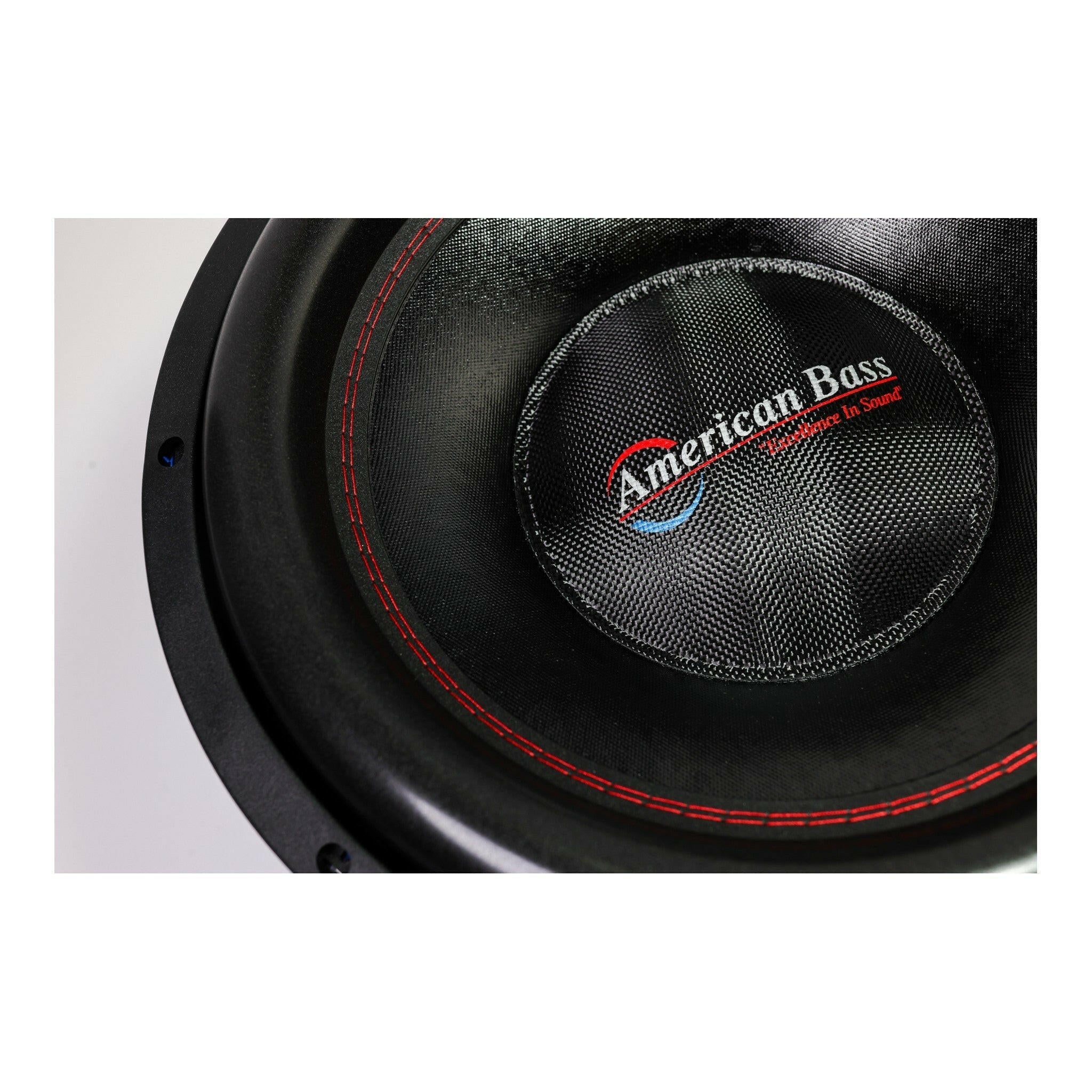

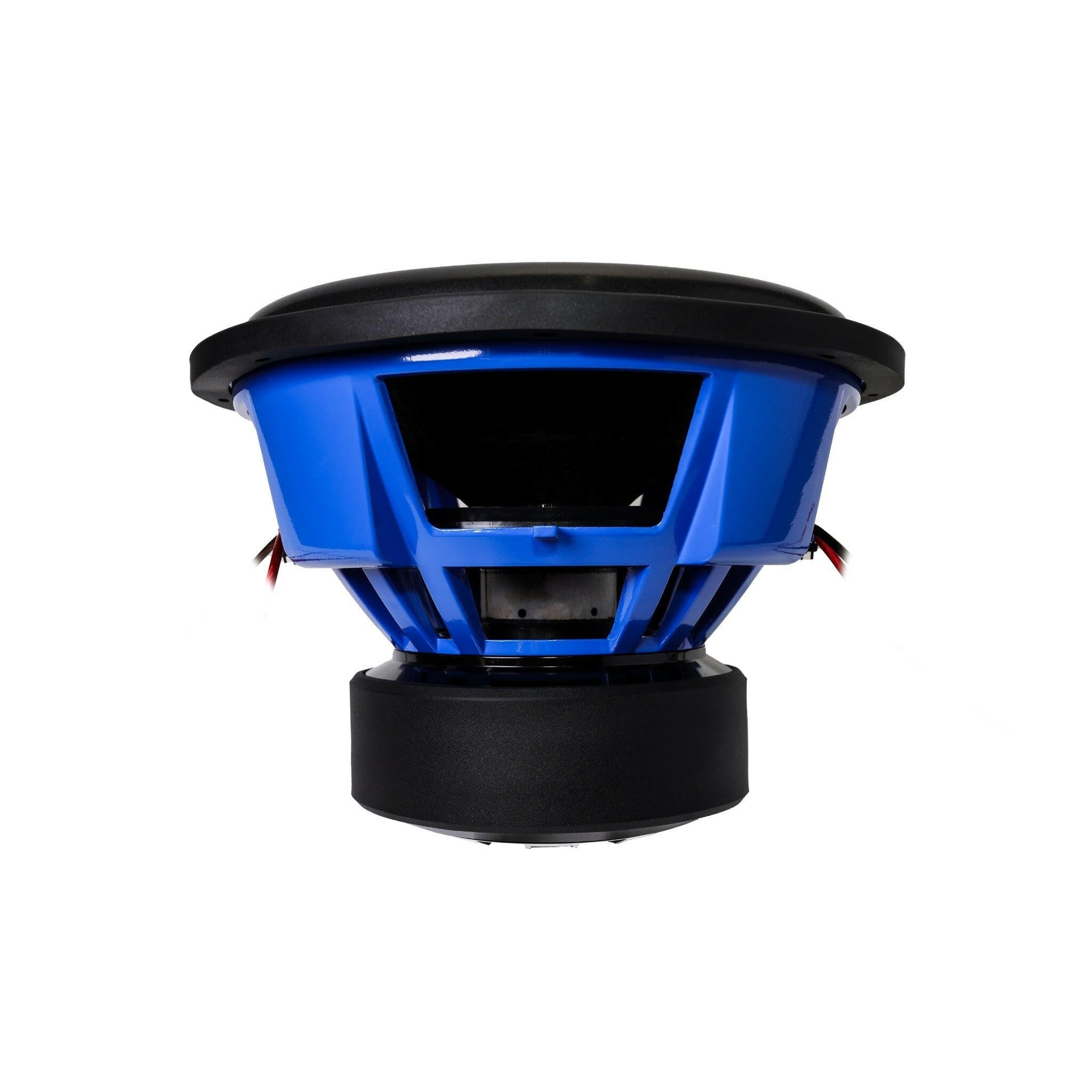

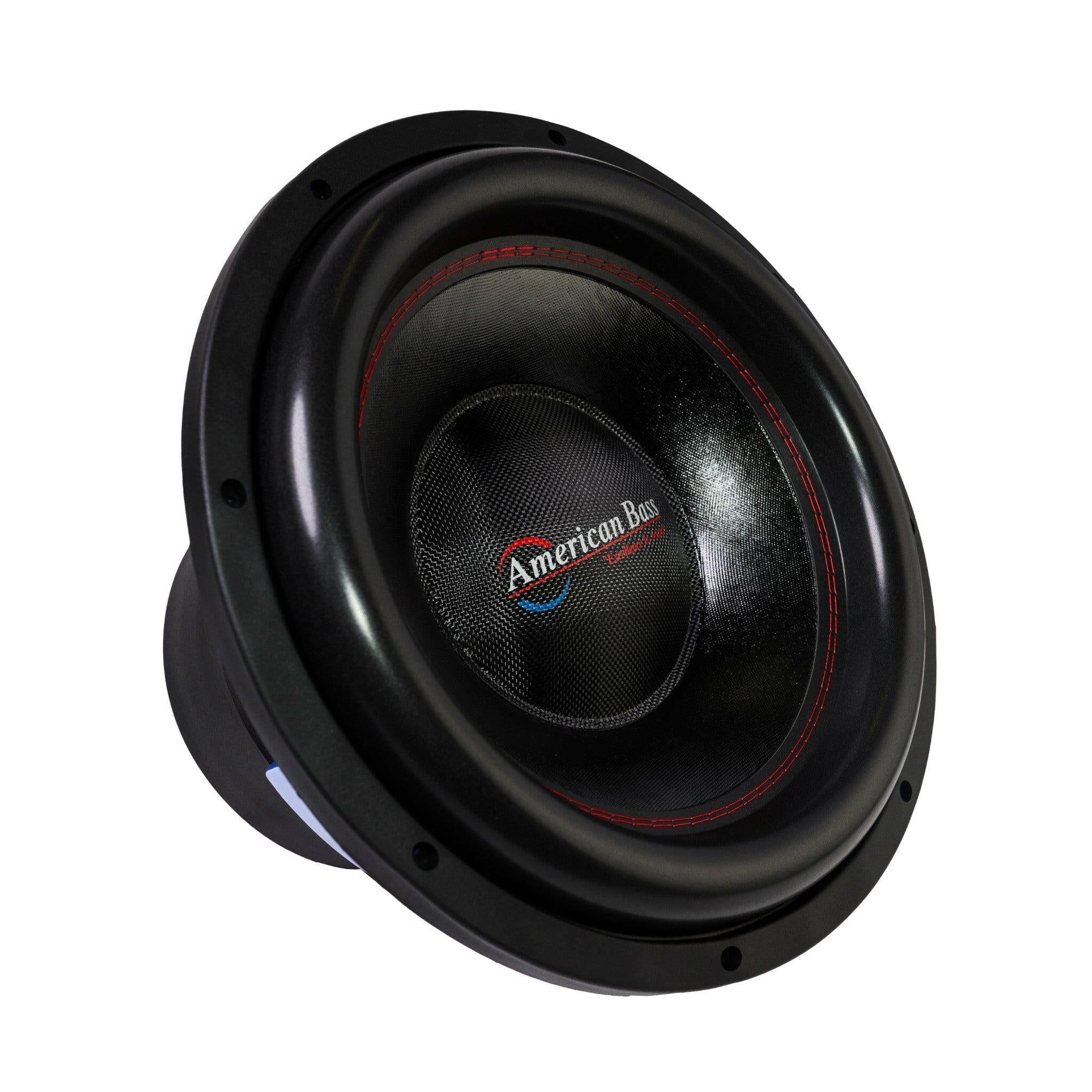

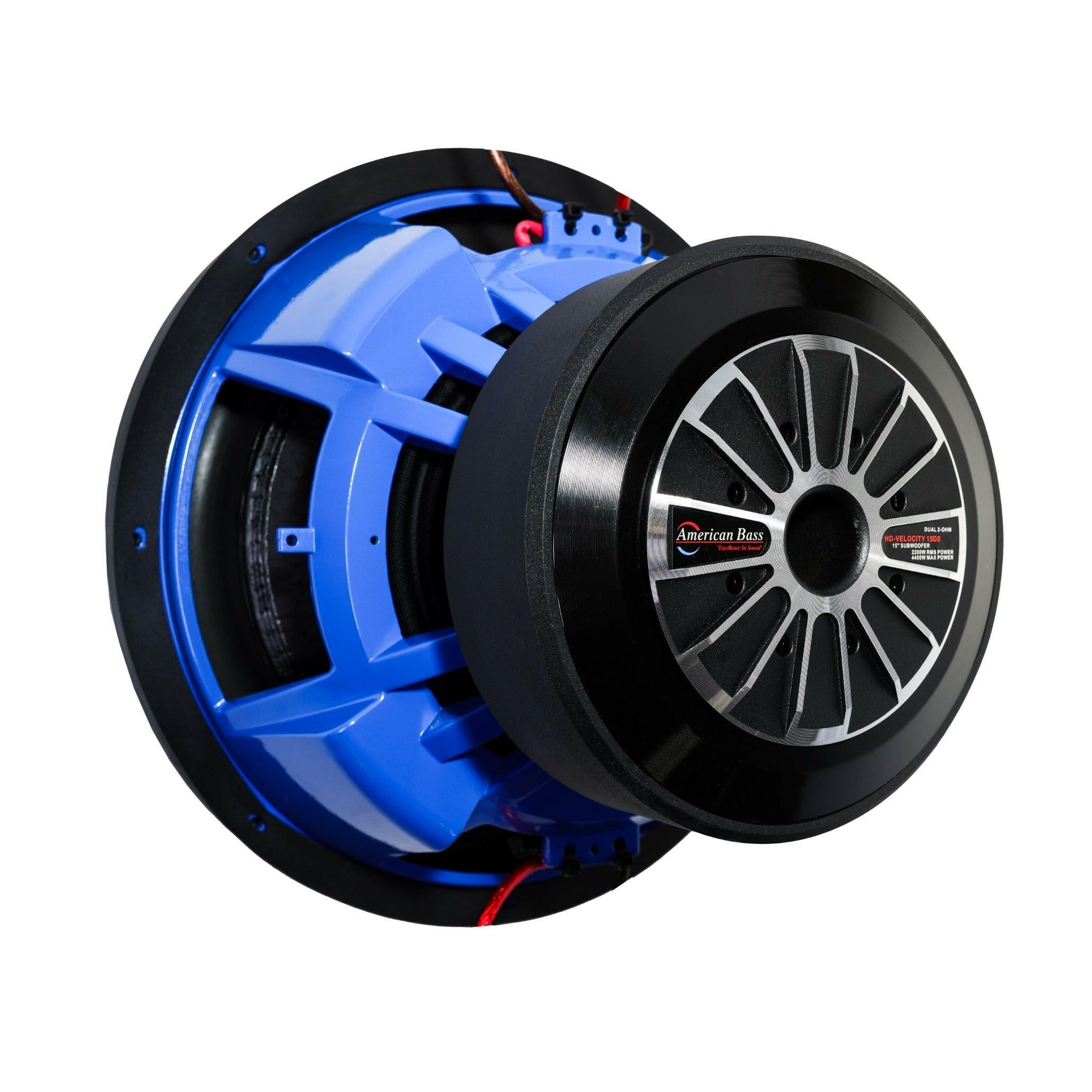

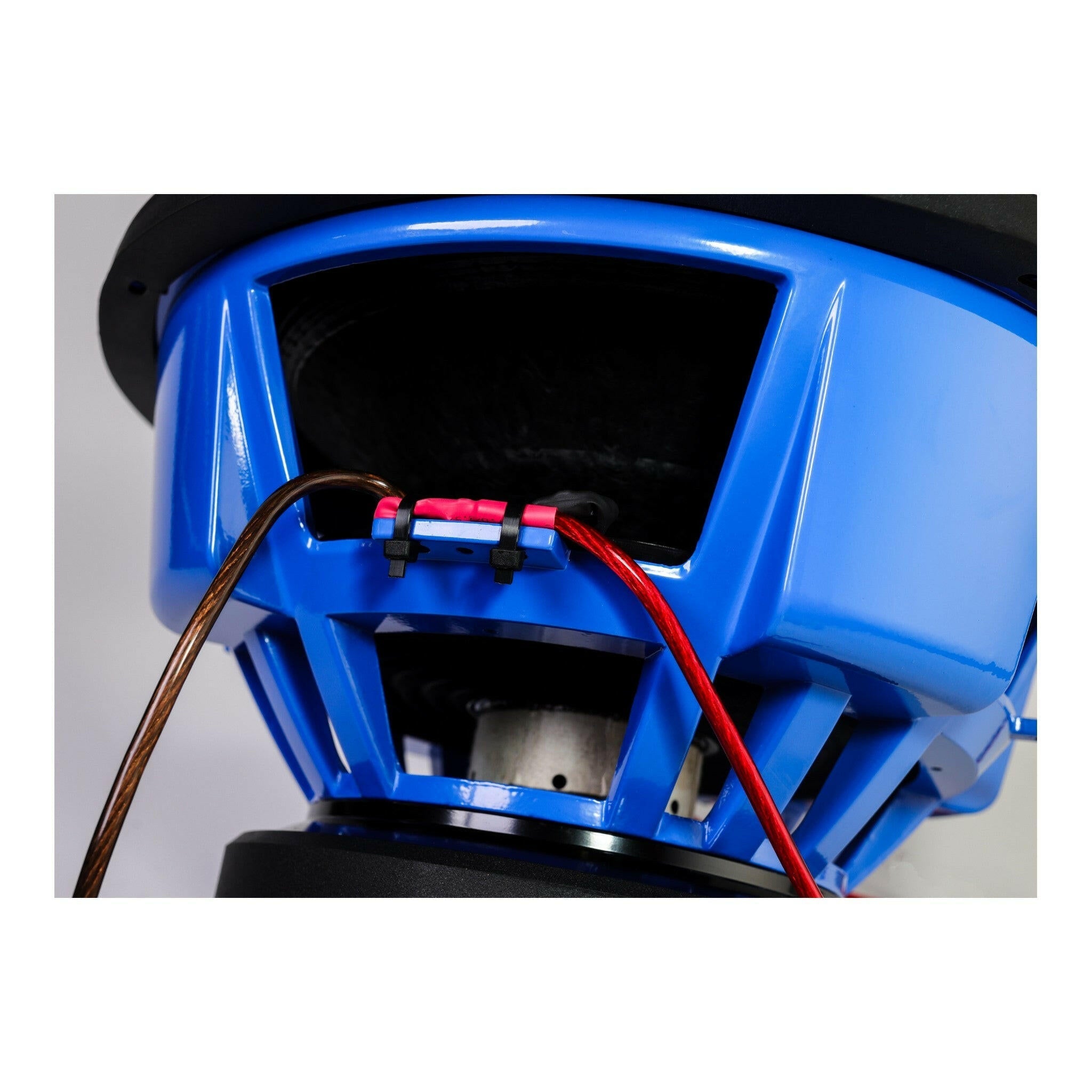

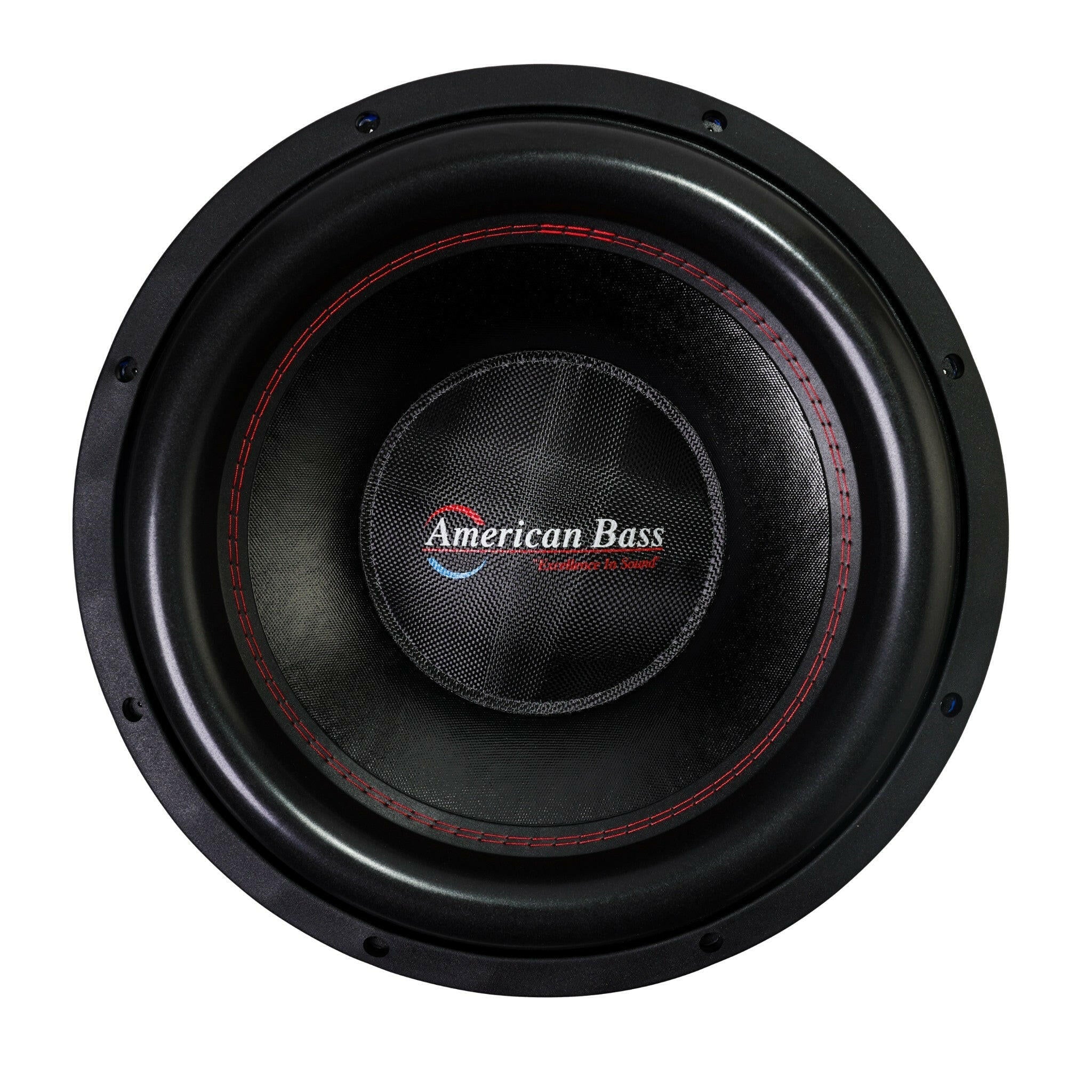

American Bass HD Velocity 15" Car Subwoofer 2200 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%0A%0A3.0%22%204-layer%20high-temp%20coil%20%E2%80%94%20built%20to%20take%20the%20heat...
){kind=link}
- 2200W RMS / 4400W Max — high-output bass for big 15" systems
- Dual 1Ω or Dual 2Ω — match the coil to your amp (VELOCITY-1511 / VELOCITY-1522)
- 3.0" 4-layer high-temp coil — built to take the heat of long sessions
- Triple-stacked 315 oz magnet — efficient motor with 88.7 dB sensitivity
- Carbon-enhanced cone, blue die-cast basket — 17.5mm Xmax for strong excursion
American Bass HD Velocity 15" Car Subwoofer — 2200W RMS Dual Voice Coil (VELOCITY-1511 / VELOCITY-1522)
This Listing Includes:
- (1) American Bass HD Velocity 15" Subwoofer
Take your car audio to the next level with the American Bass HD Velocity 15". This Velocity Series sub pairs a blue-finish die-cast basket with a carbon-fiber-enhanced cone for clean, deep bass, driven by a 3.0" high-temp voice coil and a triple-stacked 315 oz magnet that pushes an efficient 88.7 dB. Choose VELOCITY-1511 for dual 1-ohm or VELOCITY-1522 for dual 2-ohm to fit your system. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3.0" 4-layer high-temperature voice coil
- Triple-stacked 315 oz strontium magnet motor
- Robust die-cast basket with blue finish
- Carbon-fiber-enhanced cone with multi-layer poly-cotton spiders
- Dual voice coil design with 17.5mm Xmax
Specifications
| RMS Power | 2200W |
| Max Power | 4400W |
| Impedance | Dual 1Ω (1511) / Dual 2Ω (1522) |
| Sensitivity | 88.7 dB |
| Voice Coil | 3.0", 4-layer high-temp |
| Magnet | 315 oz, triple-stacked strontium |
| Basket | Die-cast aluminum |
| Mounting Depth | 9.68" |
| Cutout Diameter | 13.78" |
| Xmax | 17.5mm |
| Fs | 30.02 Hz (1Ω) / 29.23 Hz (2Ω) |
| Qts | 0.314 (1Ω) / 0.337 (2Ω) |
| Qes | 0.337 (1Ω) / 0.363 (2Ω) |
| Qms | 4.567 (1Ω) / 4.614 (2Ω) |
| Vas | 52.05 L |
| BL | 20.69 (1Ω) / 18.09 (2Ω) |
| Mms | 424.4 g (1Ω) / 451.7 g (2Ω) |
| Sd | 76.5 cm² |
