- 2200W RMS / 4400W Max — big output from a compact 10" sub
- Dual 1Ω or Dual 2Ω — match the coil to your amp (VELOCITY-1011 / VELOCITY-1022)
- 3.0" 4-layer high-temp coil — built to take the heat of long sessions
- Triple-stacked 315 oz magnet — oversized motor for a 10-inch driver
- Carbon-enhanced cone, blue die-cast basket — 12.5mm Xmax for strong excursion

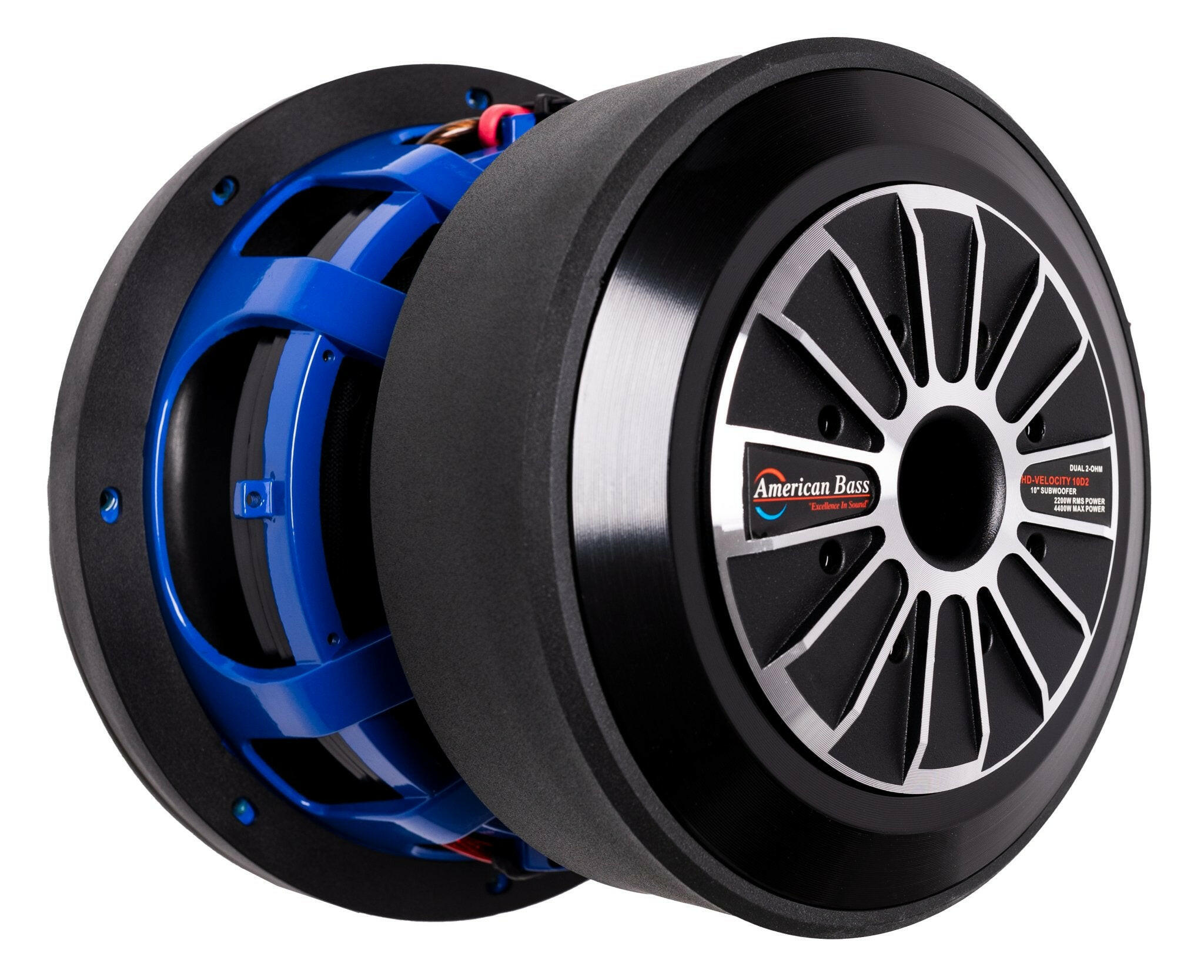

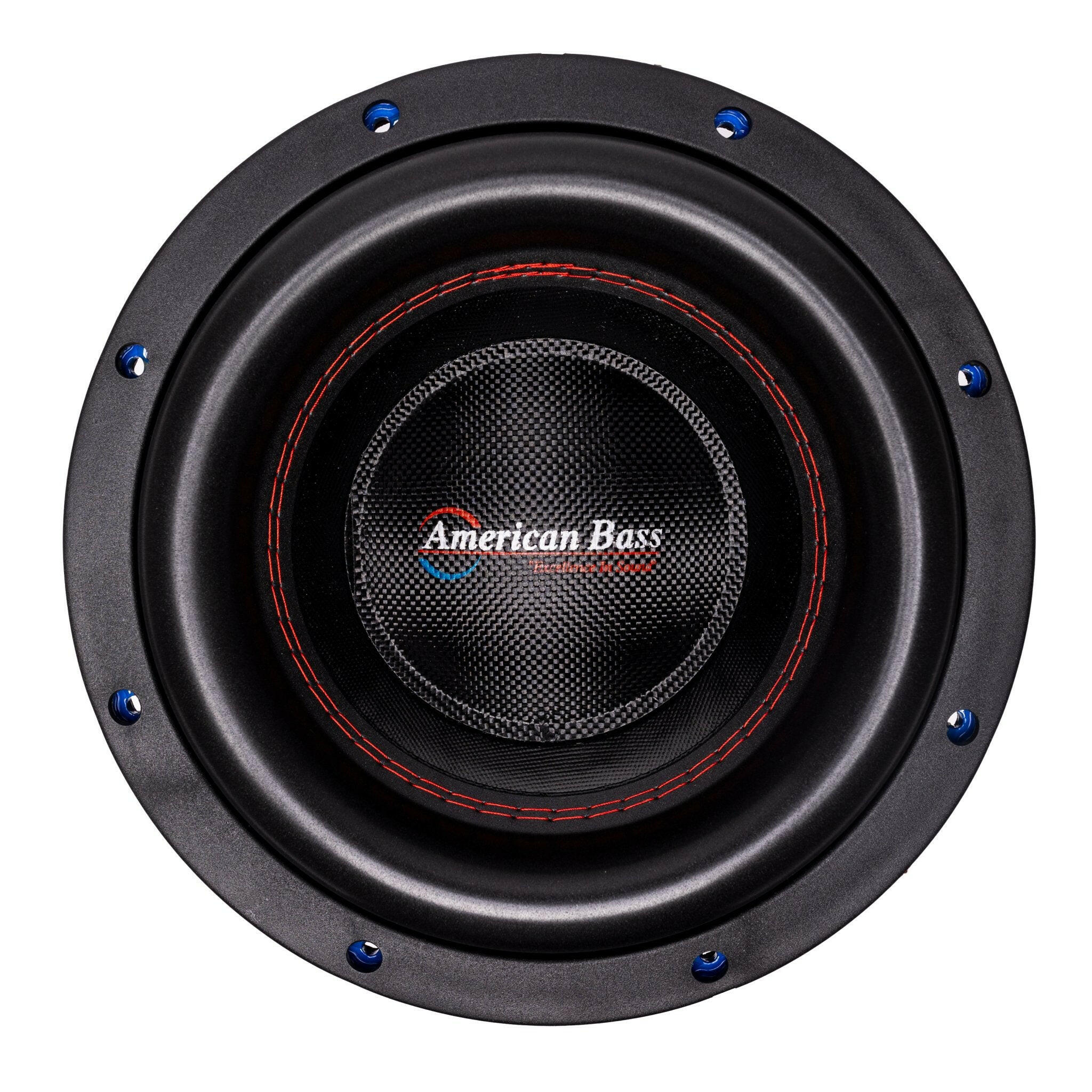

American Bass HD Velocity 10" Car Subwoofer — 2200W RMS Dual Voice Coil (VELOCITY-1011 / VELOCITY-1022)
This Listing Includes:
- (1) American Bass HD Velocity 10" Subwoofer
Take your car audio to the next level with the American Bass HD Velocity 10". This Velocity Series sub fits a triple-stacked 315 oz magnet and a 3.0" high-temp voice coil behind a carbon-fiber-enhanced cone and a blue die-cast basket, delivering clean, deep bass from a compact 10-inch footprint. Choose VELOCITY-1011 for dual 1-ohm or VELOCITY-1022 for dual 2-ohm. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 3.0" 4-layer high-temperature voice coil
- Triple-stacked 315 oz strontium magnet motor
- Robust die-cast basket with blue finish
- Carbon-fiber-enhanced rigid paper cone with hi & wide 3-layer foam surround
- Dual voice coil design with 12.5mm Xmax
Specifications
| RMS Power | 2200W |
| Max Power | 4400W |
| Impedance | Dual 1Ω (1011) / Dual 2Ω (1022) |
| Sensitivity | 84.4 dB |
| Voice Coil | 3.0", 4-layer high-temp |
| Magnet | 315 oz, triple-stacked strontium |
| Basket | Die-cast aluminum |
| Mounting Depth | 7.72" |
| Cutout Diameter | 9.25" |
| Xmax | 12.5mm |
| Fs | 34.56 Hz (2Ω) |
| Qts | 0.267 (1Ω) / 0.299 (2Ω) |
| Qes | 0.285 (1Ω) / 0.304 (2Ω) |
| Qms | 5.102 (1Ω) / 6.189 (2Ω) |
| Vas | 11.35 L (1Ω) / 10.38 L (2Ω) |
| BL | 18.63 (1Ω) / 28.66 (2Ω) |
| Mms | 248.8 g (1Ω) / 284.2 g (2Ω) |
| Sd | 31.4 cm² |
