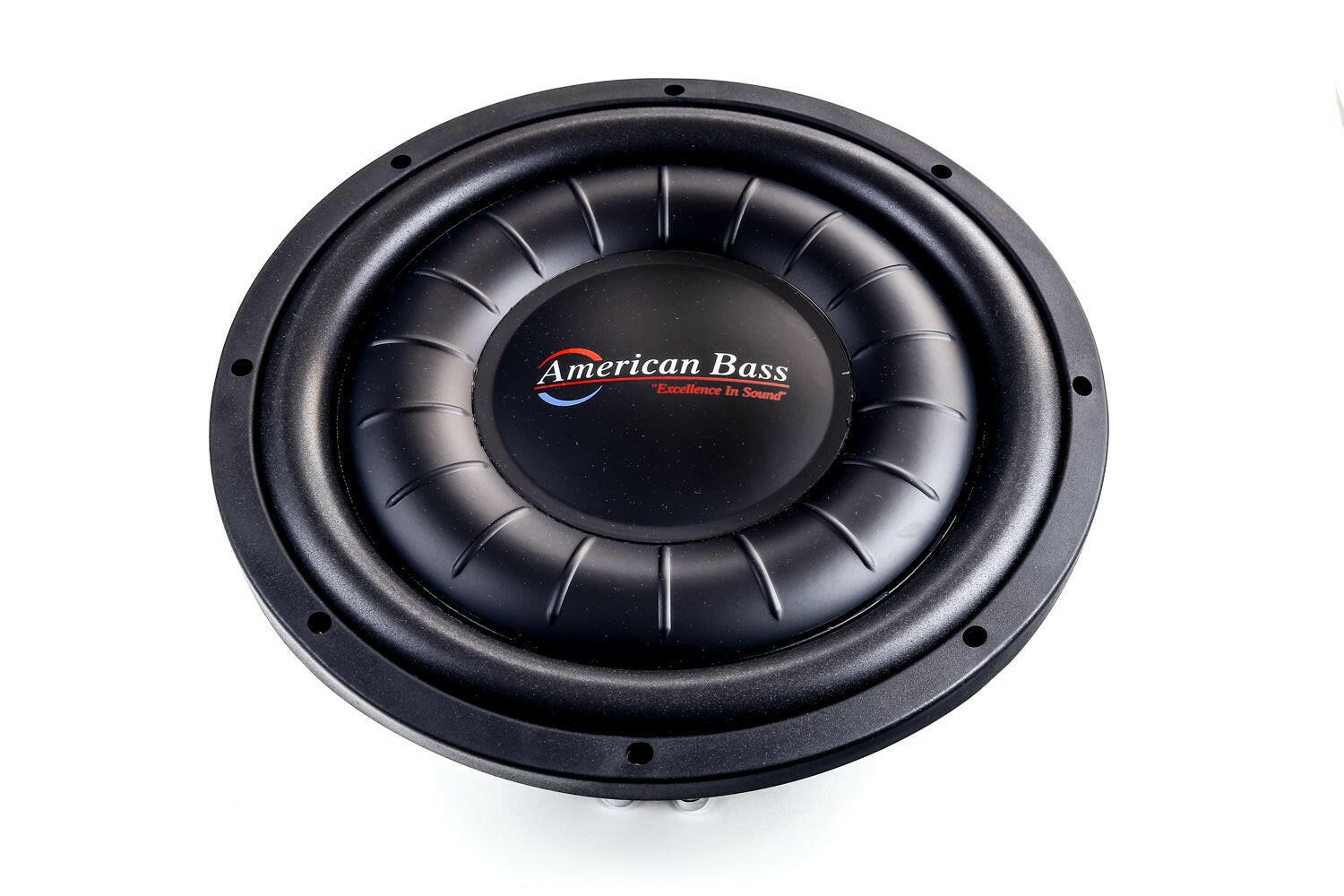

American Bass Hawk Slim 12" Car Subwoofer 900 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm (Shallow Mount)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20or%20Dual%204%CE%A9%20(HAWKSLIM-1244)%20%E2%80%94%20your%20pick%0A%0AShallow%20mounting%20depth%20%E2%80%94%20as%20little%20as%203.54%22%20deep%20(4%CE%A9)%0A%0A3.0%22%20aluminum-former%20vo...
){kind=link}
- 900W RMS / 2000W max — serious slam from a slim 12"
- Dual 2Ω (HAWKSLIM-1222) or Dual 4Ω (HAWKSLIM-1244) — your pick
- Shallow mounting depth — as little as 3.54" deep (4Ω)
- 3.0" aluminum-former voice coil — high-power, vented cooling
- Model HAWKSLIM-1222 / 1244 — die-cast frame, high-density foam surround
American Bass Hawk Slim 12" Car Subwoofer — 900W RMS Dual Voice Coil (HAWKSLIM-1222 / HAWKSLIM-1244)
This Listing Includes:
- (1) American Bass Hawk Slim 12" Shallow-Mount Subwoofer
The American Bass Hawk Slim 12" packs full-size 12" punch into a shallow chassis that fits where deep subs can’t. From the Hawk Slim shallow-mount Series, it drives a 3.0" 4-layer aluminum-former voice coil for clean, sharp bass and uses vented-cooling magnets to stay strong under load. Choose the dual 2Ω HAWKSLIM-1222 or dual 4Ω HAWKSLIM-1244 and tuck real output into the tightest build. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Shallow-mount design as slim as 3.54" (4Ω model)
- 3.0" high-power 4-layer aluminum-former voice coil
- Ferrite magnet motor with vented cooling
- Die-cast aluminum frame
- High-density foam surround
- Dual voice coil — 2Ω or 4Ω with 8.5mm Xmax
Specifications
| RMS Power | 900W |
| Max Power | 2000W |
| Impedance | Dual 2Ω (HAWKSLIM-1222) / Dual 4Ω (HAWKSLIM-1244) |
| Sensitivity | 85.2 dB (4Ω) |
| Voice Coil | 3.0" 4-layer aluminum former |
| Magnet | 80 oz (2Ω) / 90 oz (4Ω) ferrite, vented |
| Basket | Die-cast aluminum |
| Mounting Depth | 7.2" (2Ω) / 3.54" (4Ω) |
| Cutout Diameter | 9.25" (2Ω) / 10.9" (4Ω) |
| Xmax | 8.5 mm |
| Fs | 37.462 Hz (4Ω) |
| Qts | 0.713 (4Ω) |
| Qes | 0.824 (4Ω) |
| Qms | 5.33 (4Ω) |
| Vas | 33.887 L (4Ω) |
| BL | 20.383 (4Ω) |
| Mms | 191.304 g (4Ω) |
| Sd | 502.92 cm² (4Ω) |
| Re | 7.6Ω (4Ω) |
