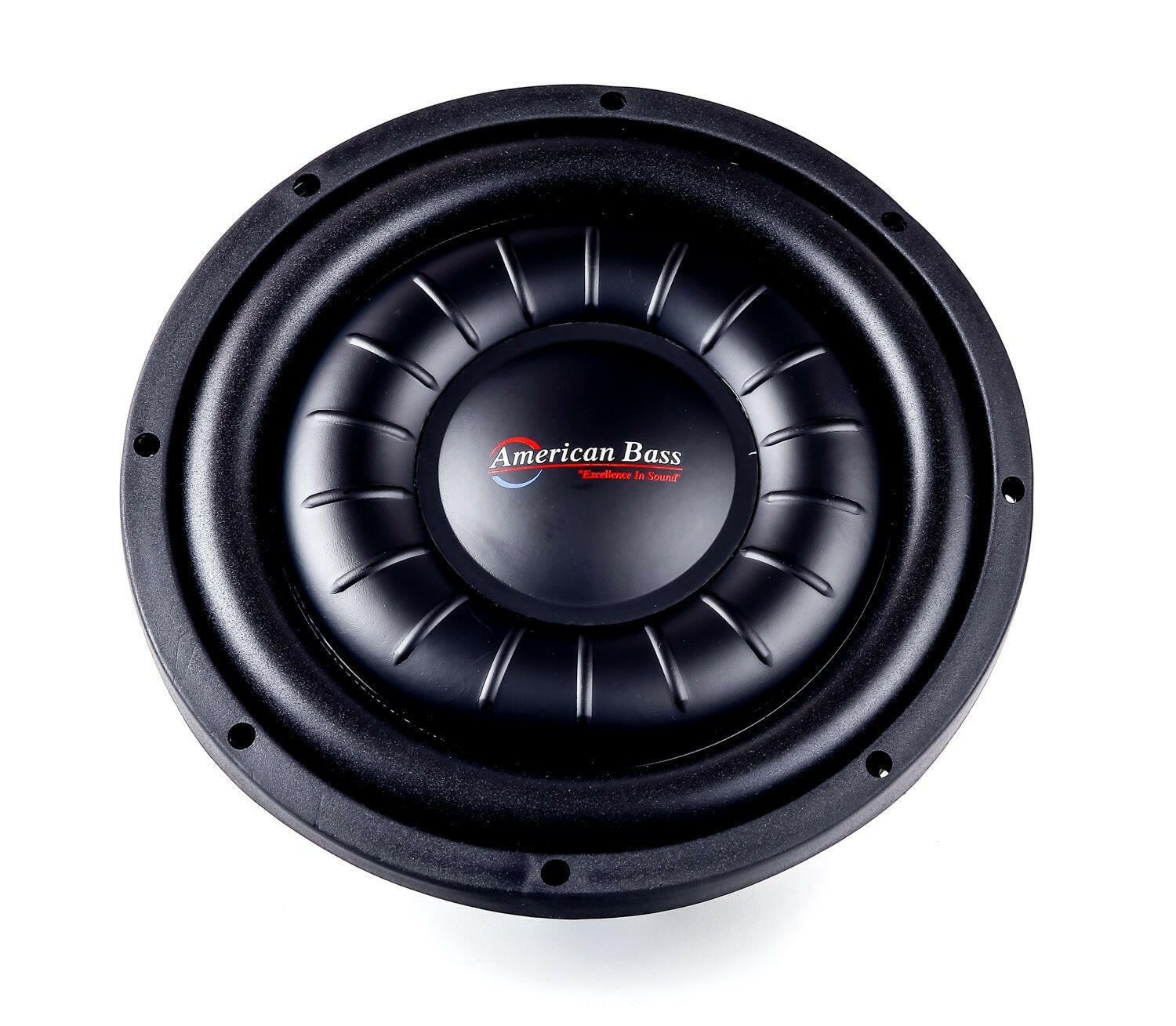

American Bass Hawk Slim 10" Car Subwoofer 700 Watts RMS Dual Voice Coil 2 Ohm or 4 Ohm (Shallow Mount)
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20or%20Dual%204%CE%A9%20(HAWKSLIM-1044)%20%E2%80%94%20your%20choice%0A%0AOnly%203.15%22%20mounting%20depth%20%E2%80%94%20squeezes%20into%20any%20tight%20build%0A%0A2.75%22%20aluminum-f...
){kind=link}
- 700W RMS / 1500W max — big output from a shallow 10"
- Dual 2Ω (HAWKSLIM-1022) or Dual 4Ω (HAWKSLIM-1044) — your choice
- Only 3.15" mounting depth — squeezes into any tight build
- 2.75" aluminum-former voice coil — vented cooling for power
- Model HAWKSLIM-1022 / 1044 — die-cast aluminum frame, 10.5mm Xmax
American Bass Hawk Slim 10" Car Subwoofer — 700W RMS Dual Voice Coil (HAWKSLIM-1022 / HAWKSLIM-1044)
This Listing Includes:
- (1) American Bass Hawk Slim 10" Shallow-Mount Subwoofer
The American Bass Hawk Slim 10" delivers loud, clean bass from a frame slim enough to hide anywhere. Part of the Hawk Slim shallow-mount Series, this 10" sub is just 3.15" deep yet runs a 2.75" 4-layer aluminum-former voice coil and a vented-cooling ferrite motor for sustained output. Choose the dual 2Ω HAWKSLIM-1022 or dual 4Ω HAWKSLIM-1044 to drop hard-hitting bass into the corner of any cab or trunk. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Shallow-mount design with just 3.15" mounting depth
- 2.75" high-power 4-layer aluminum-former voice coil
- Ferrite magnet motor with vented cooling
- Die-cast aluminum frame
- High-density foam surround
- Dual voice coil — 2Ω or 4Ω with 10.5mm Xmax
Specifications
| RMS Power | 700W |
| Max Power | 1500W |
| Impedance | Dual 2Ω (HAWKSLIM-1022) / Dual 4Ω (HAWKSLIM-1044) |
| Sensitivity | 83.9 dB (2Ω) / 84.3 dB (4Ω) |
| Voice Coil | 2.75" 4-layer aluminum former |
| Magnet | 90 oz (2Ω) / 80 oz (4Ω) ferrite, vented |
| Basket | Die-cast aluminum |
| Mounting Depth | 3.15" |
| Cutout Diameter | 9.41" |
| Xmax | 10.5 mm |
| Fs | 38.06 Hz (2Ω) / 41.491 Hz (4Ω) |
| Qts | 0.48 (2Ω) / 0.598 (4Ω) |
| Qes | 0.56 (2Ω) / 0.697 (4Ω) |
| Qms | 3.07 (2Ω) / 4.216 (4Ω) |
| Vas | 16.42 L (2Ω) / 16.972 L (4Ω) |
| BL | 17.13 (2Ω) / 19.792 (4Ω) |
| Mms | 174.5 g (2Ω) / 137.791 g (4Ω) |
| Sd | 334.561 cm² |
