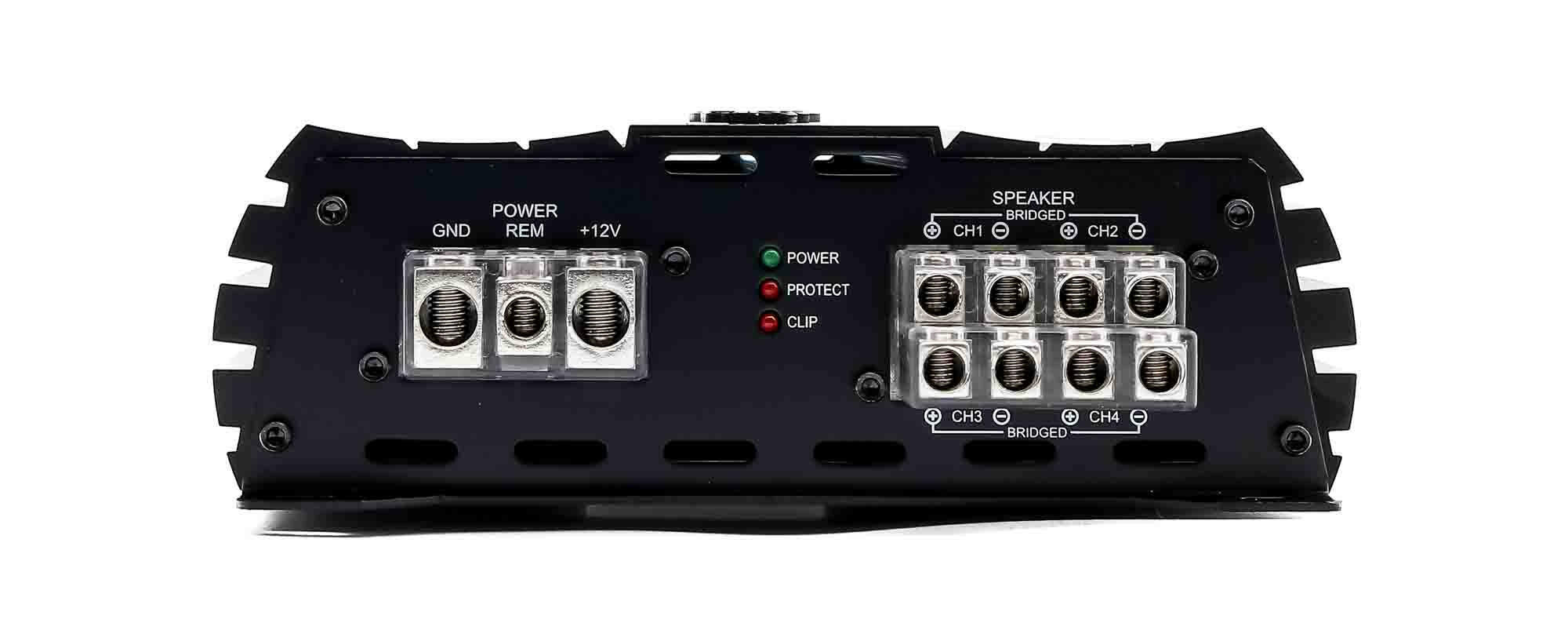

American Bass Godfather 200.4D Class D High Performance Multichannel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20is%20a%20full-range%20Class%20D%204-channel%20for%20a%20clean%20full-system%20build%0A%0A2%CE%A9%20stereo%20stable%20%E2%80%94%20power%20your%20front%20stage,%20rear%20fill,%20or%20a%20bridged%20sub%0A%0AVaria...
){kind=link}
- 180W RMS x 4 @ 2Ω — the Godfather 200.4D (GF-200.4D) is a full-range Class D 4-channel for a clean full-system build
- 2Ω stereo stable — power your front stage, rear fill, or a bridged sub
- Variable low-pass & subsonic filters — flexible crossover control
- Multi-way protection circuitry — guards against DC, short, thermal, and voltage faults
- 85dB SNR, damping factor <150, <0.1% THD — clean, accurate output
American Bass Godfather 200.4D Class D Multichannel Car Amplifier (GF-200.4D)
This Listing Includes:
- (1) American Bass Godfather 200.4D Amplifier
- (1) Bass Remote Control
The Godfather 200.4D is a compact, full-range Class D 4-channel that delivers 180 watts RMS per channel at 2 ohms. It's the right amp for a clean front-and-rear build or a bridged subwoofer setup, and the Godfather 200.4D brings variable filtering and multi-way protection so your whole system stays controlled and safe. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range Class D digital topology with 2-ohm stereo stability
- Variable low-pass filter (50Hz–8000Hz) for flexible bandwidth control
- Variable subsonic filtering to protect speakers from low-frequency strain
- Multi-way protection circuitry: DC, speaker short, thermal, and voltage
- Damping factor under 150 and <0.1% THD for tight, accurate sound
Specifications
| Channels | 4 |
| Configuration | Full-Range Digital |
| RMS Power @ 4Ω | 110W x 4 |
| RMS Power @ 2Ω | 180W x 4 |
| Signal-to-Noise Ratio | 85dB |
| Damping Factor | <150 |
| Input Sensitivity | 6V–0.2V |
| Subsonic Filter | 20Hz–800Hz |
| Low-Pass Filter | 50Hz–8000Hz |
| THD | <0.1% |
| Dimensions (L×W×H) | 7.88 × 7.15 × 2.33 in |
