American Bass Godfather 12" Car Subwoofer 3000 Watts RMS Dual Voice Coil 1 Ohm or 2 Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20or%20Dual%202%CE%A9%20(GF-1222)%20%E2%80%94%20choose%20your%20coil%0A%0A4.0%22%20flat-wire%20voice%20coil%20%E2%80%94%20high-temp%20aluminum%20bobbin%0A%0A400%20oz%20triple-stacked%20magnet%20%E2%80%94%20a...
){kind=link}
- 3000W RMS / 6000W max — high-SPL power handling
- Dual 1Ω (GF-1211) or Dual 2Ω (GF-1222) — choose your coil
- 4.0" flat-wire voice coil — high-temp aluminum bobbin
- 400 oz triple-stacked magnet — air-cooled motor, 17.5mm Xmax
- Model GF-1211 / GF-1222 — black Kevlar cone, die-cast basket

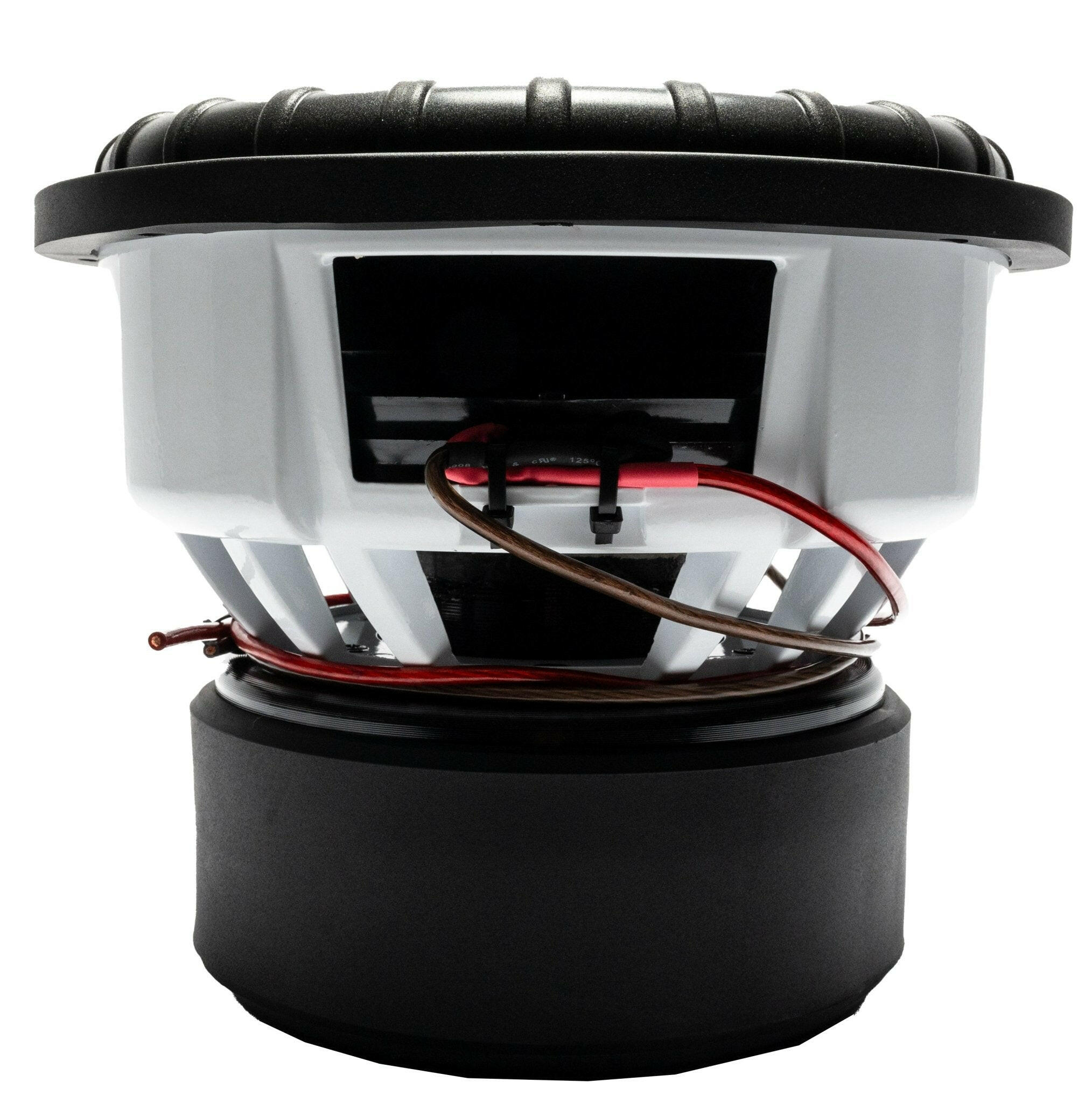

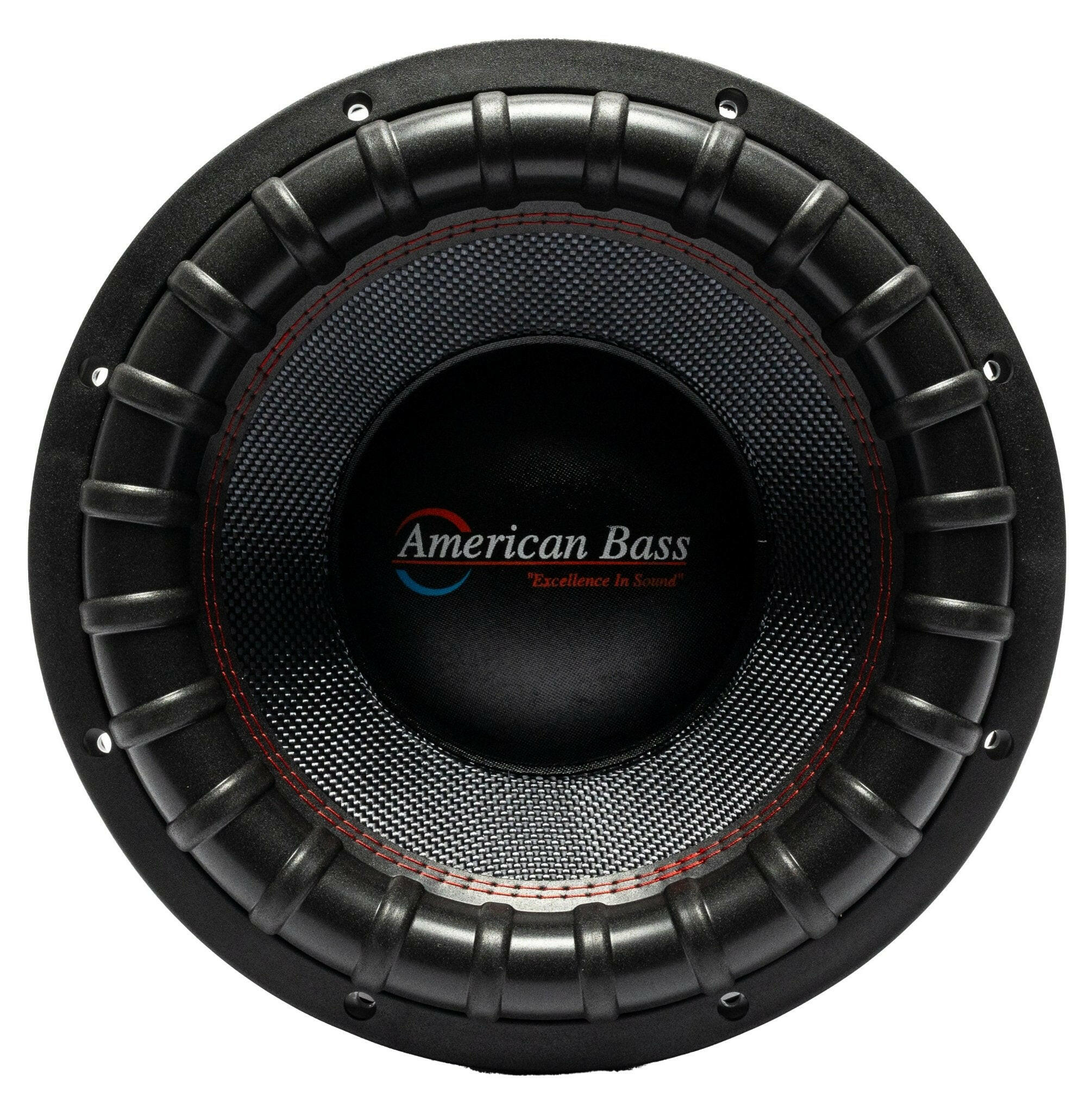

American Bass Godfather 12" Car Subwoofer — 3000W RMS Dual Voice Coil (GF-1211 / GF-1222)
This Listing Includes:
- (1) American Bass Godfather 12" SPL Subwoofer
The American Bass Godfather 12" is a work of art built for the highest SPL. The Godfather Series pairs an American-made 4.0" flat-wire high-temp voice coil with a 400 oz triple-stacked strontium motor and an air-cooled bottom plate, all driving a double-stitched black Kevlar cone. Choose the dual 1Ω GF-1211 or dual 2Ω GF-1222 and bring serious, deep, demanding bass to your build. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 4.0" high-temperature 4-layer flat aluminum-wire voice coil on aluminum bobbin
- 400 oz motor — triple-stacked 133 oz strontium magnets

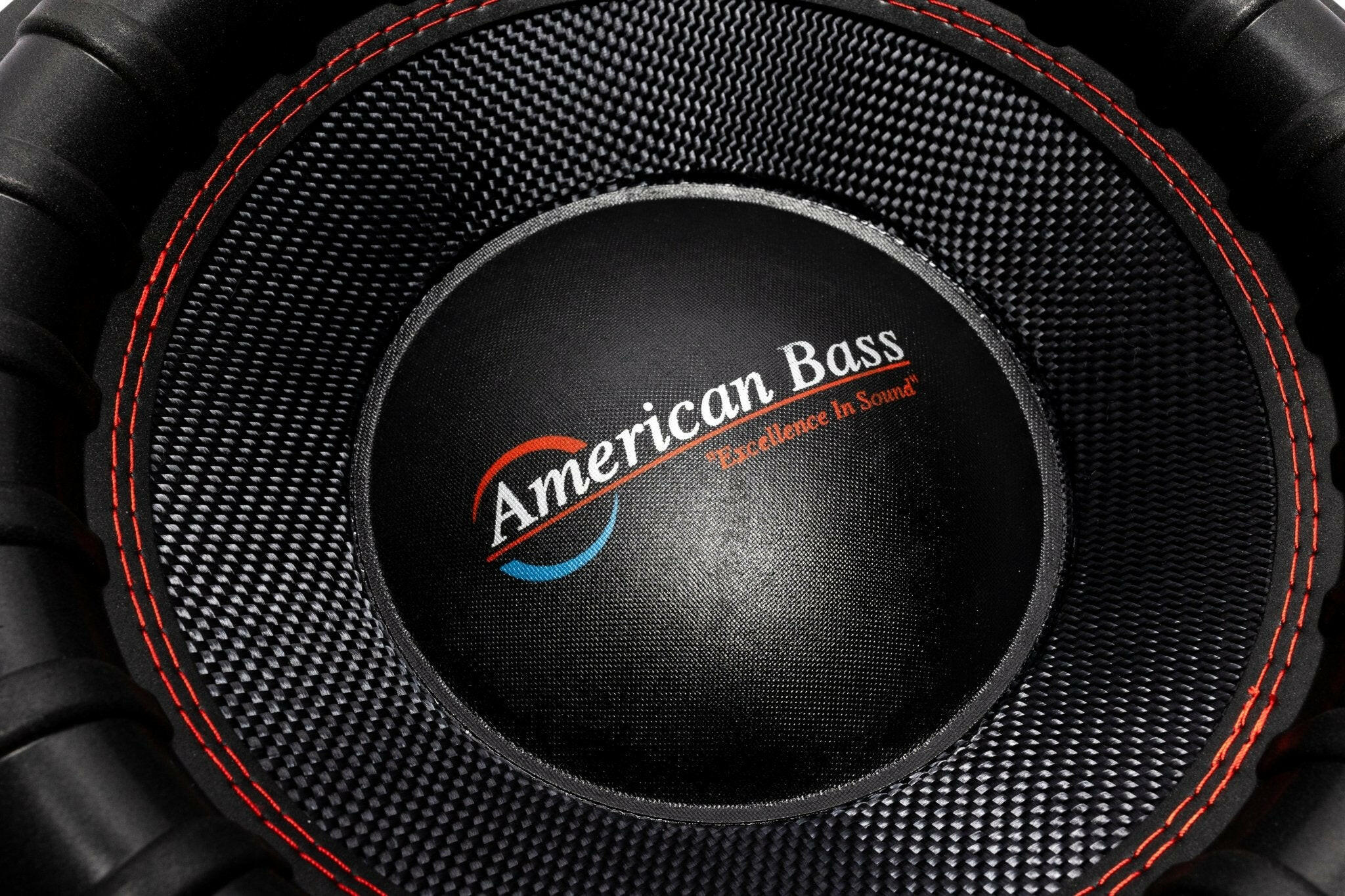

- Black Kevlar woven non-pressed cone
- Hi-roll high-density foam surround with red stitching
- Heavy-duty die-cast basket
- Dual voice coil — 1Ω or 2Ω with 17.5mm Xmax
Specifications
| RMS Power | 3000W |
| Max Power | 6000W |
| Impedance | Dual 1Ω (GF-1211) / Dual 2Ω (GF-1222) |
| Sensitivity | 86.3 dB |
| Voice Coil | 4.0" 4-layer flat aluminum wire |
| Magnet | 400 oz (triple-stacked 133 oz strontium) |
| Basket | Heavy-duty die-cast |
| Cone | Black Kevlar woven non-pressed |
| Mounting Depth | 9.29" |
| Cutout Diameter | 11.34" |
| Xmax | 17.5 mm |
| Fs | 31.8 Hz (1Ω) |
| Qts | 0.369 (1Ω) / 0.381 (2Ω) |
| Qes | 0.408 (1Ω) / 0.417 (2Ω) |
| Qms | 3.853 (1Ω) / 4.345 (2Ω) |
| Vas | 34.9 L (1Ω) / 31.3 L (2Ω) |
| BL | 14.43 (1Ω) / 10.75 (2Ω) |
| Mms | 266.2 g (1Ω) / 271.5 g (2Ω) |
| Sd | 51.1 cm² |
