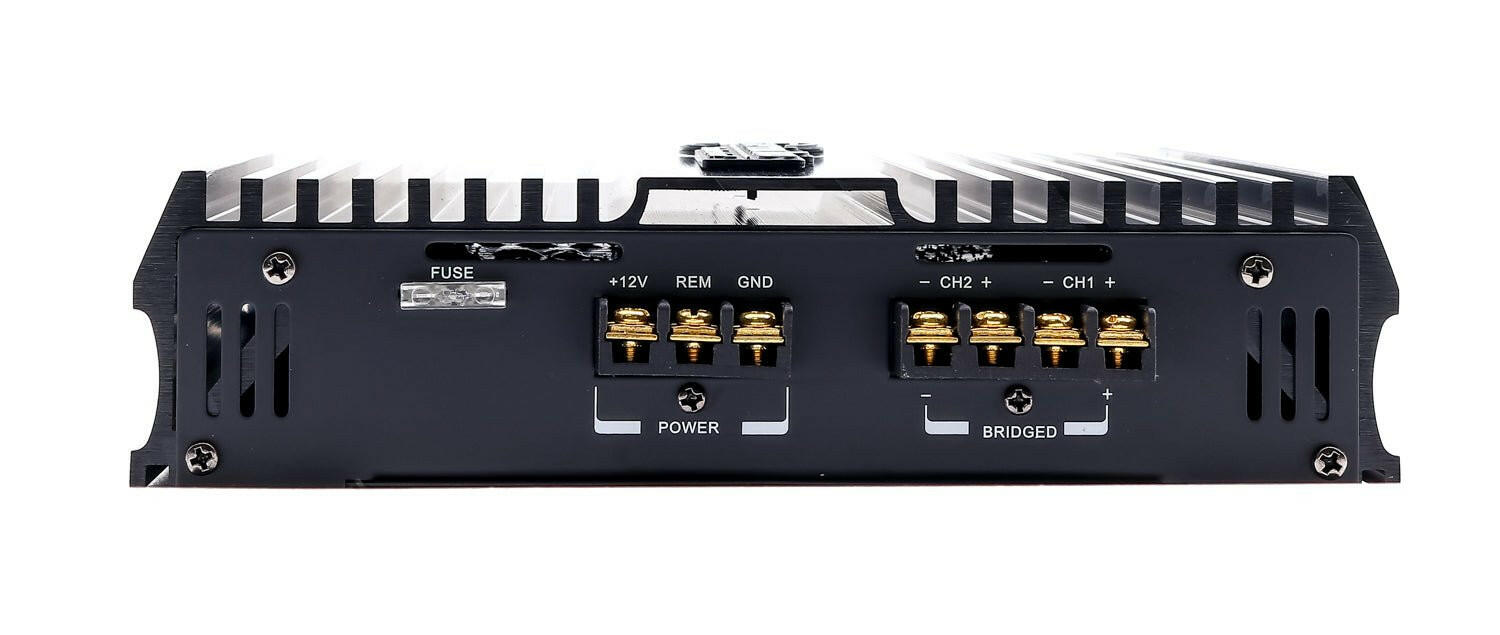

American Bass DB 675.2FR Car Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20with%20subsonic%20filter%20(10Hz%E2%80%9350Hz)%20...
){kind=link}
- 2–channel full–range car amplifier rated 2 × 130W RMS @ 2Ω
- Bridgeable to mono for a subwoofer or a single high–power channel
- Variable low–pass filter (40Hz–180Hz) with subsonic filter (10Hz–50Hz) and 0–12dB bass boost
- 90dB signal–to–noise ratio and <1% THD for clean output
- 25A fusing — model DB 675.2FR
American Bass DB 675.2FR 2–Channel Full–Range Car Amplifier — 2 × 130W RMS @ 2Ω (DB675.2FR)
This Listing Includes:
- (1) American Bass DB 675.2FR Amplifier
Part of the budget–friendly American Bass DB Series, the DB 675.2FR is a compact 2–channel amp that drives a pair of speakers or bridges to mono for a sub. Onboard low–pass and subsonic filtering plus bass boost let you tune it to almost any setup, making it an easy first amplifier or a clean add–on to an existing system. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 2 channels, bridgeable to mono
- Variable low–pass filter: 40Hz–180Hz
- Subsonic filter: 10Hz–50Hz
- 0–12dB bass boost with 0.2–6V input sensitivity
- 90dB signal–to–noise ratio, <1% THD
Specifications
| Channels | 2 (bridgeable) |
| RMS @ 2Ω | 2 × 130W |
| RMS @ 4Ω | 2 × 75W |
| Low–Pass Filter | 40Hz–180Hz |
| Subsonic Filter | 10Hz–50Hz |
| Bass Boost | 0–12dB |
| Signal–to–Noise Ratio | 90dB |
| Input Sensitivity | 0.2–6V |
| THD | <1% |
| Operating Voltage | 9–16V |
| Fuse Rating | 25A |
| Dimensions (L × W × H) | 7.08" × 9.45" × 1.97" |
