American Bass Big Bass Bundle — 2x XFL 12" Subwoofer + VFL REBEL-5000.1 Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Two 12s, one seriously overbuilt amp.

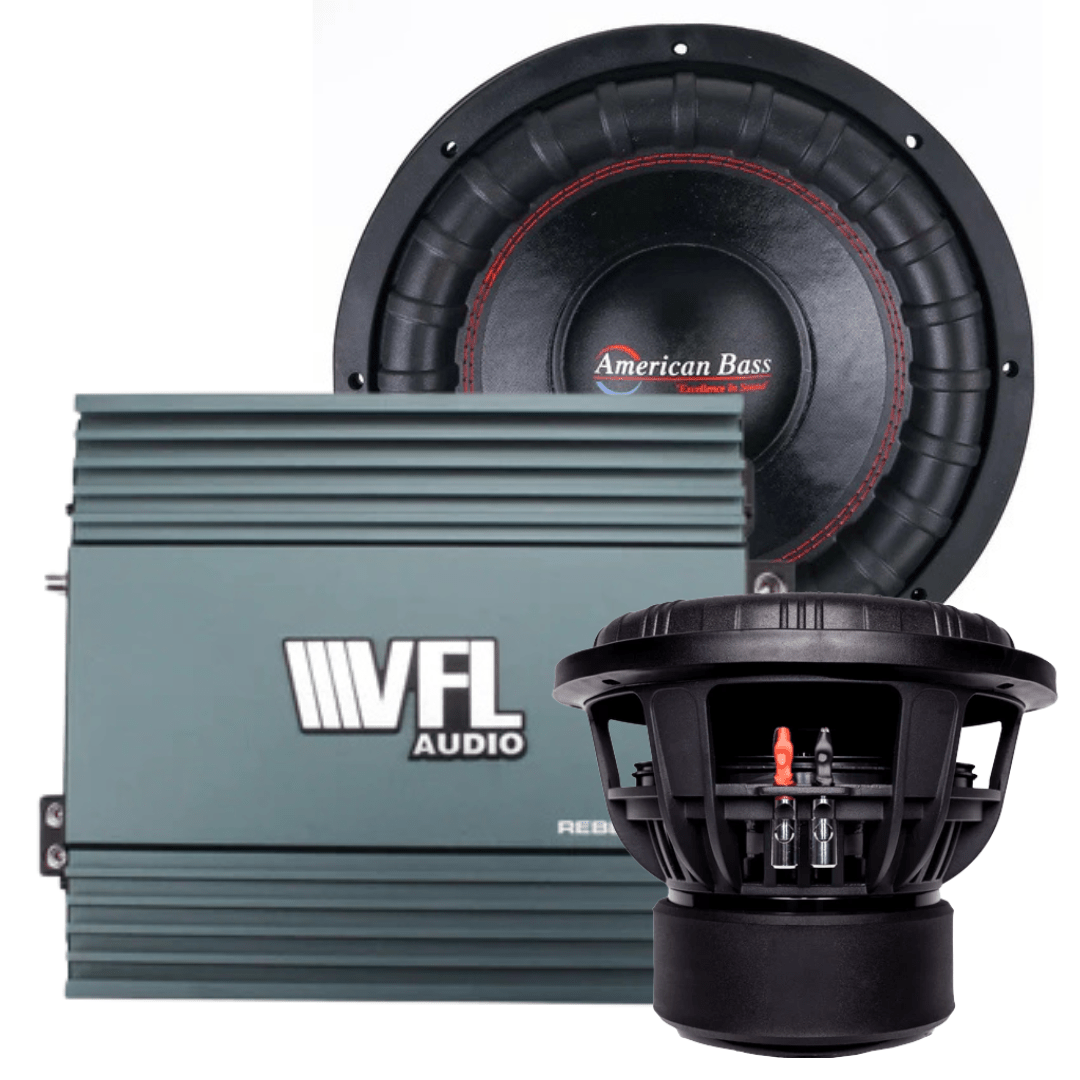

The Big Bass Bundle pairs two American Bass XFL 12" subwoofers with the VFL REBEL-5000.1 monoblock amplifier — a real step up from entry-level dual-sub setups. The XFL is a proven, record-setting platform, and the REBEL-5000.1 gives it real headroom instead of running at the ragged edge.
What's In This Bundle
| QTY | Component | SKU | Key Spec |
|---|---|---|---|

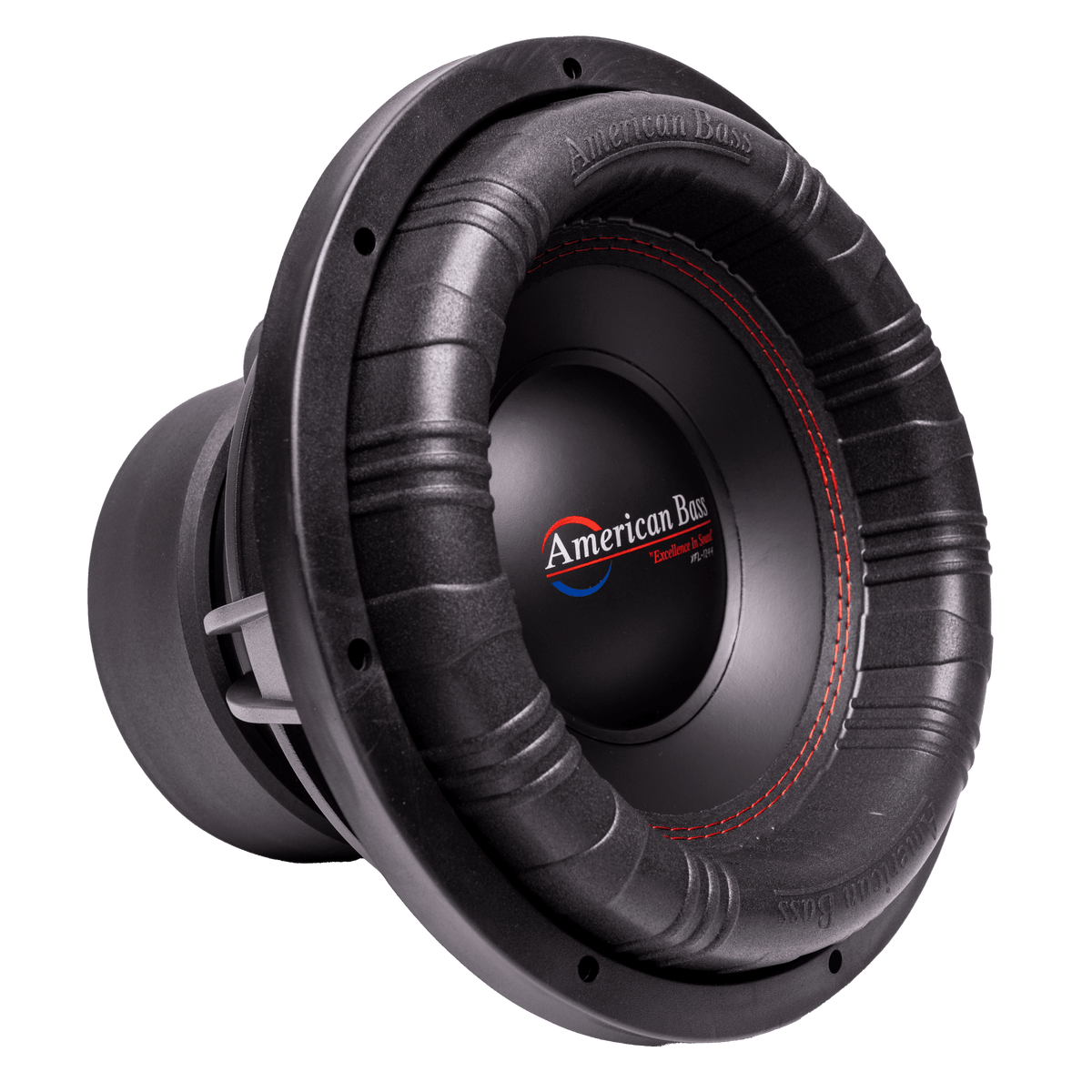

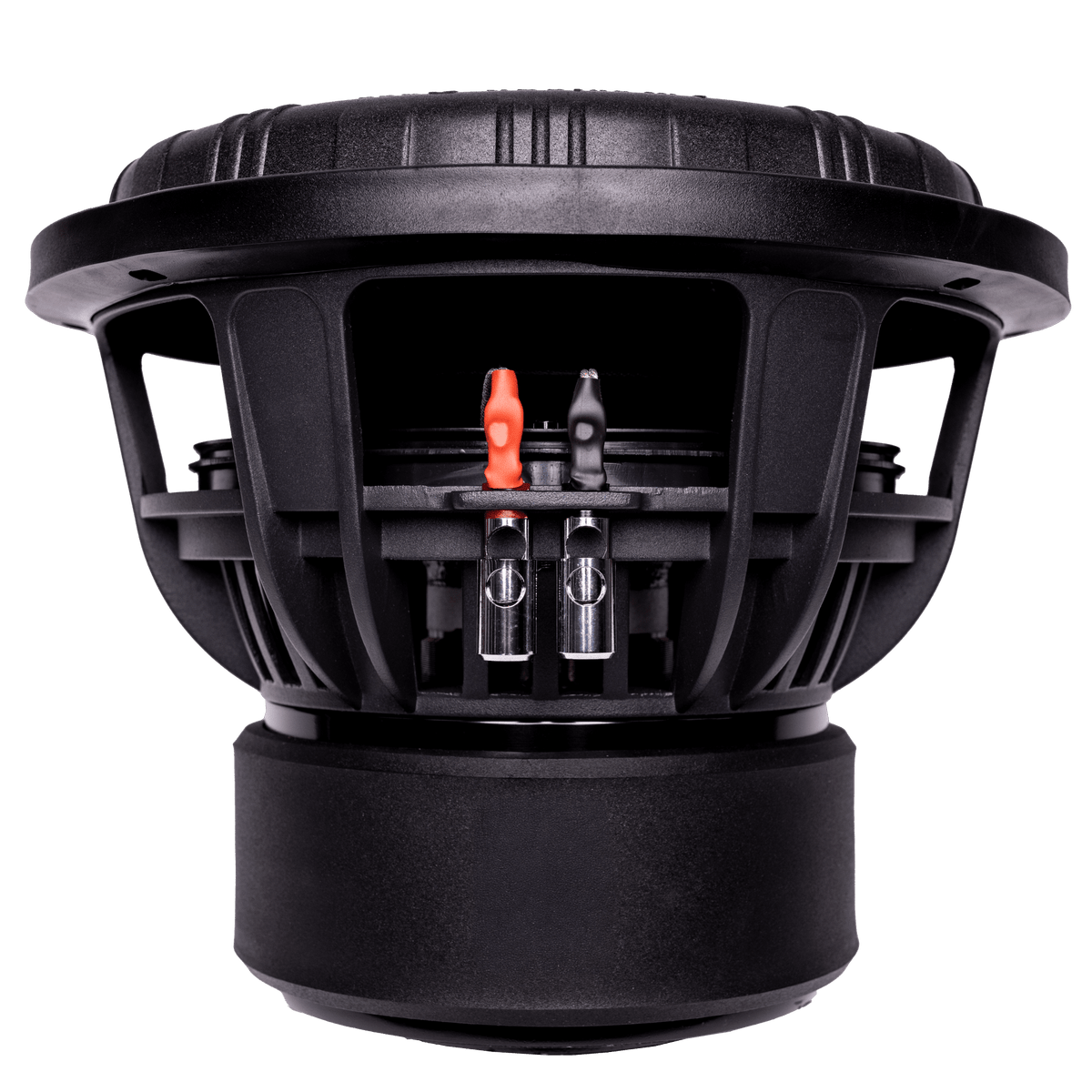

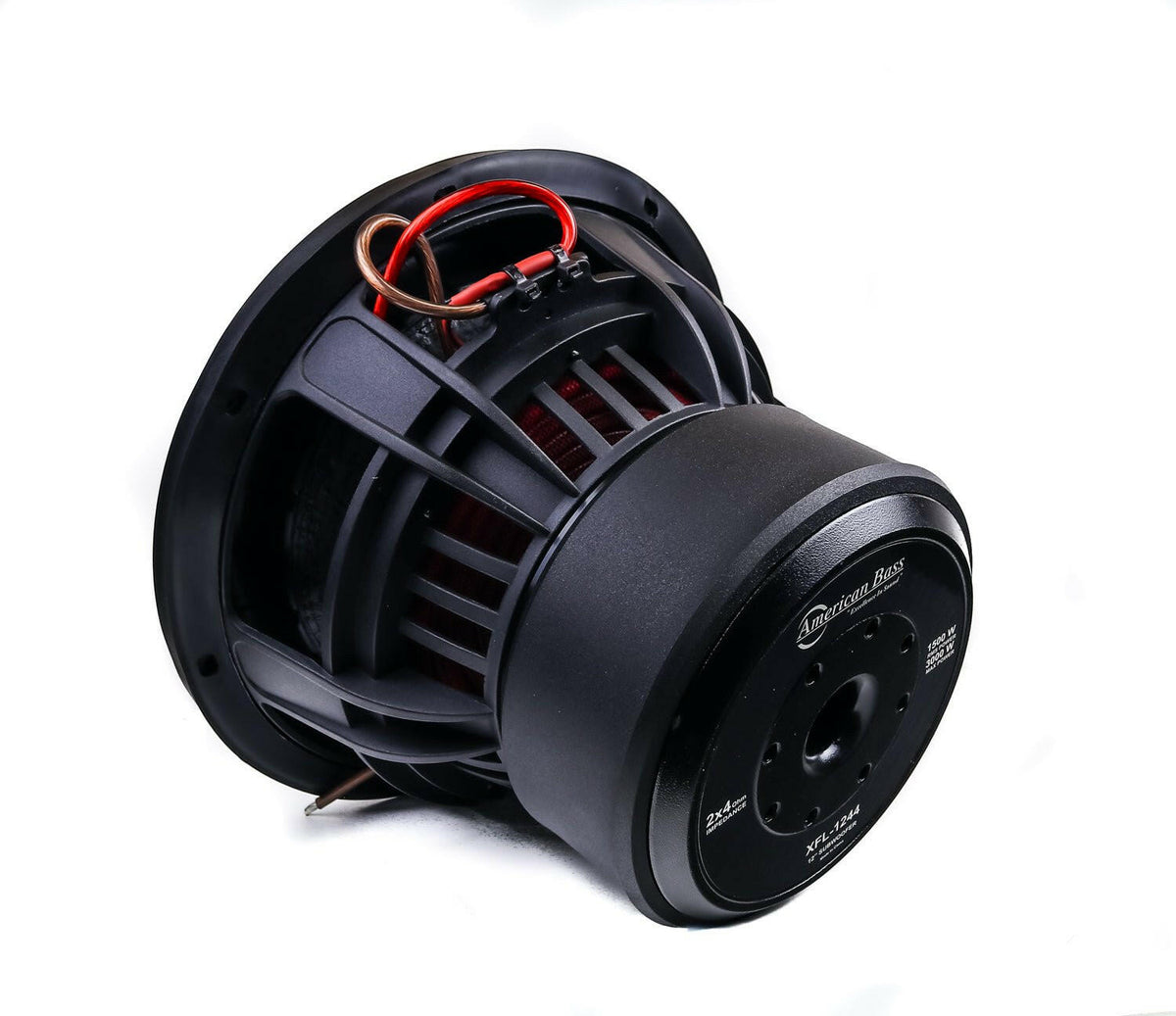

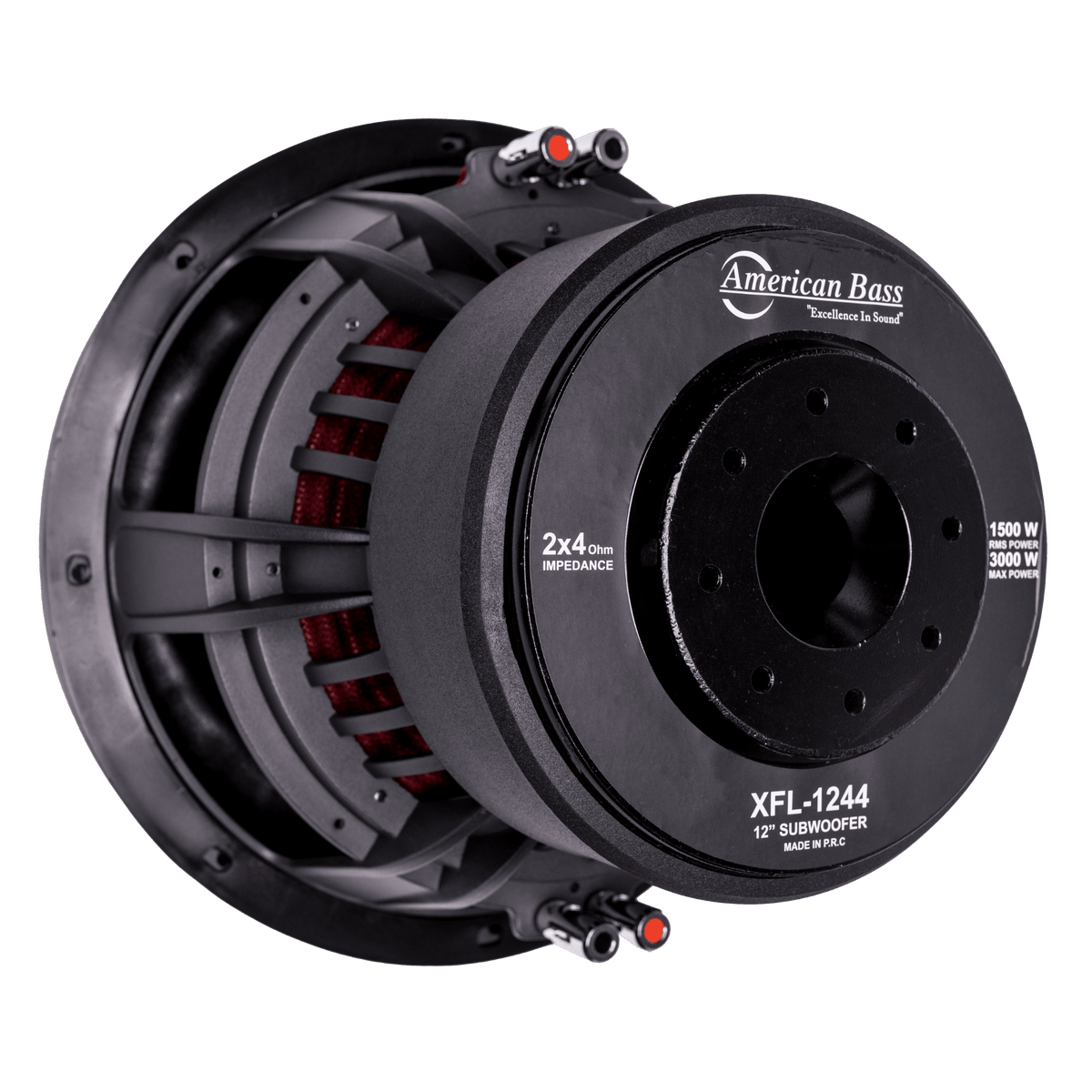

| 2× | American Bass XFL 12" Subwoofer | XFL-1244 | 1,500W RMS each | Dual 4 Ohm Voice Coil | 3" Voice Coil |

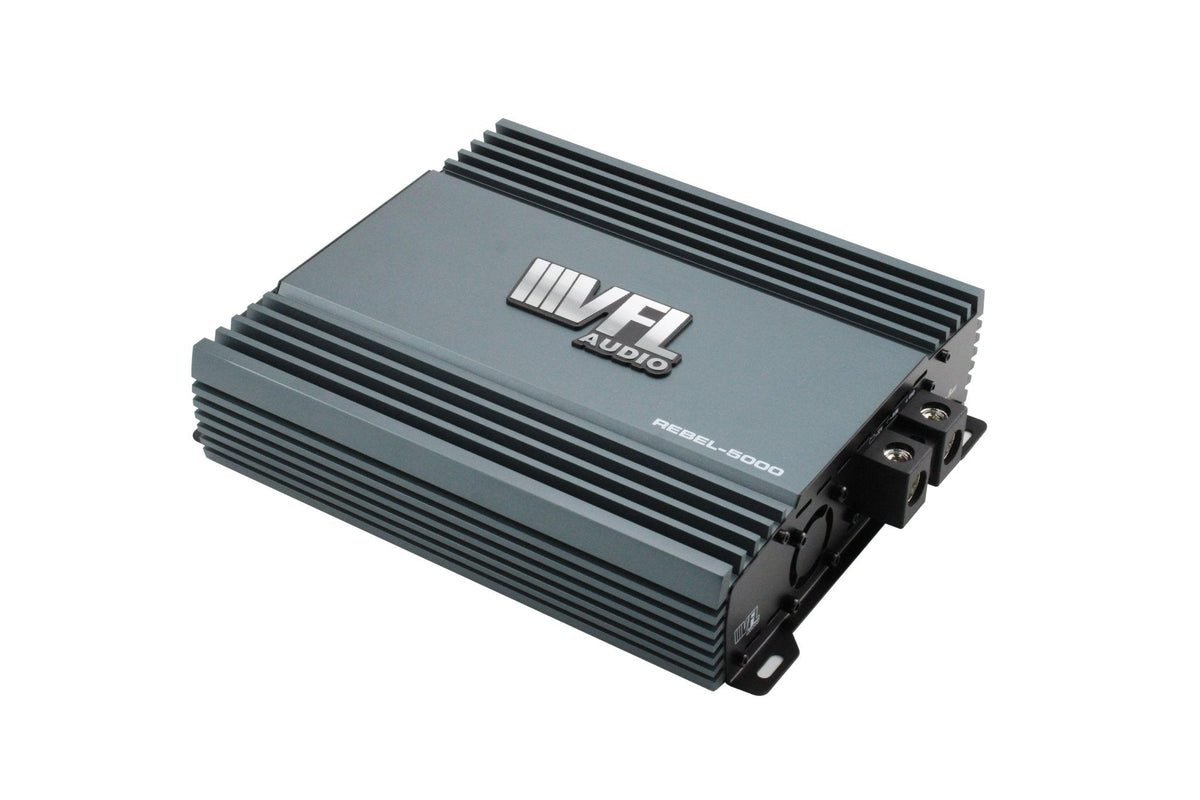

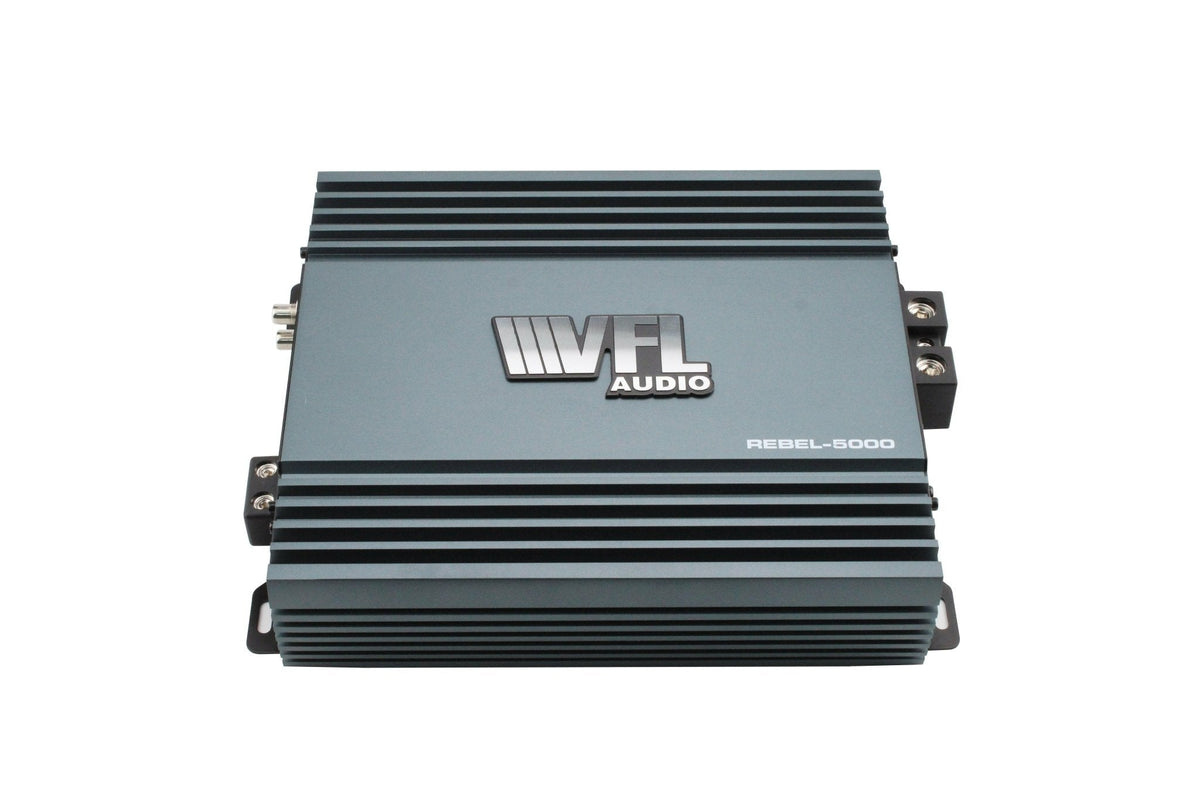

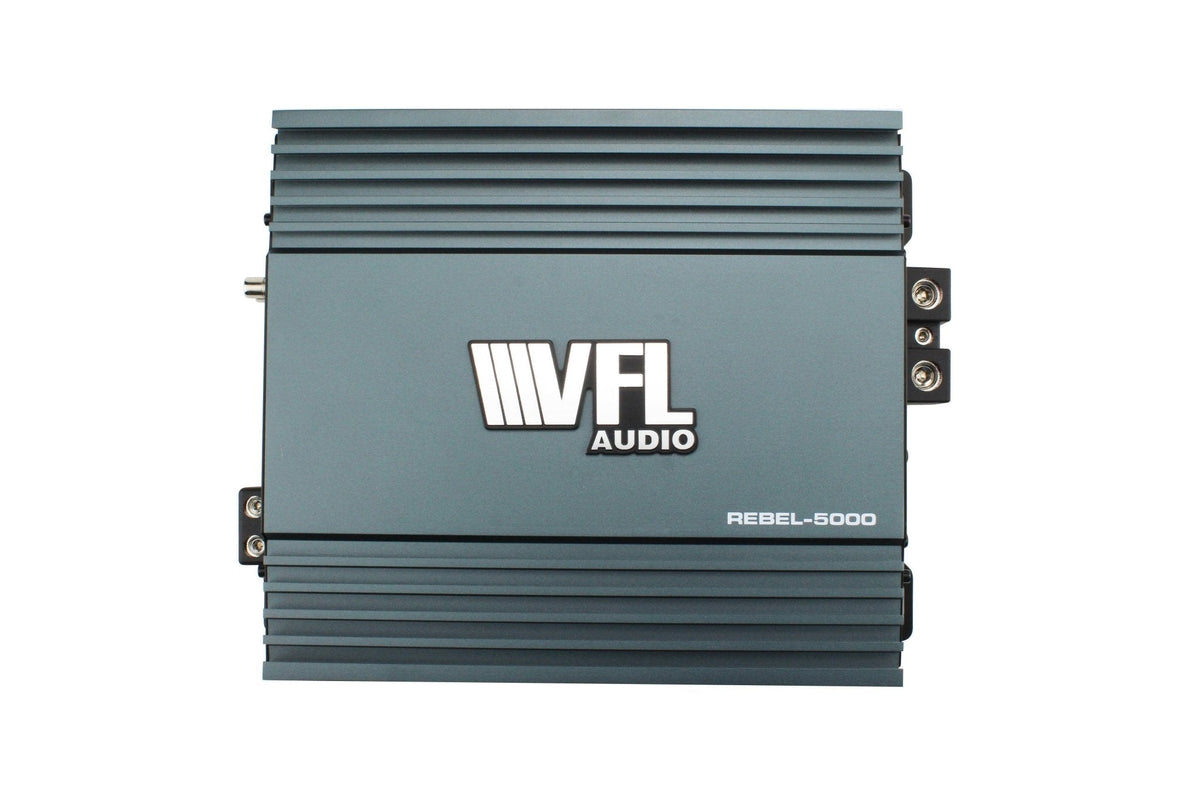

| 1× | VFL REBEL-5000.1 Amplifier | REBEL-5000.1 | 5,000W Max @ 1 Ohm | Class D Monoblock |
System Specifications
| Sub Configuration | Dual 12", coils wired parallel (2Ω/sub), subs wired parallel to amp (1Ω final) |
| Sub RMS Each | 1,500W RMS |
| Sub RMS Combined | 3,000W RMS |
| Amplifier Max Power | 5,000W Max @ 1 Ohm (Class D Monoblock) |
| Amp Min Impedance | 1 Ohm Stable |
| Recommended Enclosure | Ported, 2–2.5 ft³ per sub (not included) |
| Required Wire Gauge | 4/0 Gauge (sold separately) |
You'll Also Need — Pre-Matched Add-Ons
Wire kit and battery are not included and sold separately. Pre-matched to your REBEL-5000.1:
- 4/0 Gauge Amplifier Wire Kit
The REBEL-5000.1 draws real current at 1 Ohm — 4/0 gauge power/ground is the safe minimum for this setup. - ABLT-40 Lithium Titanate Battery (40Ah)
Rated for 400A continuous discharge — matched to keep voltage stable under sustained bass output.
Installation Notes
- Enclosure not included. Recommended: ported enclosure, 2–2.5 ft³ per sub.
- Wire each sub's coils in parallel, then both subs in parallel to the amp for a 1 Ohm final load.
- Running a factory head unit? Add the AB-LC2X Signal Processor for speaker-level to RCA conversion.
- All components ship separately from their respective warehouse locations.
