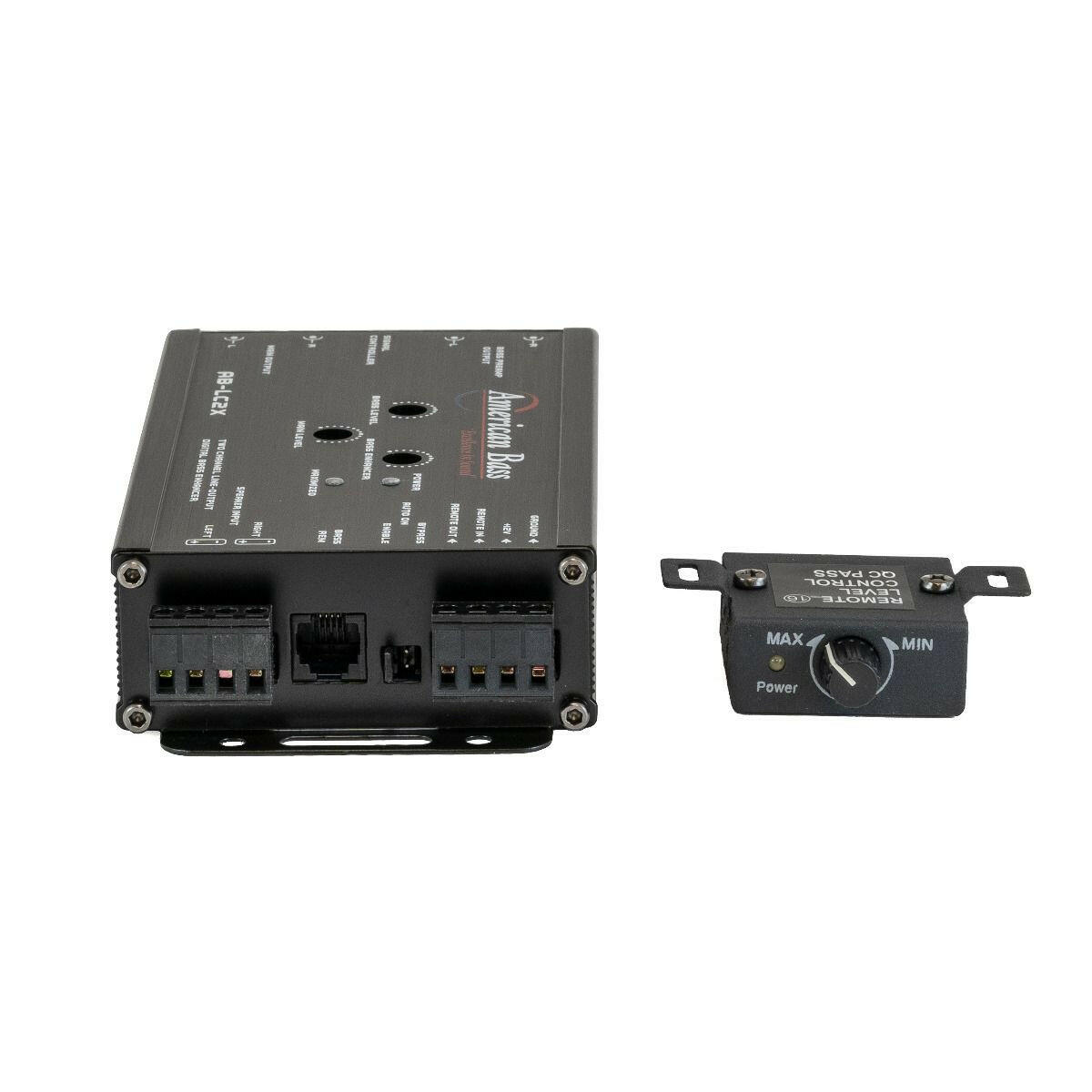

American Bass AB-LC2X Signal Processor
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
- 2-channel line output converter with digital bass enhancement
- Speaker-level inputs integrate cleanly with factory-installed systems
- 9.5 volt pre-outs with dual amplifier outputs
- Dash remote level control for bass adjustment on the fly
- 12 volt trigger output for automatic amplifier turn-on
American Bass AB-LC2X Line Output Converter (AB-LC2X)
This Listing Includes:
- (1) American Bass AB-LC2X
The American Bass AB-LC2X is a 2-channel line output converter and digital bass enhancer that bridges your factory head unit to an aftermarket amplifier with a clean, high-voltage signal. Its speaker-level inputs accept up to 500 watts RMS, while 9.5 volt pre-outs, dual amplifier outputs, and a 12 volt trigger make integration simple. Bass compensation and a dash-mounted remote level control let you restore and fine-tune low end that factory systems roll off. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Speaker level input accepts up to 500 watts RMS
- Bass enhancer with bass compensation and selectable audio ON
- 9.5 volt pre-out with dual amplifier outputs
- 12 volt trigger output for automatic amp turn-on
- Dash remote level control with level matching controls
Specifications
| Maximum Speaker Level Input | 400 watts per channel @ 4Ω |
| Maximum Pre-Out Voltage | 9.5V RMS / 12V |
| Dash Level Control Remote | +0/–19dB |
| Frequency Response | 10Hz–100kHz; +1dB |
| Total Harmonic Distortion | 0.01% |
| Output Impedance | 150 Ω |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 amp |
