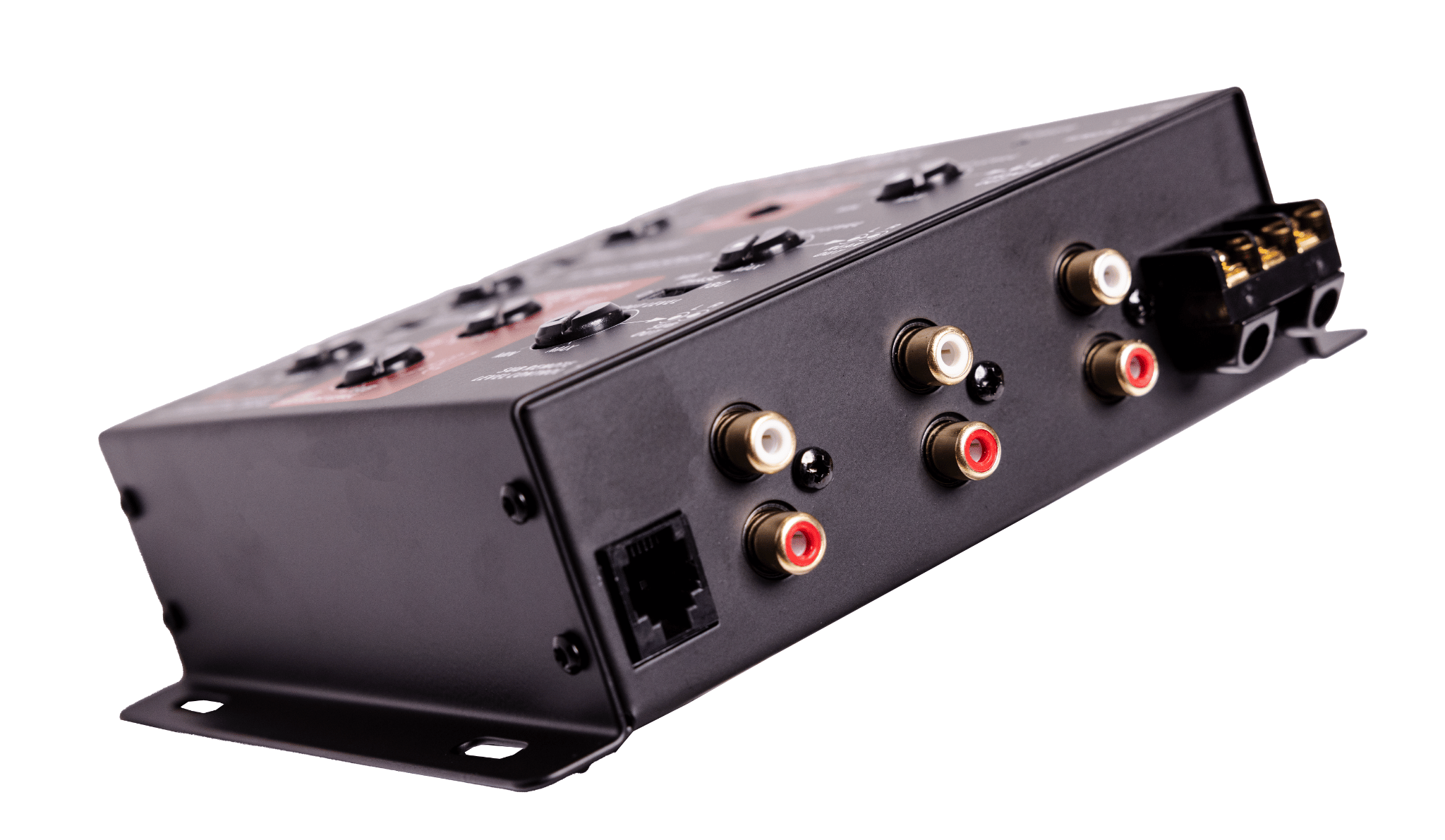

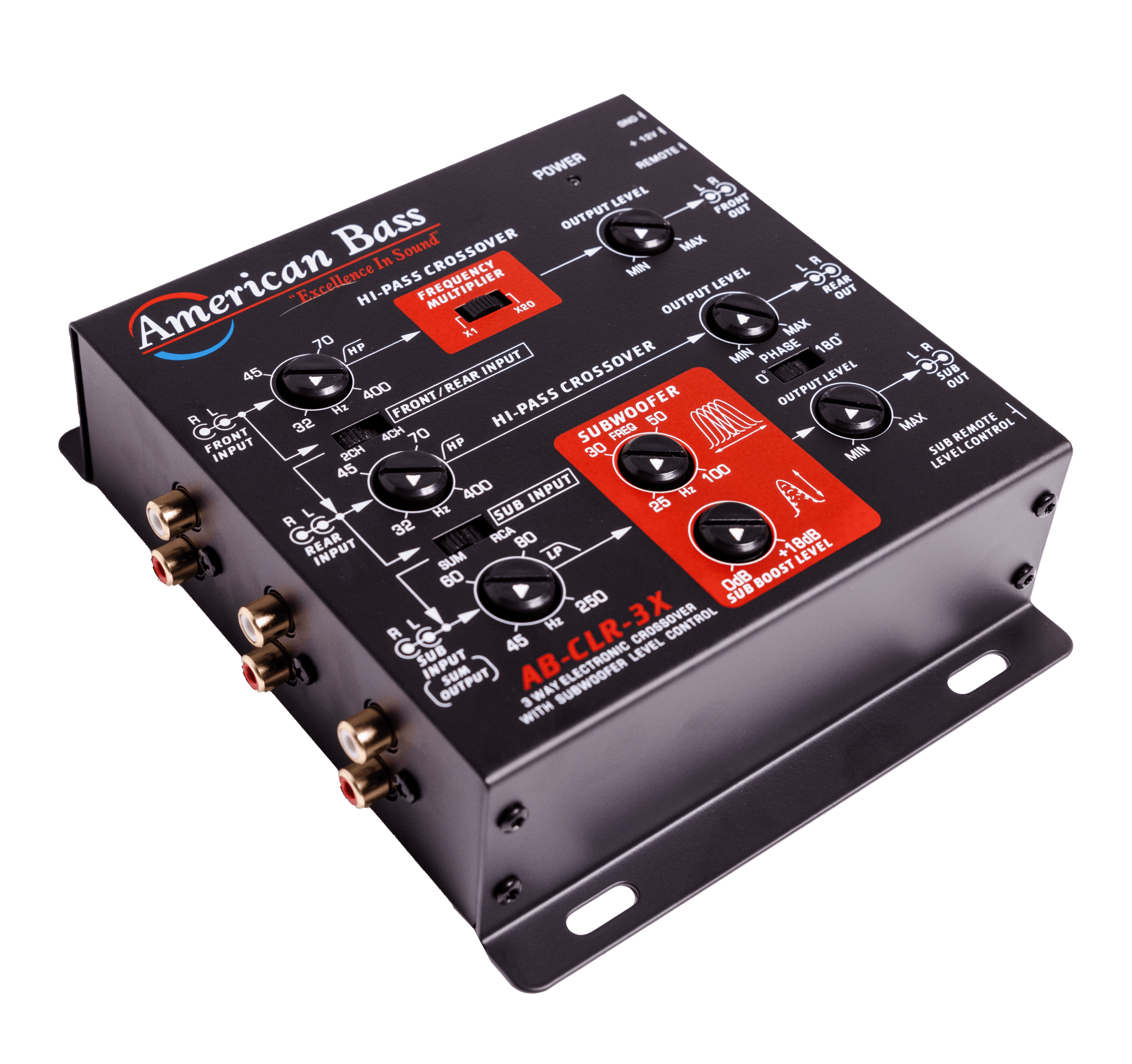

American Bass AB-CLR-3X 3-Way Active Electronic Crossover with Subwoofer Level Control
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
- 3-way active electronic crossover for front, rear, and subwoofer channels
- Remote subwoofer level control for on-the-fly bass adjustment
- 18 dB/octave, 3rd-order Butterworth crossover slopes
- Ultra-low 0.01% THD with a wide 10 Hz – 30 kHz frequency response
- Built for advanced multi-amp and competition car audio systems
American Bass AB-CLR-3X 3-Way Active Electronic Crossover (AB-CLR-3X)

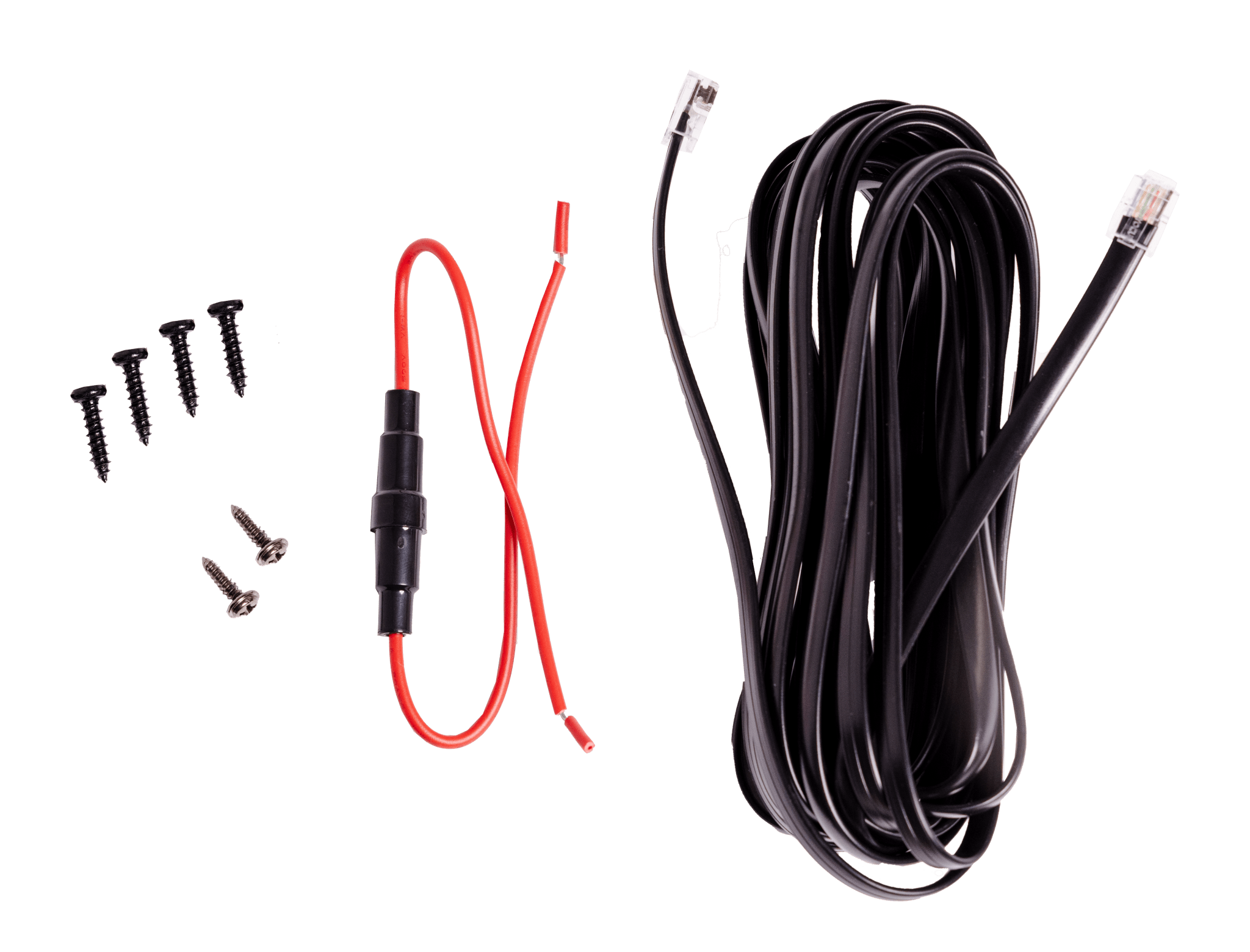

This Listing Includes:
- (1) American Bass AB-CLR-3X
The American Bass AB-CLR-3X is a high-performance 3-way active crossover engineered for serious car audio builds, giving you independent crossover control over front, rear, and subwoofer channels for precise frequency separation, phase alignment, and output level matching. A dash-mounted remote subwoofer level control keeps your bass at your fingertips, while a clean signal path and 3rd-order Butterworth slopes deliver the accuracy demanded by multi-amp and competition systems. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Independent crossover adjustment for front, rear, and subwoofer channels
- Remote subwoofer level control for precise bass tuning from the dash
- 18 dB/octave, 3rd-order Butterworth crossover slope
- Low 0.01% distortion (THD) with greater than 100 dB signal-to-noise ratio
- +6 dB output gain with a 5 V maximum output level for strong signal delivery
Specifications
| Power Source | 14.4 volts DC (negative ground) |
| Input Current | 0.5 A max |
| Distortion (THD) | 0.01% at 1V |
| Frequency Response | 10 Hz – 30 kHz (–3dB) |
| Signal-to-Noise Ratio | >100 dB |
| Channel Separation | 60 dB |
| Crossover Slope | 18 dB/octave, 3rd order Butterworth |
| Input Impedance | 20 kΩ |
| Output Impedance | 100 Ω |
| Output Gain | 1:2 (+6 dB) |
| Output Voltage Level | 5 V max |
| Dimensions | 152mm x 180mm x 43mm |
