American Bass AB-3X Crossover
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
- 3-way electronic crossover for front, rear, and subwoofer channels
- Variable subsonic filter to protect subwoofers from over-excursion
- Steep –18 dB/octave low-pass and high-pass slopes
- Ultra-low 0.01% THD with 110 dB signal-to-noise ratio
- 8 V peak output for clean, high-level signal transfer
American Bass AB-3X Crossover (AB-3X)

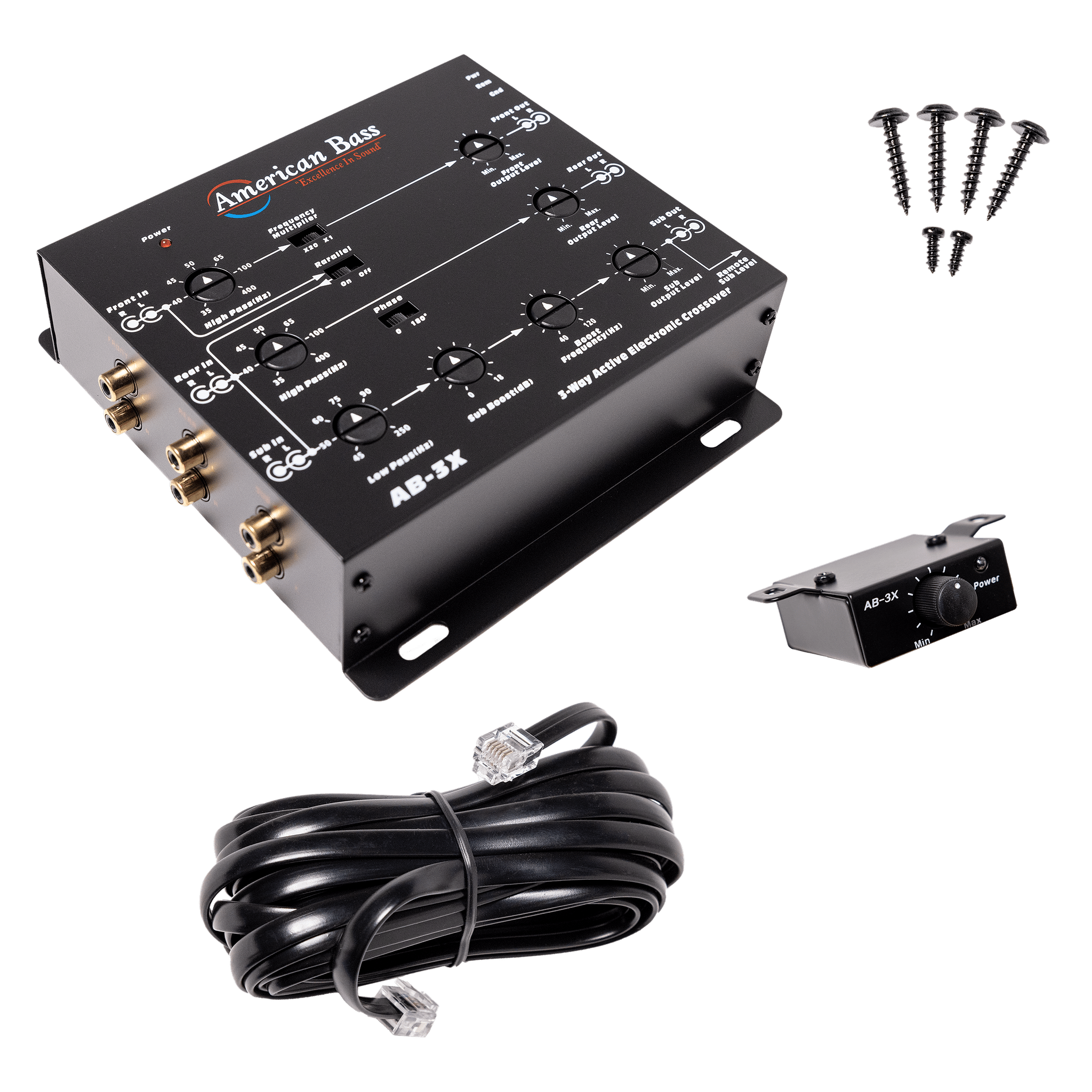

This Listing Includes:
- (1) American Bass AB-3X

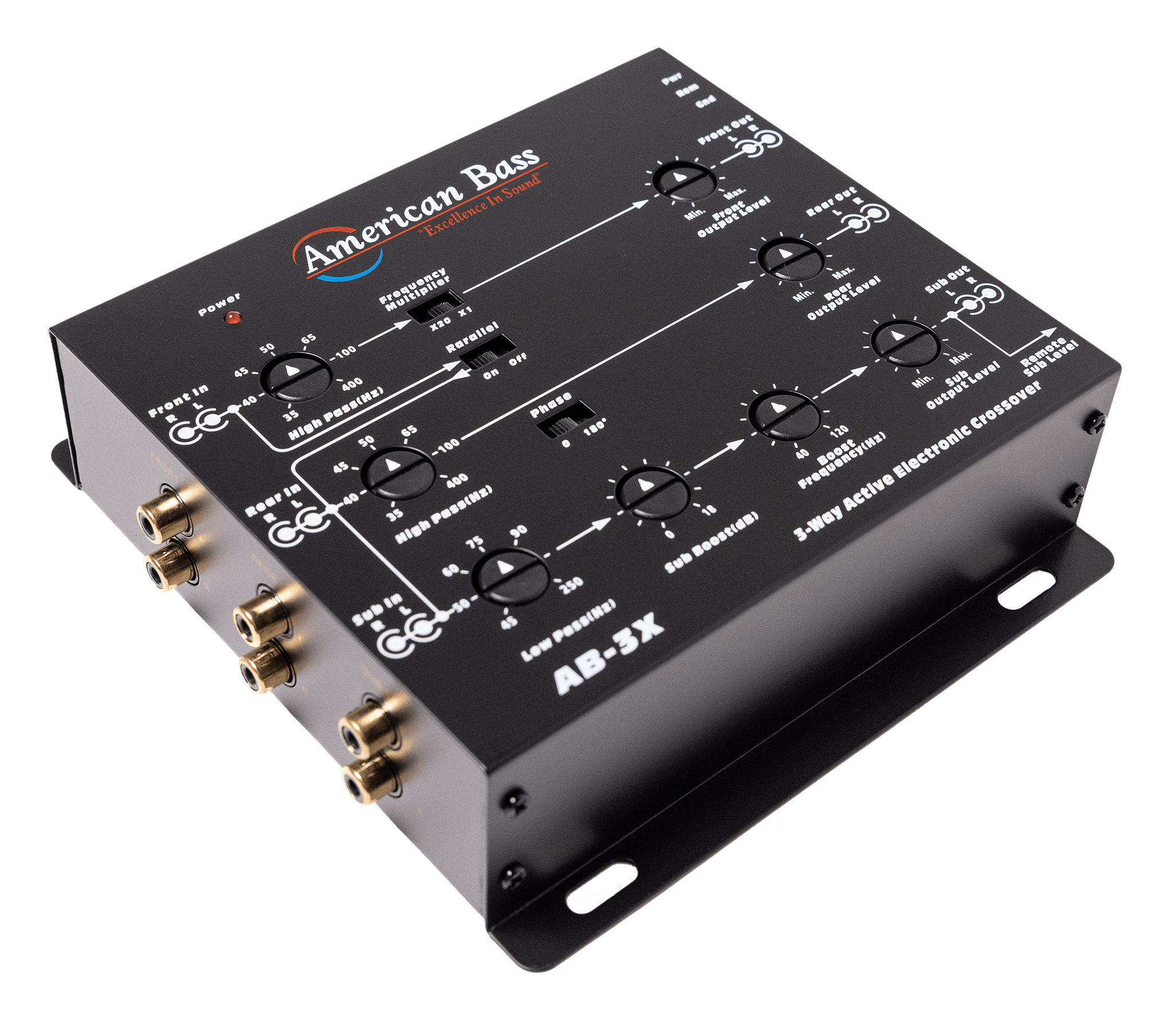

The American Bass AB-3X is a 3-way electronic crossover that splits your music into clean front, rear, and subwoofer bands so every speaker plays only the frequencies it handles best. Steep –18 dB/octave slopes, a switchable subsonic filter, and an 8 V peak output give you the control and headroom to build a tight, accurate system, while a 110 dB signal-to-noise ratio and 0.01% THD keep the signal clean. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features

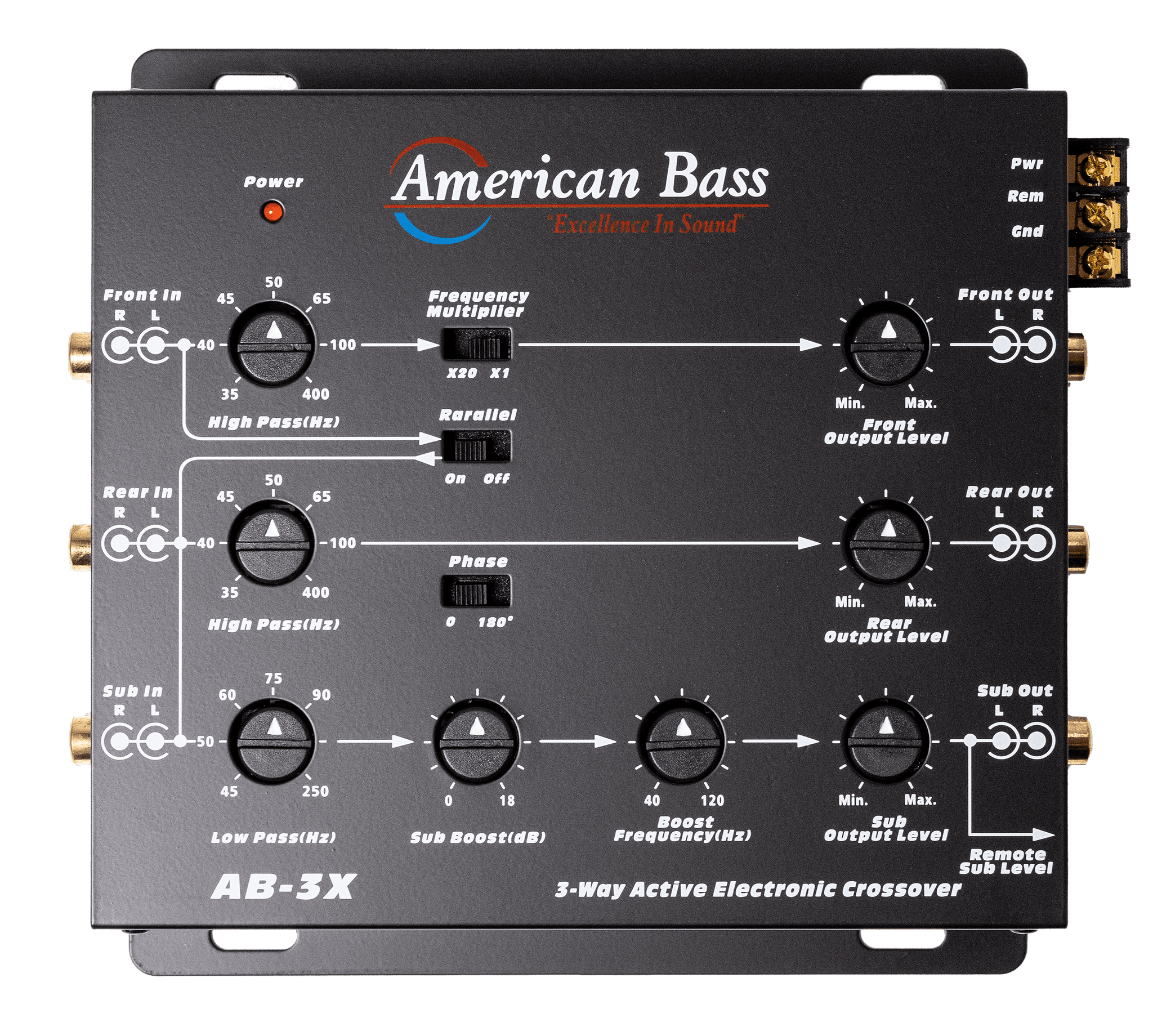

- Independent front high-pass, rear high-pass, and subwoofer low-pass sections
- Variable subsonic filter (on/off) at –18 dB/octave, 40 Hz
- –18 dB/octave low-pass and high-pass slopes
- 8 V peak output with greater than 70 dB channel separation
- Ultra-low 0.01% THD and 110 dB signal-to-noise ratio
Specifications
| Front High Pass | 35Hz–400Hz / 700Hz–8KHz |
| Rear High Pass | 35Hz–400Hz |
| Subwoofer Low Pass / Frequency | 45Hz–250Hz (–18dB/oct) |
| Output Level | 8V peak |
| Frequency Response | 10–50KHz (–3dB) |
| S/N Ratio | 110dB |
| THD | 0.01% |
| Input Impedance | 20K Ω |
| Output Impedance | Less than 150 Ω |
| Channel Separation | More than 70dB |
| Variable Subsonic Filter | On/off with –18dB/oct. at 40 Hz |
| Low Pass / High Pass | –18dB/oct |
| Power Source | 11–15 volts DC negative ground |
