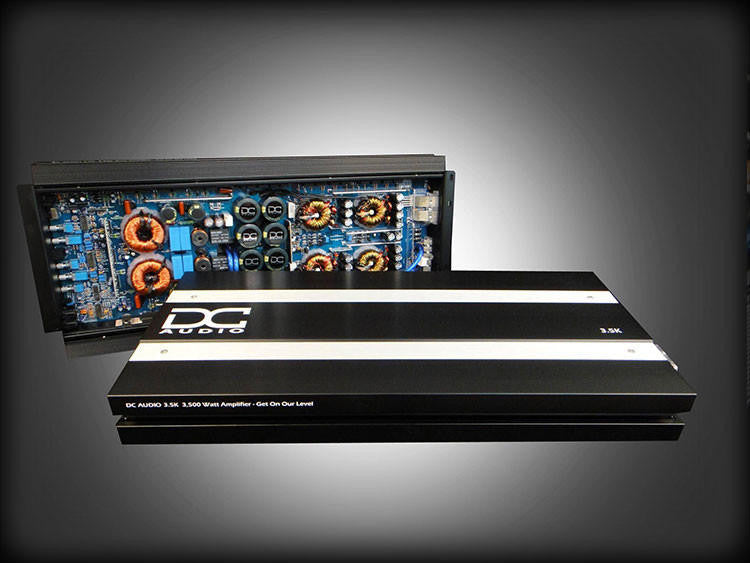

The 3.5kw competition series amplifier is a 3,500 watt mono block. It is capable of running up to 18 volts for up to 5,100 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.

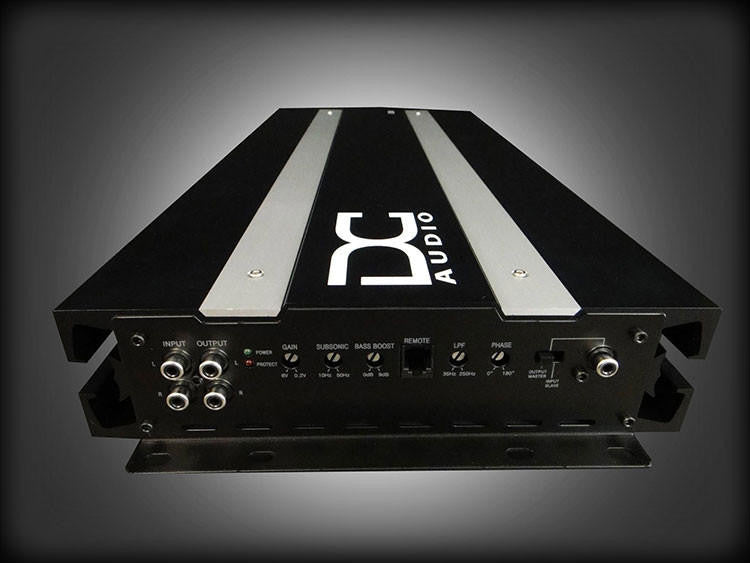

It comes with a bass knob and a clipping indicator. For power inputs it will accept 0 awg for power and 0 awg for ground.
| Features | Voltage | 3.5kw | |
| Output Power (RMS) | 4 ohm | 14.4V | 750Wx1 |
| 2 ohm | 14.4V | 1,800x1 | |
| 1 ohm | 14.4V | 3,500Wx1 | |
| 1 ohm | 16V | 4,000Wx1 | |
| 1 ohm | 18V | 5,100Wx1 | |
| Input Sensitivity | 6V~0.2V | ||
| Low Pass Filter | Switchable | ||
| ( @ 24 dB Slope) | Variable | Hz | 35~250 |
| Subsonic Filter | Switchable | ||
| ( @ 24 dB Slope) | Variable | Hz | 10~50 |
| Bass Boost | Variable | dB | 0-9dB |
| Frequency Response | Hz | 15-270 | |
| Signal to Noise Ratio | dB | 100 | |
| Damping factor | 150< | ||
| Efficiency @ 4ohm | % | Over 90% | |
| THD @ 4ohms | Less than 0.1% | ||
| Fuse Rating | 300 Amps | ||
| Linked Fuse Rating | 600 Amps | ||
| Indicator | Power | Yes | |
| Protection | Yes | ||
| Clip | Yes | ||
| Speaker & Power terminal | Mold Type | Yes | |
| Power | Gauge | 0Ga | |
| Heatsink Length | 21.26" (540mm) | ||
| Heatsink Width | 9.38" (238mm) | ||
| Heatsink Height | 2.35" (59.6mm) |
