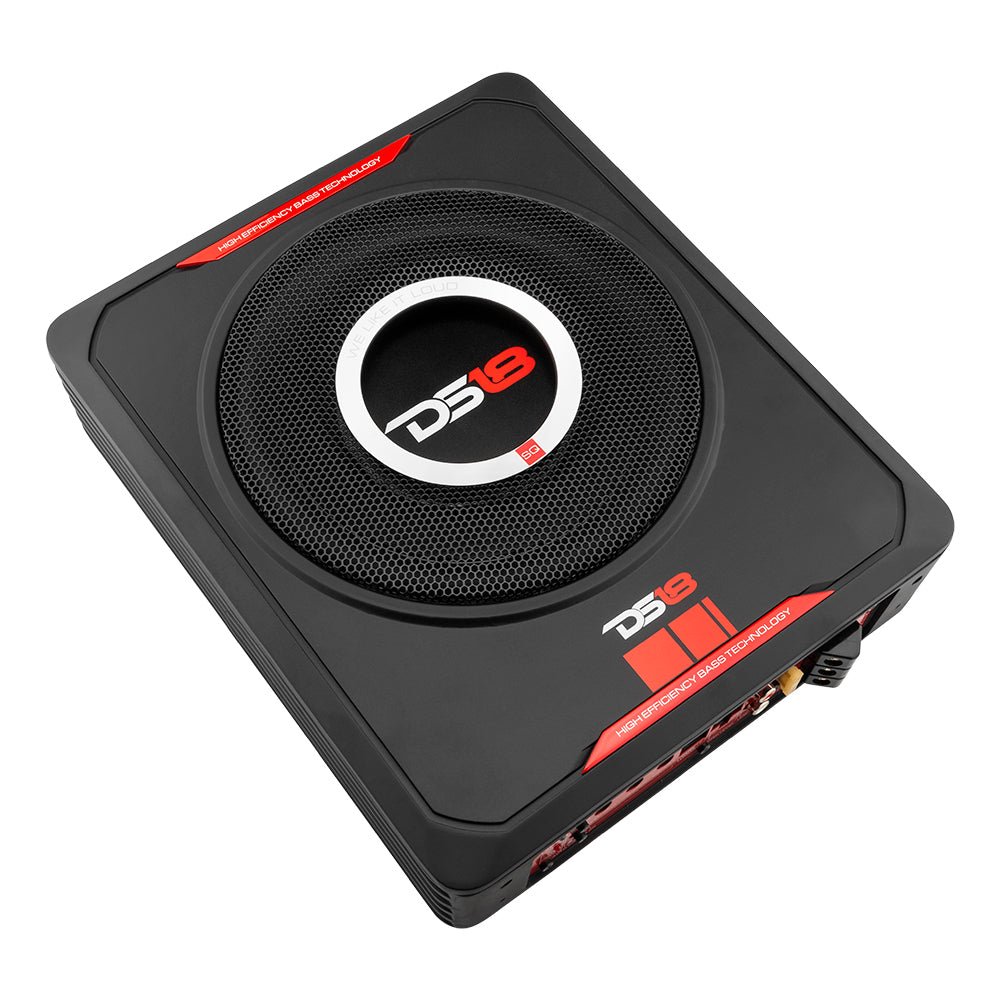

DS18 SQBASS8 8" Amplified Under Seat Car Subwoofer 600 Watts
The SQBASS8 is an 8-Inch Subwoofer with a slim, compact design providing 600 Watts MAX and a frequency response of 20Hz - 150Hz. Low Impedance 2-Ohm subwoofer to bring out the maximum performance of the built-in amplifier. With it's compact size you can fit the SQBASS8 under your vehicle's seat without diminishing sound quality. With your remote bass control take control of your music experience by precisely adjusting the levels of the bass you desire. Digitally optimized subwoofer with built-in amplifier (2-Ohm) for efficient and accurate bass.
Highlights
- Compact design allowing you to place in areas with minimal space to get full clear bass in a small package.
- 150w rms and 600w max power making this small package creating large thumping bass.
- Specially designed 8 inch woofer brings out more bass, precision, and tone
Technical Details
| RMS Power: | 150 Watts |
| Impedance: | 2 Ohms |
| THD: | <0.5% |
| Signal-to-Noise ratio: | >80dB |
| Frequency response: | 20Hz-150Hz |
| Input Sensitivity: | High Level 300mV-10V/ Low Level 100mV-3.5V |
| Low Pass Filter: | 50-150Hz |
| Bass Boost: | 0 to 12dB |
| Subsonic Filter: | 20Hz |
| Fuse rating: | 25A |
| Size (LxWxH): | 290x245x77 mm |
