DS18 7x9" Amplified UnderSeat Subwoofer with a 4x6 Radiator 230 Watts Max
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

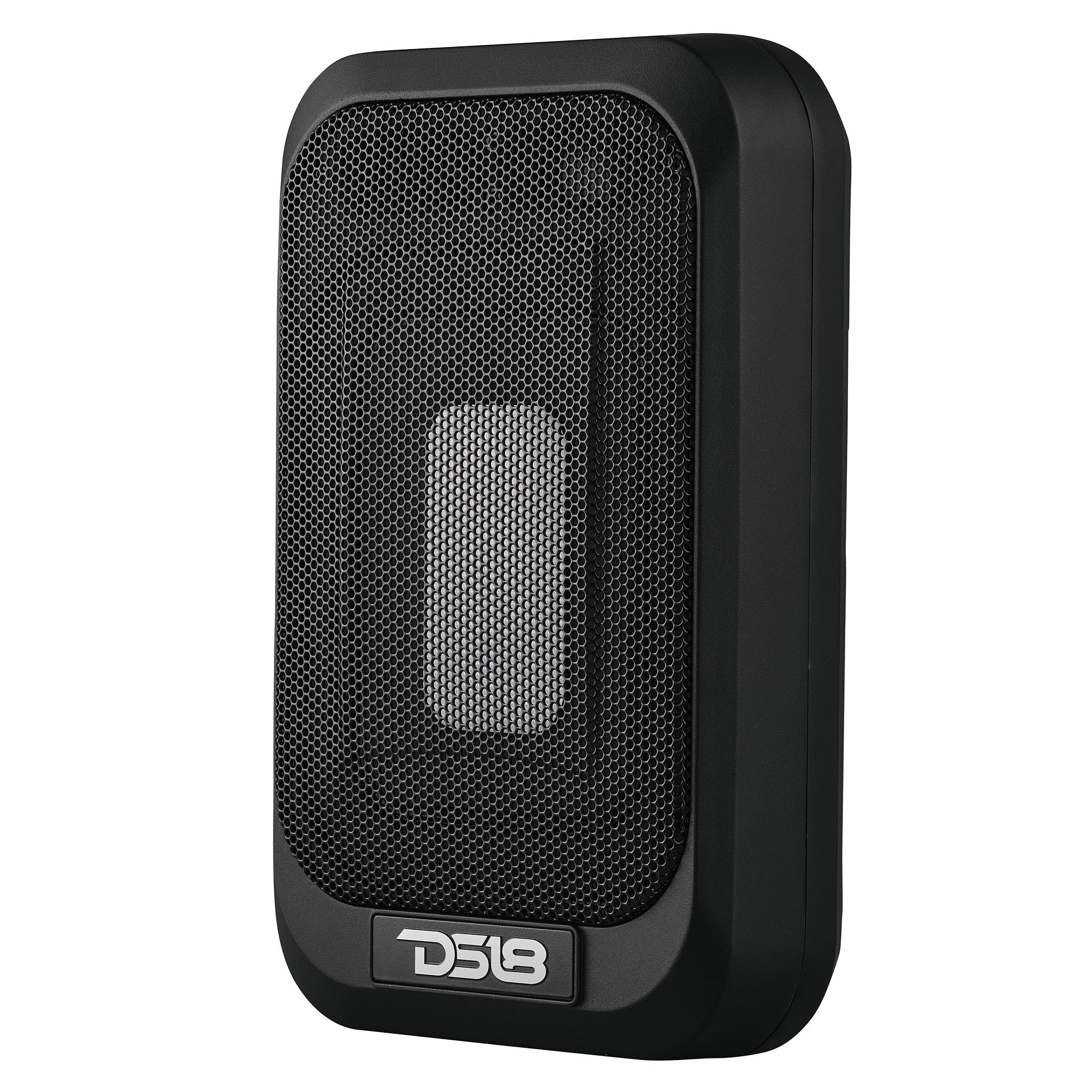

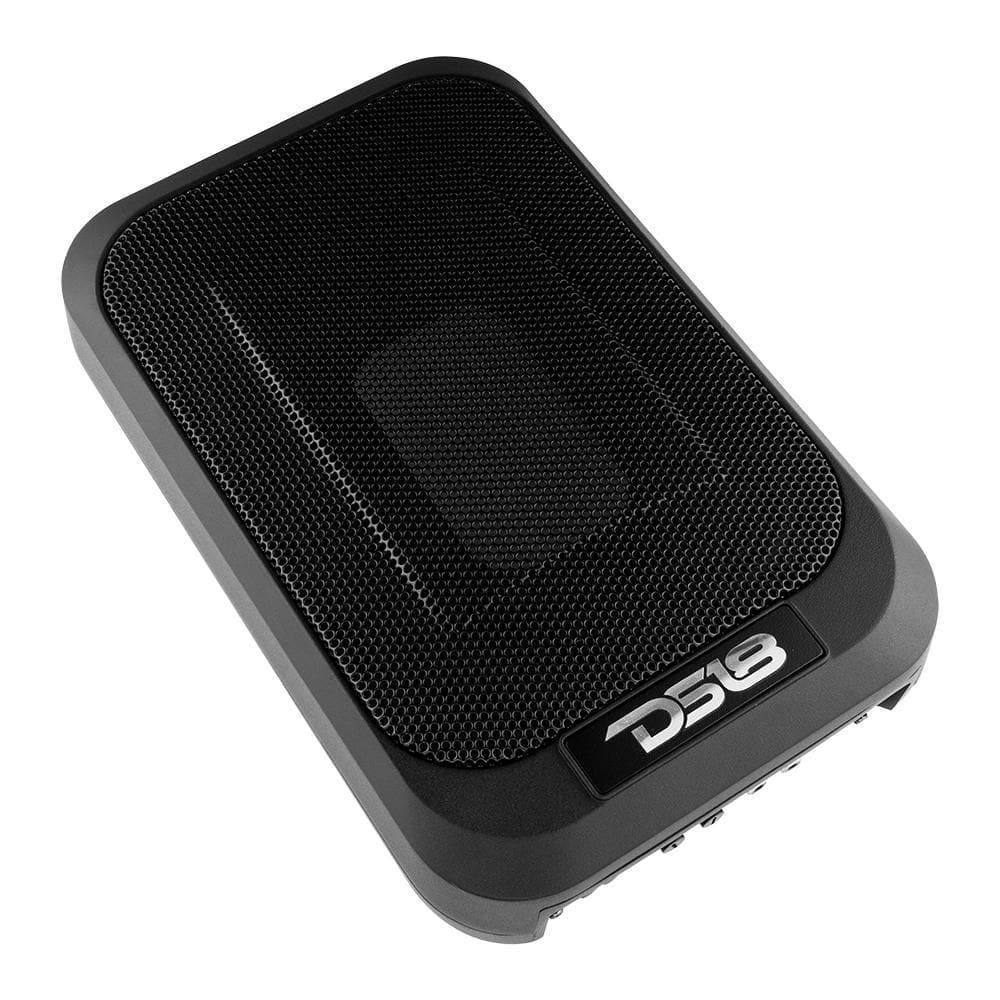

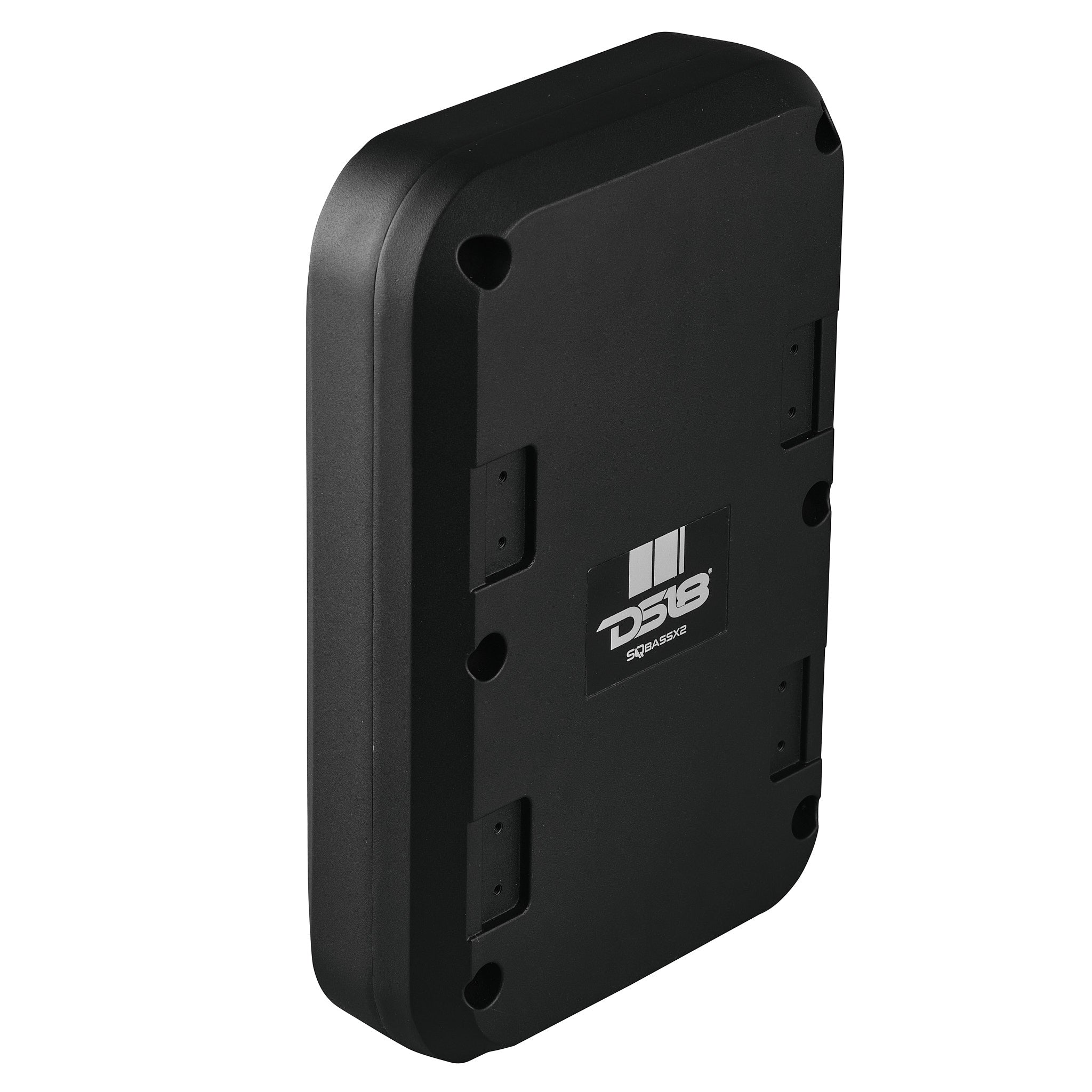

DS18 SQBASSX2 7x9" Amplified Under Seat Car Subwoofer with a 4x6" Passive Radiator 1200 Watts
Newly designed for vehicles that want to add some bass but have very little to no room for large subs and boxes. The SQBASSX2 incorporates a 7x9" subwoofer in a compact enclosure that contains a 4x6" passive radiator to help extend and elaborate the bass for your music! This small unit can fit under most conventional car seating, rear cubby, or medium sized storage compartments so you can have clear and vibrant bass even if you have no room. The unit also comes with it's own volume control knob so you can find the perfect bass level for your musical preferences. With 230w RMS power available on tap you will be sure to get goosebumps every time you hear the bass drop.
Highlights
- Compact design allowing you to place in areas with minimal space to get full clear bass in a small package.
- 230w rms and 1200w max power making this small package creating large thumping bass.
- 7x9" woofer paired with a 4x6" passive radiator to help bring out more bass precision and tones.
Technical Details
| Sound | |
| RMS Power/Peak Power | 230W/1200W |
| Frequency Response | 34-400Hz |
| Woofer | |
| Slim Woofer | 7x9" Under Seat Amplified Subwoofer With 4x6" Radiator |
| Unit Dimensions | 308 x 200 x 71mm |
| Net Wight | 4.95Kg |
| Diaphragm Material | Polypropylene |
| Surround | Rubber |

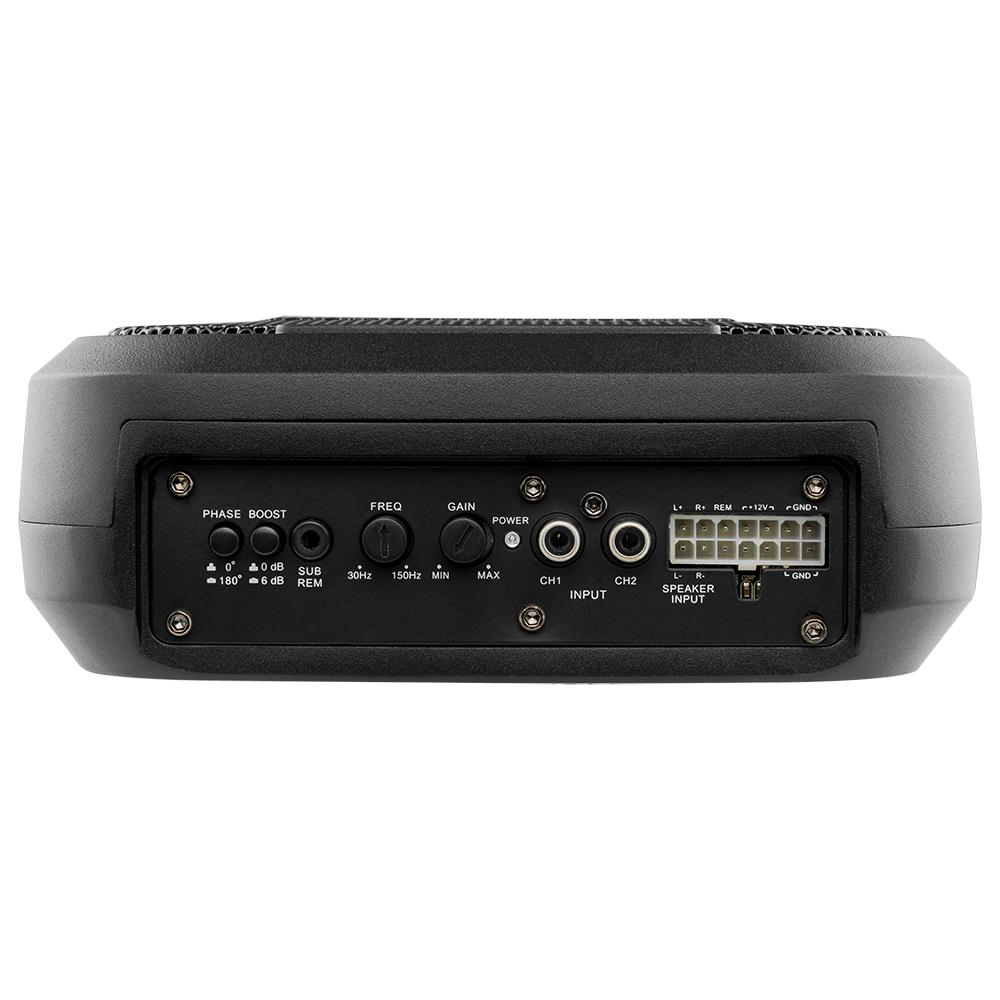

| Amplifier | |
| N-Power / Peak Power | 230w / 1200W |
| Low Pass Crossover | 50-150 Hz |
| Input Sensitivity | 0.1-0.V (RCA Input) 0.5-10.0V (Speaker Level Input) |
| Accessories | |
|

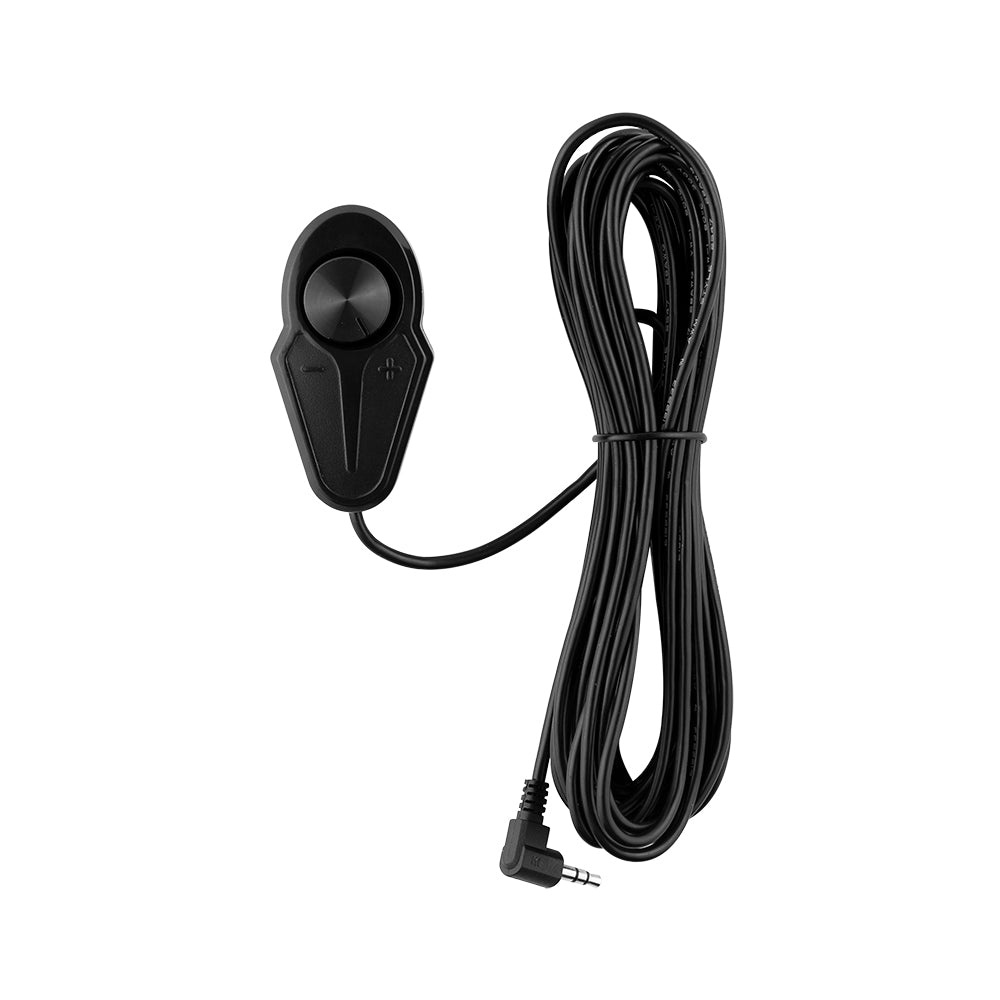

Remote Knob |
Cable Length 5m Adjustment Range 0 To - 30dB |
