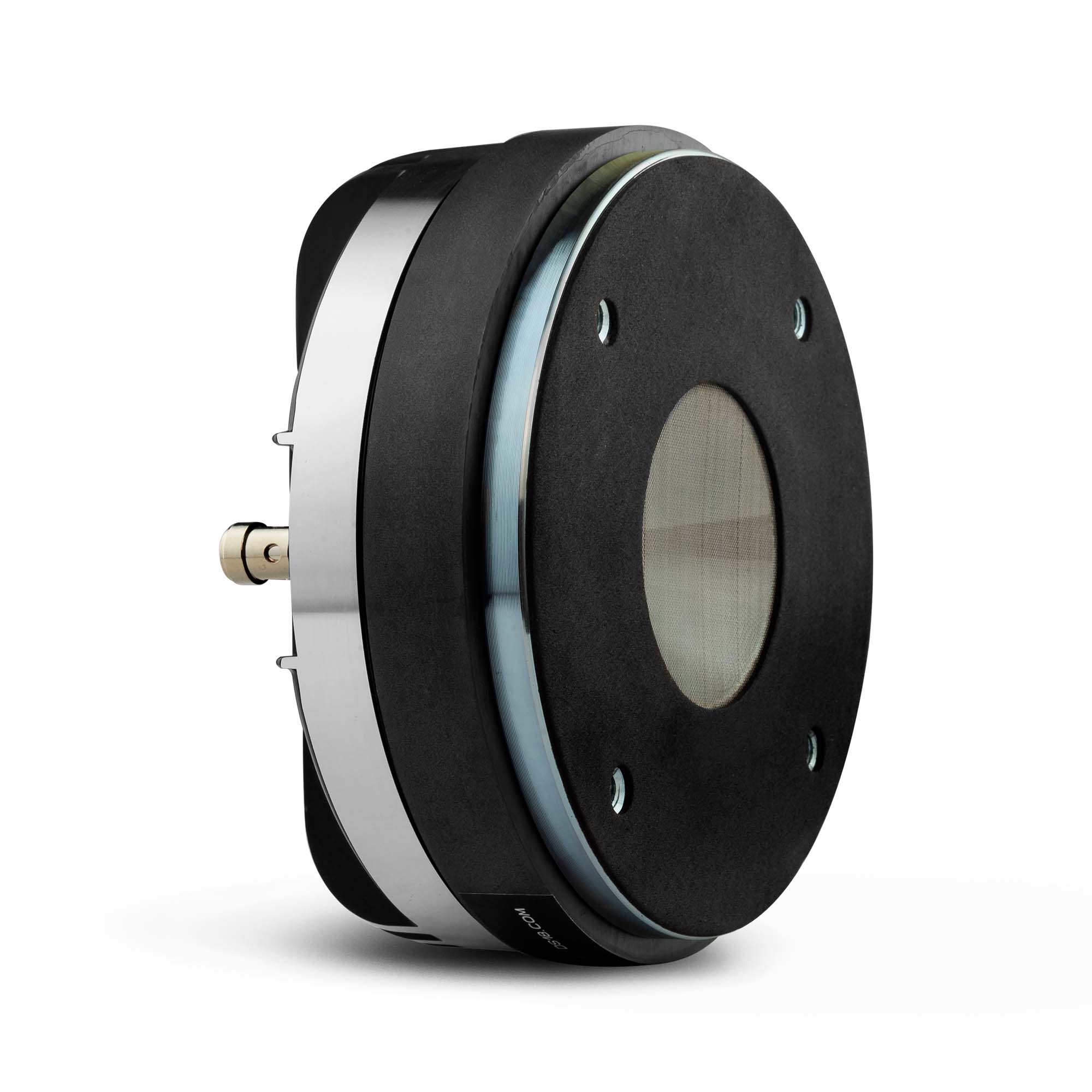

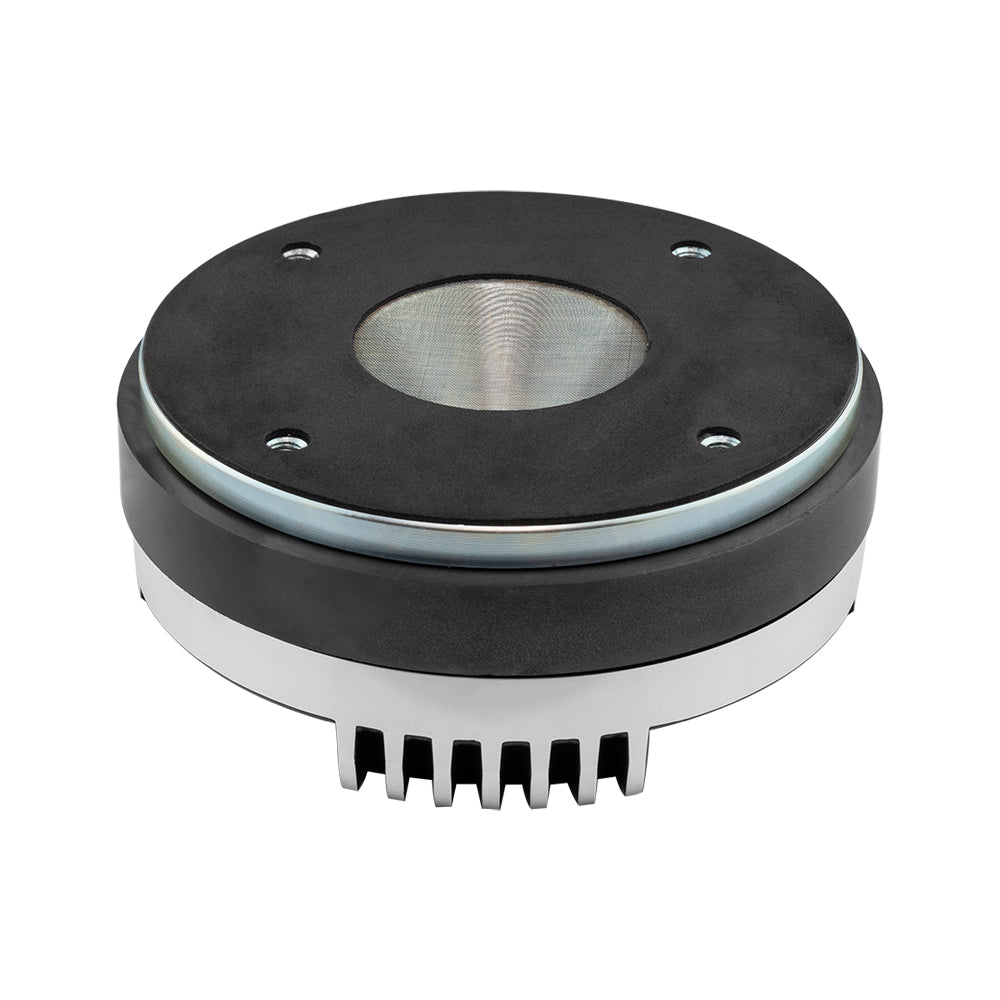

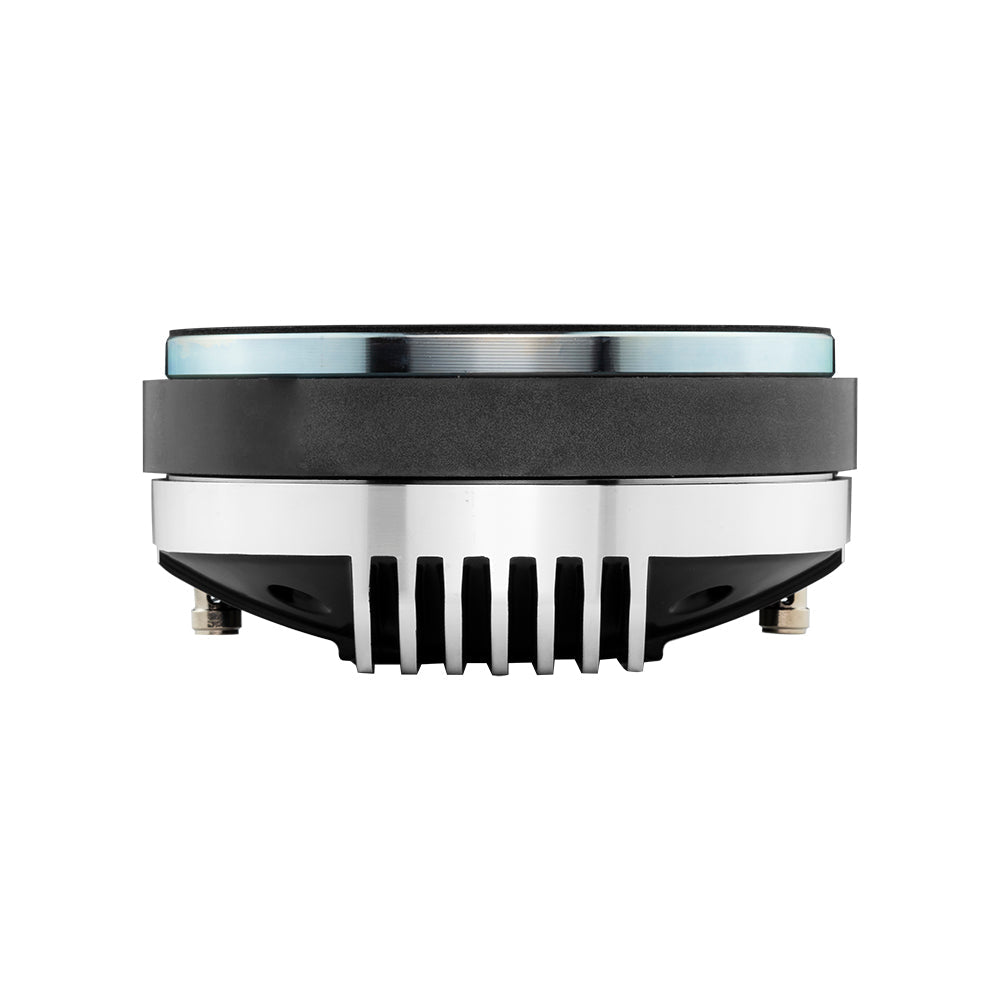

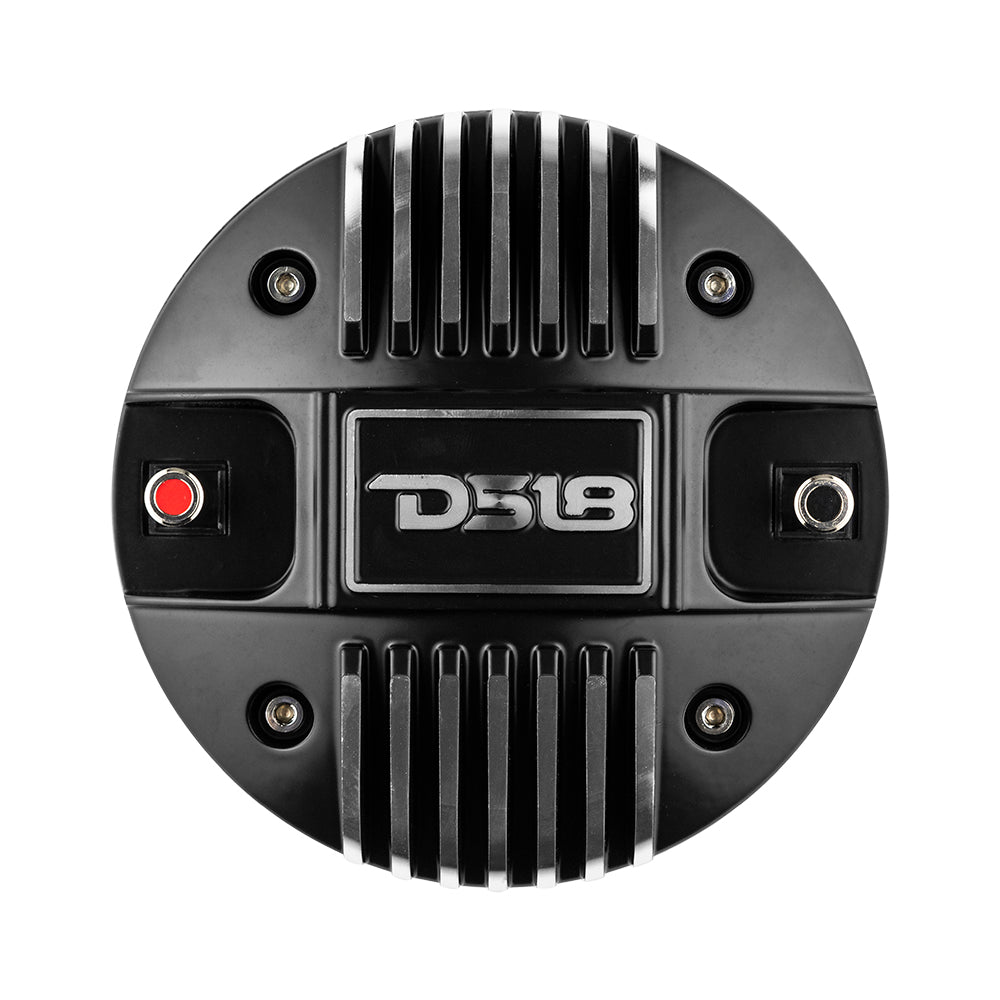

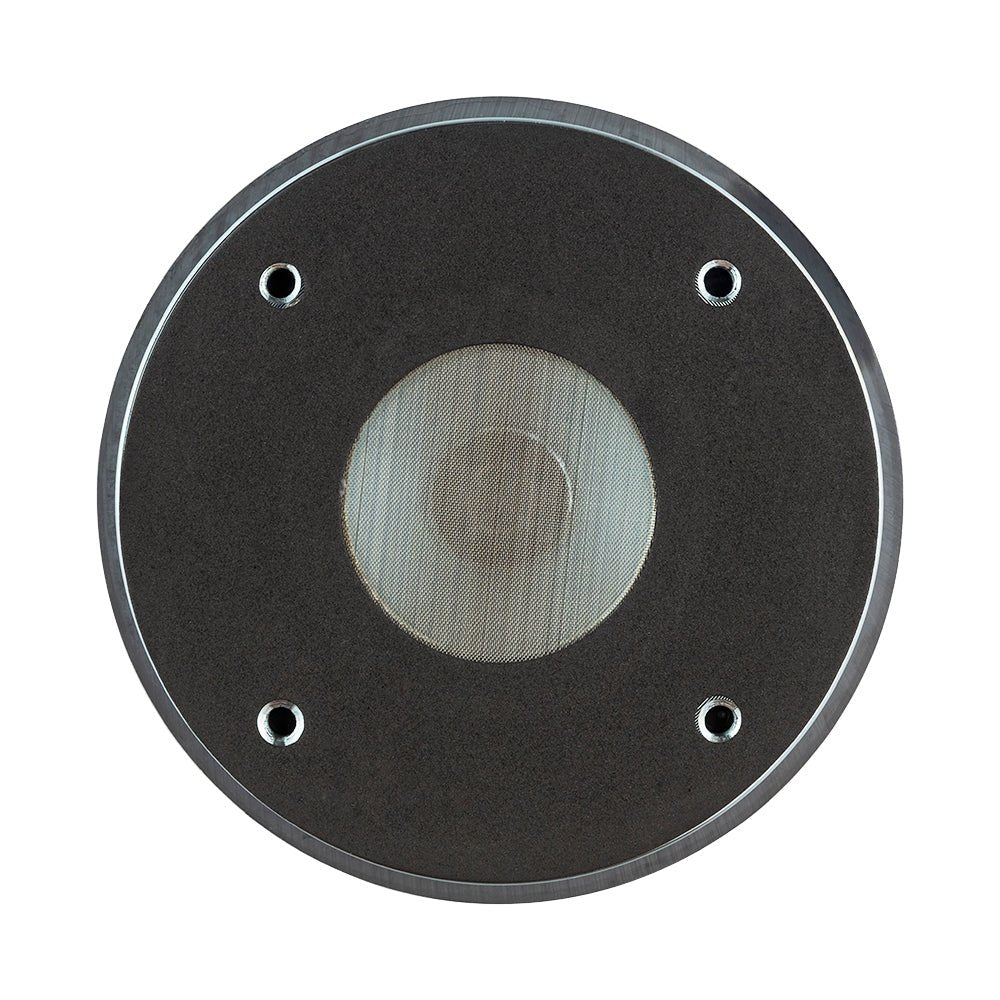

DS18 2" Throat Bolt on Driver 320 Watts 2" Titanium Vc 8-Ohm
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
DS18 PRO-D1 2" Throat Bolt On Compression Driver 2" Throat Titanium VC 640 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.
This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength Titanium voice coil taking 160 AES watts and 640 Peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
| Throat Diameter | 2" |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohms |
| Peak Power Handling | 640W |
| Program Power Handling | 320W |
| AES Power | 160W |
| Diaphragm Material | Titanium |
| Sensitivity (1w/1m) | 108dB |
| Frequency Response | 630Hz-20KHz |
| Recommended Hi Pass Crossover | 800Hz |
| MOTOR | |
| Voice Coil Diameter | 2.03" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Measurements | |
| Overall Diameter | 5.27" |
| Overall Depth | 2.4" |
