VFL Audio Hybrid 275.4 Class D High Performance Multichannel Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Compact 4-channel Class D amplifier from VFL Audio
- 100 watts RMS x 4 at 4Ω and 250 watts RMS x 4 at 2Ω
- Bridgeable for flexible system configurations
- Damping factor over 300 for tight, accurate output

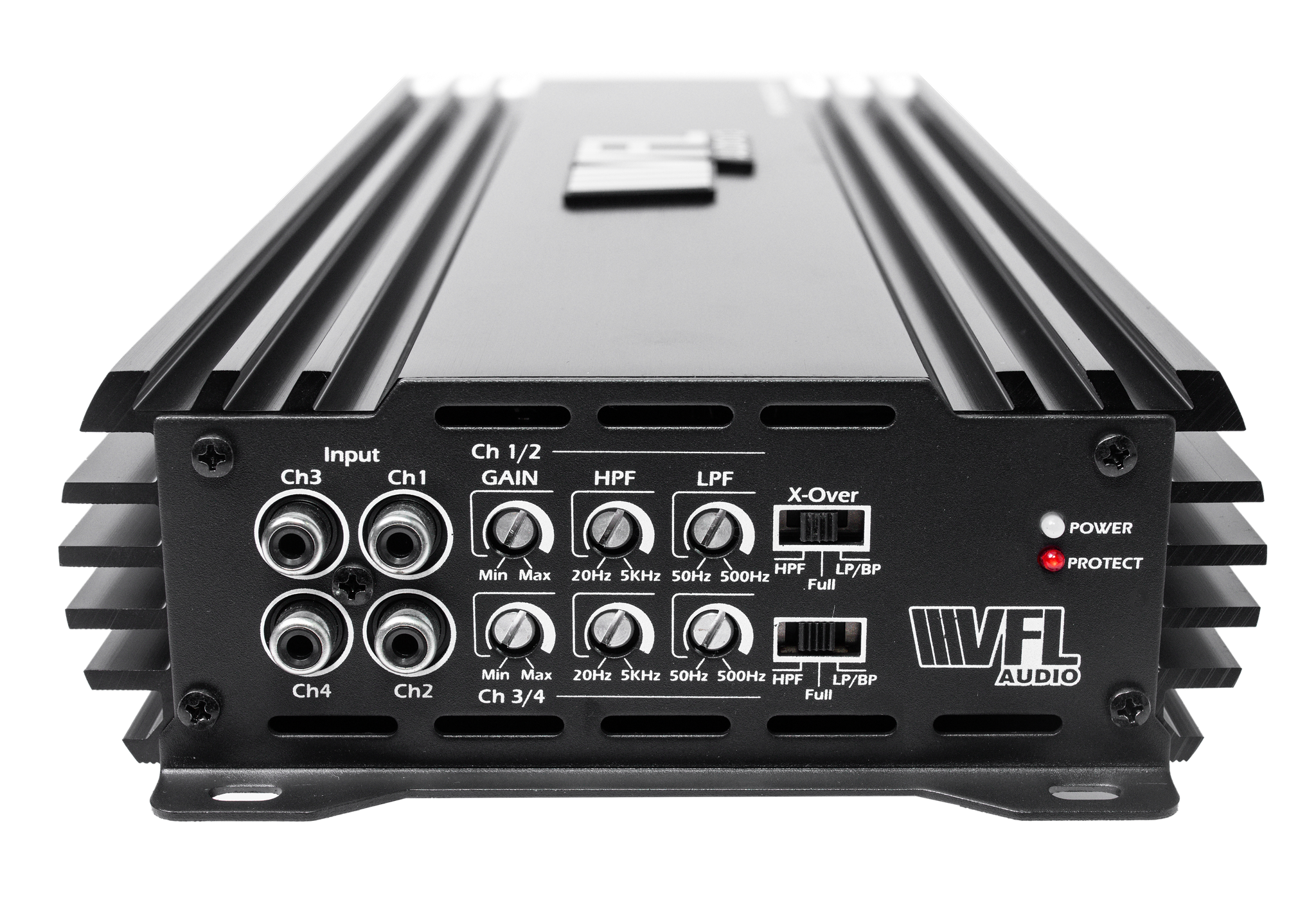

- Variable crossovers for precise full-range tuning

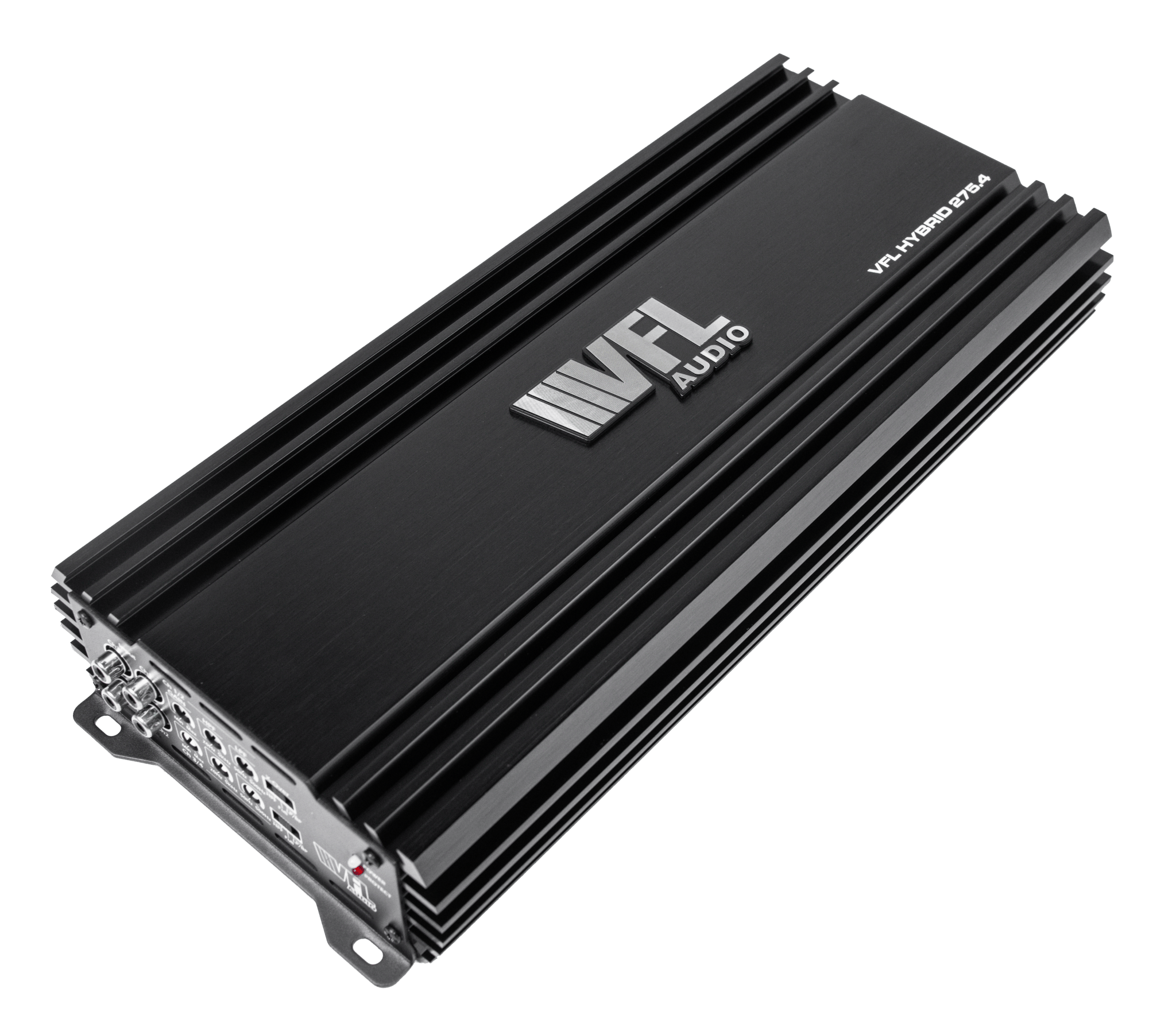

VFL Audio Hybrid 275.4 Class D 4-Channel Car Amplifier — 100W x 4 RMS (VFLHYBRID-275.4)
This Listing Includes:
- (1) VFL Audio Hybrid 275.4 Amplifier
The VFL Audio Hybrid 275.4 blends real 4-channel power with a compact footprint that fits where larger amps can't. Rated at 100 watts RMS per channel at 4Ω and 250 watts RMS per channel at 2Ω, with a signal-to-noise ratio greater than 105dB and a damping factor over 300, it drives a full set of components and coaxials cleanly and efficiently. Authorized American Bass dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features

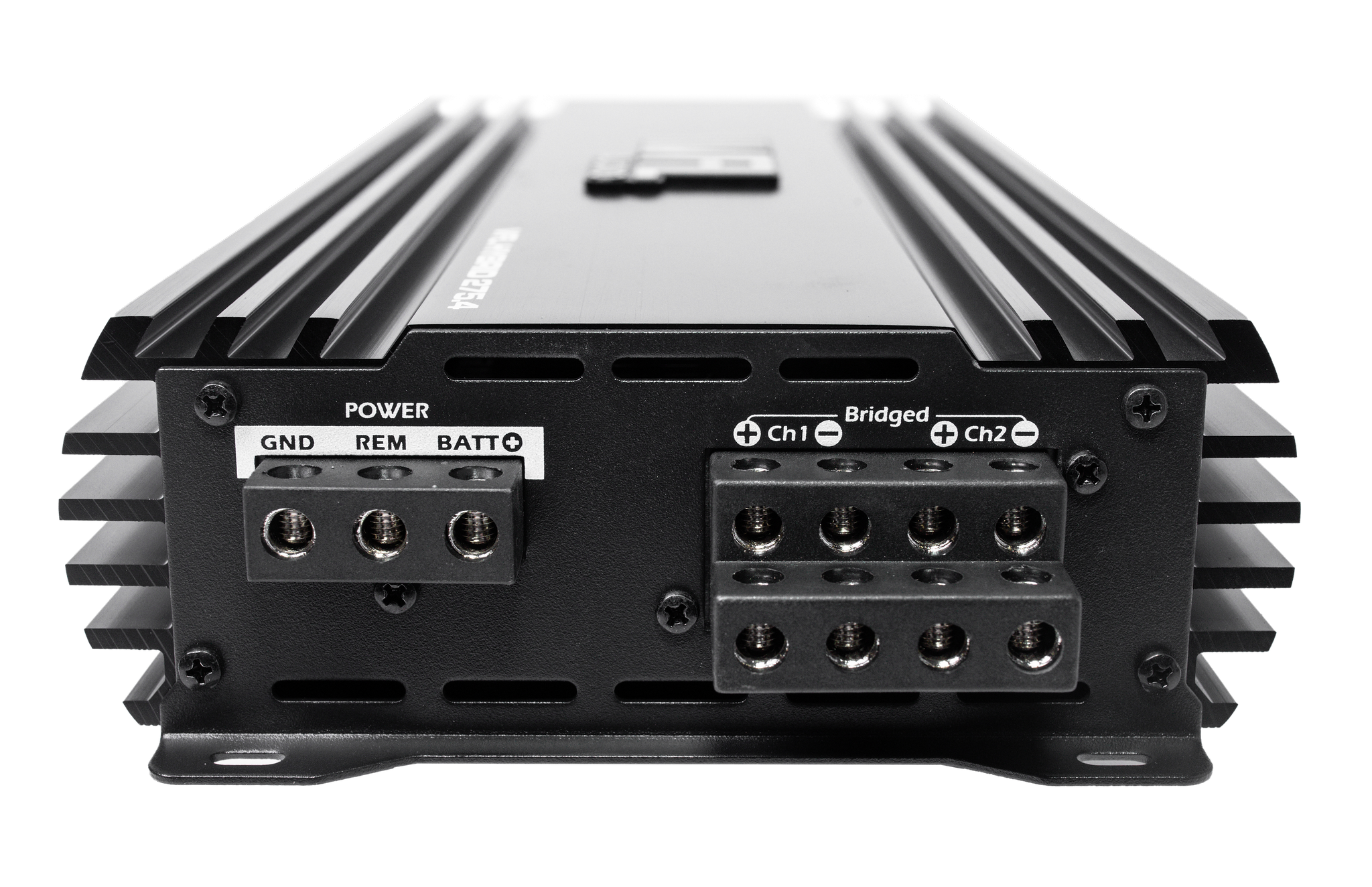

- 4-channel Class D design, bridgeable output
- Variable low-pass filter, 50Hz–500Hz
- Variable high-pass filter, 20Hz–5kHz
- 6V–0.2V input sensitivity for clean gain matching
- THD under 0.1% for low-distortion output
Specifications
| Channels | 4 |
| RMS Power @ 4Ω | 100W x 4 |
| RMS Power @ 2Ω | 250W x 4 |
| Signal-to-Noise Ratio | >105dB |
| THD | <0.1% |
| Damping Factor | >300 |
| Input Sensitivity | 6V–0.2V |
| Low-Pass Filter | 50Hz–500Hz |
| High-Pass Filter | 20Hz–5kHz |
| Fuse Rating | 60A |
| Dimensions (L x W x H) | 13.779" x 6.496" x 2.244" |
