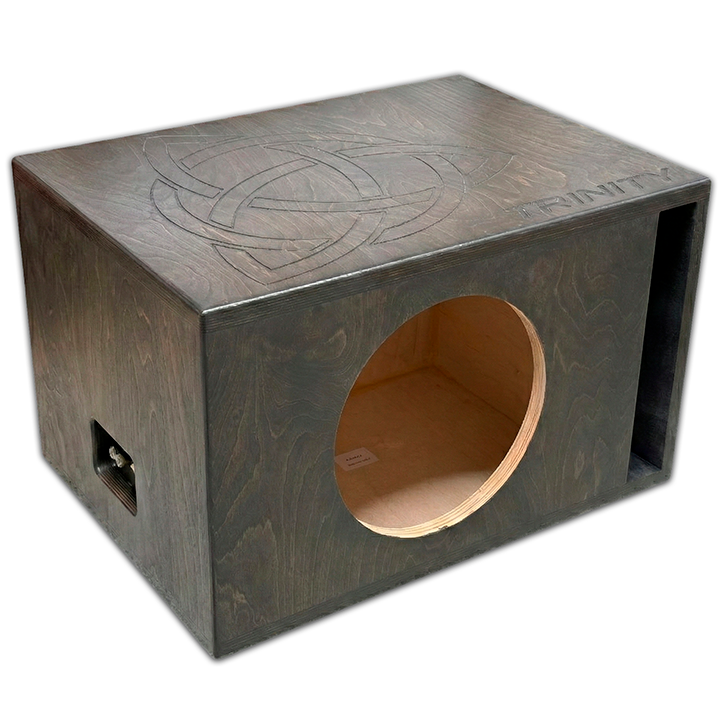

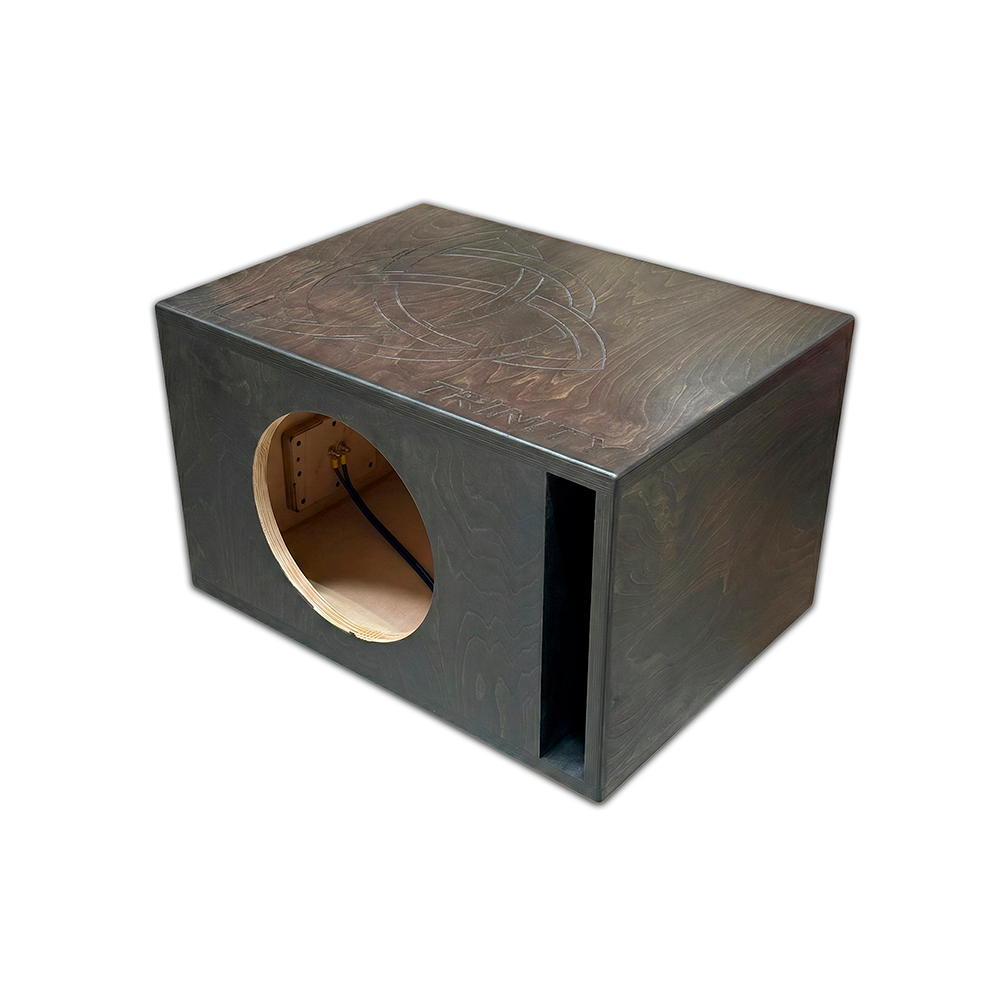

Trinity Audio Solutions B Series Single 12" Ported Enclosure — 2.4 cu ft @ 32Hz
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order, and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 within the contiguous US. Freight items may require delivery coordination; any shipping exceptions are shown before checkout. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.

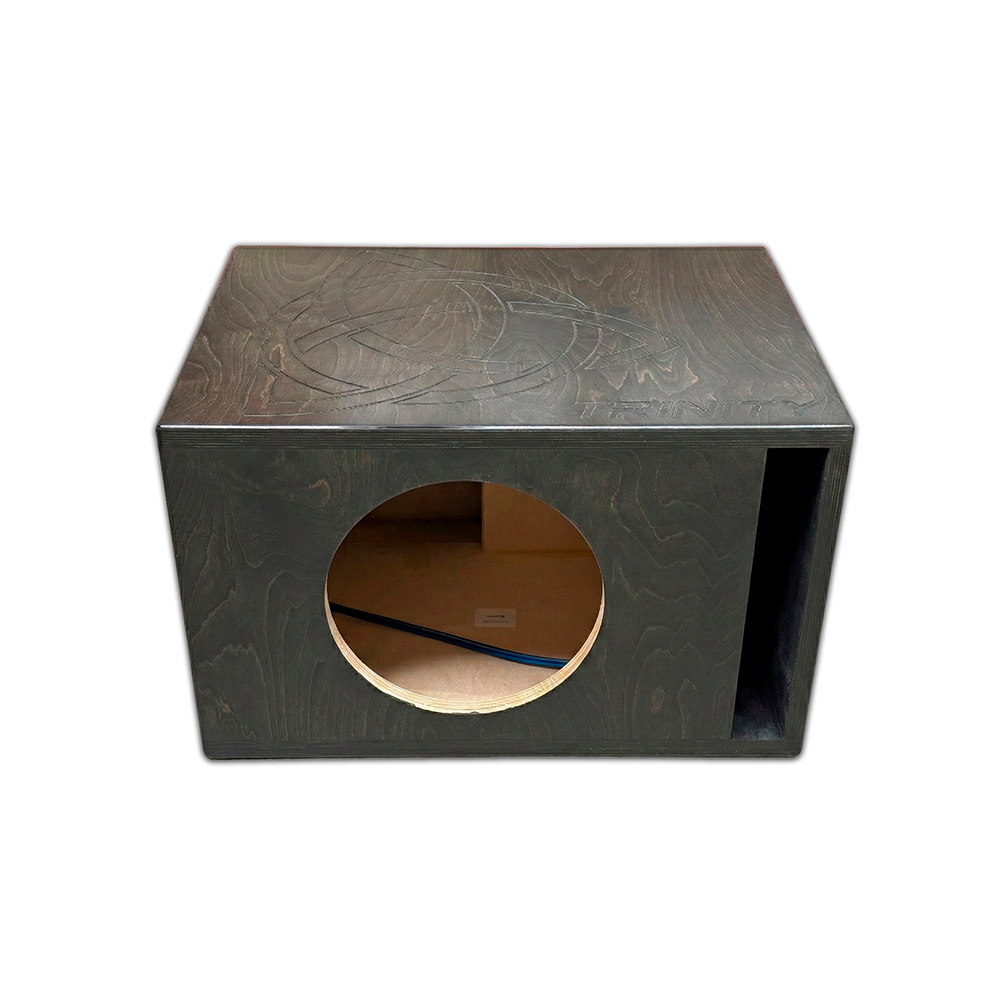

Engineered specifically for the Trinity Audio B Series 12" subwoofer, this single 12" ported enclosure delivers the airspace and 32 Hz tuning needed for deep, controlled bass. Handcrafted by hand in the USA from Russian Baltic birch, it arrives ready to install — just wire up your subwoofer and enjoy.
Specifications
| Net Volume | 2.4 cubic feet |
| Tuning | 32 Hz |
| Port Area | 32.06 sq in |
| Port Size | 13.499" x 2.375" |
| Cutout | 11.22" |
| Construction | 3/4" (18mm) Russian Baltic birch, 13-ply |
| Baffle | Solid 1" (24mm) front baffle, 17-ply |
| Finish | Carbon gray stain with polyurethane topcoat |

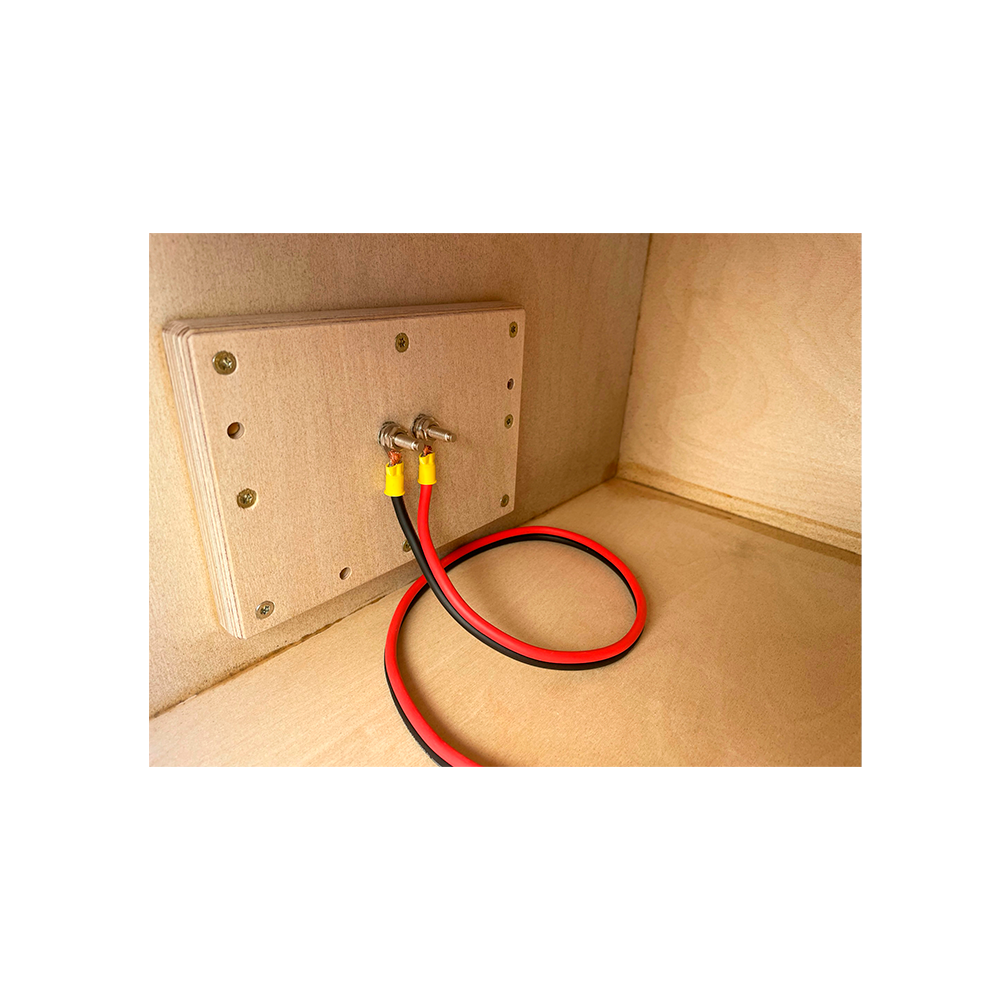

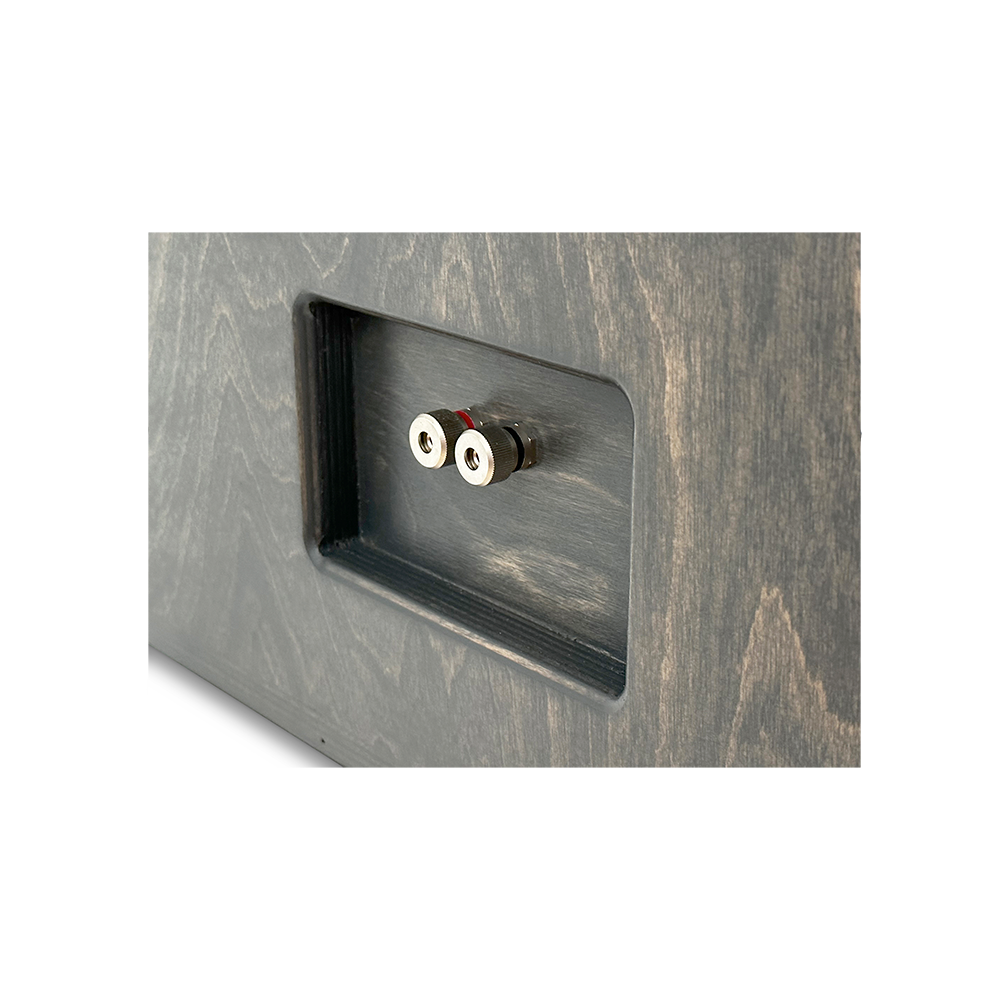

| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power Rating | Up to 1,750W RMS |
| Dimensions (H x W x D) | 15.0" x 27.0" x 18.0" |
Features
- Handcrafted in the USA with zero visible exterior screw holes
- Fully glued with Titebond III for airtight integrity and durability
- Ships ready to install
Built to order. Ships in 2–3 weeks. All sales final.
