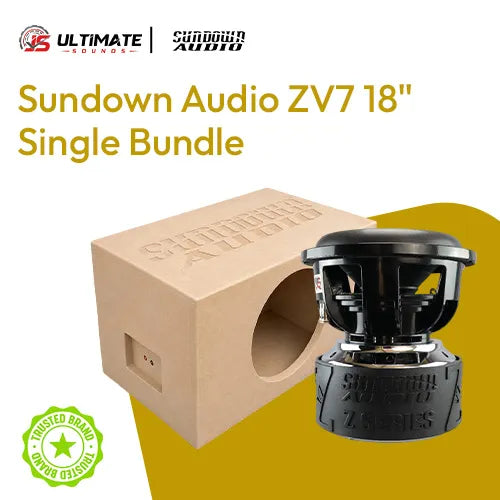

Bundle Includes: (1) Sundown Audio Z-Series ZV7 18" Subwoofer + (1) Sundown Audio ZV7 MDF 18" Single Ported Subwoofer Enclosure
Priced at 10% off the combined retail price of the subwoofer and enclosure bought separately. Select your impedance below.
Sundown Audio Z-Series ZV7 18" Subwoofer
- Voice Coil — 3.3″ diameter, 4-layer round-wire aluminum on a thick aluminum former, 95mm winding length
- Motor — Quad-stacked 265mm (10.43″) structure, 100mm (3.94″) magnet stack
- Excursion — 42mm one-way linear by 70% BL; over 4″ p-p before mechanical bottom
- Impedance — Dual 1-ohm or dual 2-ohm
This Listing Includes: (1) Sundown Audio Z-Series ZV7 18″ Subwoofer
The Z v.7 is the third step in Sundown’s 2025 ultra-high-excursion lineup after the M and X v.4 series, built on the custom-tooled, patented “mega-platform” frame. It pairs that frame with a quad-stacked 265mm (10.43″) motor and a 100mm (3.94″) magnet stack — the largest motor ever used on a Z series sub — driving a 3.3″ 4-layer round-wire aluminum voice coil with a 95mm winding length. A patent-pending airflow-directing pole cap, six pole-OD channels, sixteen gap vents, and a cross-drilled top plate keep the coil cool, while a 9mm magnet-ID Faraday ring and pole-extension inductance sleeve deliver highly linear inductance. The result is 42mm of one-way linear excursion by 70% BL with an extremely uniform curve, designed for the lowest bass extension possible in a small ported enclosure with very low distortion.
Features
- Patented Sundown “mega-platform” custom-tooled frame
- Quad-stacked 265mm (10.43″) motor with 100mm (3.94″) magnet stack
- 3.3″ 4-layer round-wire aluminum voice coil, 95mm winding length
- Patent-pending pole cap, six pole-OD channels, sixteen gap vents, cross-drilled top plate
- 9mm magnet-ID Faraday ring with pole-extension inductance sleeve
Specifications
| Impedance | Dual 1-ohm or Dual 2-ohm |
| Voice Coil | 3.3″ diameter, 4-layer round-wire aluminum, 95mm winding |
| Motor | Quad-stacked 265mm (10.43″) |
| Magnet Stack Height | 100mm (3.94″) |
| Linear Excursion | 42mm one-way by 70% BL |
| Faraday Ring | 9mm magnet-ID |
Sundown Audio ZV7 MDF 18" Single Ported Subwoofer Enclosure
- Net Volume - 7.0 cu ft
- Tuning - 30.0 Hz
- Port Area - 101.25 sq in
- Sub Cutout - 16.69"
- Construction - Dense, uniform, void-free triple refined MDF panel
This Listing Includes: (1) Basshead Supply ported enclosure for the Sundown Audio ZV7 MDF 18" subwoofer
This enclosure is custom built specifically for the Sundown Audio ZV7 MDF 18" subwoofer. Basshead Supply's Performance Series enclosures are subwoofer-specific boxes engineered for strong, clean output, built with a refined assembly process that leaves no visible screw holes. Every box is glued with Titebond III and internally braced, then pre-wired with a recessed satin-nickel binding post and OFC 10-gauge wire - built by hand in the USA. Made to order (2-3 week lead time) and shipping from JS Ultimate Sounds, your Basshead Supply dealer.
Features
- Dense, uniform, void-free triple refined MDF panel
- Ships bare / unfinished - sanded and ready to finish your way
- Refined assembly - no visible screw holes
- Glued with Titebond III and internally braced
- Pre-wired recessed satin-nickel binding post with OFC 10-gauge wire
- Built by hand in the USA
Specifications
| Net Volume | 7.0 cu ft |
| Tuning | 30.0 Hz |
| Port Area | 101.25 sq in |
| Port Dimensions | 18.0" x 5.625" |
| Sub Cutout | 16.69" |
| Construction | Dense, uniform, void-free triple refined MDF panel |
| Finish | Ships bare / unfinished - sanded and ready to finish your way |
| Wiring | Pre-wired metal binding post with 10ga OFC wire |
| Dimensions (HxWxD) | 20.0" x 39.875" x 25.125" |
