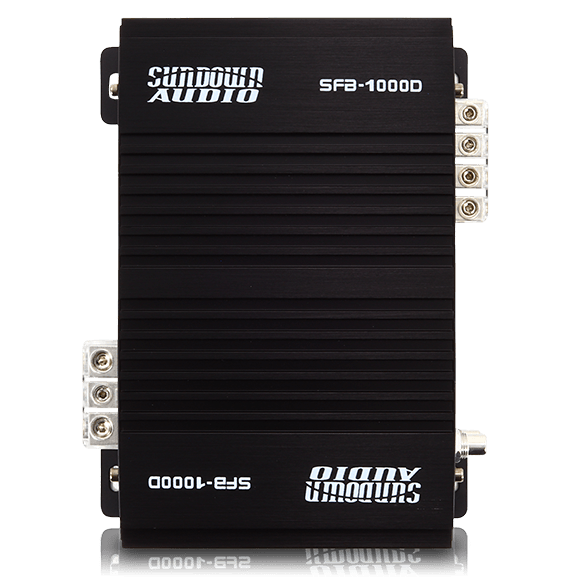

Sundown Audio SFB-1000D Full Range Amplifier v.2
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 1,000W @ 1Ω, 850W @ 2Ω, 500W @ 4Ω RMS
- Design — Full-range, stable down to 1 ohm
- Low Pass Filter — Variable 12dB, 80Hz – 20kHz
- High Pass Filter — Variable 12dB, 15Hz – 1kHz
- Bass Boost — Variable @ 50Hz, 0–12dB
This Listing Includes: (1) Sundown Audio SFB-1000D Full Range Amplifier v.2
The "Brazilian Style" SFB-1000D v.2 (Sundown Full Bridge) packs a powerful punch in a compact size, delivering 1,000 watts at 1 ohm, 850 watts at 2 ohms, and 500 watts at 4 ohms RMS. Stable down to 1 ohm, this full-range amp works as a subwoofer amp or as an ideal power source for an array of P.A. speakers. It carries variable 12dB low pass (80Hz – 20kHz) and high pass (15Hz – 1kHz) filters and a variable bass boost at 50Hz, with a 5V input sensitivity, 100dB S/N ratio, and a 10.5v–15.5v working voltage range. A wired remote control with clipping indicator is included. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Full-range, stable down to 1 ohm
- Variable 12dB low pass (80Hz – 20kHz) and high pass (15Hz – 1kHz) filters
- Variable bass boost @ 50Hz (0–12dB)
- Thermal, voltage, speaker short, and DC-offset protection circuitry
- Wired remote control with clipping indicator included
Specifications
| RMS @ 1Ω | 1,000W |
| RMS @ 2Ω | 850W |
| RMS @ 4Ω | 500W |
| Recommended Fuse Rating | 100A |
| Low Pass Filter | 80Hz – 20kHz, variable |
| High Pass Filter | 15Hz – 1kHz, variable |
| Bass Boost @ 50Hz | 0–12dB |
| Input Sensitivity | 5V Max |
| S/N Ratio | 100dB |
| Working Voltage | 10.5v – 15.5v |
| Dimensions | 7.25" x 5.75" x 2.50" |
