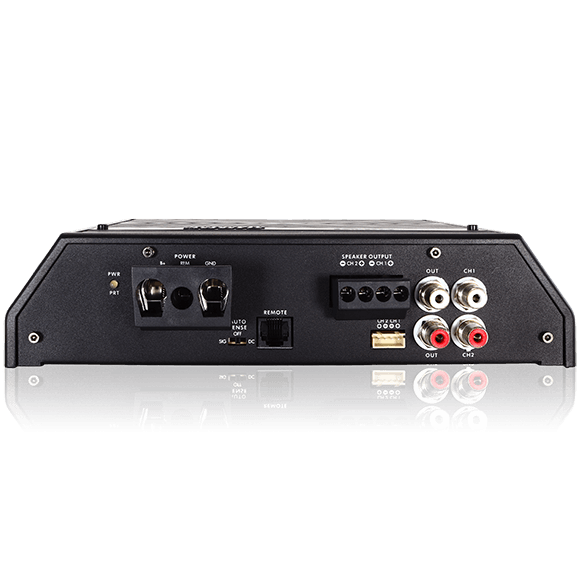

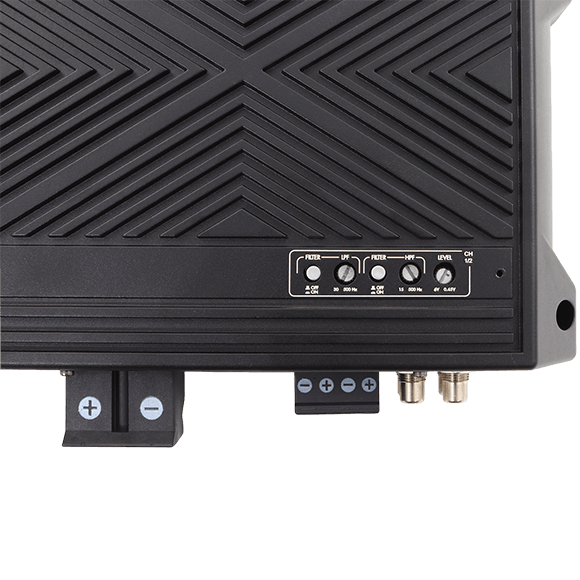

Sundown Audio SDX-200.2 2-Channel Weatherproof Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
,%20bass%20boost%20@%2050Hz%0A%0ABuild%20%E2%80%94%20Heavy%20cast...
){kind=link}
- Power — 200W x 2 @ 4Ω, 280W x 2 @ 2Ω, 560W x 1 @ 4Ω bridged
- Class — Class-D, 2-channel, water-resistant
- Filters — Variable 12dB high/low-pass (20Hz–500Hz), bass boost @ 50Hz
- Build — Heavy cast aluminum heat sink, removable control cover
- Protection — Thermal, voltage, speaker short, DC-offset
This Listing Includes: (1) Sundown Audio SDX-200.2 2-Channel Weatherproof Amplifier
The water-resistant SDX-200.2 is a compact Class-D amplifier built for cars, UTVs, and open-air vehicles, delivering 200 watts x 2 at 4 ohms, 280 watts x 2 at 2 ohms, or 560 watts x 1 bridged at 4 ohms. Variable 12dB high and low-pass filters (20Hz–500Hz) and a variable 12dB bass boost at 50Hz sit beneath a sealed, removable control cover, and DC auto-sensing turn-on simplifies installation. A robust cast aluminum casing provides superior heat dissipation and shields the electronics from the elements, while thermal, voltage, speaker-short, and DC-offset circuitry protects the amp. To access audio settings, unscrew the badge with an allen key. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Water-resistant Class-D design for powersports and daily drivers
- Variable 12dB high/low-pass filters: 20Hz–500Hz
- Variable 12dB bass boost @ 50Hz
- DC auto-sensing turn-on with removable audio control cover
- Heavy cast aluminum heat sink with optional wired remote
Specifications
| RMS @ 4Ω | 200W x 2 |
| RMS @ 2Ω | 280W x 2 |
| RMS @ 4Ω Bridged | 560W x 1 |
| Class | D |
| High/Low-Pass Filters | 20Hz–500Hz (12dB) |
| Bass Boost | 12dB @ 50Hz |
| Weatherproofing | Water resistant |
| Protection | Thermal, voltage, speaker short, DC-offset |
