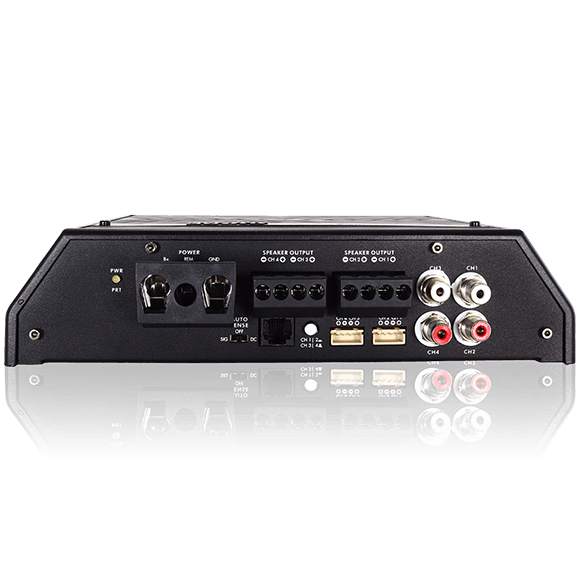

Sundown Audio SDX-100.4 4-Channel Weatherproof Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 100W x 4 @ 4Ω, 135W x 4 @ 2Ω, 270W x 2 @ 4Ω bridged
- Class — Class-D, 4-channel, water-resistant
- Filters — Variable 12dB HPF/LPF with x1/x20 multiplier, bass boost @ 50Hz
- Build — Heavy cast aluminum heat sink, removable control cover
- Protection — Thermal, voltage, speaker short, DC-offset
This Listing Includes: (1) Sundown Audio SDX-100.4 4-Channel Weatherproof Amplifier

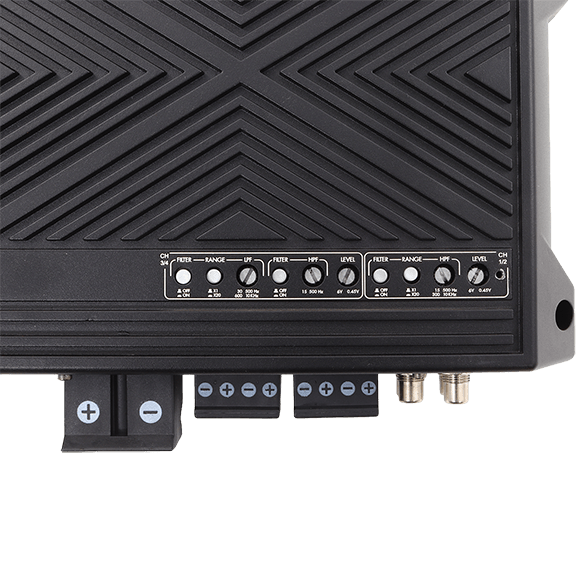

The water-resistant SDX-100.4 is a compact Class-D amplifier built for cars, UTVs, and open-air vehicles, delivering 100 watts x 4 at 4 ohms, 135 watts x 4 at 2 ohms, or 270 watts x 2 bridged at 4 ohms. Channels 1–2 offer a variable 12dB high-pass filter (15Hz–500Hz or 300Hz–10kHz), while channels 3–4 add variable 12dB high-pass (15Hz–500Hz) and low-pass (30Hz–500Hz or 600Hz–10kHz) filters, all with x1/x20 frequency multipliers and a variable 12dB bass boost at 50Hz. DC auto-sensing turn-on, a sealed removable control cover, and a robust cast aluminum casing provide easy setup, heat dissipation, and weather protection, backed by thermal, voltage, speaker-short, and DC-offset circuitry. To access audio settings, unscrew the badge with an allen key. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- Water-resistant Class-D design for powersports and daily drivers
- Ch. 1–2 variable 12dB high-pass: 15Hz–500Hz or 300Hz–10kHz
- Ch. 3–4 variable 12dB high-pass (15Hz–500Hz) and low-pass (30Hz–500Hz or 600Hz–10kHz)
- x1/x20 crossover frequency multipliers with variable 12dB bass boost @ 50Hz
- Heavy cast aluminum heat sink with removable control cover and optional wired remote
Specifications
| RMS @ 4Ω | 100W x 4 |
| RMS @ 2Ω | 135W x 4 |
| RMS @ 4Ω Bridged | 270W x 2 |
| Class | D |
| High-Pass Filter (Ch. 1–2) | 15Hz–500Hz or 300Hz–10kHz (12dB) |
| High-Pass Filter (Ch. 3–4) | 15Hz–500Hz (12dB) |
| Low-Pass Filter (Ch. 3–4) | 30Hz–500Hz or 600Hz–10kHz (12dB) |
| Crossover Multiplier | x1/x20 |
| Bass Boost | 12dB @ 50Hz |
| Weatherproofing | Water resistant |
| Protection | Thermal, voltage, speaker short, DC-offset |
