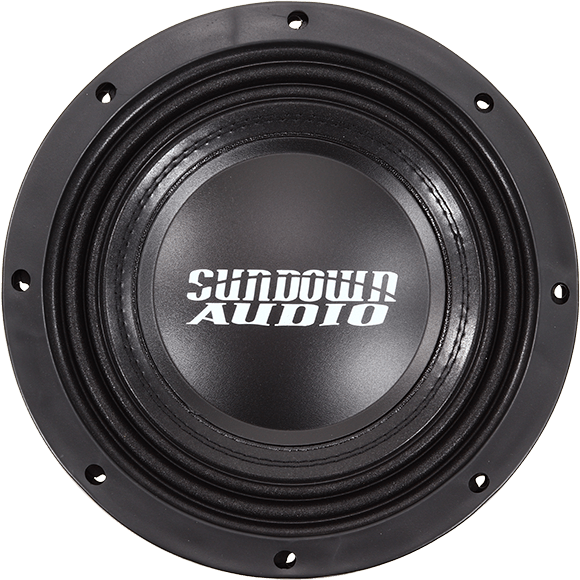

Sundown Audio SD-Series v.4 10" Neo Subwoofer 600W RMS
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
- Power — 600W RMS
- Voice Coil — Dual 2 or 4 ohm, 2" 8-layer copper
- Motor — Lightweight neodymium with large aluminum faraday ring
- Surround — Computer-optimized foam "W" surround
- Tuning — Optimized for small, sealed enclosures with low mounting depth
This Listing Includes: (1) Sundown Audio SD-Series v.4 10" Neo Subwoofer
The SD v.4 is a world-class sound-quality woofer built around a lightweight neodymium motor, delivering low mounting depth and small box requirements alongside high power handling. Its two-inch 8-layer copper voice coil and large aluminum faraday ring keep distortion low and acoustic response smooth, while the computer-optimized foam "W" surround and patented cast aluminum frame add mechanical durability. Rated at 600W RMS with dual 2 or 4 ohm coils, it is the ideal choice for anyone who wants a high-quality, shallow subwoofer that hammers in small enclosures. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features

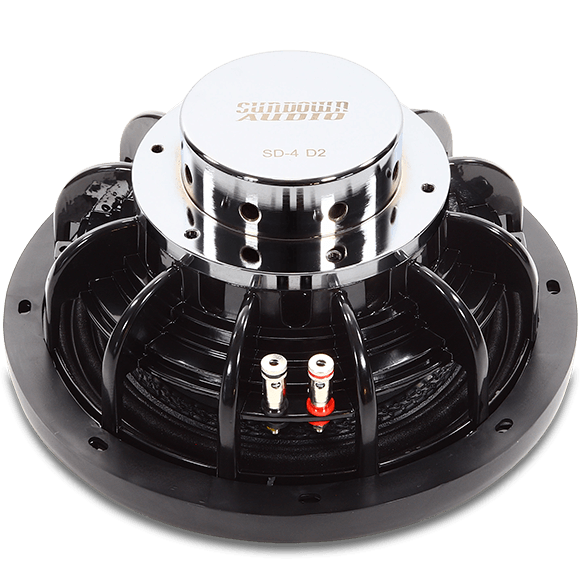

- Lightweight neodymium motor for low mounting depth
- Two-inch 8-layer copper voice coil
- Large aluminum faraday ring for smooth acoustic response

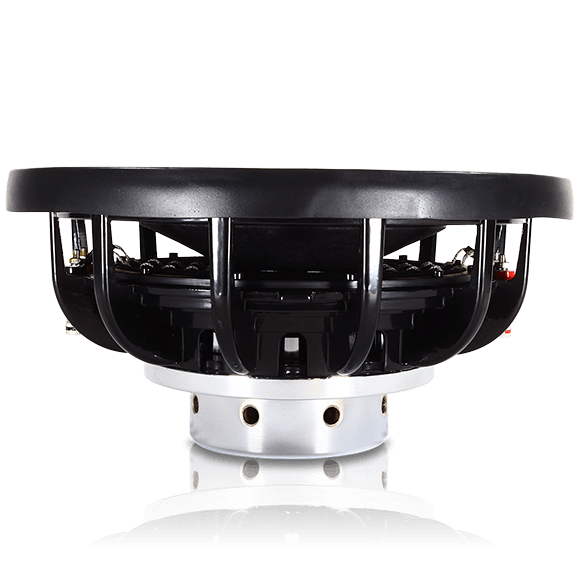

- Patented high-strength cast aluminum frame

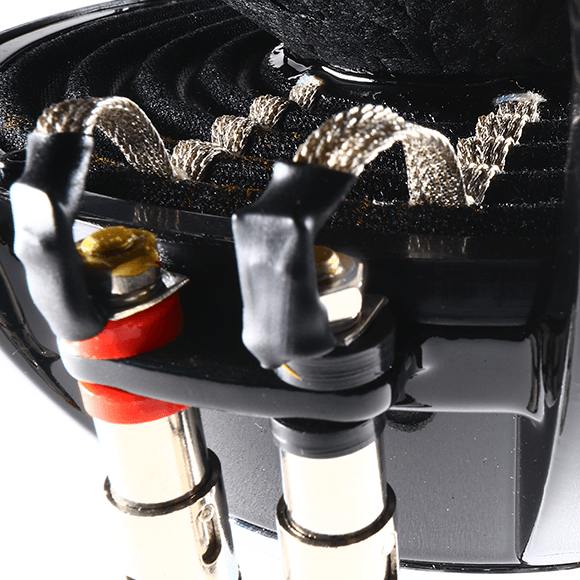

- Spring-loaded terminals with stitched-on tinsel lead wires
Specifications
| RMS Power | 600 Watts |
| Impedance | Dual 2 ohm or Dual 4 ohm |
| Voice Coil | 2" 8-layer copper |
| Motor | Neodymium |
| Surround | Foam "W" |
| Frame | Cast aluminum |
| Recommended Enclosure | Small sealed |
