- RMS Power — 80W x4 @ 4Ω / 130W x4 @ 2Ω
- Class — 4-channel full-range amplifier

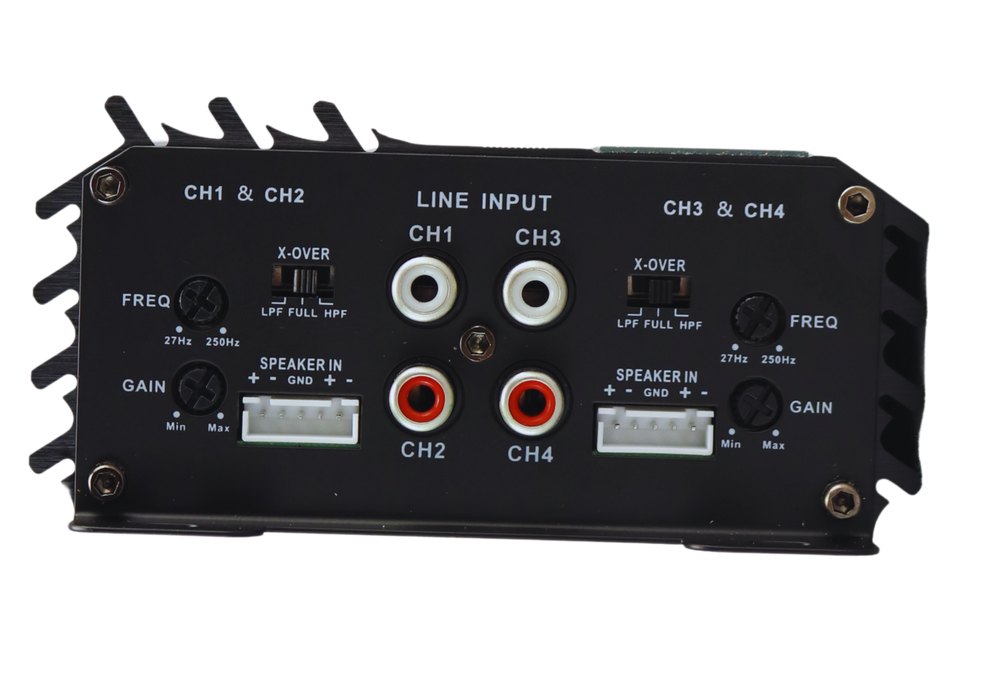

- Crossovers — Adjustable HPF and LPF (27Hz–250Hz) on all four channels
- Inputs — High-level input capability for factory integration
- Protection — Bridgeable with full-range passthrough option
This Listing Includes: (1) Sundown Audio Horizon HZ-80.4 4-Channel Amplifier
The Horizon HZ-80.4 adds clean, controlled power across your mids and highs with 80 watts RMS x4 at 4 ohms, or 130W x4 at 2 ohms. Its compact chassis fits nearly anywhere, and it includes adjustable high and low pass filters (27Hz–250Hz) on all four channels, a full-range passthrough option, and high-level input capability for factory integration. Run it passive or active, or bridge it for bigger loads. Input sensitivity is up to 6V with a 95dB signal-to-noise ratio and a 50A fuse rating. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 80W x4 @ 4Ω, 130W x4 @ 2Ω
- Adjustable high and low pass filters on all four channels
- Full-range passthrough option
- High-level input capability
- Bridgeable for larger loads
Specifications
| RMS Power (4Ω) | 80W x4 |
| RMS Power (2Ω) | 130W x4 |
| High Pass Filter (CH1-4) | 27Hz – 250Hz |
| Low Pass Filter (CH1-4) | 27Hz – 250Hz |
| Input Sensitivity | Up to 6V |
| Signal-to-Noise Ratio | 95dB |
| Fuse Rating | 50A |
| Dimensions | 7.4" x 4.63" x 2.2" |
| Weight | 2.54 lbs (1.15 kg) |
