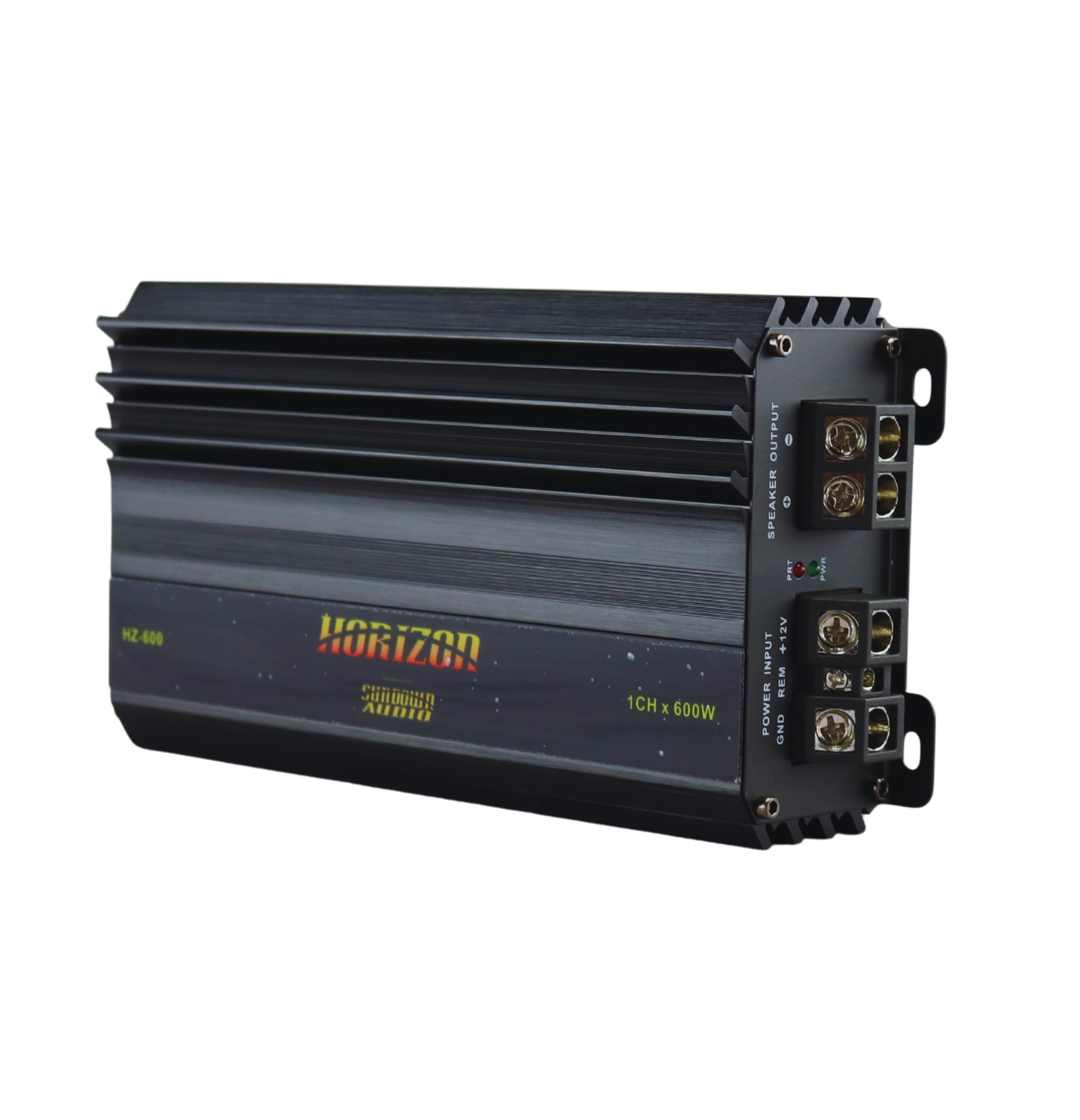

Sundown Audio Horizon HZ-600 600 Watt RMS Monoblock Amplifier
Many in-stock orders ship within 1-2 business days, but timing varies by item. Custom, built-to-order, oversized, special-order and supplier-direct products may need extra processing time. Free shipping applies to qualifying orders over $99 in the contiguous US. Approved returns may be subject to a restocking fee.
Most products are covered by the manufacturer's warranty against defects. Damage from over-powering or improper installation isn't covered — we'll help coordinate any valid claim.
Tell us your vehicle, subwoofers and electrical setup and our team will help you match the right gear. Reach out before you buy.
Subwoofer Wiring Diagram
Select your configuration to view possible wiring combinations.
Loading wiring diagrams…
Diagrams are on our wiring diagram page.
%20and%20subsonic%20(10Hz%E2%80%9350Hz)%0A%0AInputs%20%E2%80%94%20High-level%20input%20capability%20with%20DC%20S...
){kind=link}
- RMS Power — 600W @ 1Ω, 450W @ 2Ω, 250W @ 4Ω
- Class — Class D monoblock amplifier
- Filters — 12dB/oct low pass (50Hz–250Hz) and subsonic (10Hz–50Hz)
- Inputs — High-level input capability with DC Sense turn-on
- Included — Wired remote bass knob
This Listing Includes: (1) Sundown Audio Horizon HZ-600 Monoblock Amplifier
The Horizon HZ-600 is a compact Class D monoblock that pushes up to 600 watts RMS at 1 ohm, 450W at 2 ohms, and 250W at 4 ohms. It features high-level input capability and DC Sense turn-on for factory or aftermarket installs where space is tight. A 12dB/octave low pass filter (50Hz–250Hz) and subsonic filter (10Hz–50Hz) give precise frequency control, while the 4-way protection circuit guards against voltage issues, shorts, thermal overload, and DC offset. It operates from 10.5V to 16.5V with a 60A fuse rating and includes a wired remote bass knob. Authorized Sundown Audio dealer at JS Ultimate Sounds. Free shipping on orders $99+.
Features
- 600W RMS at 1 ohm in a compact chassis
- 12dB/octave low pass and subsonic filters
- High-level input capability and DC Sense turn-on
- 4-way protection circuit
- Included wired remote bass knob
Specifications
| RMS Power (1Ω) | 600W |
| RMS Power (2Ω) | 450W |
| RMS Power (4Ω) | 250W |
| Low Pass Filter | 50Hz – 250Hz (12dB/Oct) |
| Subsonic Filter | 10Hz – 50Hz (12dB/Oct) |
| Input Sensitivity | Up to 6V |
| Signal-to-Noise Ratio | 95dB |
| Operating Voltage | 10.5V – 16.5V |
| Fuse Rating | 60A |
| Dimensions | 9" x 4.63" x 2.2" |
| Weight | 2.78 lbs (1.26 kg) |
